Shower Glass Sliding Door 3D model

License: Royalty Free

author:

droumbas

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «droumbas». CGhub does not claim copyright ownership over the content used.

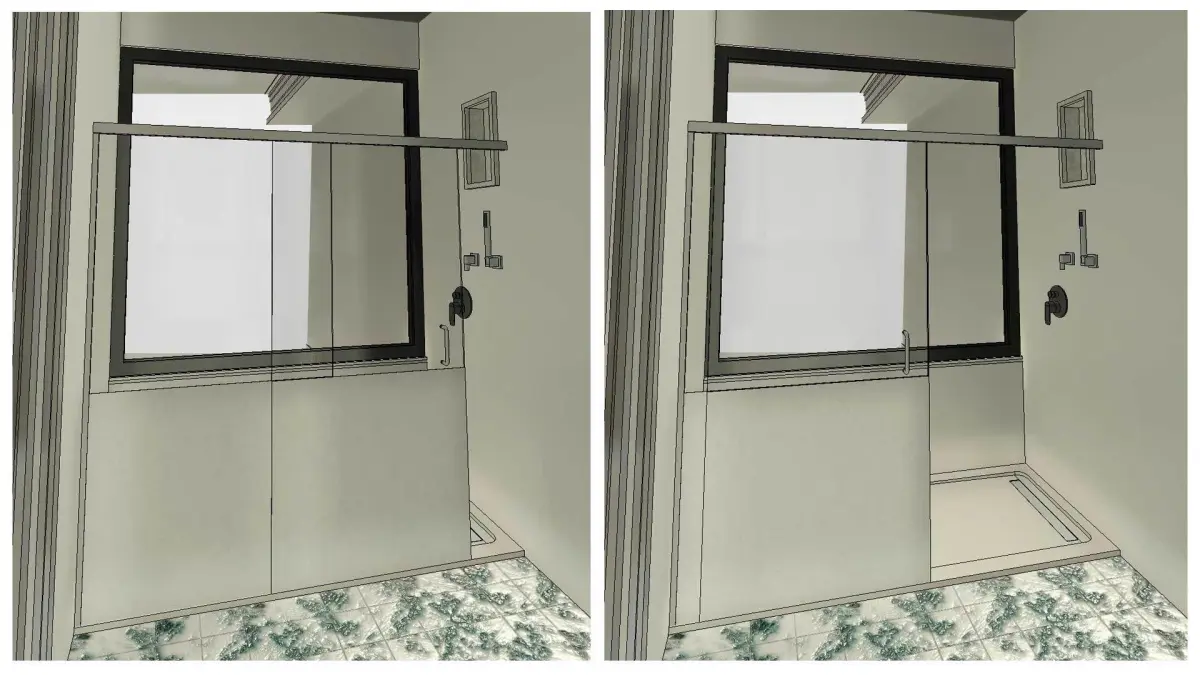

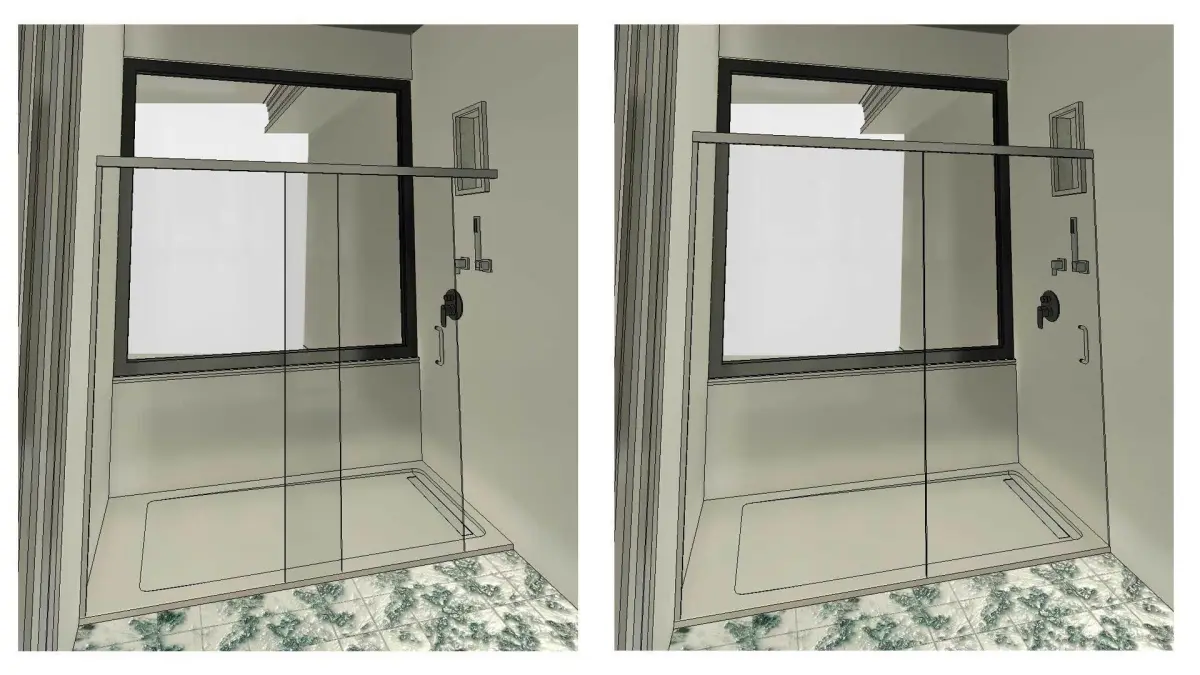

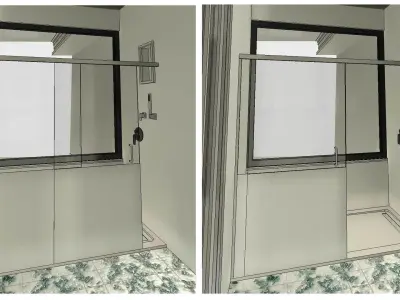

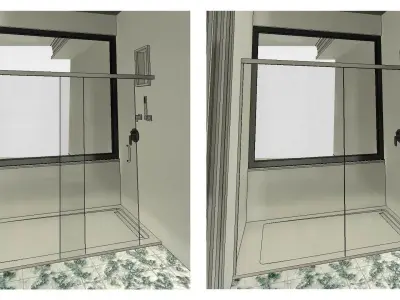

Fully Parametric Shower Glass Sliding Door revit family. This is a fixture generic model, that can be placed almost everywhere with an elevation from level parameter to adjust the installation position onto the shower tray or on the floor. Door can be flipped on both axes to match any design criteria and it is fully parametric. Almost all features of this family model can be adjusted by the user.

ATTRIBUTES:

Revit Version : 2022
Family Type : Generic Model
File Extension : .rfa

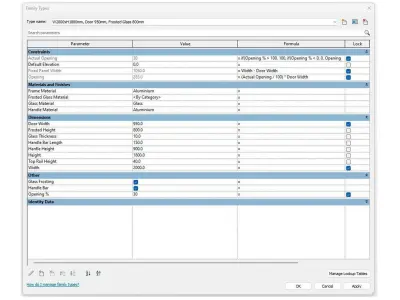

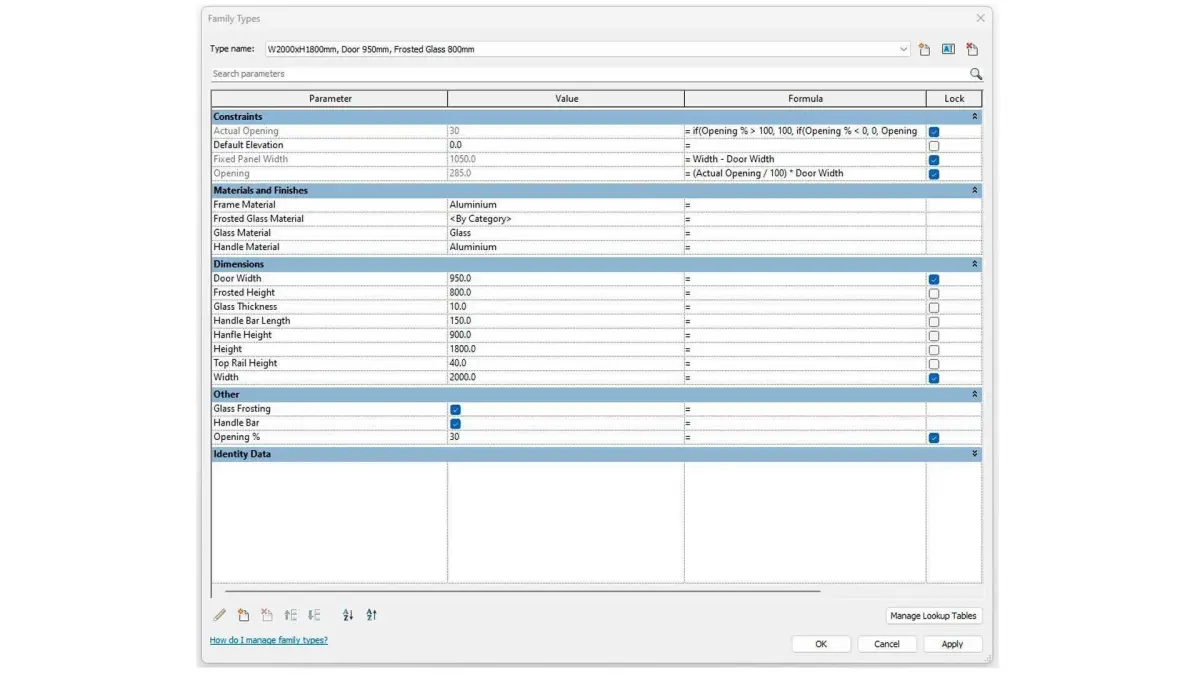

PARAMETERS:

Overall Width
Sliding Door Panel Width
Height
Top Guide Rail Height
Handle Option ON/OFF
Handle bar elevation
Handle bar length
Glass Thickness
Glass Frosting Option ON/OFF
Glass Frosting Height
Door open % graphical representation parameter
Elevation from level
All materials are parametric

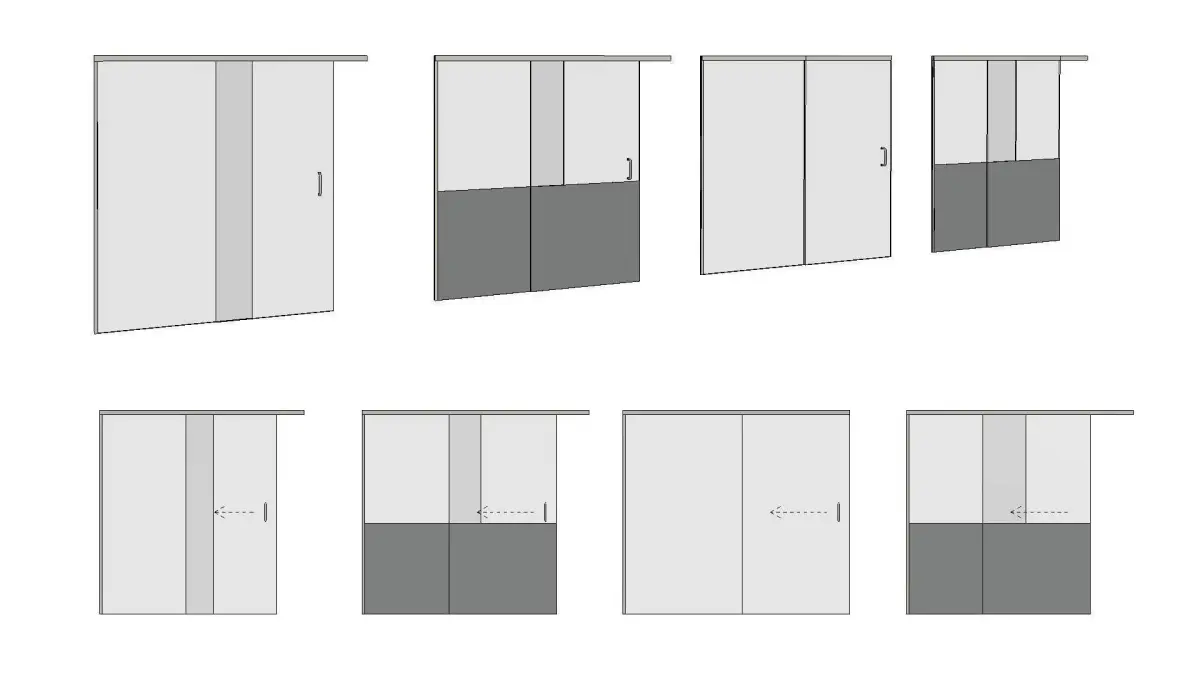

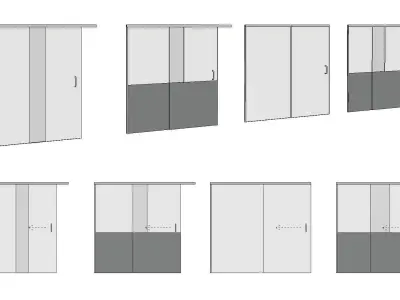

FAMILY TYPES :

W1800xH1700mm, Frosted 800mm, Handle, Door 800mm
W1800xH1700mm, No Frosted, No Handle, Door 800mm
W1600xH1700mm, Frosted 900mm, Handle, Door 750mm
W1200xH1600mm, No Frosted, Handle, Door 600mmUser can create as many family types needed to match any design criteria
