Product Description:
Looking for a bold, high-quality jewelry design ready for production? This Men's Rectangular Signet Ring is a professionally engineered CAD model, designed in Matrix Gold, ensuring perfect geometry and printability.

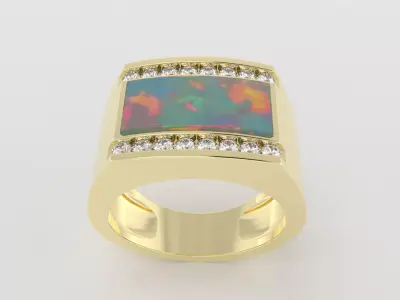

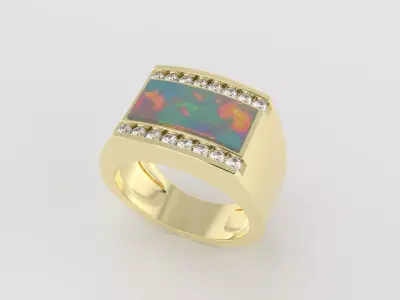

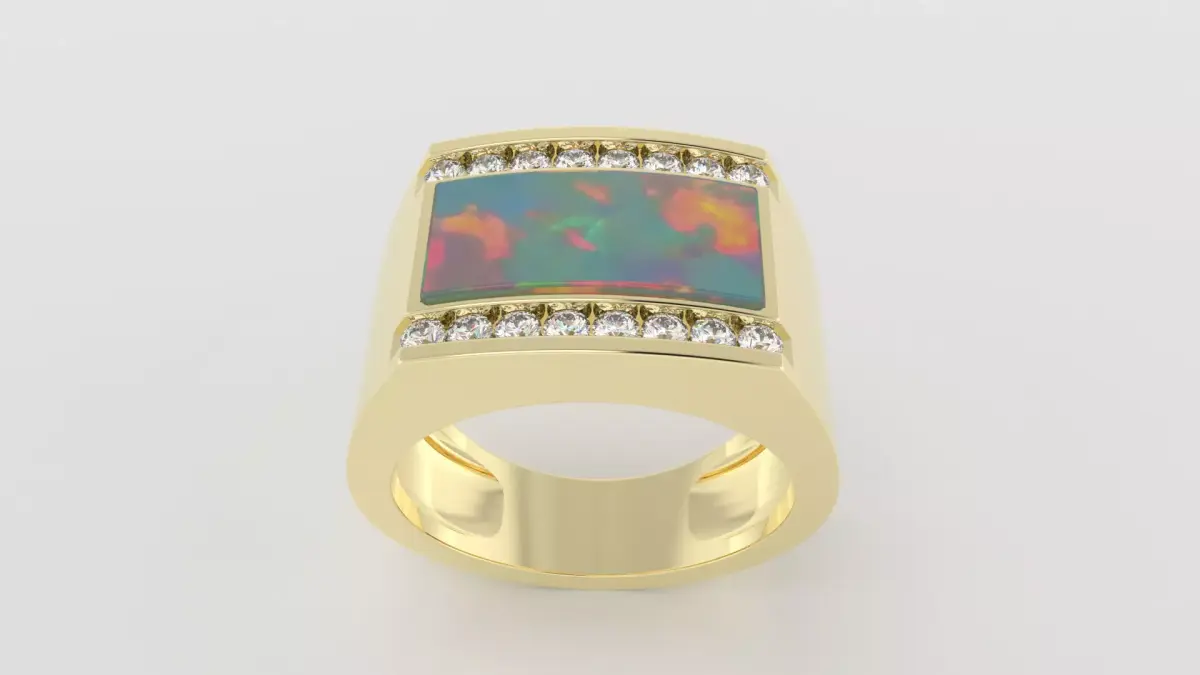

This sophisticated men's ring features a modern rectangular face tailored for a striking center stone (Opal, Onyx, or flat Gemstone). The design is elevated by two rows of channel-set round brilliant diamonds (or moissanite) flanking the center stone, adding a touch of luxury without compromising the masculine aesthetic. The shank is solid and tapered for a comfortable fit.
Files Provided:
.3dm (Rhino/Matrix Gold source file)
.stl (High-quality mesh, ready for 3D printing/prototyping)
.obj (For rendering or other 3D software)
Technical Specifications (Based on CAD data):

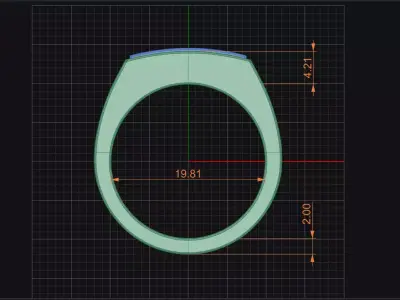

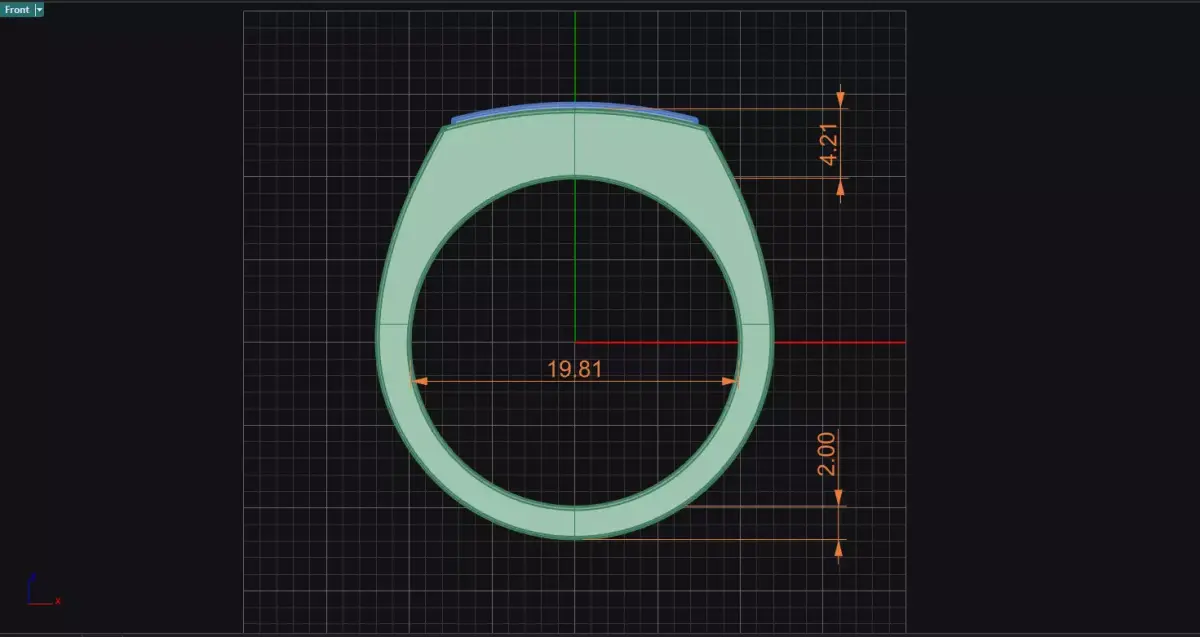

Ring Size: Inner Diameter 19.81 mm (Approx. US Size 10 / EU Size 62).
Center Stone: Designed for a rectangular flat cabochon or inlay stone.
Stone Slot Width: Approx. 7.08 mm.
Stone Slot Length: Approx. 14.8 mm.
Accent Stones: Round Brilliant Cuts (Channel/Pave set).
Upper Row: ~9 stones.
Lower Row: ~9 stones.

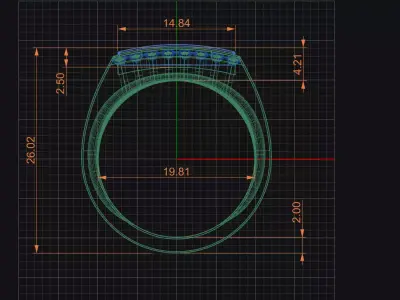

Ring Dimensions:

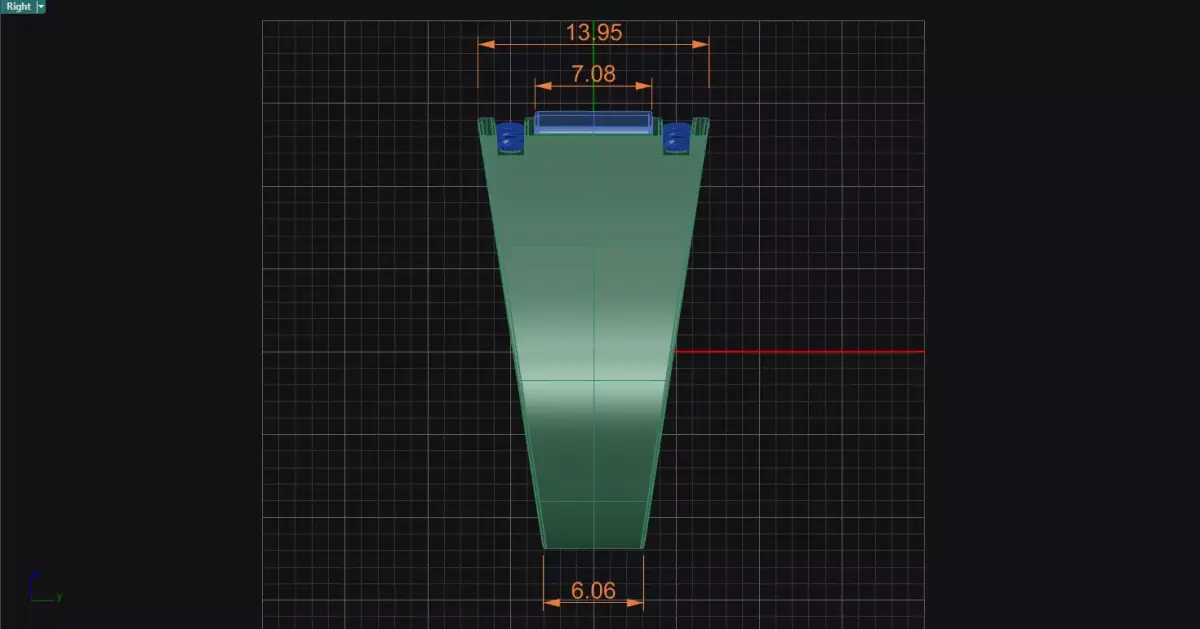

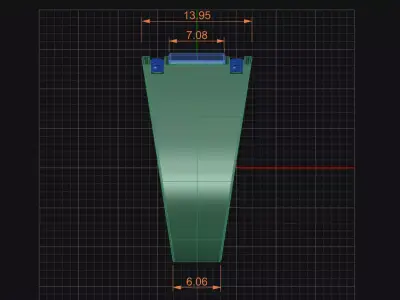

Top Face Length (along finger): 13.95 mm.
Top Face Width (across finger): 14.84 mm.
Total Height: 26.02 mm.
Shank Width (bottom): 6.06 mm.
Shank Thickness (bottom): 2.00 mm.
Manufacturing Notes:
Print Ready: The STL file is watertight and checked for errors.
Production Friendly: Prongs and channels are pre-cut for easier setting. The shank thickness (2mm) allows for easy resizing or polishing without losing structural integrity.
Metal Weight: (You can estimate this in Matrix Gold and fill it in here, e.g., Approx. 15g in 14K Gold).
Technical Quality Guarantee:
Mesh Integrity: Valid, Closed Mesh (Watertight).
Diagnostics: 0 Naked Edges, 0 Non-manifold Edges, 0 Self-intersecting Faces.
Checked with: Rhino/Matrix Gold Geometry Check.
Native Formats: 3DM (Rhinoceros 3D, filesize: 11.9 MB)
Exchange Formats: OBJ (OBJ, filesize: 14.8 MB), FBX (Autodesk FBX, filesize: 1.03 MB), STL (Stereolithography, filesize: 4.17 MB), JPG (JPG, filesize: 2.5 MB)
