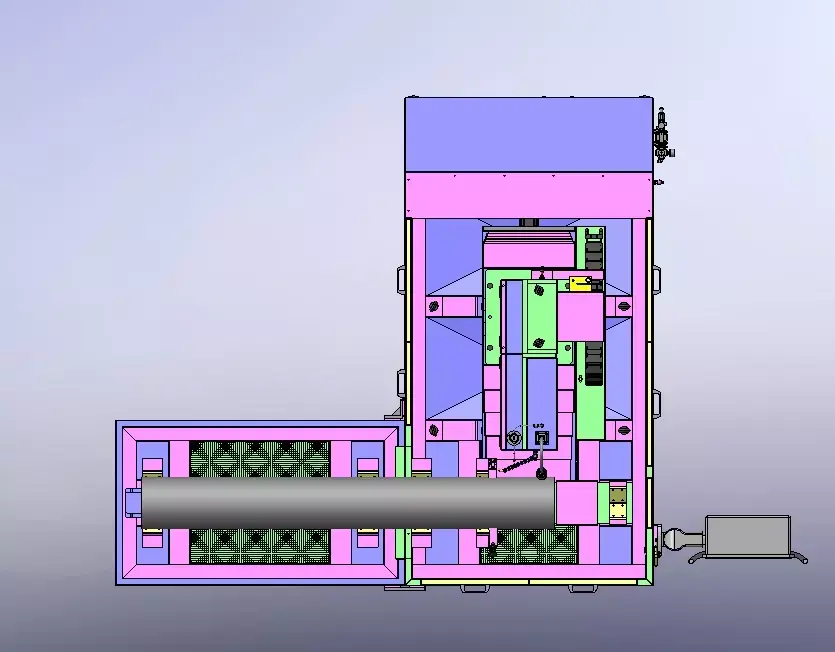

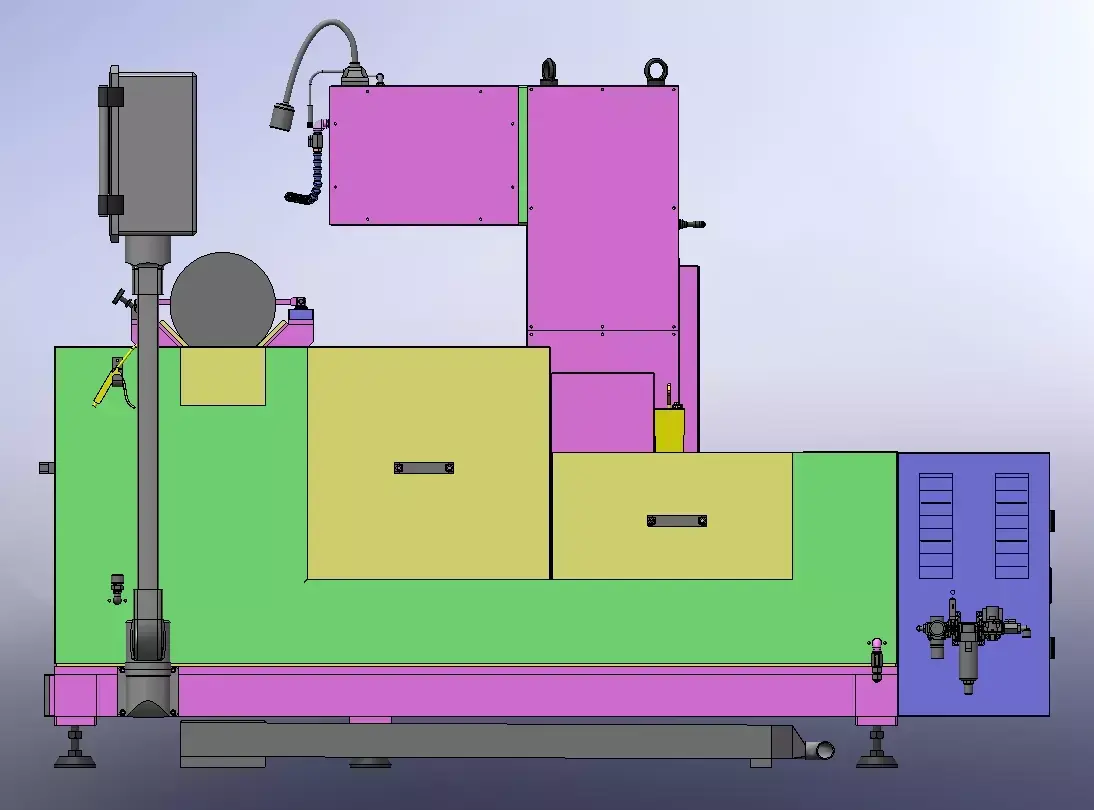

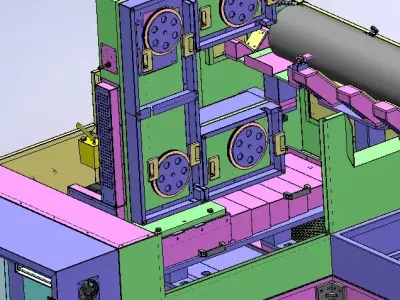

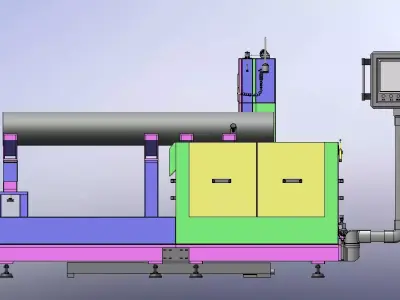

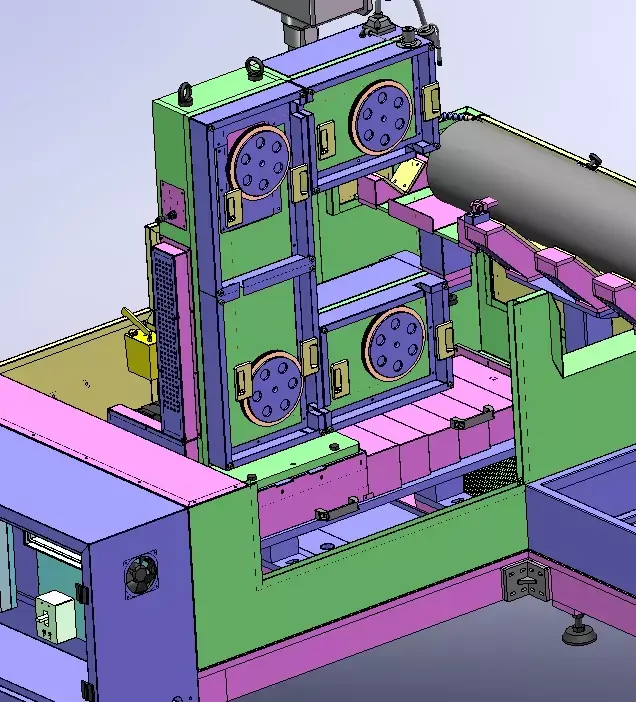

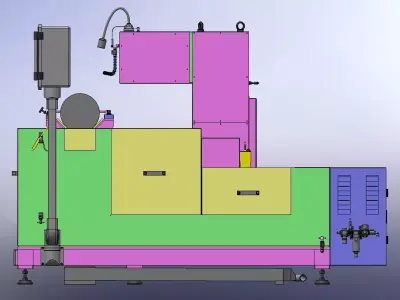

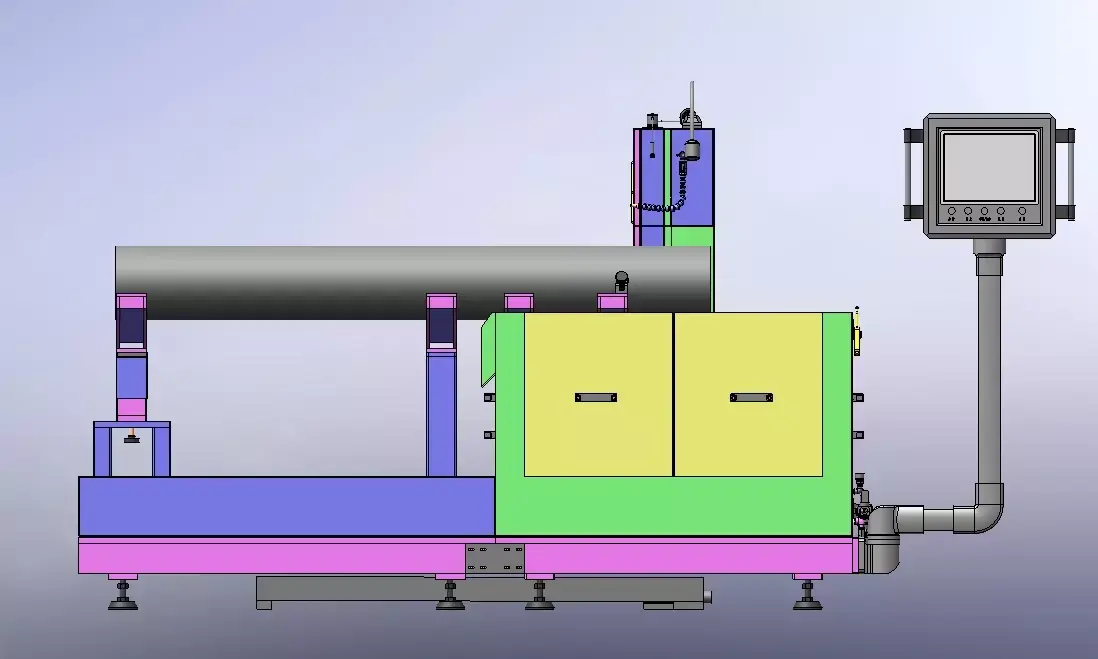

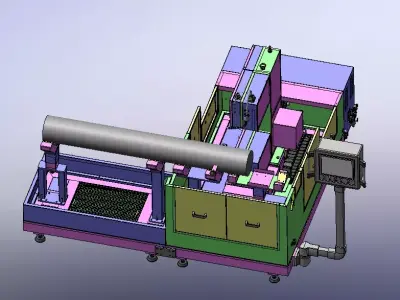

Device DescriptionThis device is a Ring Diamond Wire Silicon Rod Cutter specifically designed for the fixed-length cutting of monocrystalline and polycrystalline silicon rods in the photovoltaic industry. It utilizes a high-speed ring diamond wire as the core cutting tool, driven by a precision linear motion system to perform high-precision, low-loss cutting on large-diameter silicon rods.Core Structure: The equipment main body consists of a machine bed, multiple sets of V-shaped support brackets for accurate positioning and clamping of silicon rods, a ring diamond wire cutting drive unit, an operation control console, and a supporting cooling & chip removal system. Silicon rods are firmly supported on V-shaped support blocks to ensure no deviation or shaking during cutting.Cutting Principle: The ring diamond wire runs at high speed, utilizing the micro-grinding effect of the wire to complete the silicon rod cutting. Compared to traditional blade saw cutting, it features a narrow kerf, low material loss, a smooth cut surface, and no chipping, effectively improving the yield of silicon wafers.Functional Features: The operation console can real-time monitor and set parameters such as cutting length, feed speed, and wire tension. It meets the fixed-length cutting requirements of silicon rods with different diameter specifications, and is widely used in the upstream silicon rod processing links of the photovoltaic silicon wafer industry.
SLDPRT (SolidWorks, filesize: 101 MB), X_T (Parasolid, filesize: 34.1 MB), SAT (3D ACIS, filesize: 144 MB)
