Publication date: 2023-01-06

SIMPLE STEAM PLANEARY GEAR 3D print model

$3

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

dMarks

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «dMarks». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $3 Add to Wishlist
  • Description

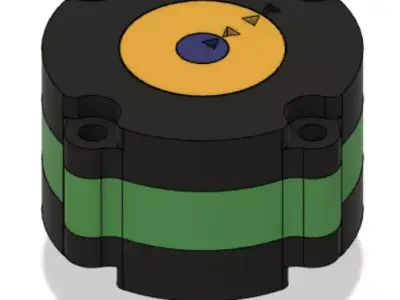

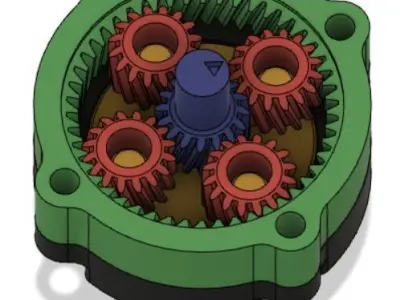

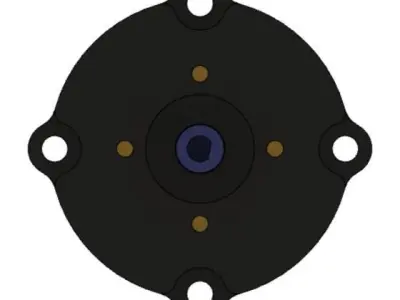

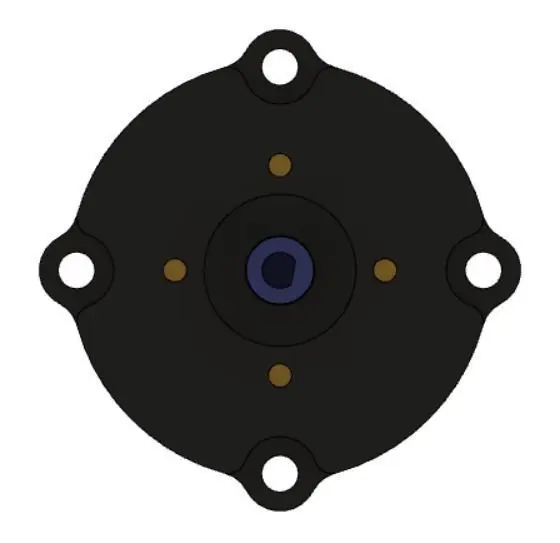

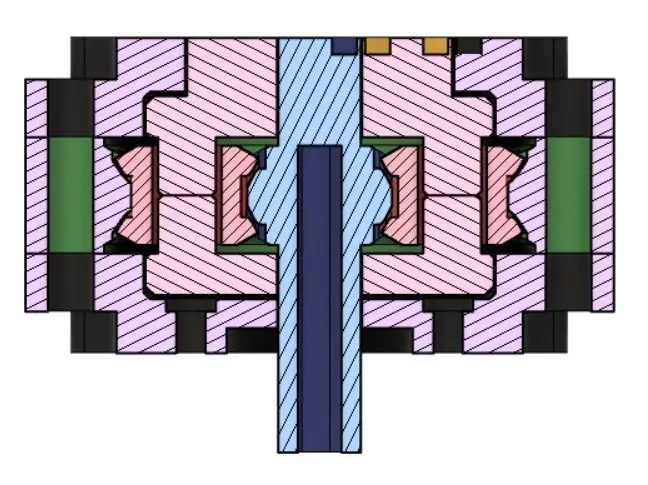

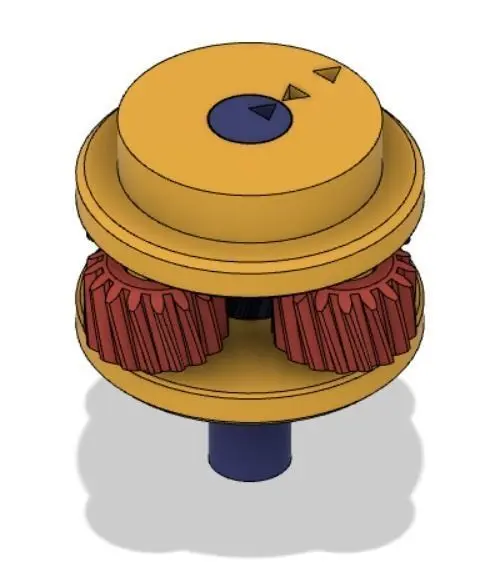

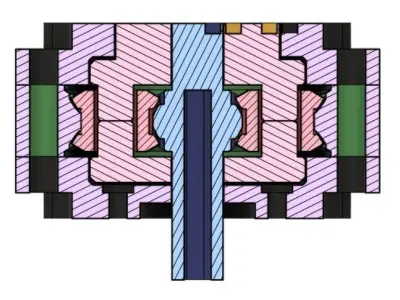

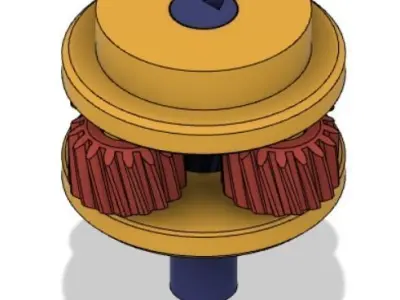

This planetary gear is a STEAM education tool, used to show the different parts, the assembly process and how the transmission ratio works.This is a bearingless version, 4 M5x30 bolts needed for the structure.Back piece compatible with a Nema 17 stepper motor.Transmission ratio: 1:4.

Layer height: 0.32Infill: 25%Support: YesRaft: No

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Planetary Gears Steam Stem Education Science Mechatronics Robotics Nema17 Stepper Engineering
