Simple Truss work - 40 x 45 Tubular shed - 20 ft height 3D model
Simple Truss work - 40 x 45 Tubular shed - 20 ft height 3D model

Publication date: 2024-07-20

Buy Simple Truss work - 40 x 45 Tubular shed - 20 ft height 3D model

$35

License: Royalty Free

author:

mechengineer2014

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «mechengineer2014». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $35 Add to Wishlist
  • Description
  • Formats

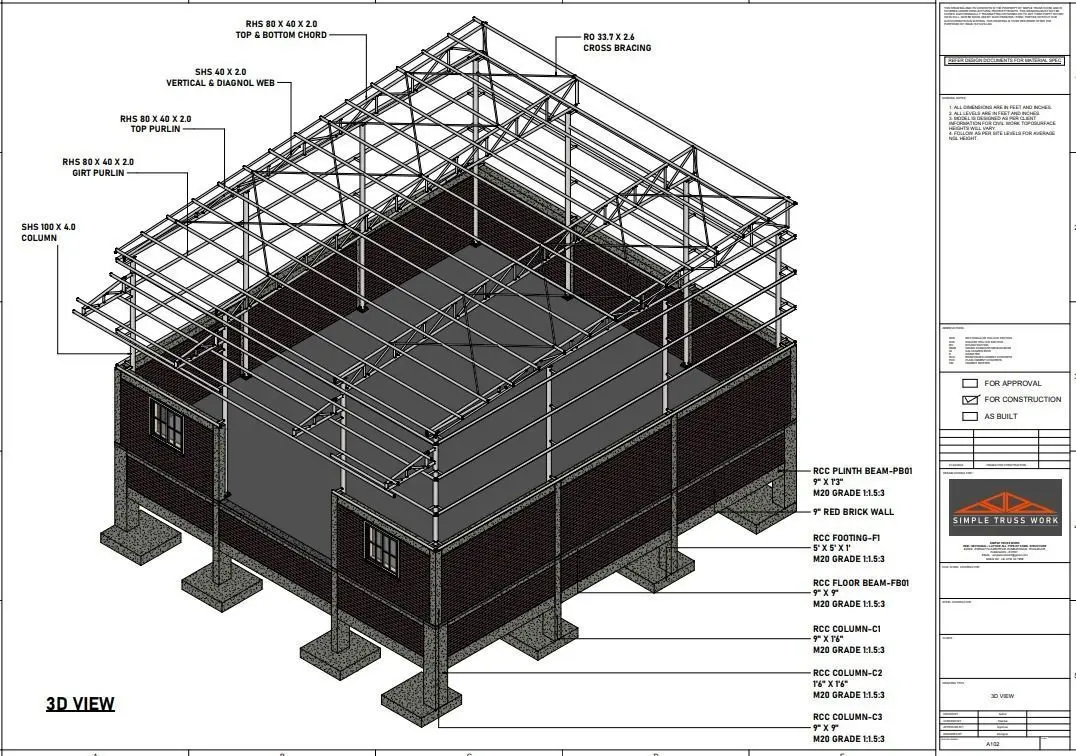

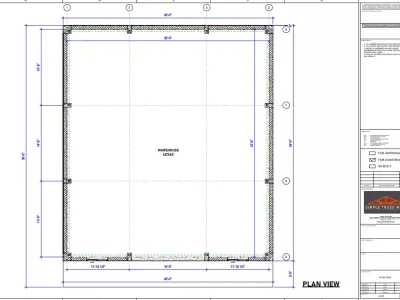

Size - 40 x 45 ftEave side height - 20 ftTop ridge height - 23 ftBasement height - 5 ftWall height - 8 ftType of foundation - Isolated foundationType of Shed - Tubular shed Single slope Sheet - 0.50mm PPGI sheetFan - Turbovent with polybase - 6 Nos6MM thick ploycarbonate sheet

PDF (PDF, filesize: 6.74 MB), RFA (Autodesk Revit, filesize: 11.6 MB)
