Publication date: 2014-11-11

Download SimScale Truck Underrun Protection Challenge Free 3D model

free

License: Royalty Free No Ai

author:

armin-yousefi-kanani

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «armin-yousefi-kanani». CGhub does not claim copyright ownership over the content used.
Download at www.cgtrader.com Add to Wishlist
  • Description
  • Formats

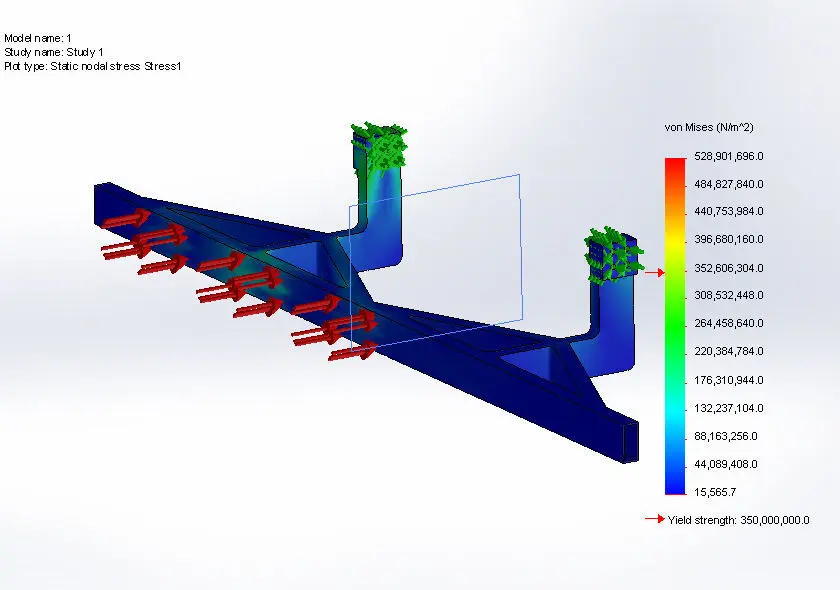

HI everyonei didn't change model a lot as in this situation safety is very importantvon Mises stress field of my design under P1 P2 P3 load case

weight=89kgsimscaledeformation= 1.87e-3Allowed maximum von Mises stress 3.05e+8 <3.5 e+8

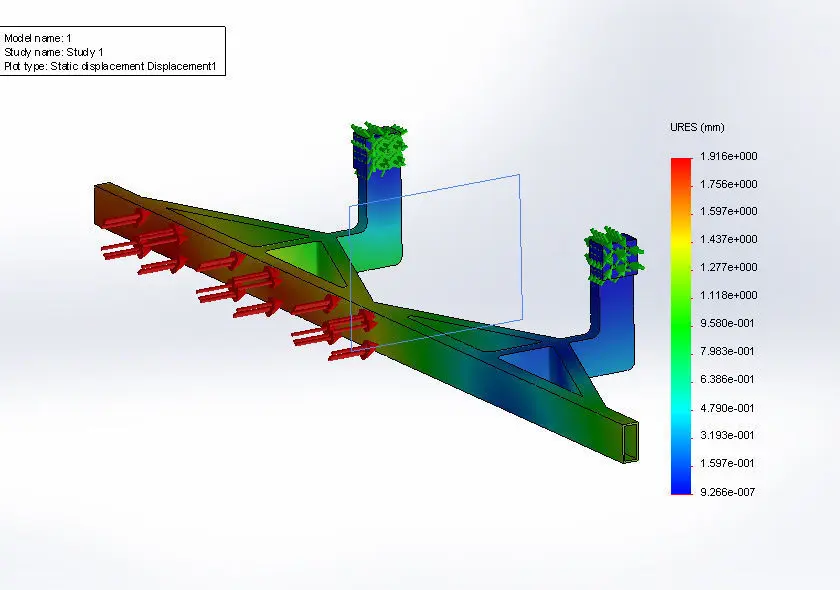

solidworksweight=89kgi have given AISI1020 coll rolled as materialmax deformation = 1.916 mmAllowed maximum von Mises stress = 350 smaller than 355

OTHER (Other, filesize: 243 KB)
