Single Column Solar Construction Type-3 3D model
Home Catalog Single Column Solar Construction Type-3 3D model
Single Column Solar Construction Type-3 3D model
Single Column Solar Construction Type-3 3D model
Single Column Solar Construction Type-3 3D model
Single Column Solar Construction Type-3 3D model
Single Column Solar Construction Type-3 3D model

Publication date: 2024-12-04

Single Column Solar Construction Type-3 3D model

$38

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $38 Add to Wishlist
  • Description
  • Formats

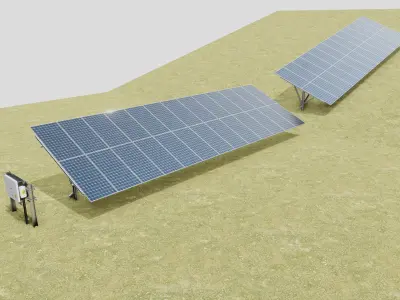

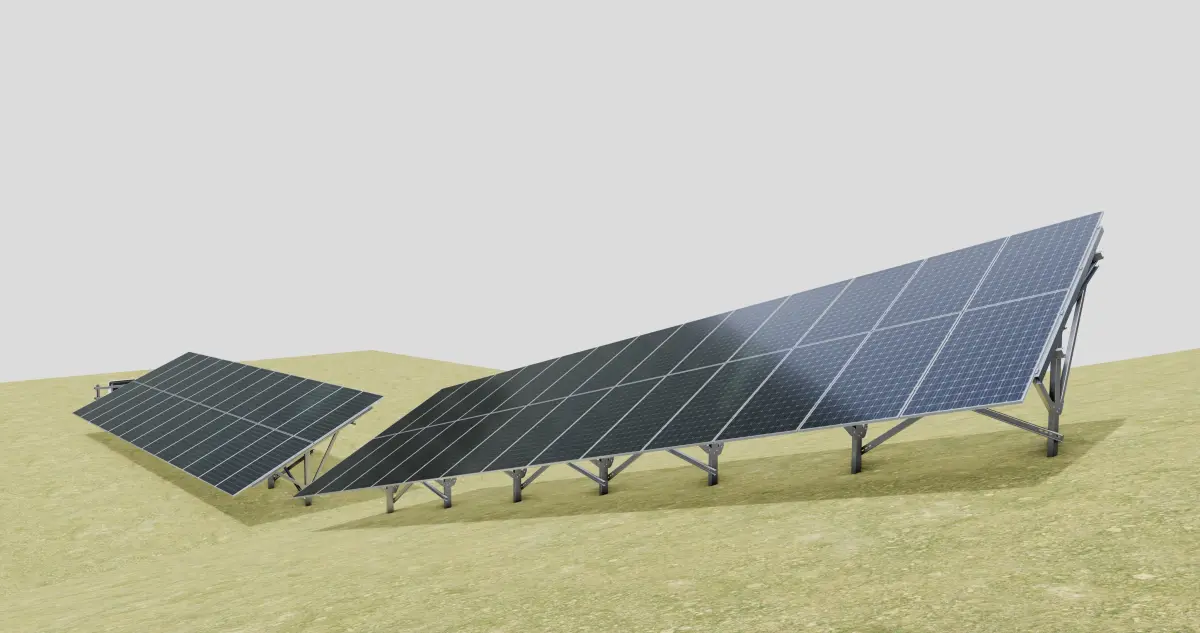

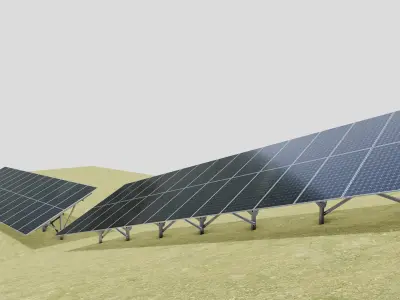

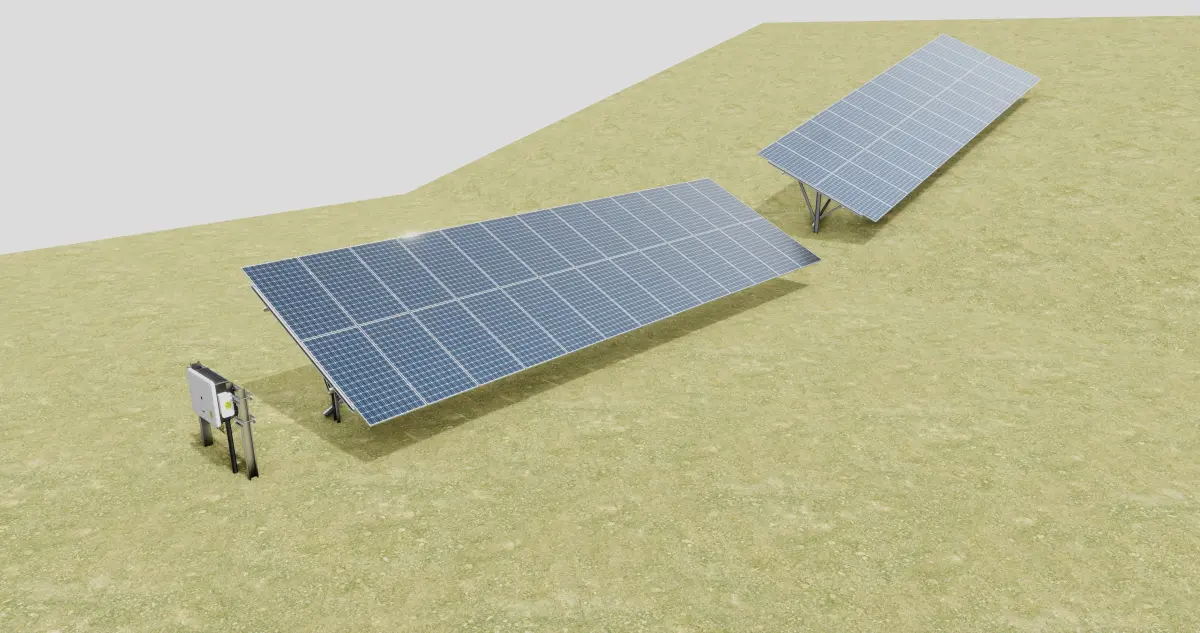

Single Column Solar Construction Type-3

2x13 Vertical Solar Glass Panel Layout

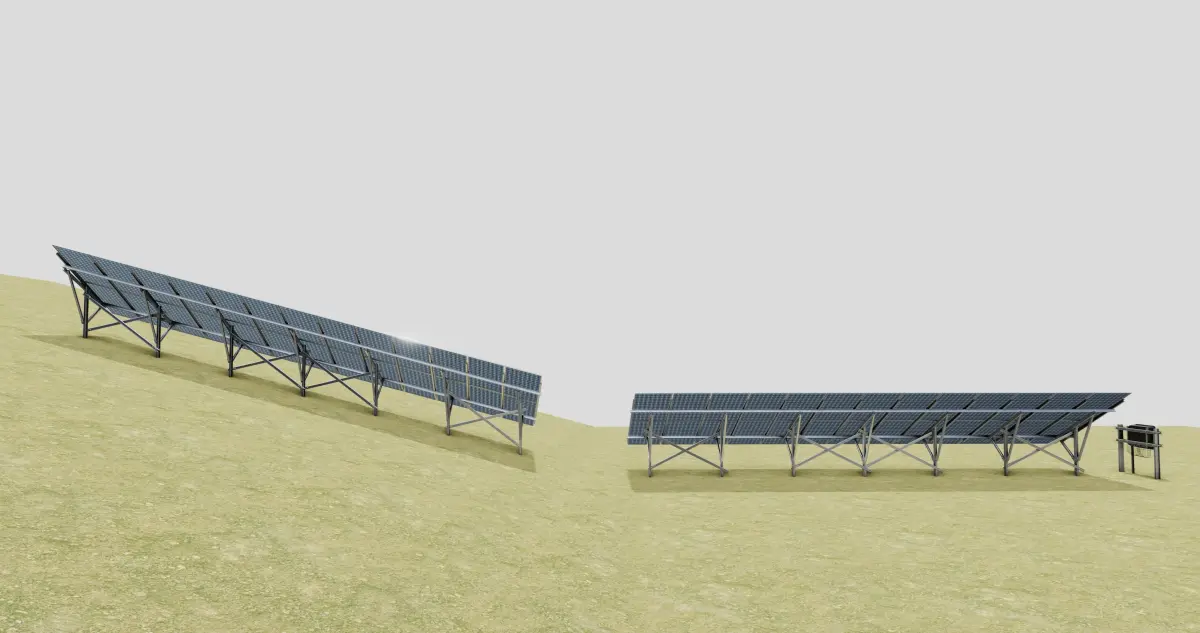

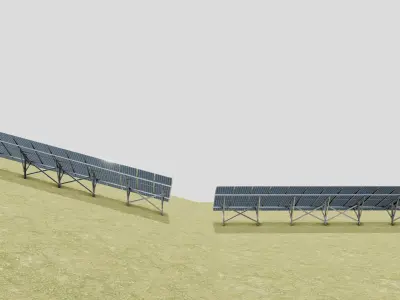

  • 1 Table for a Flat Ground
  • 1 Table for 15 Degree Inclined Ground in East-West Direction

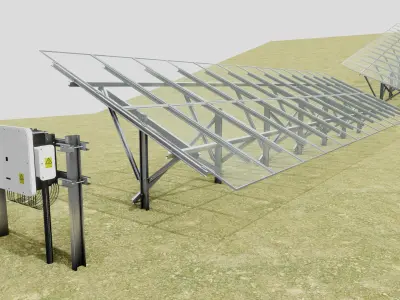

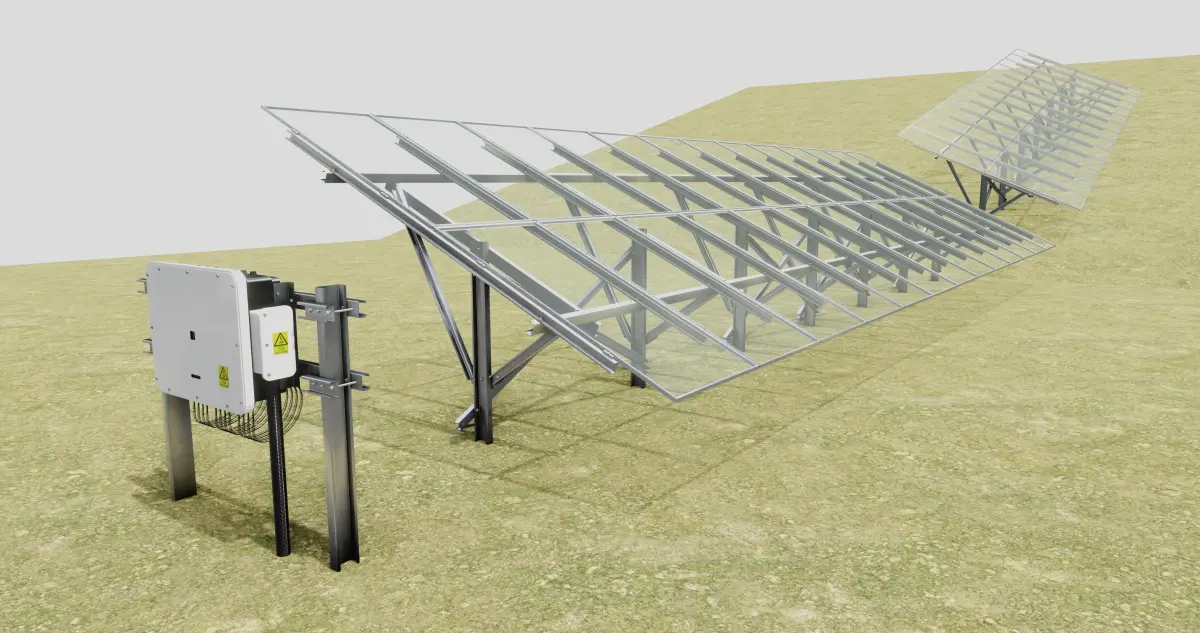

  • Indipendent Inverter Conneciton Stand

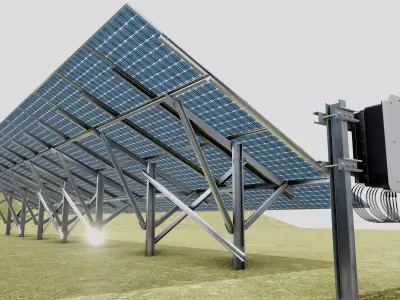

Ground Connection Type; Steel Pile Driving

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 28,6 kWp power in 1 hour

The system consists of 7 axles and the distance between each axle is 2300 mm.

Horizantal angle of panel 25°

The closest distance of the panels to the floor 800 mm.

Prepared With BLENDER Version 4.0.1

Polygons : 680621

Vertices : 993736

Objects : 2090

Native Formats: BLEND (Blender, filesize: 95 MB) Exchange Formats: OBJ (OBJ, filesize: 128 MB), FBX (Autodesk FBX, filesize: 68.7 MB), JPG (JPG, filesize: 93.9 MB), PNG (PNG, filesize: 81.9 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 680621
  • Vertices: 993736

Tags

Solar Ground Mounting Panel Energy Sun Construction Beam Column Purlin Aluminum Structure Outdoor Engineering Buildings Blender Architectural
