Fully parametric Revit family for a single-door base cabinet, built to UK standards and ready for residential interiors.
Main Features:

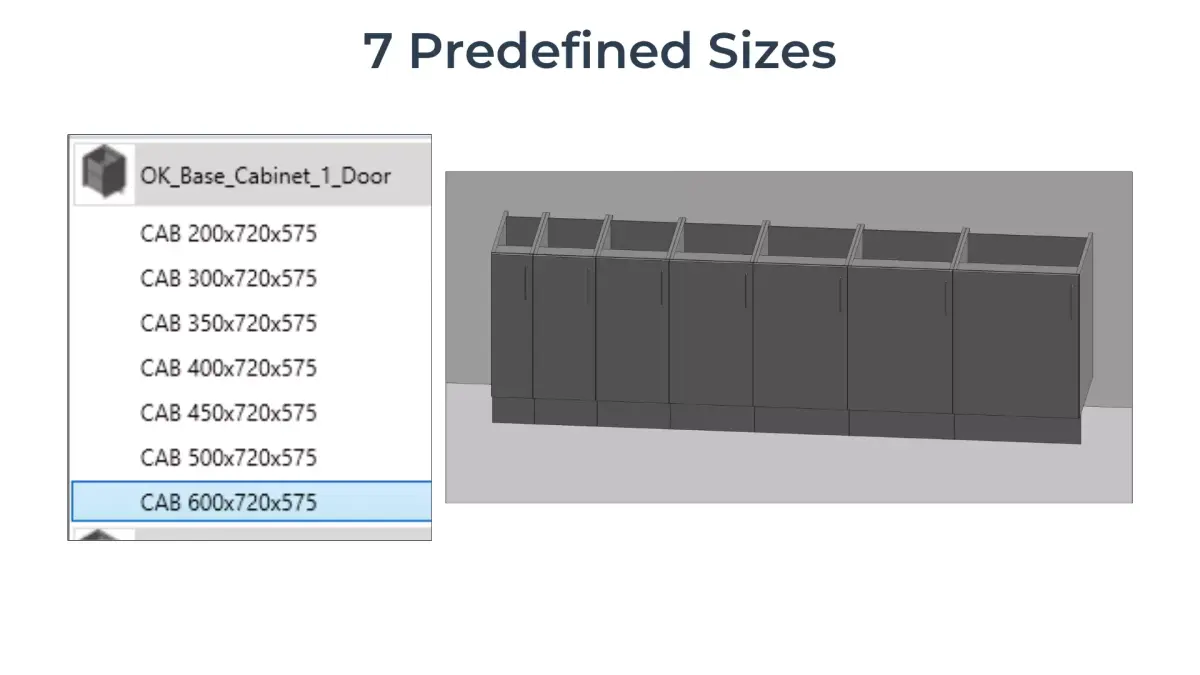

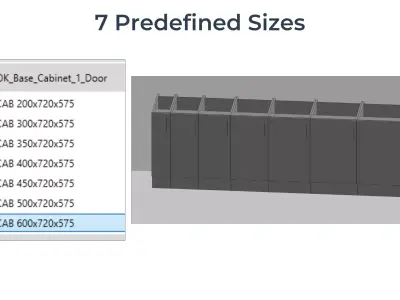

- 7 predefined sizes included

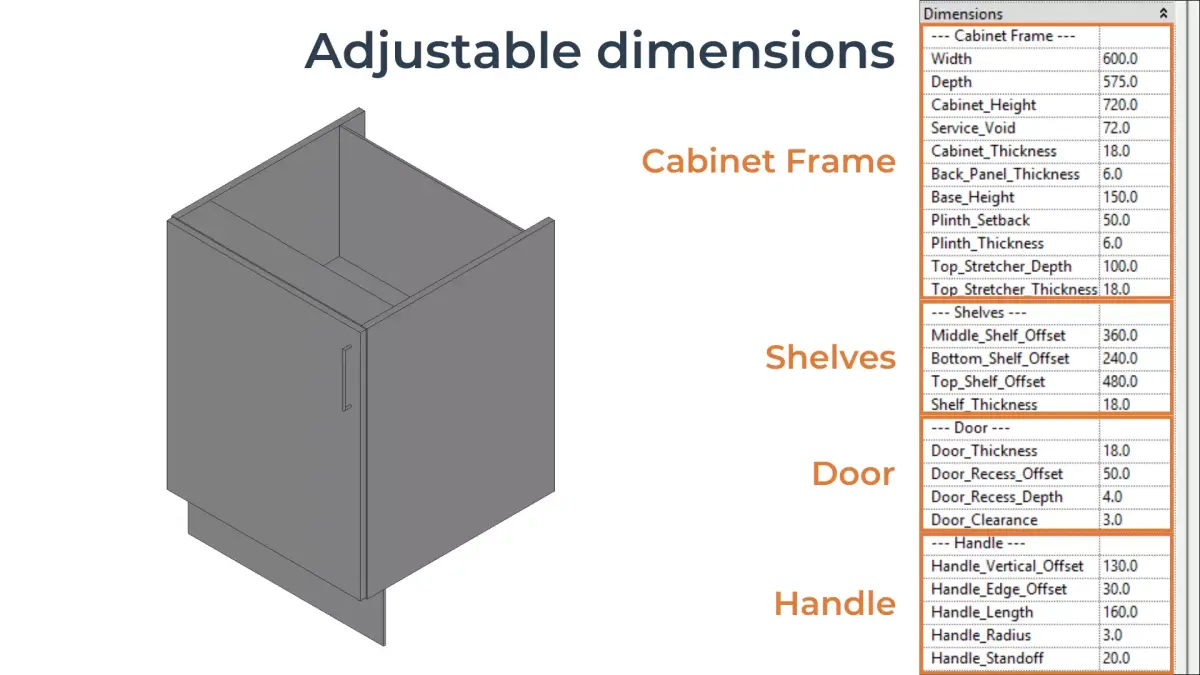

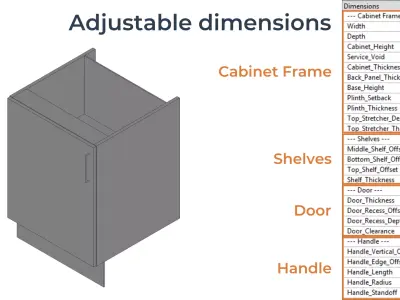

- Adjustable dimensions for cabinet frame, door, shelves, and handle
- Switch easily between left- and right-handed setups

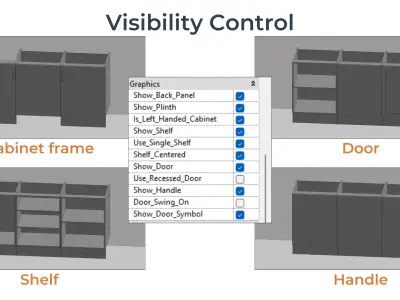

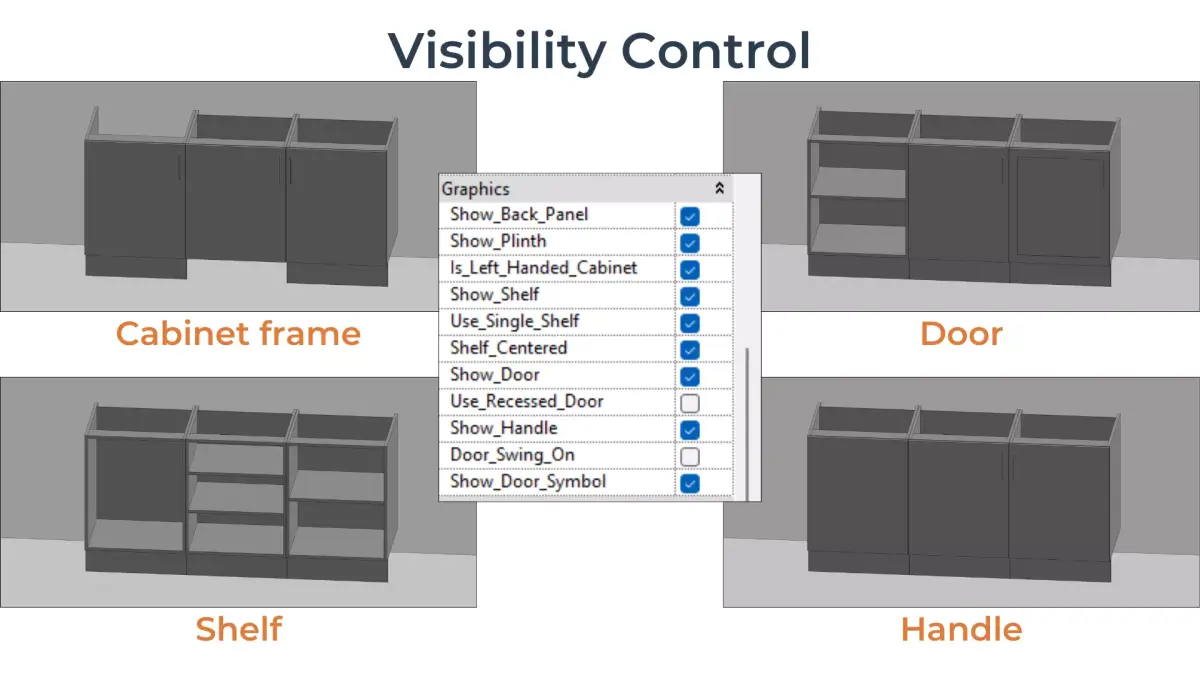

- Visibility controls for back panel, plinth, shelf, door, and handle
- Switch easily between single and double shelf setup
- Switch easily between slab and recessed door panels

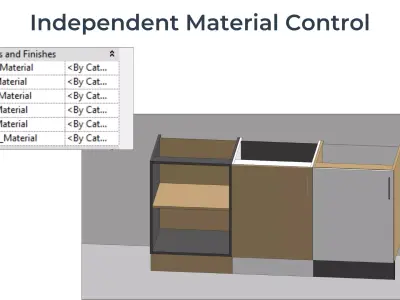

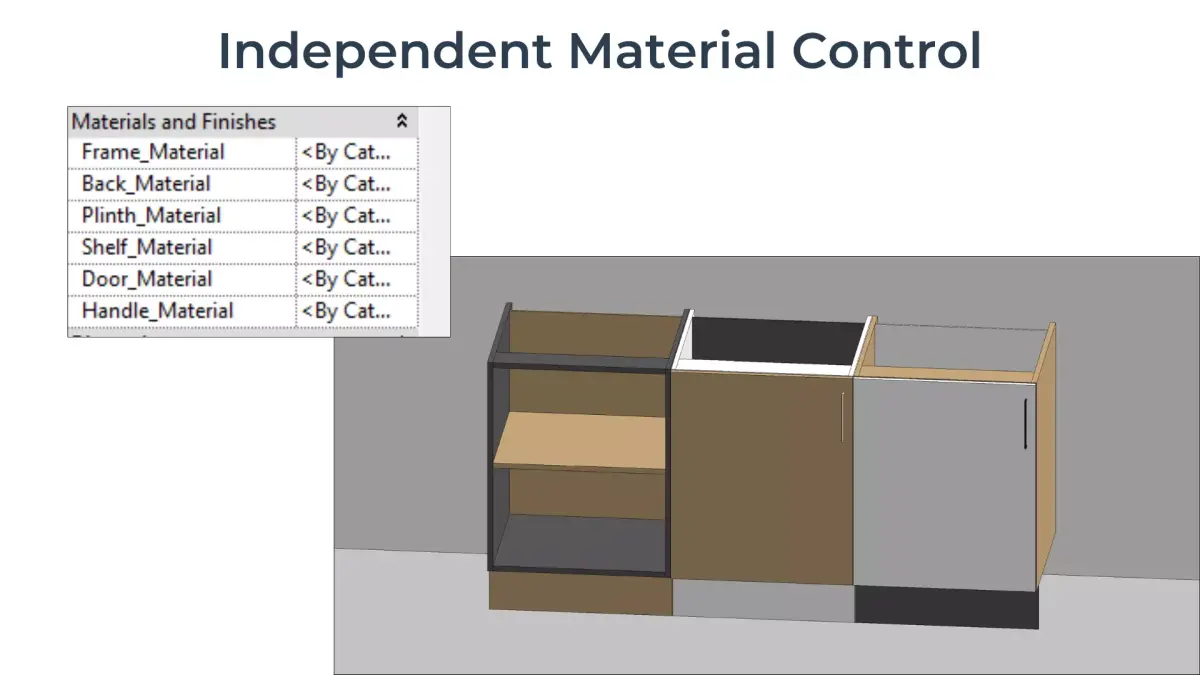

- Editable materials for cabinet frame (incl. top stretcher), back panel, plinth, shelf, door front, and handle
- Independent visibility for swing arcs and door side indicators. Based on the cabinet orientation, the correct left or right symbols will be shown automatically.
Why Choose This Family?
- Created from scratch using Revit best practices
- No cleanup needed - just load and start using
- Easy to edit in the Family Editor - clean reference planes, named parameters, and tooltips for quick adjustments
- Includes a simple user guide for quick setup
Compatibility & Details:
- Format: .RFA (Revit family)
- Family File Size: 877 KB
- Sizes: All key dimensions are fully editable
- Revit Version: Created in Revit 2023 (not backward-compatible)
- Units: Metric (millimetres)
- Use: Residential and commercial interiors
More Revit families available here:https://www.cgtrader.com/designers/revitfams
This family is part of the Revit Kitchen Core Families Collection:https://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-kitchen-base-cabinet-bundle-6-units
RFA (Autodesk Revit, filesize: 2.1 MB), MAX (Autodesk 3ds Max, filesize: 2.1 MB), PDF (PDF, filesize: 2.1 MB)
