Single track cutting mechanism 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

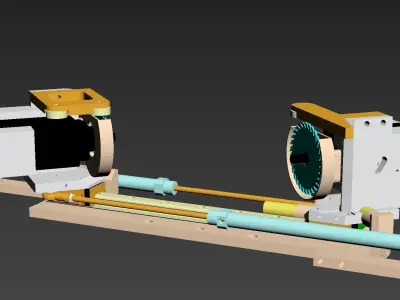

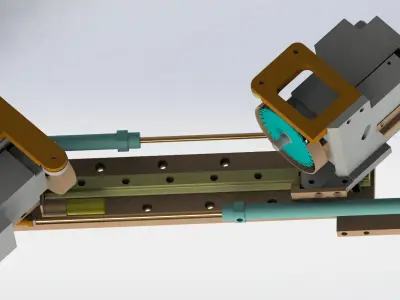

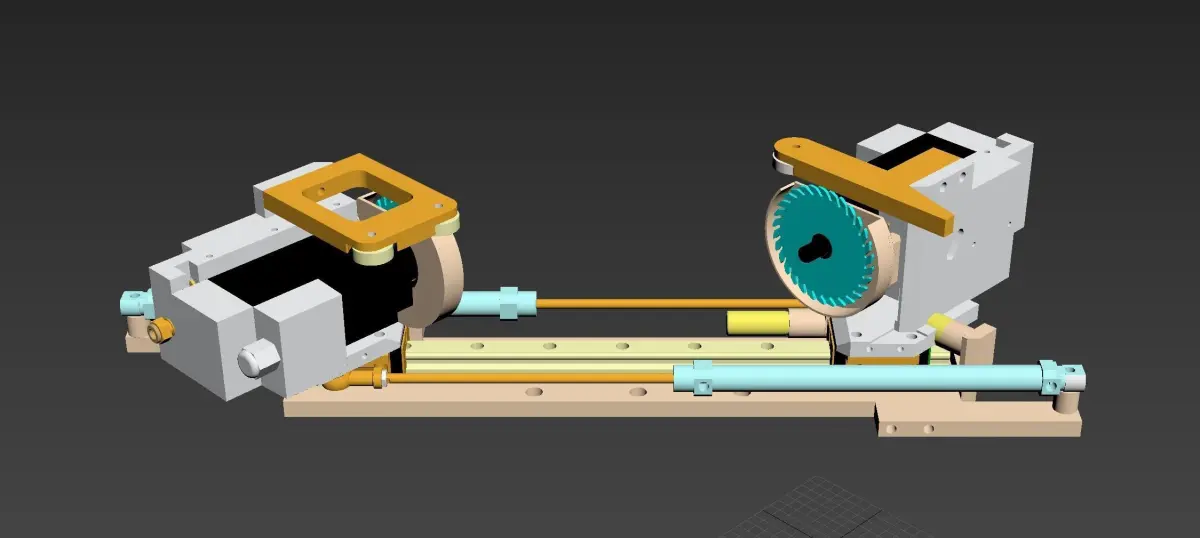

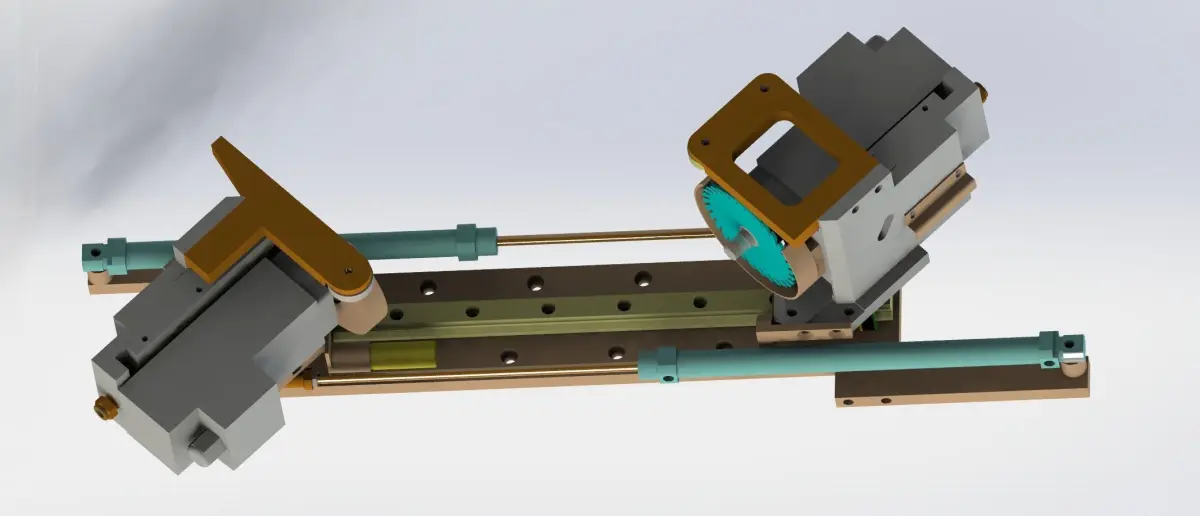

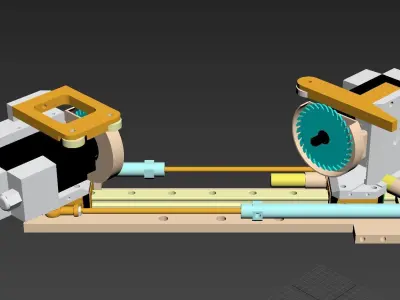

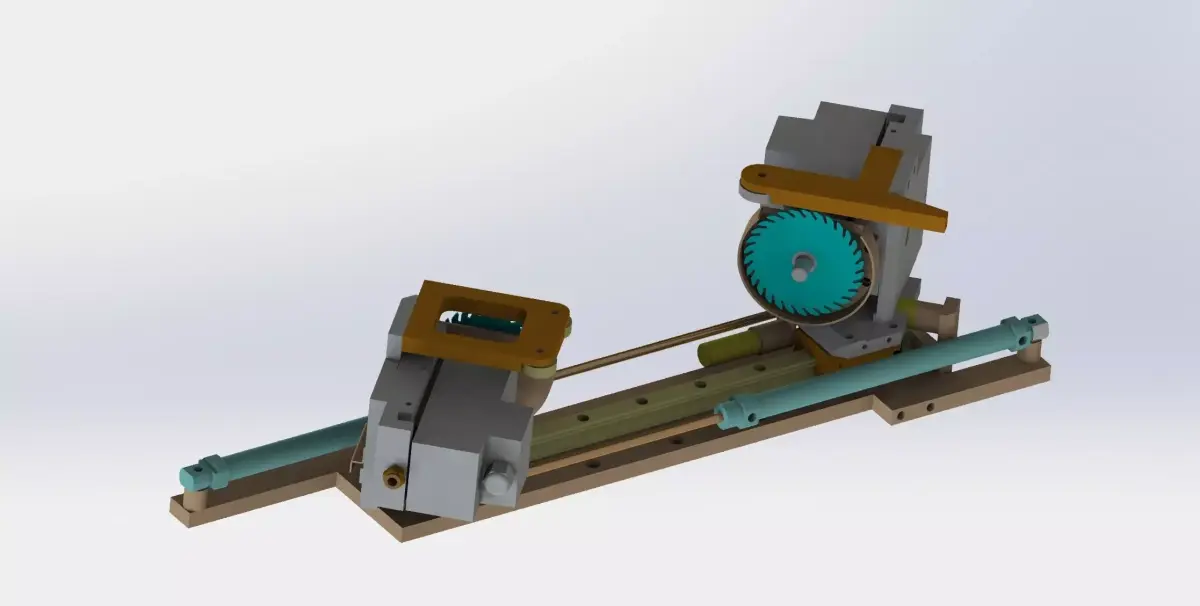

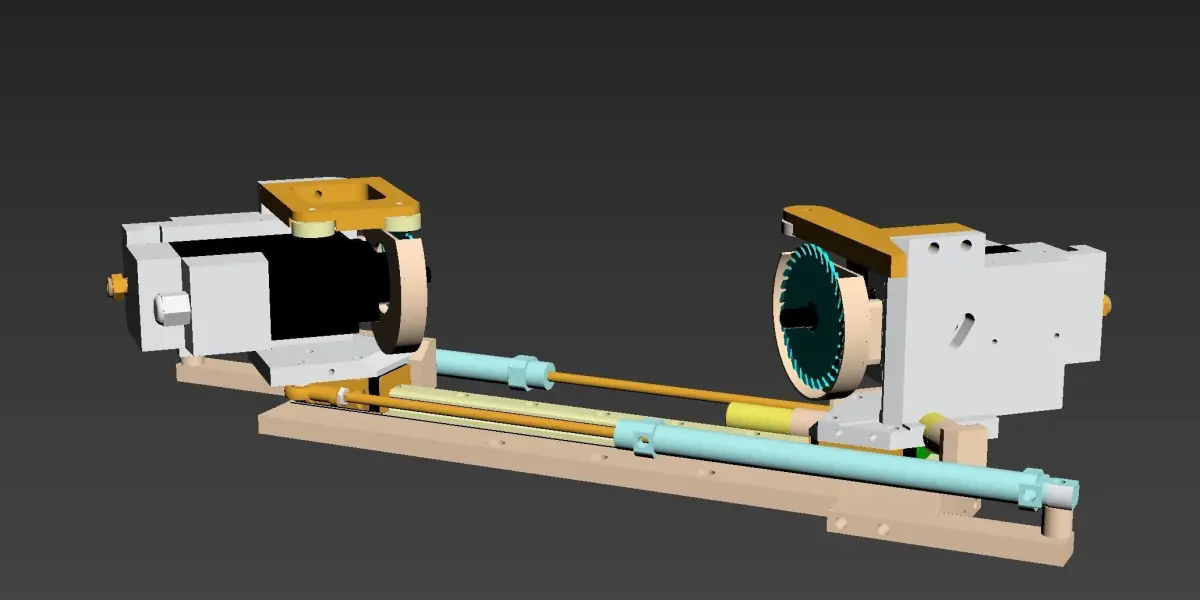

The single sliding rail cylinder cutting mechanism is a structure which USES the cutting and guiding function of wood products, which is guided by the guide roller, and the cutting head makes rapid cutting, and the double cylinders guide and push each otherInstitutions include

Roller guide mechanism

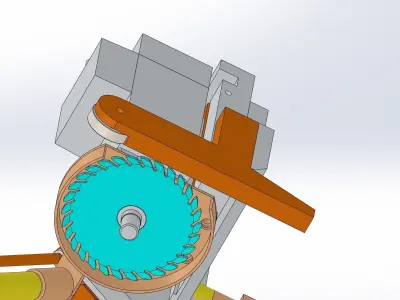

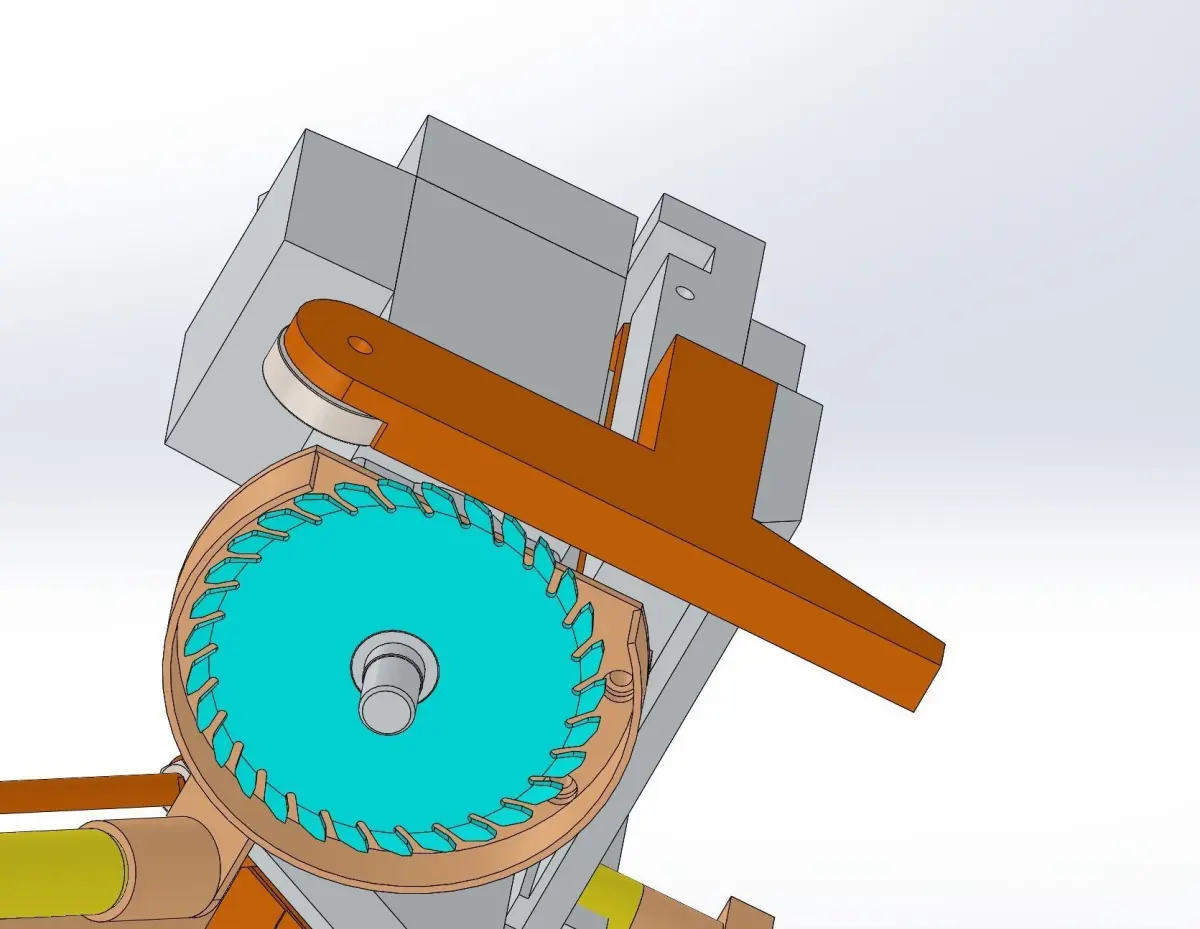

Cutting mechanism
Dual cylinder mechanism
Guide slide table mechanism

Files format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax

and other formats************************************** If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 1084961
Vertices: 2171136
Plugins used

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Mechanic Engine Tool Part Device Robot Cut Wood Trim Align Cylinder Slide Industrial machine Industrial part Industrial factory Industrial robot
