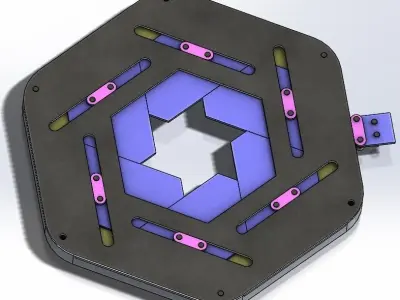

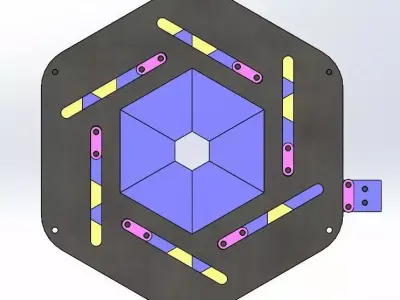

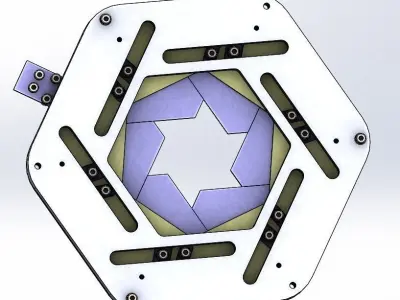

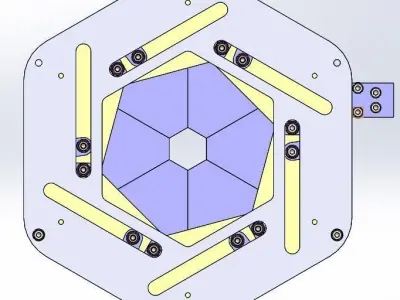

Sliding Iris mechanical-hexagon with center hole 3D print model

$4.9

License: Royalty Free

author:

monk3947

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «monk3947». CGhub does not claim copyright ownership over the content used.

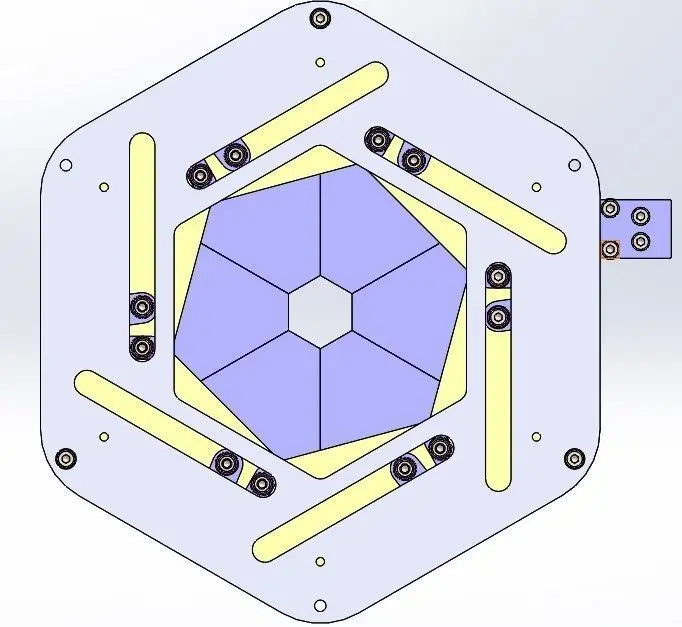

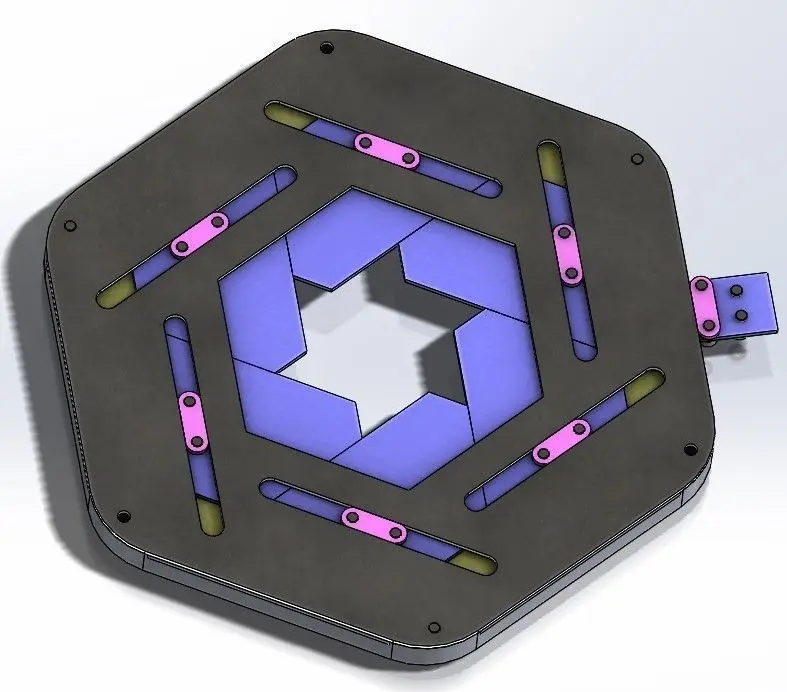

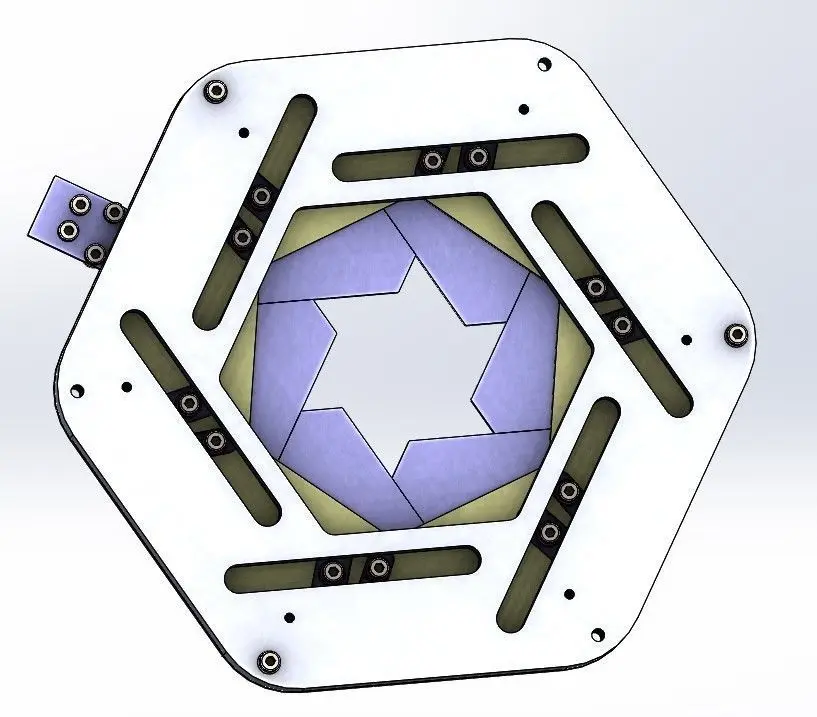

It is an iris mechanism(shutter structure). Most parts are designed for laser cutting and cnc machining. You can 3d print these parts too. There are DXF ,STEP and STL formatS files.DXF files are for laser cutting(part thickness is 2 mm); STL and STEP files are for 3d printing.There are some screw holes, and you should manufacture these screws with a tapping tool. And there are some bolts which you can get on market easily.Ignore the FBX and OBJ format files, they are only used to meet cgtrader's requirement.More: https://www.tanerxun.com/mechanical-iris-shutter-mechanism/.html

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Geometry: Manifold geometry | No N-gons |

Tags

Iris Mechanism Mechanical Engineering Hexagon Door Shutter Camera Structure Model Laser Cutting Sheetmetal Laser cut Dxf file Technology Hobby Diy Hobby diy Robotics Toodles
