Slot Cheater Clamping Station Free 3D model

Publication date: 2014-11-27

Slot Cheater Clamping Station Free 3D model

free

License: Royalty Free No Ai

author:

steve-fuller

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «steve-fuller». CGhub does not claim copyright ownership over the content used.
Download at www.cgtrader.com Add to Wishlist
  • Description
  • Formats

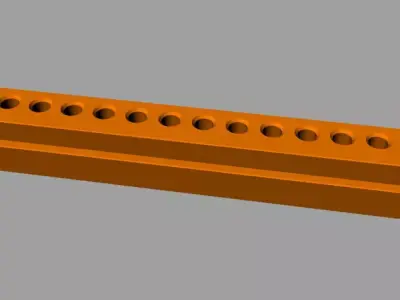

This little device is used on a mill table to clamp stuff down that doesn't exactly line up with the t-slots. Those holes are for 1/2-13 threads for toe clamp kit studs and what ya do is you clamp that thing to the table with a pair of t-nuts through the long slot, then position your toe clamp stud to its most convenient position via those holes. VERY easy to machine.....

3DM (Rhinoceros 3D, filesize: 567 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Polygon mesh

Tags

Fixture Clamp Blocks Clamping Set Up Industrial Other
