Buy Slot mechanism 3D model purchase

Name: Slot mechanism 3D model purchase
Brand: hw-blue
SKU: 876542
Price: 5.00 USD
Availability: InStock

License: Royalty Free

author:

hw-blue

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «hw-blue». CGhub does not claim copyright ownership over the content used.

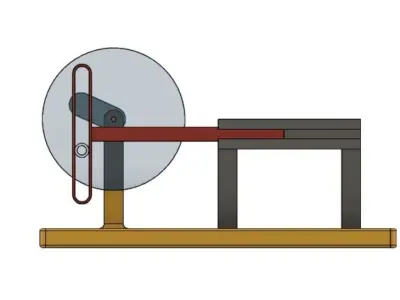

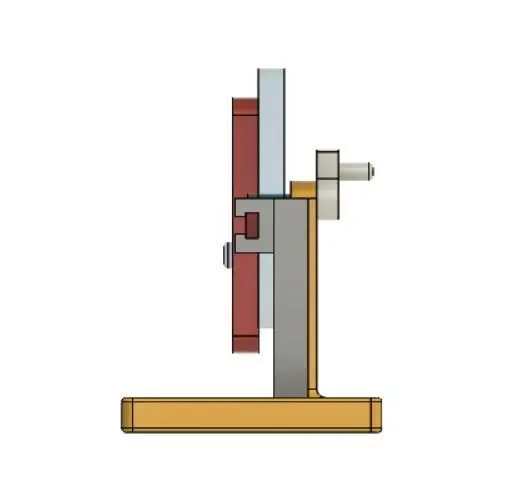

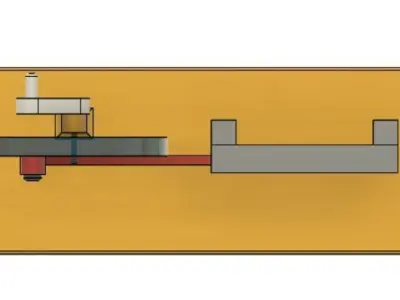

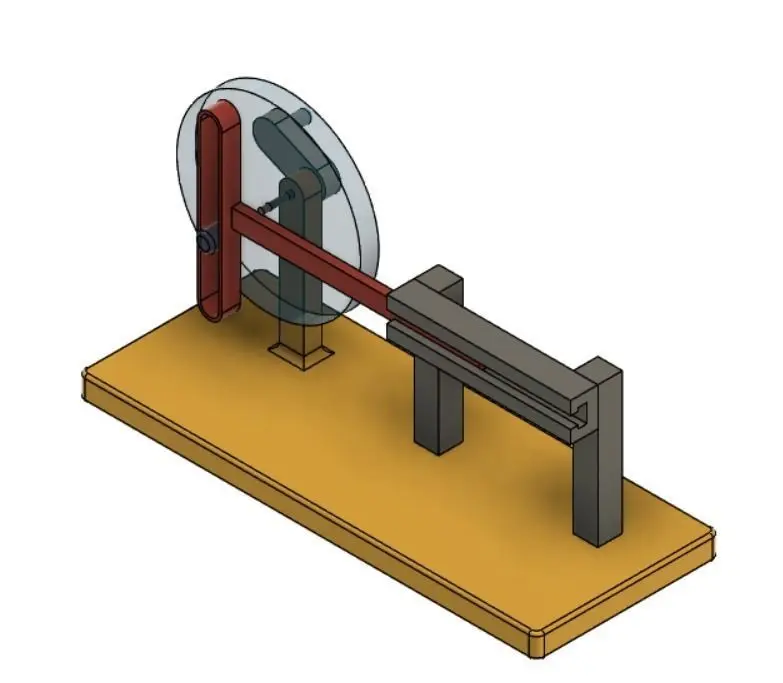

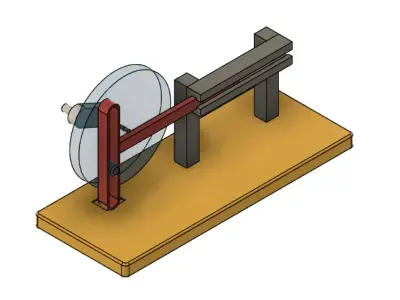

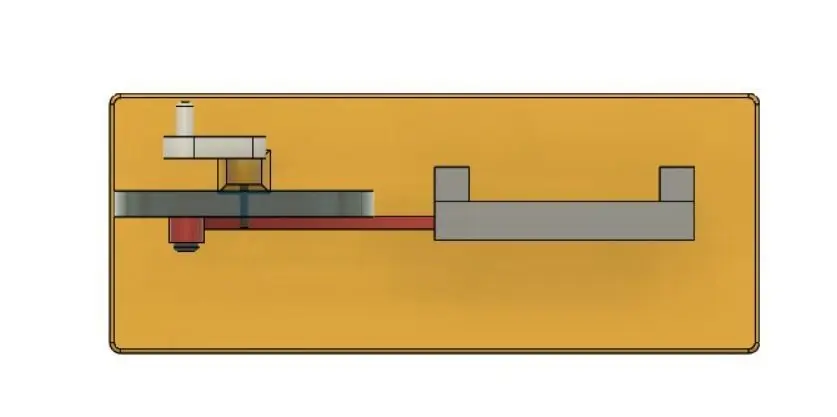

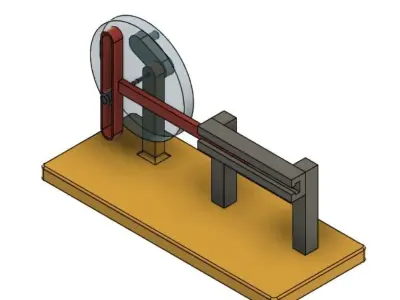

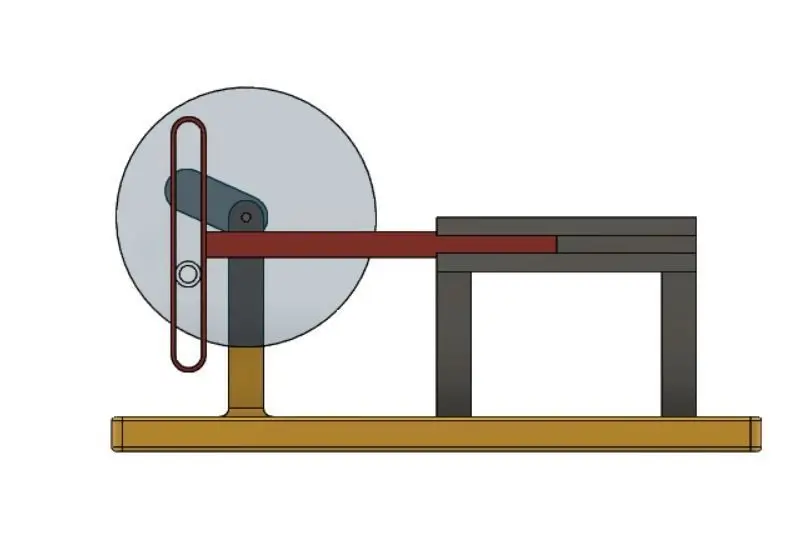

The Scotch Yoke (also known as slotted link mechanism is a reciprocating motion mechanism, converting the linear motion of a slider into rotational motion, or vice versa. The piston or other reciprocating part is directly coupled to a sliding yoke with a slot that engages a pin on the rotating part. The location of the piston versus time is simple harmonic motion, i.e., a sine wave having constant amplitude and constant frequency, given a constant rotational speed.
