High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

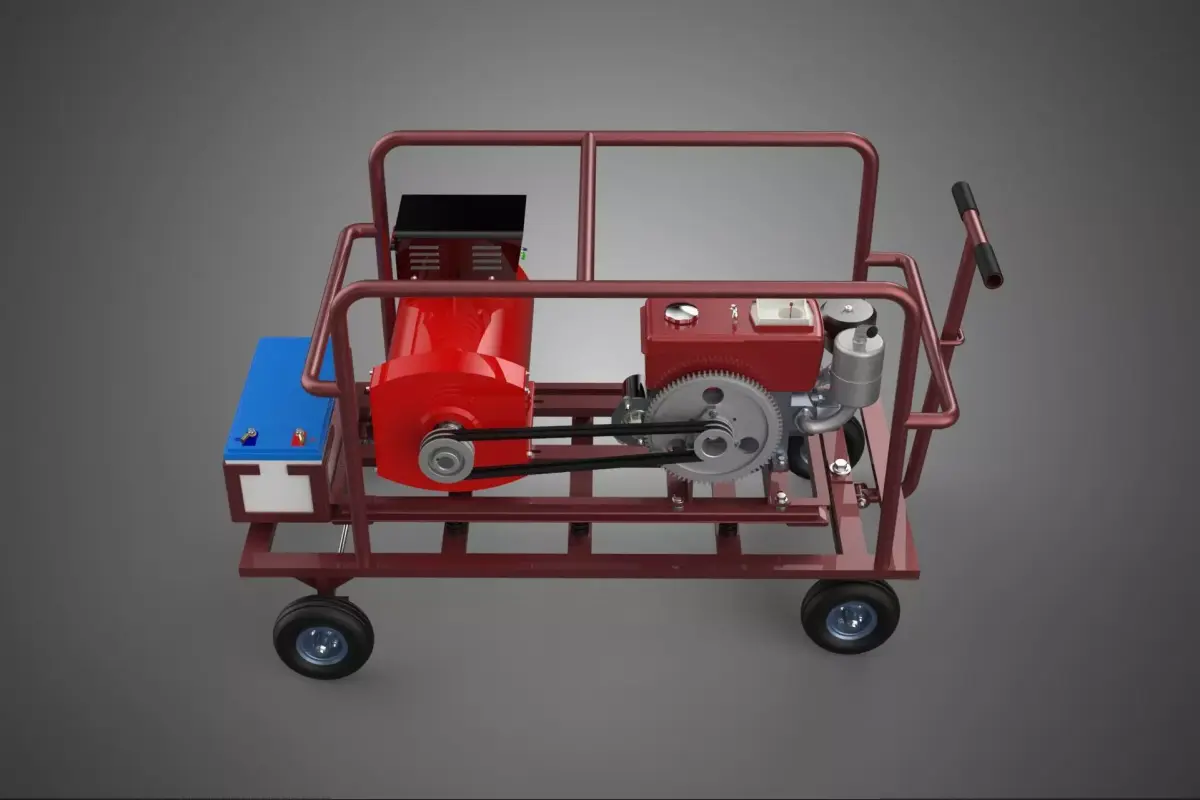

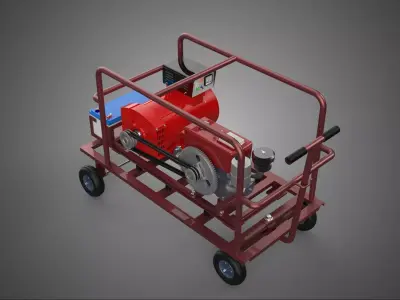

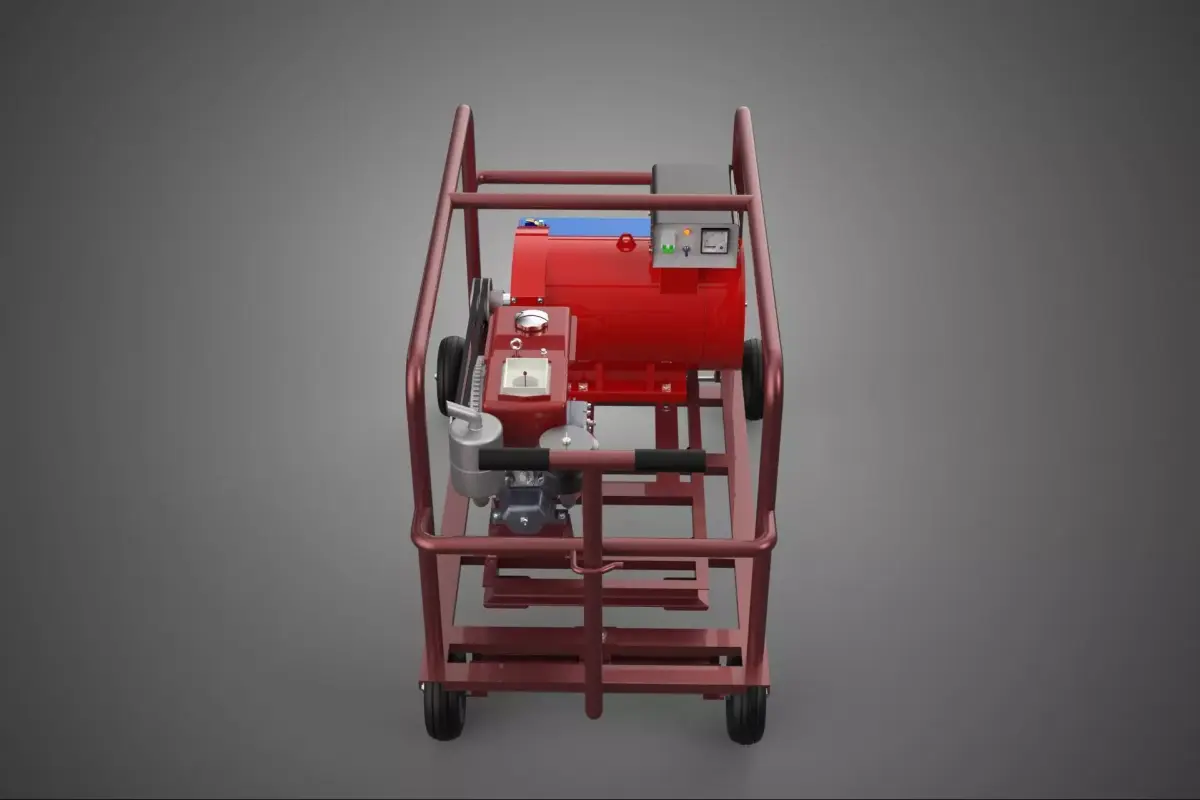

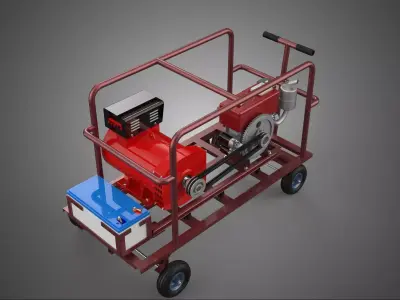

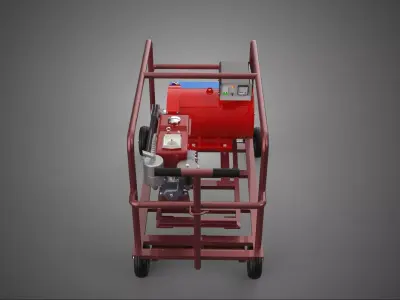

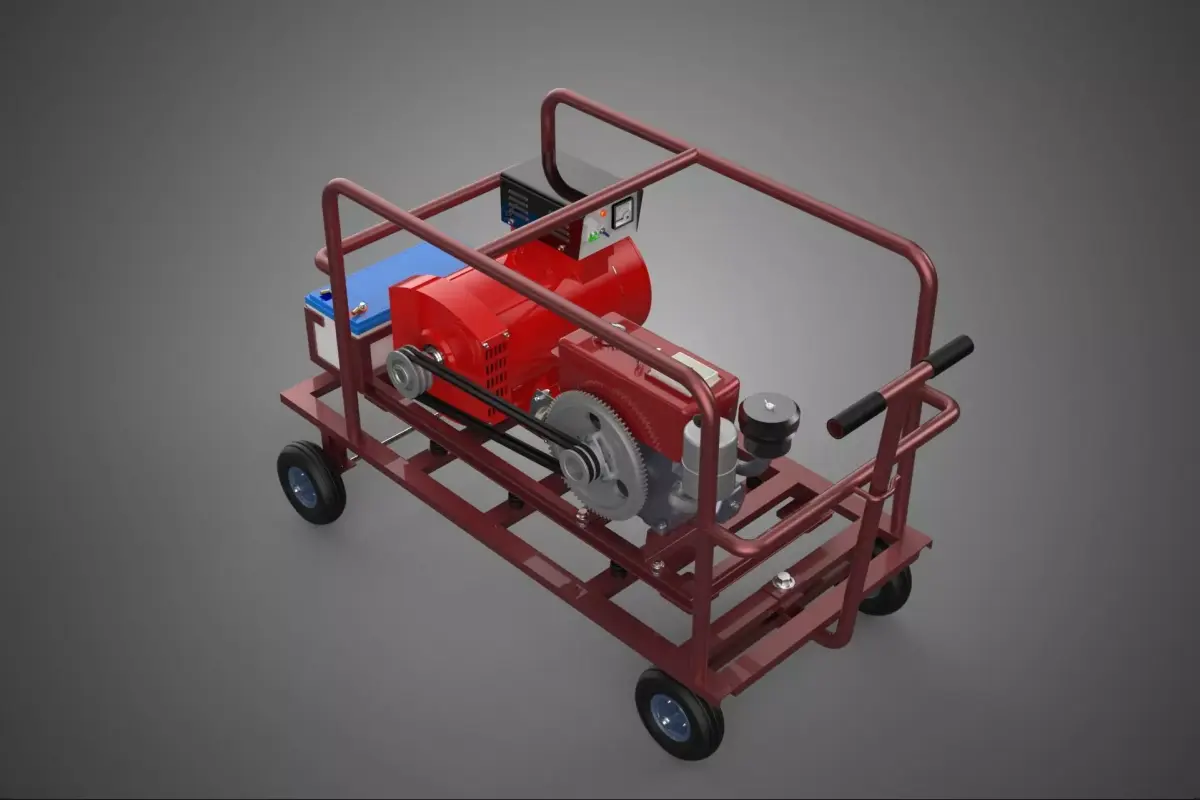

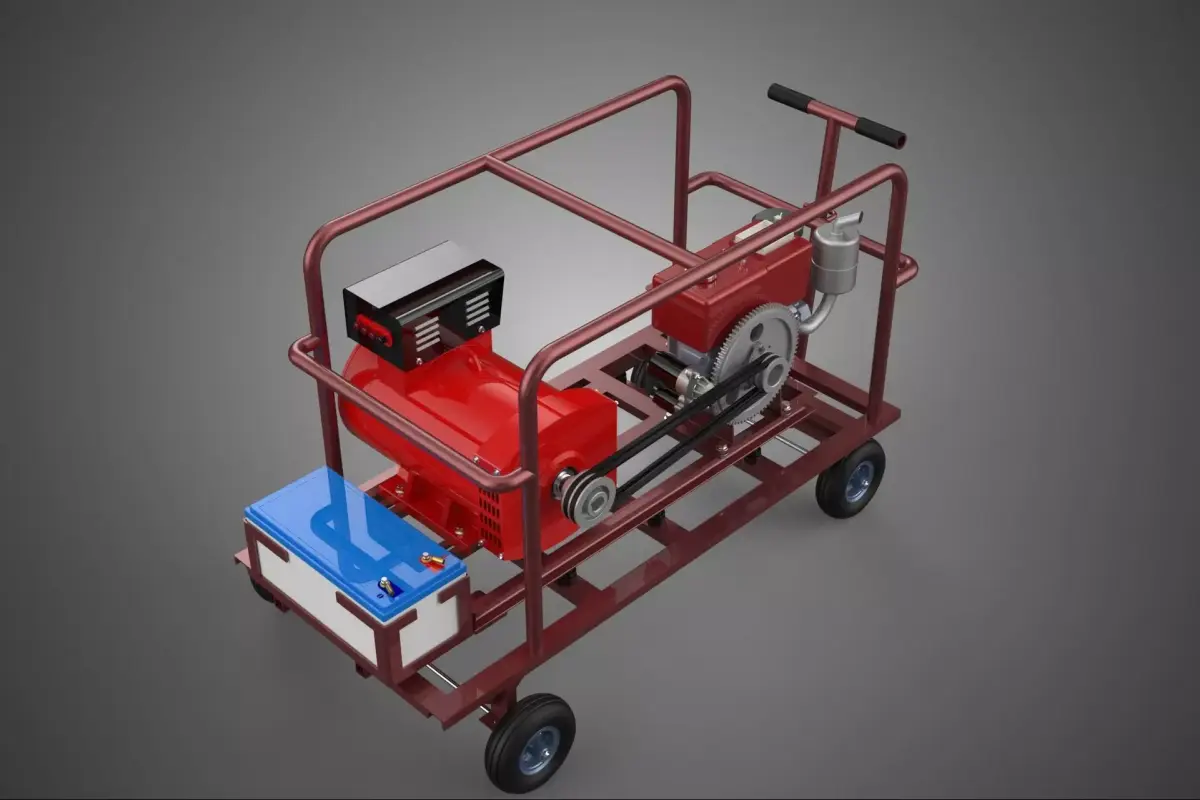

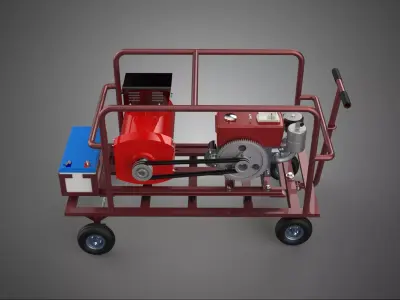

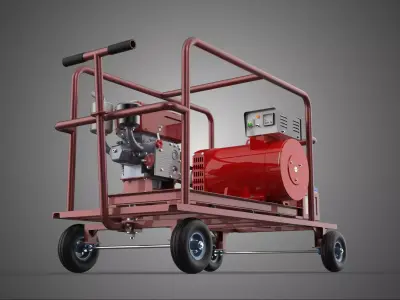

A Small Scale Power Plant Mobile Generator Cart Set, commonly referred to as a mobile diesel Genset (Generator Set), is an integrated, self-contained system designed for the autonomous generation of electrical power in temporary, remote, or emergency deployment scenarios. These units fulfill the role of localized power stations, typically operating independently of established utility grids.
I. Definition and Nomenclature
The designation Small Scale Power Plant refers to the system’s functional capability to provide primary or supplementary electrical supply, generally ranging in output from 5 kilovolt-amperes (kVA) to approximately 150 kVA. The crucial characteristic is the Mobile Generator Cart Set structure, indicating that the unit is permanently affixed to a robust, often wheeled chassis or heavy-duty skid frame, facilitating non-fixed installation and rapid relocation. The core technology utilized is the compression-ignition internal combustion engine, powering an alternator to convert mechanical energy into electrical energy, classifying it as a Diesel Genset.
II. Technical Configuration and Components
A mobile diesel Genset is composed of five primary functional subsystems:
1. Prime Mover (Diesel Engine)
The engine operates on the diesel cycle, preferred in mobile applications due to the high energy density of diesel fuel, superior fuel economy under varying loads, and inherent durability compared to spark-ignition engines. Engines are typically four-stroke, liquid-cooled units, directly coupled to the alternator via a flexible coupling or rigid SAE housing.
2. Electrical Generation (Alternator)
This component, typically a brushless synchronous machine, converts the rotational mechanical energy from the engine into AC electrical energy. Modern mobile units utilize Automatic Voltage Regulation (AVR) systems to maintain stable output voltage (voltage tolerance often within ±1-2%), ensuring compatibility with sensitive electronic equipment. Output can be single-phase, three-phase, or convertible, depending on operational requirements.
3. Mounting and Mobility System (Cart/Chassis)
The entire assembly is mounted on a resilient base frame equipped with vibration isolation mounts (e.g., rubber isolators or springs) to minimize the transfer of engine vibration to the surrounding environment and the frame structure. The cart set configuration may include:
- Axle Assembly: Two or four robust wheels suitable for transport across diverse terrain.
- Tow Bar/Hitch: For vehicular towing capabilities.
- Lifting Points: Designated hoist rings or forklift pockets for static relocation.
- Enclosure: A weather-resistant, often sound-attenuating canopy constructed of steel or aluminum, protecting internal components from environmental factors and reducing operational noise levels (LwA, Sound Power Level).
#### 4. Fuel and Storage System
The unit includes an integrated fuel tank sized to provide substantial autonomy, often allowing for continuous operation between 8 and 24 hours at 75% load. Fuel transfer is managed by a dedicated fuel pump, and filtration systems are employed to protect the precision components of the engine’s fuel injection system.
#### 5. Control and Monitoring Systems
The Genset includes a centralized control panel incorporating monitoring instrumentation for critical engine and electrical parameters, including oil pressure, coolant temperature, engine RPM, output voltage, amperage, frequency (Hz), and operational hours. Many small-scale mobile units utilize micro-processor-based controllers that enable features such as auto-start/stop (triggered by external signals or utility outages) and remote telemetry via network connections.
### III. Operational Applications
Mobile diesel generator cart sets are categorized by their utility in providing flexible, decentralized power. Key applications include:
- Emergency Standby Power: Hospitals, data centers, and critical infrastructure requiring immediate power redundancy during grid failure (often utilizing automatic transfer switches, ATS).
- Construction and Infrastructure Projects: Supplying power to tools, lighting, and temporary site offices where grid access is pending.
- Remote Field Operations: Providing power for mining camps, agricultural irrigation, telecommunications relays, and geological surveying.
- Event and Temporary Services: Powering outdoor venues, broadcasting equipment, and mobile command centers.
### IV. Advantages of the Mobile Diesel Configuration
The mobile diesel Genset combines the high efficiency and robust torque characteristics of the diesel engine with the immediate deployability afforded by the cart structure. This configuration offers superior operational longevity and reduced refueling frequency compared to gasoline or propane units, making them highly effective for prolonged operations in challenging environments.
KEYWORDS: Diesel Generator, Mobile Power, Genset, Portable Power Plant, Emergency Power, Standby Power, Localized Generation, Off-Grid, Skid Mount, Cart Set, Auxiliary Power Unit, Automatic Voltage Regulator, AVR, Sound Attenuation, Engine Efficiency, Compression Ignition, KVA Rating, Prime Mover, Alternator, Continuous Power, Load Testing, Autonomous System, Fuel Economy, Remote Monitoring, Heavy Duty Chassis, Telemetry, Power Redundancy, Construction Site, Remote Operations, Diesel Cycle.
STL (Stereolithography, filesize: 51.9 MB), OBJ (OBJ, filesize: 107 MB), 3DM (Rhinoceros 3D, filesize: 90.4 MB), 3DS (3D Studio, filesize: 29.8 MB), DAE (Collada, filesize: 171 MB), DWG (AutoCAD, filesize: 16 MB), FBX (Autodesk FBX, filesize: 31 MB), BLEND (Blender, filesize: 94.7 MB), GLTF (glTF, filesize: 30.2 MB), MAX (Autodesk 3ds Max, filesize: 174 MB), IGE (IGES, filesize: 72.3 MB), SKP (Sketchup, filesize: 48 MB), STP (STEP, filesize: 36 MB), SAT (3D ACIS, filesize: 54.3 MB)
