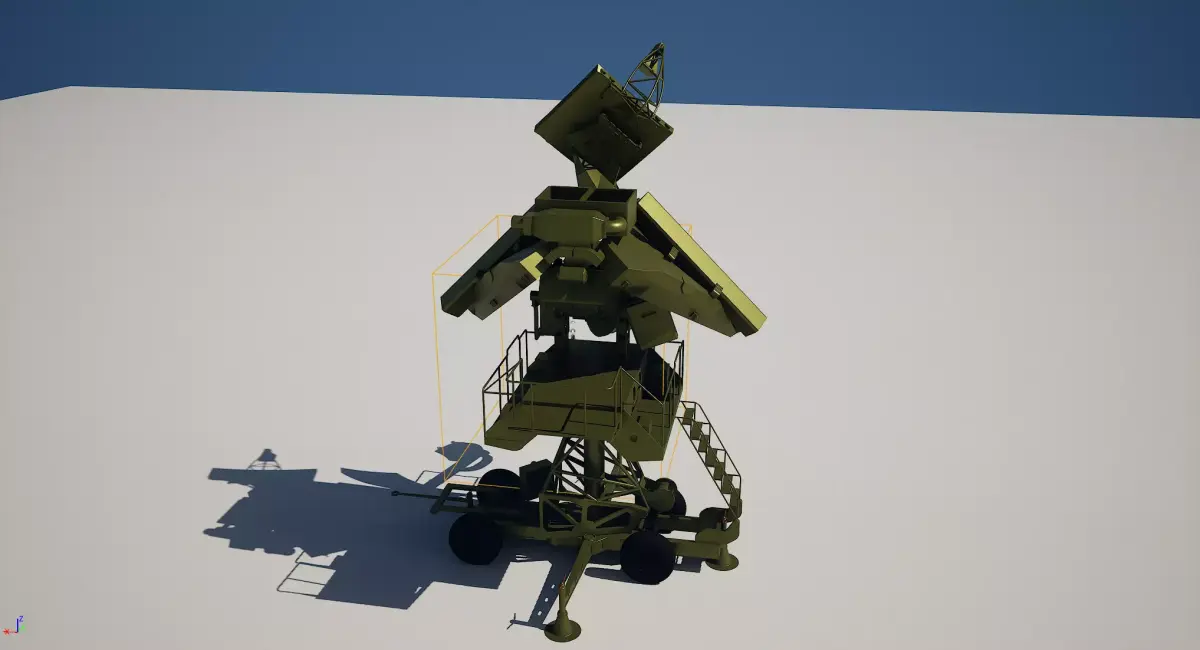

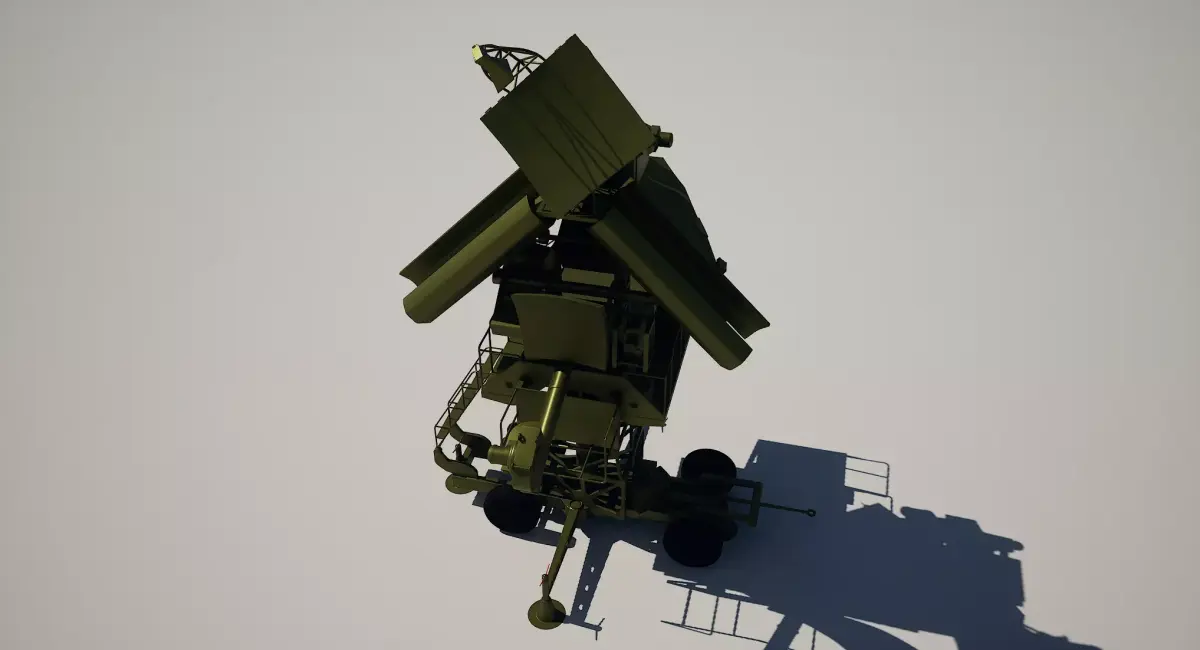

SNR-125 Low Blow Engagement Radar Low-poly 3D model

$69

License: royalty_free_no_ai

author:

chase3

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «chase3». CGhub does not claim copyright ownership over the content used.

Almaz SNR-125 Low Blow Engagement Radar

The SNR-125-2TM pulse Doppler radar provides autonomous target acquisition and tracking, as well as missile guidance. It also provides firing input data and evaluates firing results. It comprises of UNV-2TM antenna post and UNK-2TM control cabin. The two target channels and two missile channels of the radar ensure the engagement of either two targets with two missiles or a single target with two missiles.The air defence missile system can be additionally attached with the P-18T Radar target acquisition and target designation assets.The SNR-125 radar is unique to the S-125 system. It serves as a tracking and fire control radar. The SNR-125 system consists of the UNV trailer mounted radar assembly, UNK semi-trailer radar operator van and a generator van. The SNR-125 is a compound radar consisting of the UV-10 radar flanked on each side by two orthogonal mounted UV-11 radar receivers and an UV-12 missile uplink radar on top. Late model SNR-125 also feature a TV camera for optronic guidance out to 25 km.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: mixed

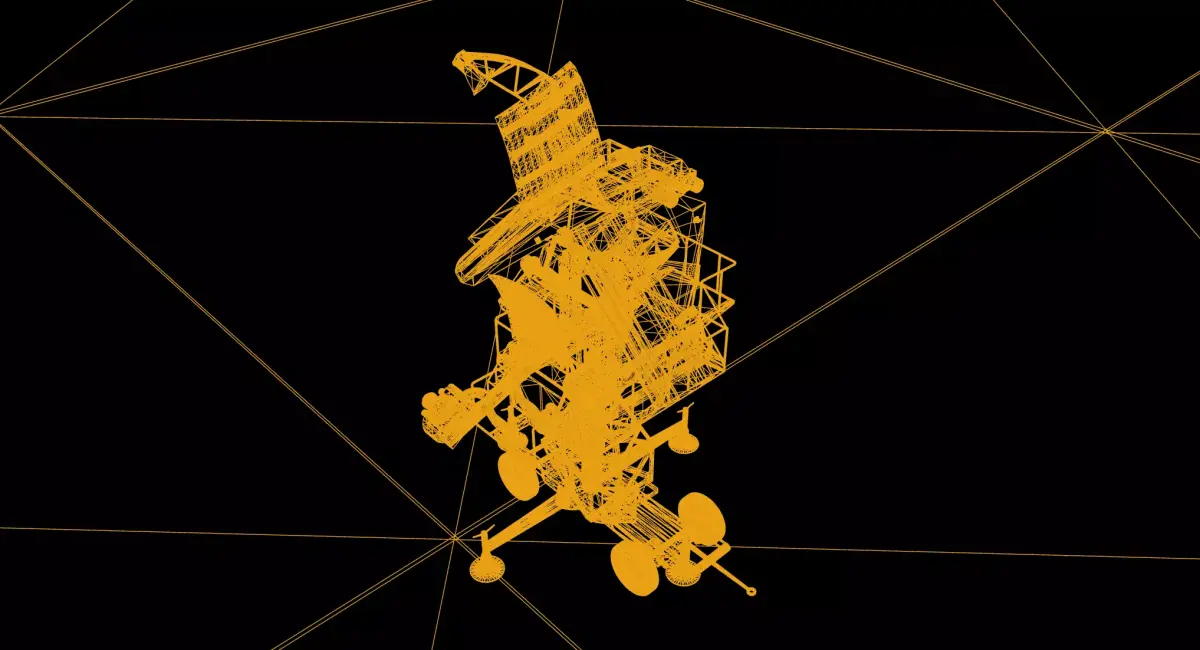

Geometry: Polygon mesh
Polygons: 86738
Vertices: 83838
Plugins used

Tags

S 125m Launcher Defense Soviet Russian Anti aircraft Sam C 125m Facilities Firepower Antenna Radio Optical Doppler Unk 2tm P 18t Almaz Missile Military Other
