Solar Installation accurate and actual construction detail Low-poly 3D model

$10

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

zokoloco

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «zokoloco». CGhub does not claim copyright ownership over the content used.

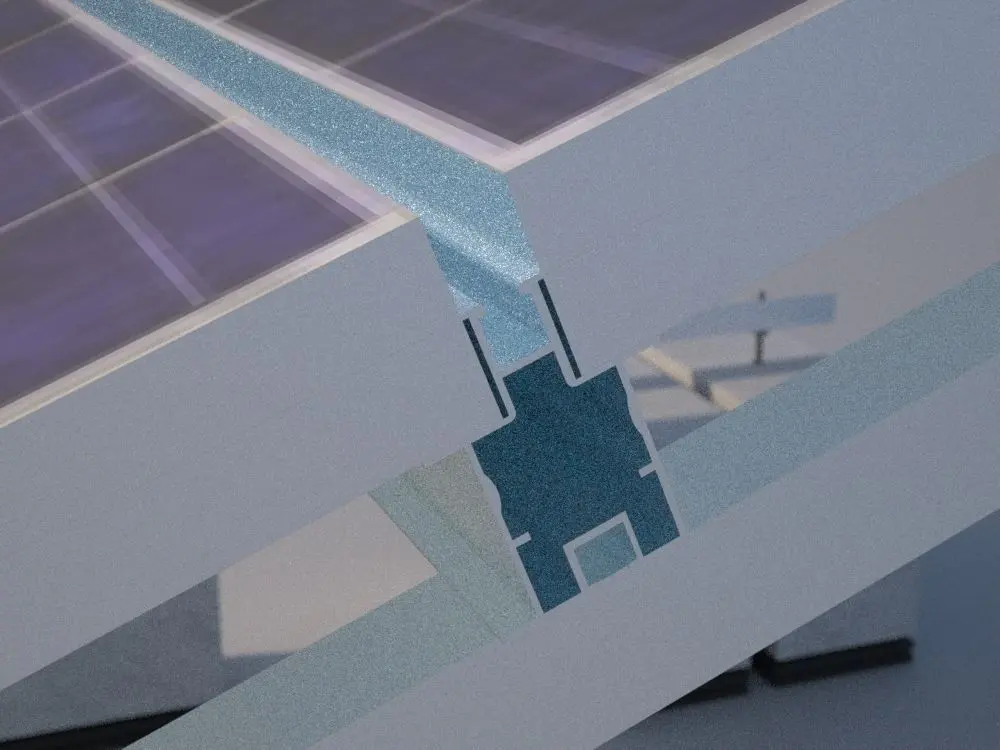

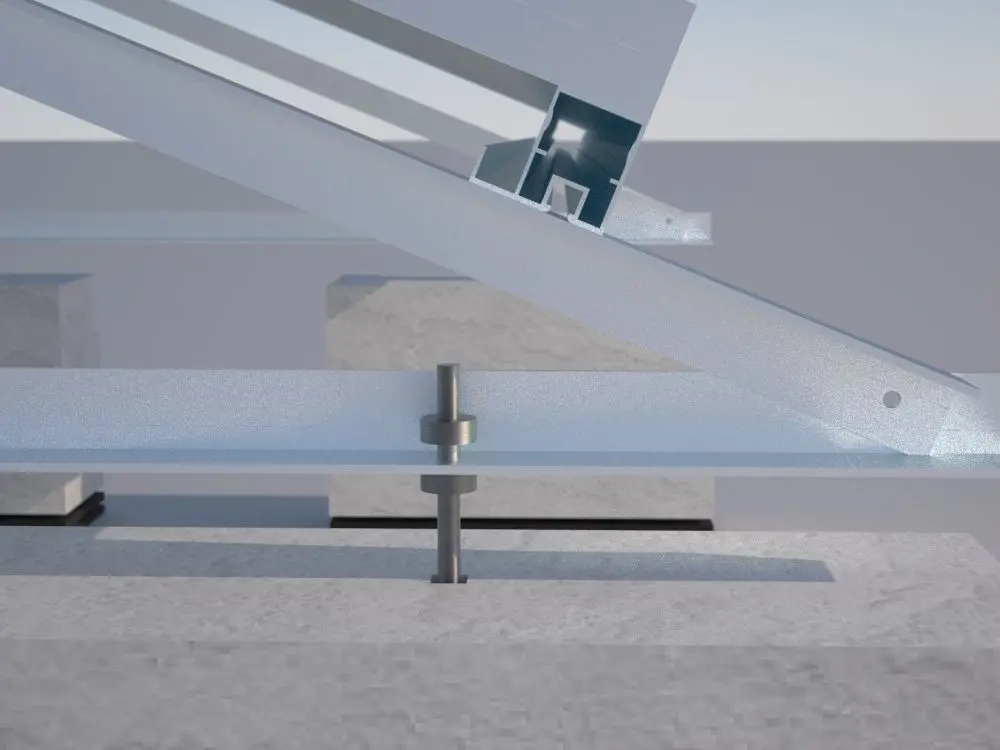

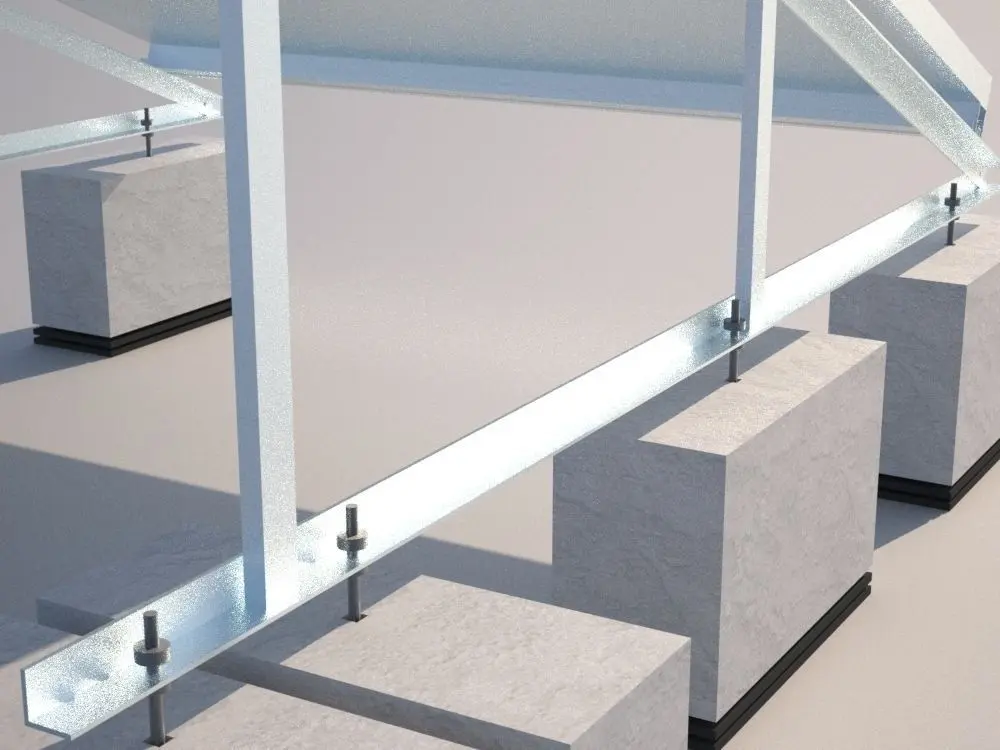

I'ts not a new design but it's simple and cheap to build.simple and common aluminium skeleton with 12mm bolts into 70Kg cement stones.this is the actual design we have been implementing on more than 1000 solar systems in Israel, for homes and industries and they have proved very robust, cheap to make and withstand any weather and force for at least 30 years with no maintainance.the panels used in this example are Schott Poly 230Wthese aluminium profiles are about 5% more robust than the old "SIMA" profiles usually used, and this construction method uses about 20% less aluminium in the process (measured in 50kWp systems), also the installation procedure is quicker and simplified next to the old "SIMA" profile.
