Publication date: 2023-04-25

Solar Panel Steel Construction Type 10 3D model

$28

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $28 Add to Wishlist
  • Description
  • Formats

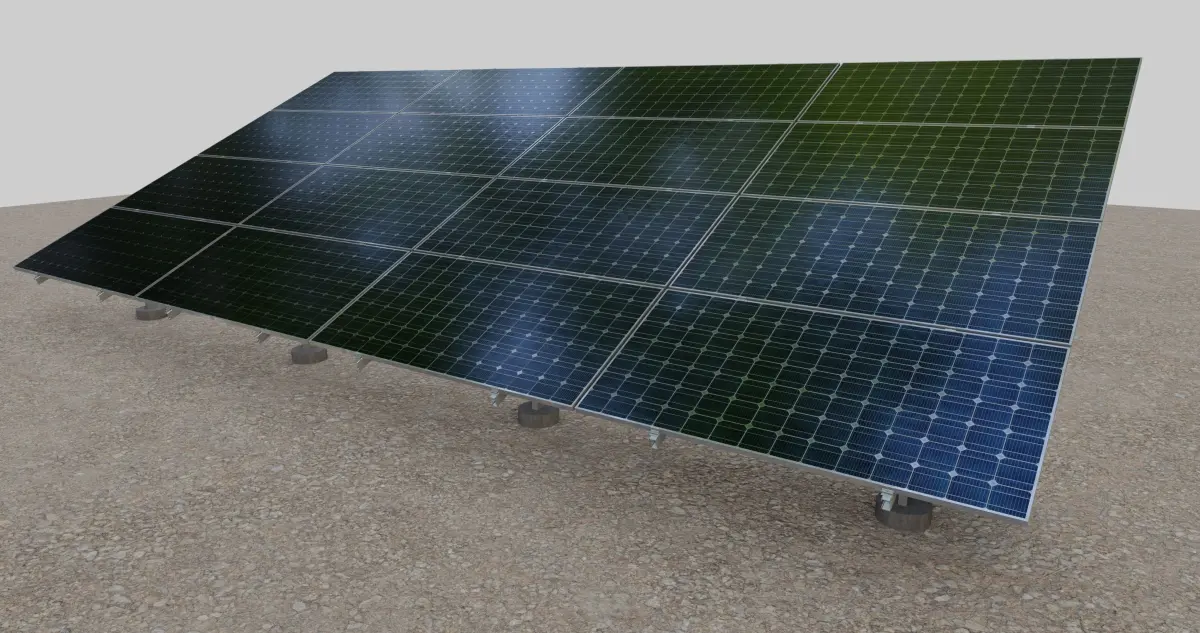

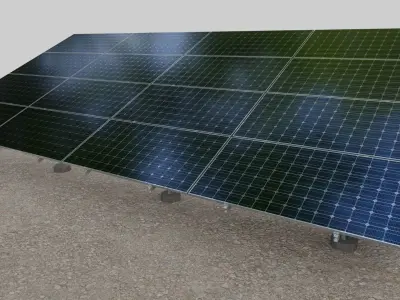

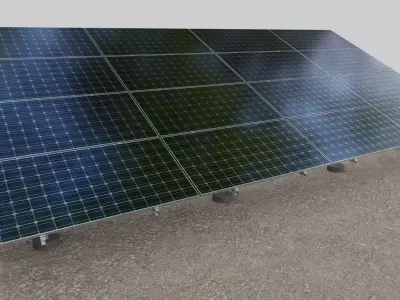

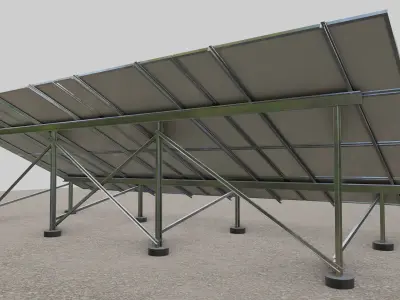

Solar Panel Steel Construction Type 10

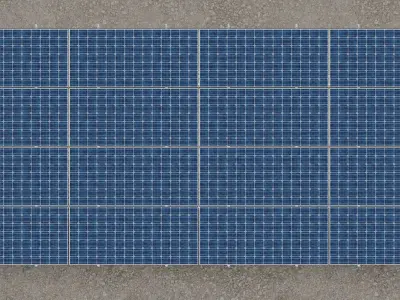

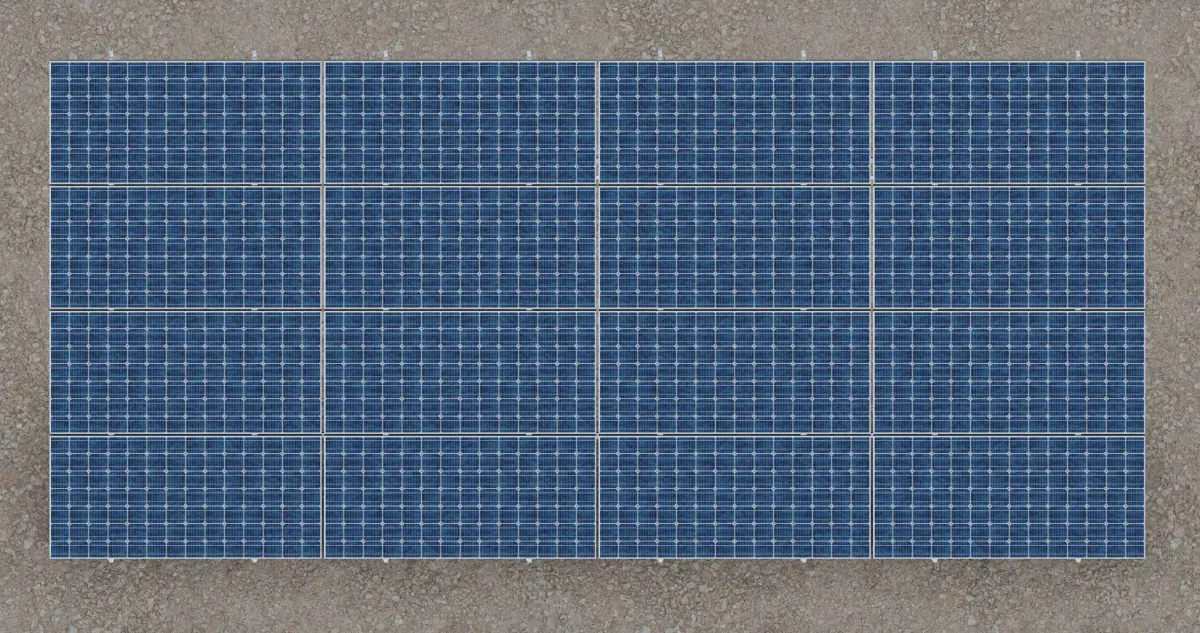

4x4 Horizontal Panel Layout

Ground Connection Type; With Concrete Friction Pile

Distance of Columns Below Ground 1500 mm.

Concrete Friction Pile Dimensions : Ø300 mm H= 1700 mm

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 8,8 kWp power in 1 hour

The system consists of 4 axles and the distance between each axle is 2600 mm.

Distance between two columns 2300 mm.

Horizantal angle of panel 25°

The closest distance of the panels to the floor 600 mm.

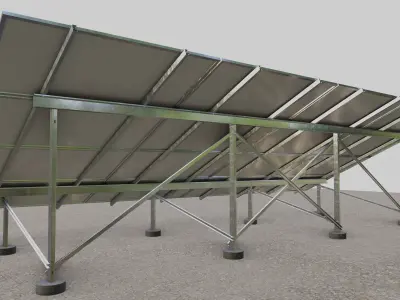

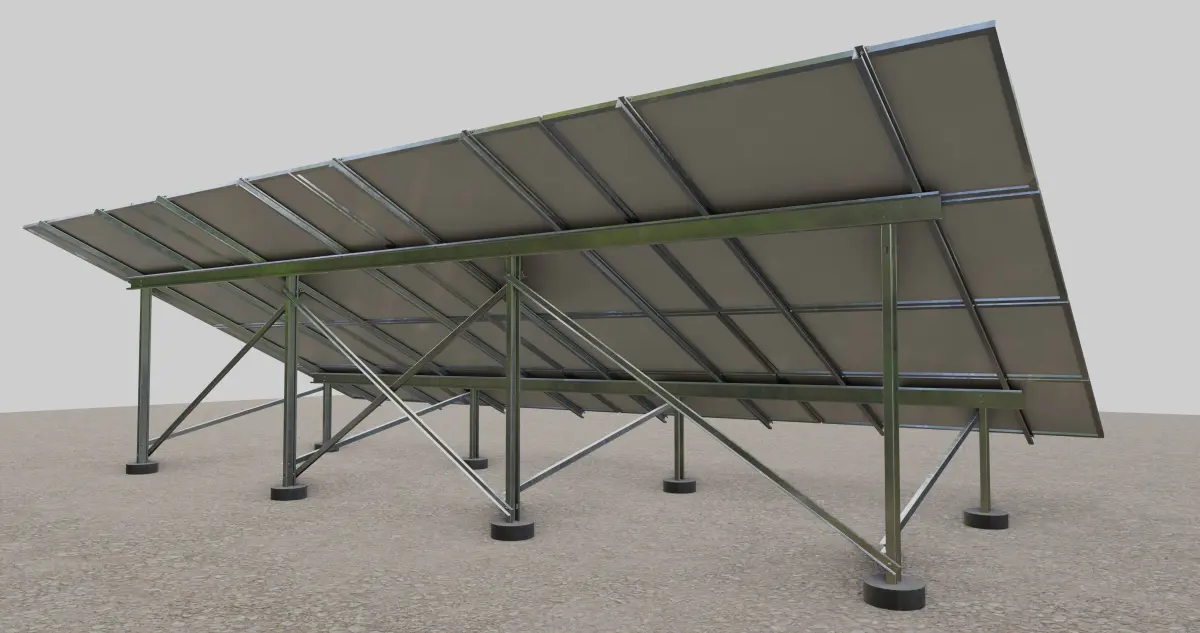

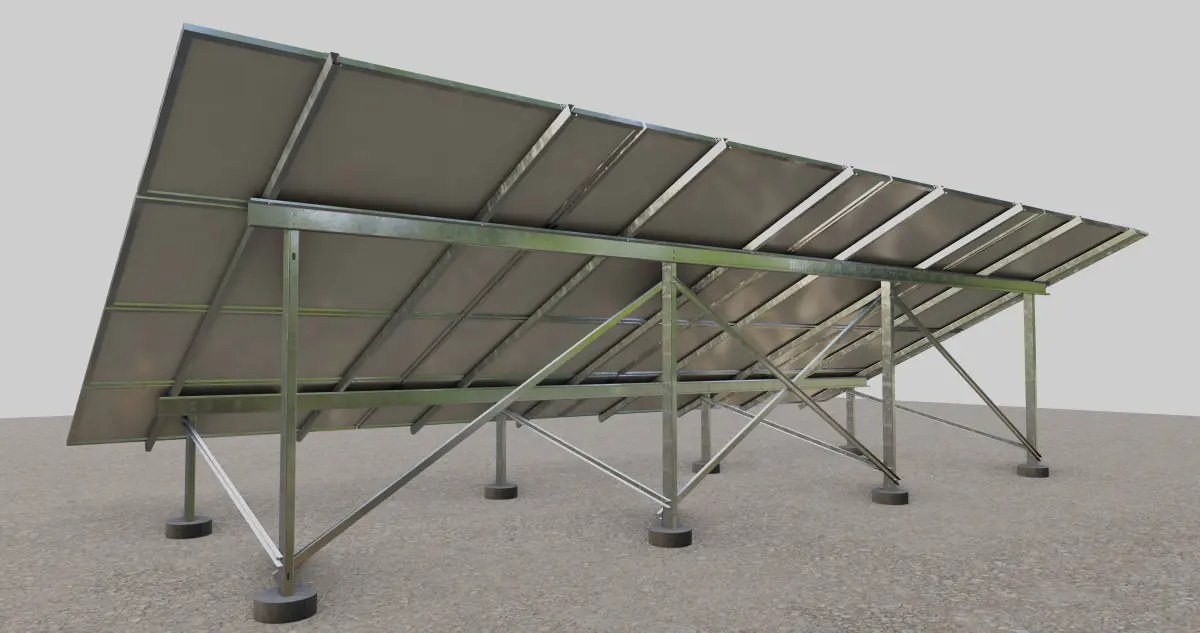

Profile Section;

Column : C Profile C100x50x20-3mmBeam : C Profile CE120x50x20_25°-3mmPurlin : C Profile C70x40x15x-2mmDiagonal : U Profile U50x30-2mm

Prepared With BLENDER Version 2.93.5

Polygons : 115764

Vertices : 138200

Objects : 203

Native Formats: BLEND (Blender, filesize: 18.7 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 115764
  • Vertices: 138200
