Publication date: 2023-04-23

Solar Panel Steel Construction Type 2 3D model

$28

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $28 Add to Wishlist
  • Description

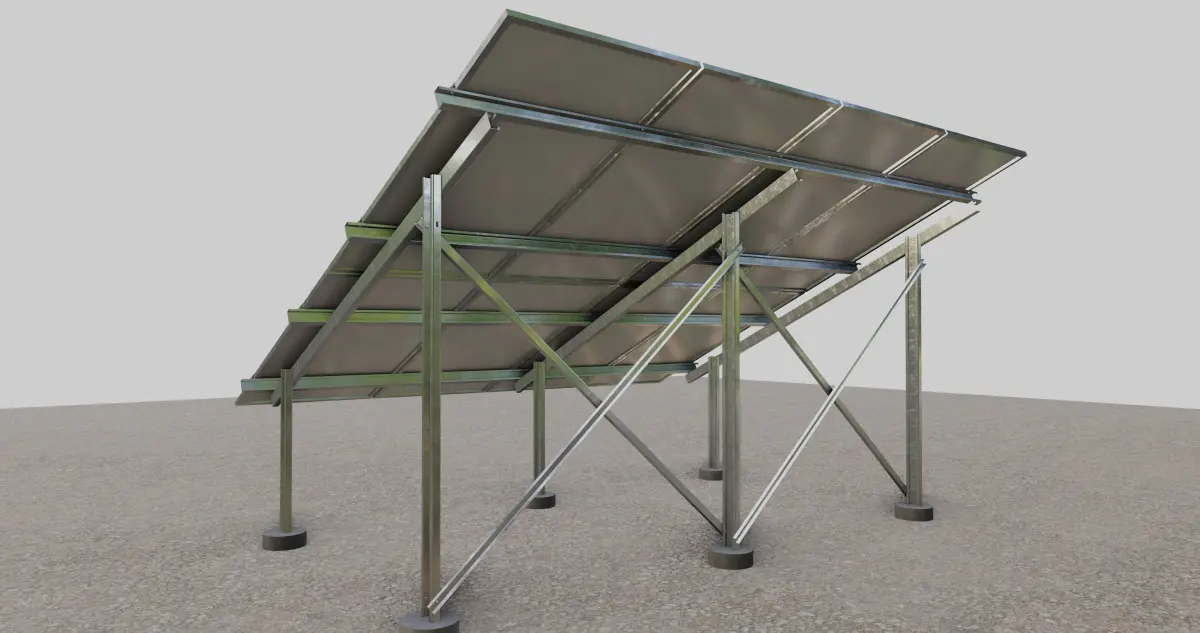

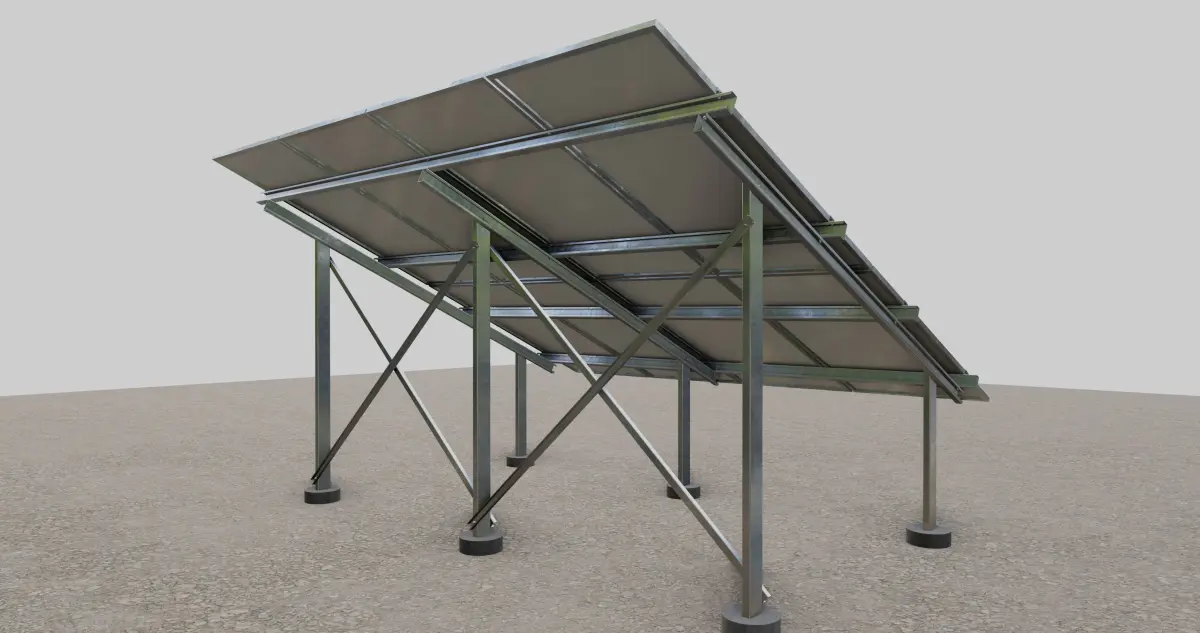

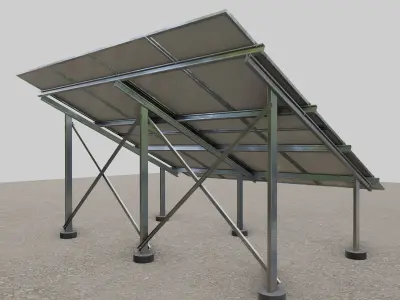

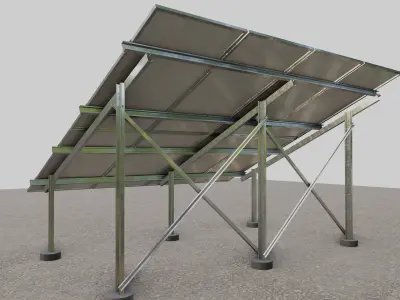

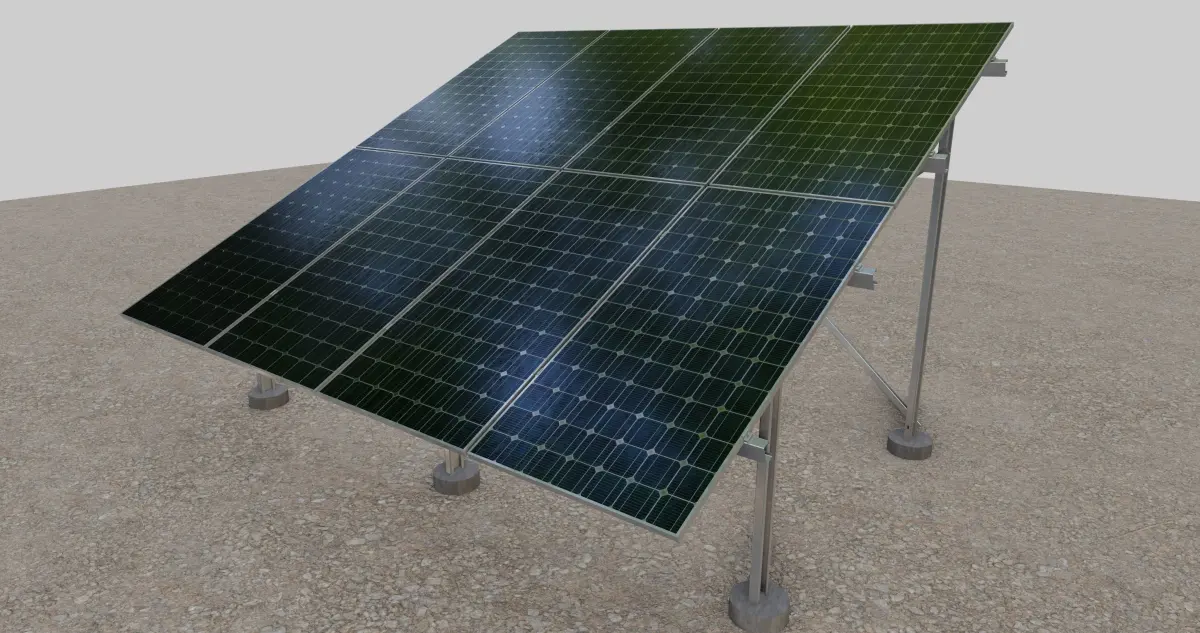

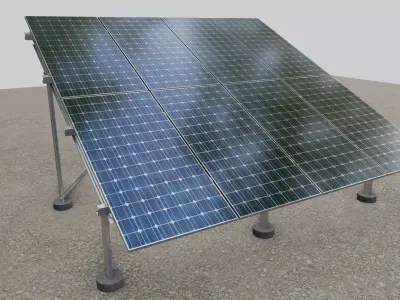

Solar Panel Steel Construction Type 2

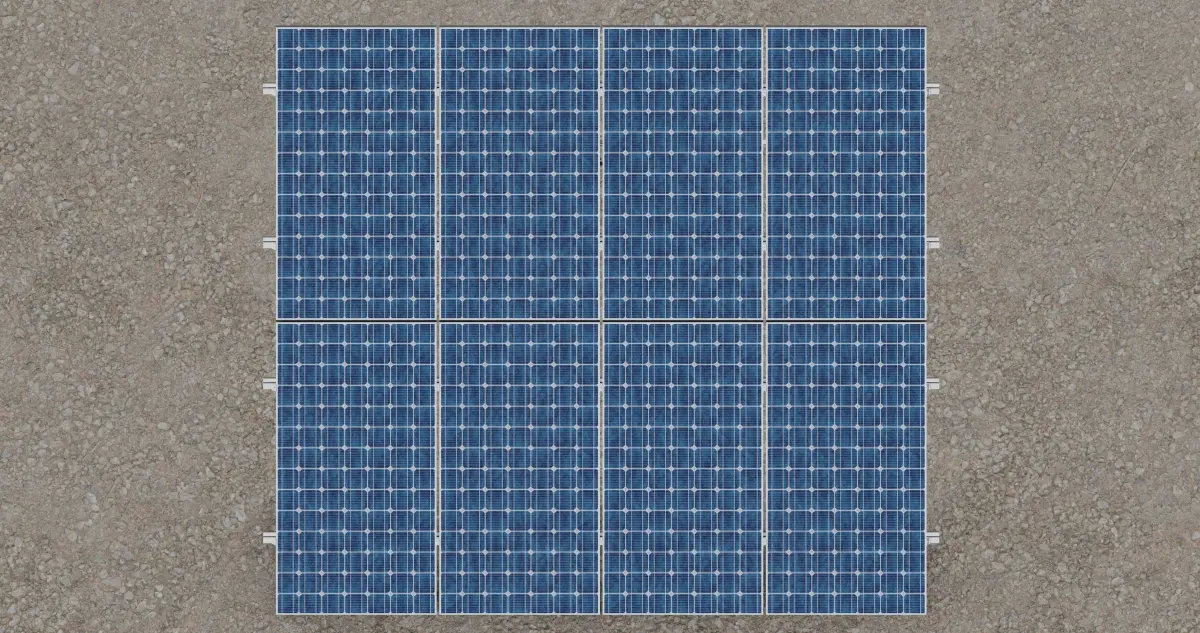

2x4 Vertical Panel Layout

Ground Connection Type; With Concrete Friction Pile

Distance of Columns Below Ground 1600 mm.

Concrete Friction Pile Dimensions : Ø300 mm H= 1800 mm

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 4,4 kWp power in 1 hour

The system consists of 3 axles and the distance between each axle is 2200 mm.

Distance between two columns 2300 mm.

Horizantal angle of panel 25°

The closest distance of the panels to the floor 600 mm.

Profile Section;

Column : C Profile C120x50x25-4mmBeam : C Profile C100x50x20-3mmPurlin : C Profile C90x50x20x-2mmDiagonal : U Profile U50x30-2mm

Prepared With BLENDER Version 2.93.5

Polygons : 52666

Vertices : 63046

Objects : 99

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 52666
  • Vertices: 63046
