Solar Panels base 3D model
Solar Panels base 3D model
Solar Panels base 3D model

Publication date: 2023-09-04

Buy Solar Panels base 3D model

$4

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

waleedsaydi

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «waleedsaydi». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $4 Add to Wishlist
  • Description
  • Formats

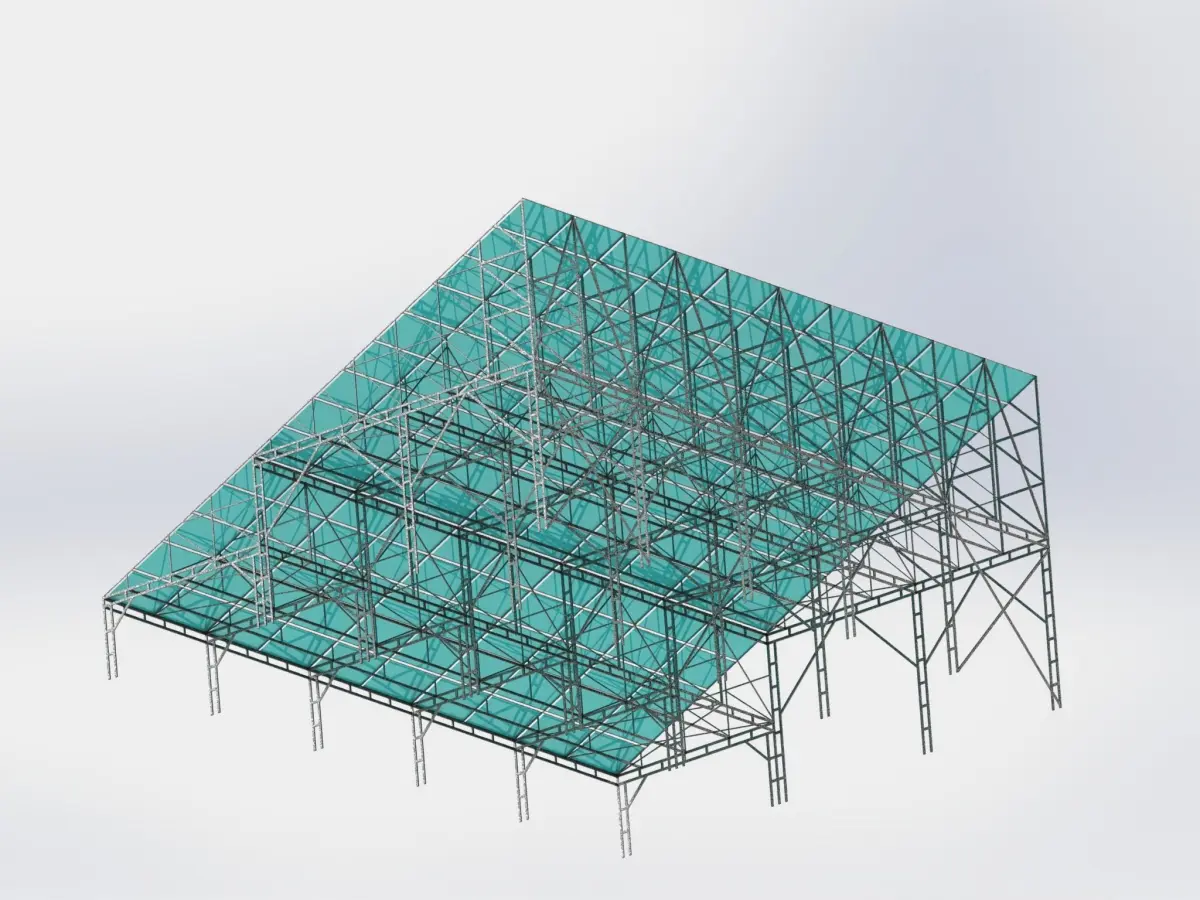

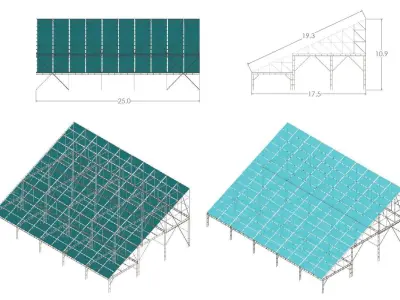

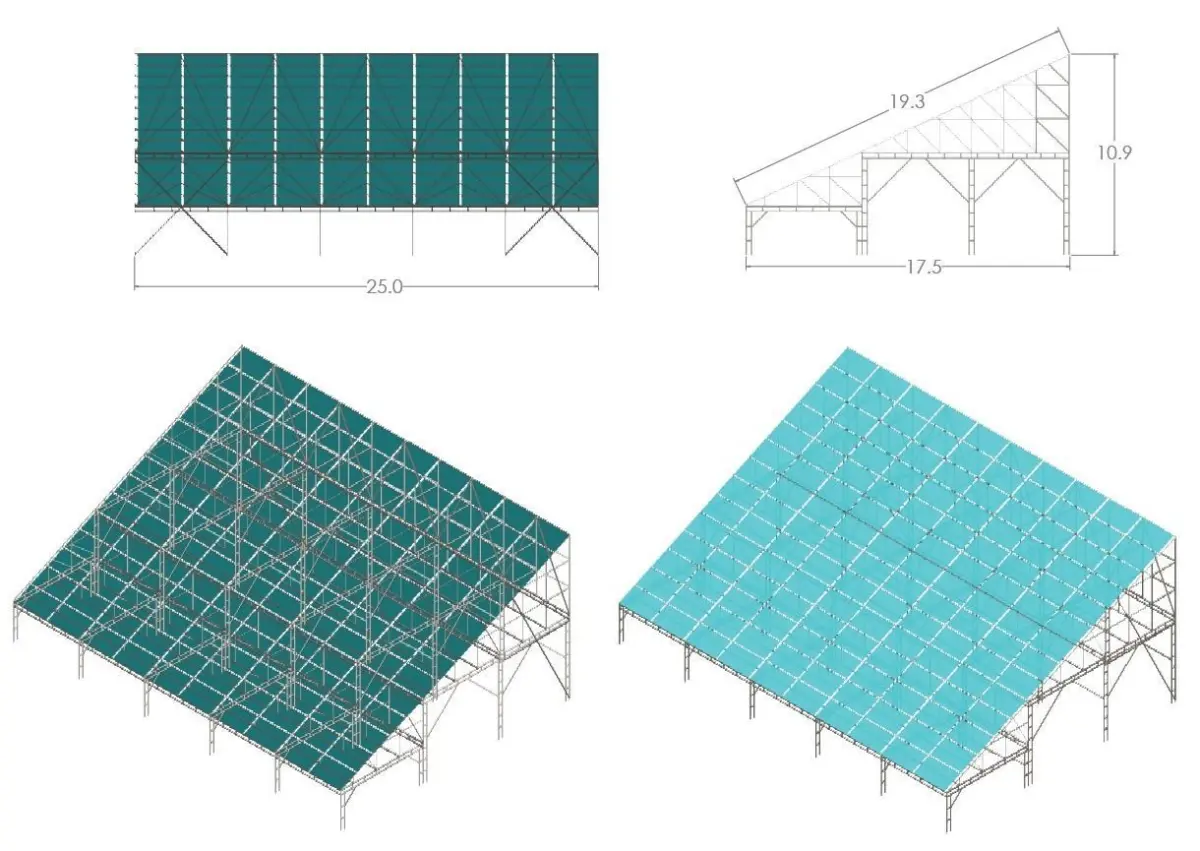

I designed a frame structure for 140 solar panels(Power of each panel 650W), I used 80x40 , 40x40, 40x30 Steel tubes It weighs about 8500kg. It is made for handling 100 km/h wind speed,So I made a study for effect of 100km/h wind speed on the frame.I can provide the whole files of the simulation and flow simulation.I can make other from fits any requirements and conditions.

Native Formats: SLDPRT (SolidWorks, filesize: 4.4 MB) Exchange Formats: STP (STEP, filesize: 3.35 MB), PDF (PDF, filesize: 14.2 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Unknown
