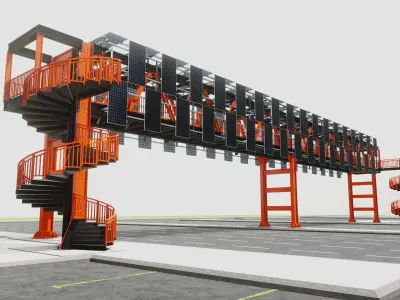

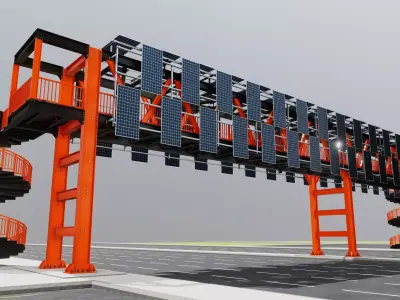

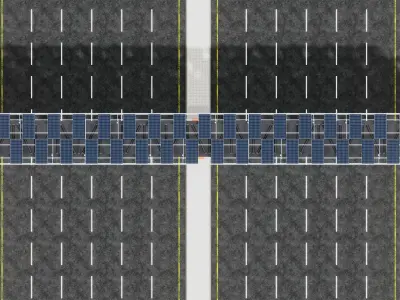

Solar Pedestrian Overpass Type-1 3D model

$24

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

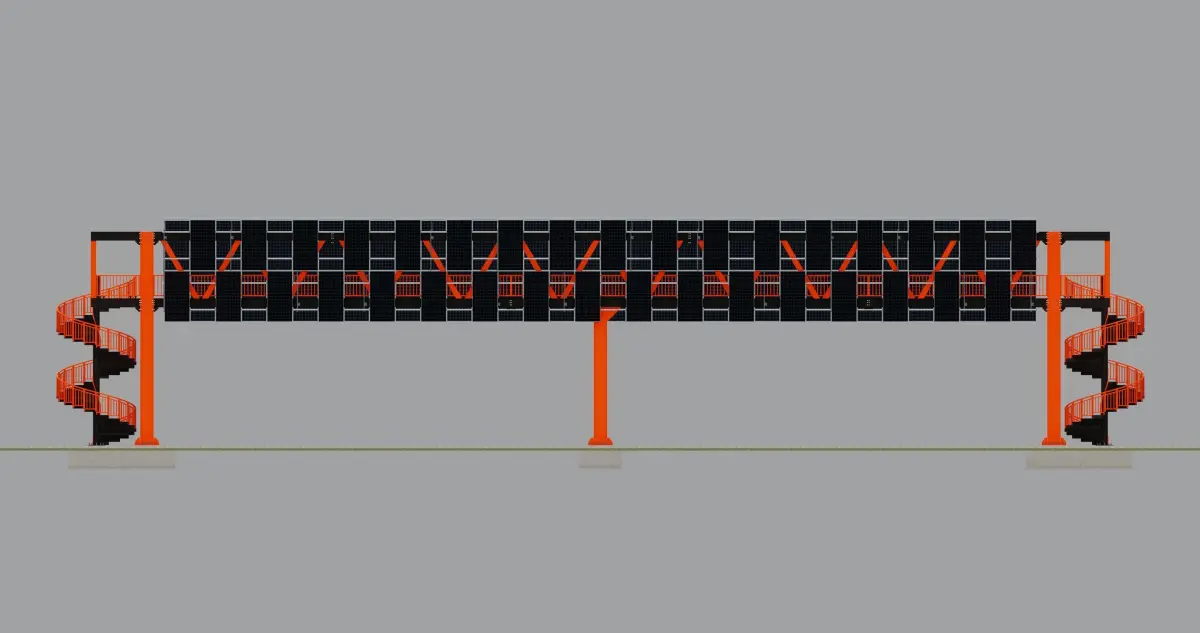

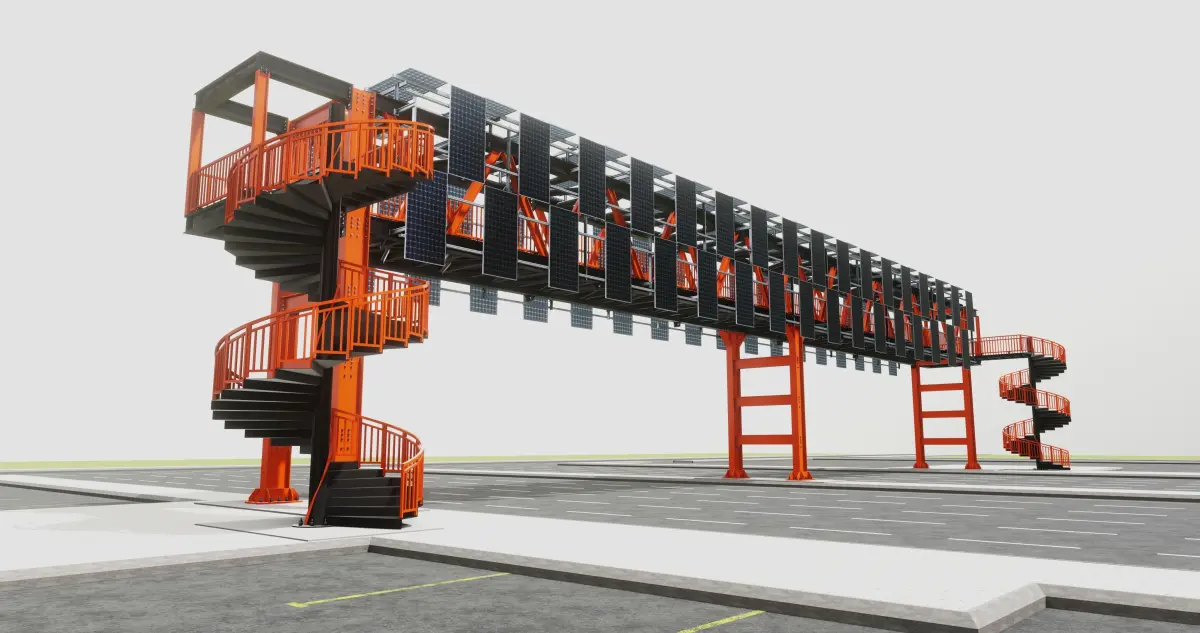

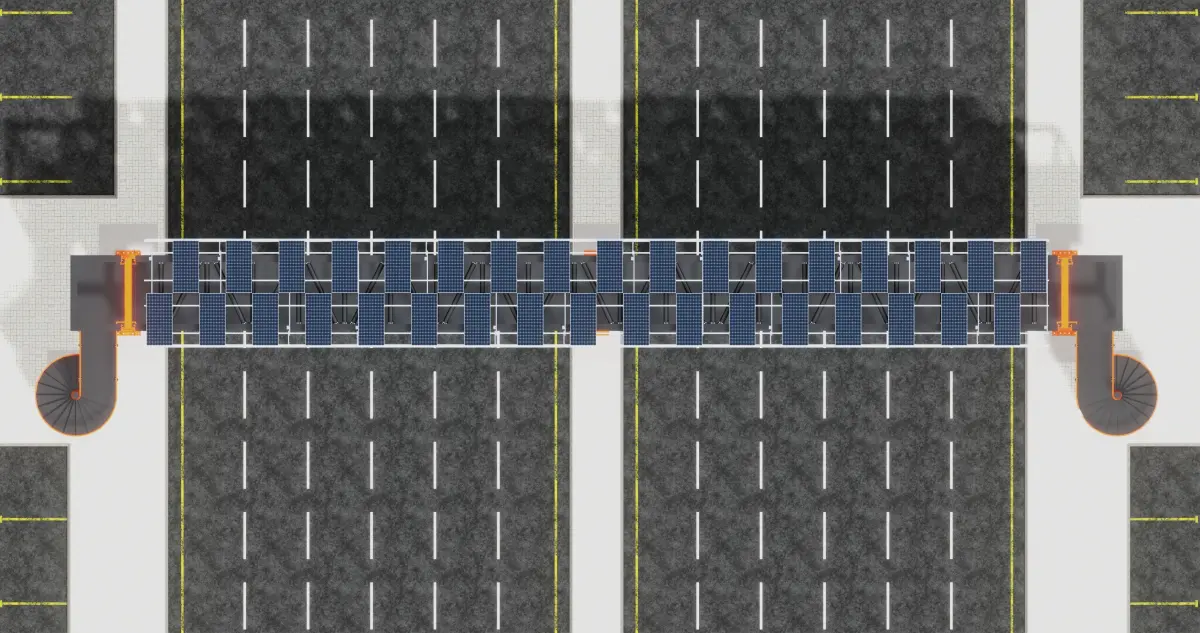

Solar Pedestrian Overpass Type-1

56.1 kW (DC) energy production with the installation of 102 solar panels on the top, front and back of the platforms

Truss Type Platform Construction

Three Column Consruction

Open Top Construction

Straigth Beam Type

Straight Column Type

Named Objects

Largest Column Span : 40,8 mt.

Distance Between Two Columns : 20,4 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Platfrom Truss Heigth : 3 mt.

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Spiral Stair Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1 mt.

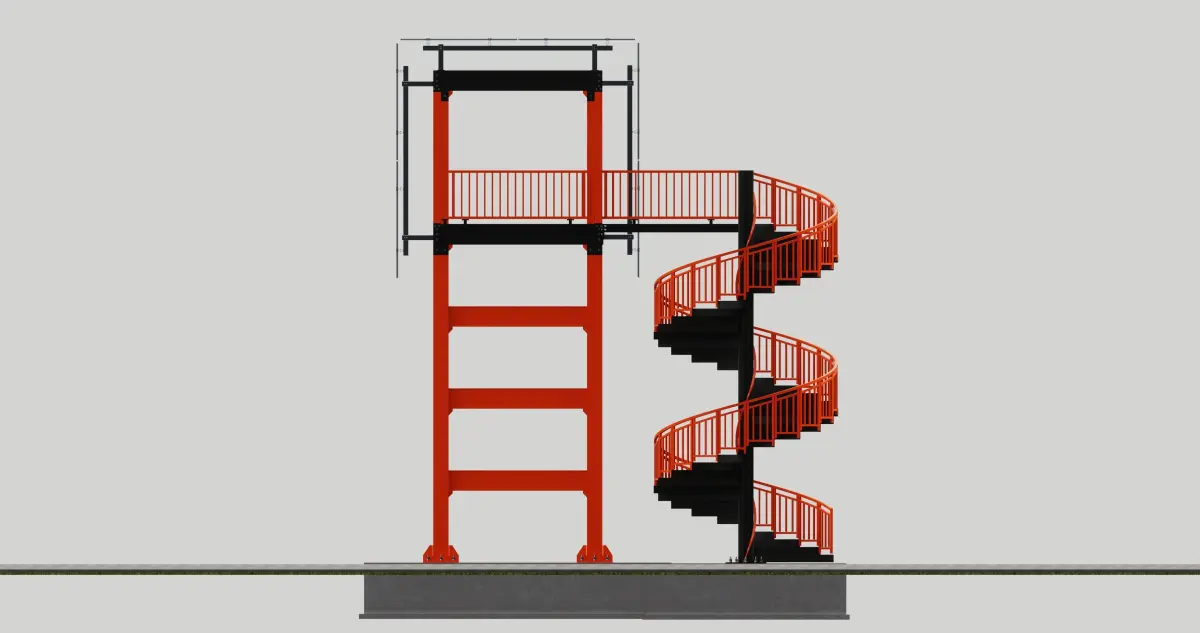

Spiral Stair Type

Stair Step Width : 1,657 mt.

Step Sizes : 50/565 mm. * 150 mm.

Prepared With BLENDER Version 4.0.1

Polygons : 1064598

Vertices : 1529698

Objects : 9513

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 1064598
Vertices: 1529698
Geometry: Unknown

Tags

Solarbridge Pedestrian Overpass Steel Truss Bridge Rope Tension Ground Construction Beam Column Pylon Structure Outdoor Engineering Buildings Blender Architectural
