Solar Tracking Systems Type-2 3D model

$39

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

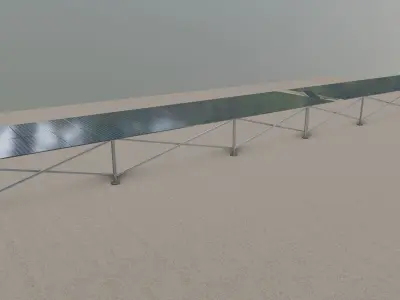

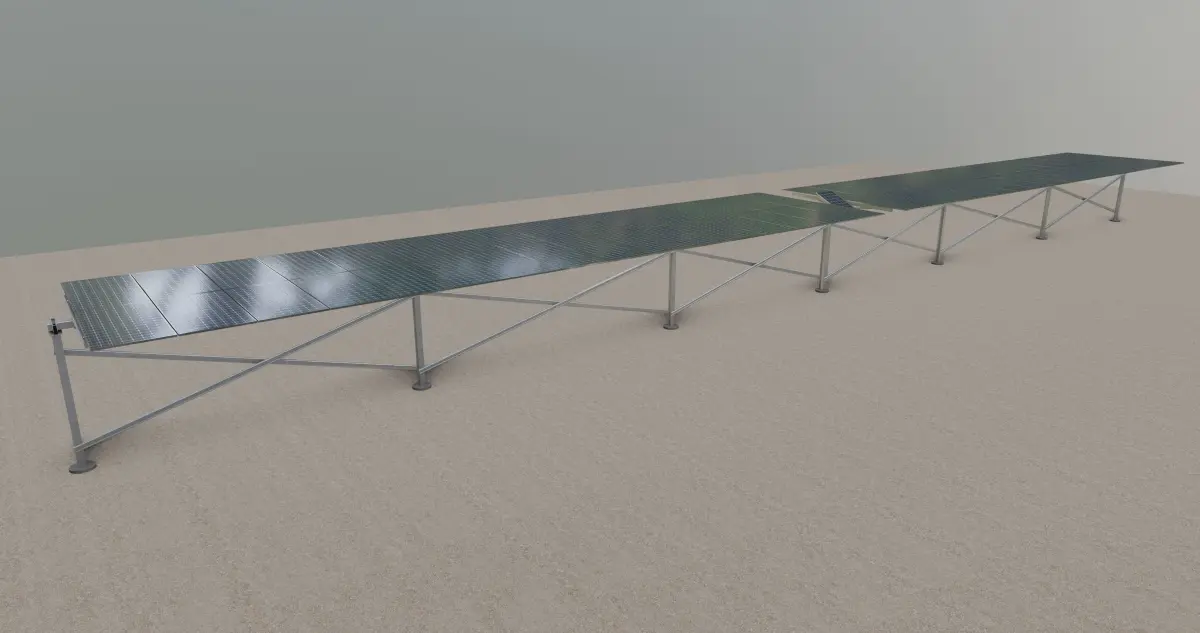

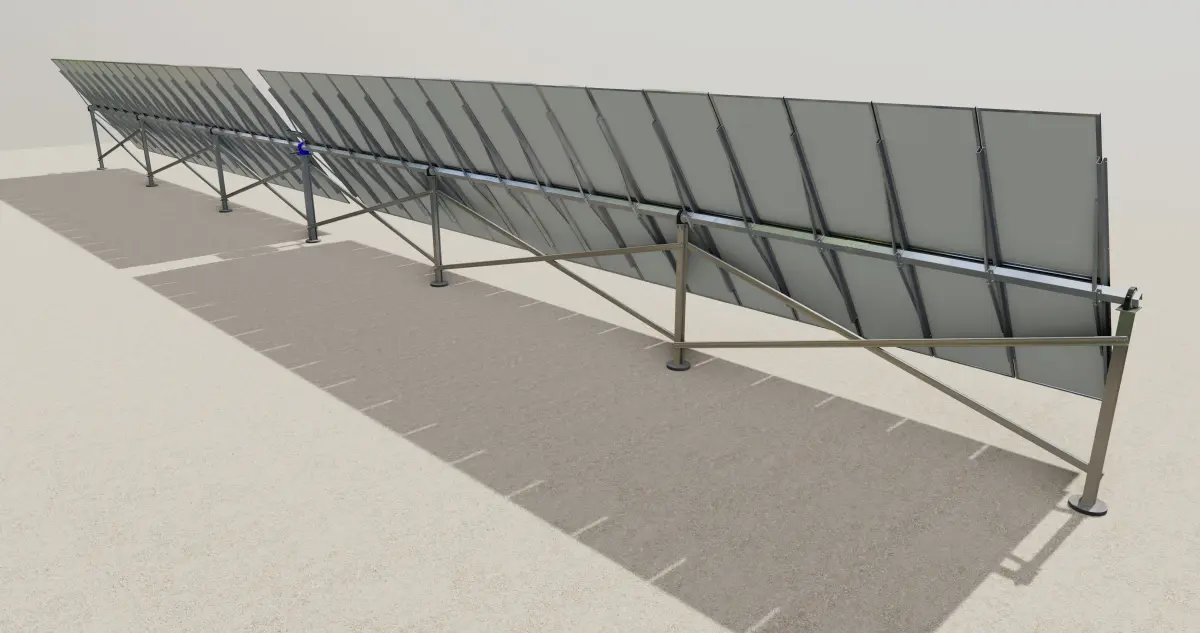

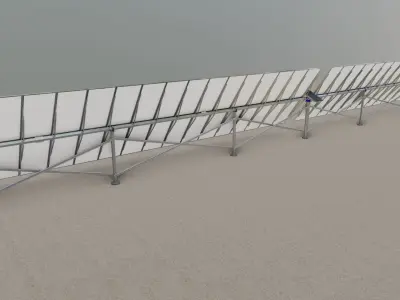

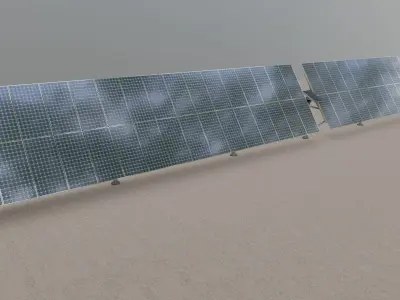

Solar Tracking Systems Type-2

(16x2)x2 Panel Layout

Ground Connection Type; With Concrete Friction Pile

Distance of Columns Below Ground 1900 mm.

Concrete Friction Pile Dimensions : Ø300 mm H= 2000 mm

Distance of Columns Below Ground 6000mm_7000mm_6250mm

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 35,2 kWp power in 1 hour

The system consists of 7 components.

Panel angle range -55° , +55°

Profile Section;

Column : IPE 200Beam : BOX PROFILE 120x120x3mmPurlin : OMEGA PURLIN HS100x40x25-2mm

Prepared With BLENDER Version 2.93.5

Polygons : 834475

Vertices : 947291

Objects : 2191

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 834475
Vertices: 947291
