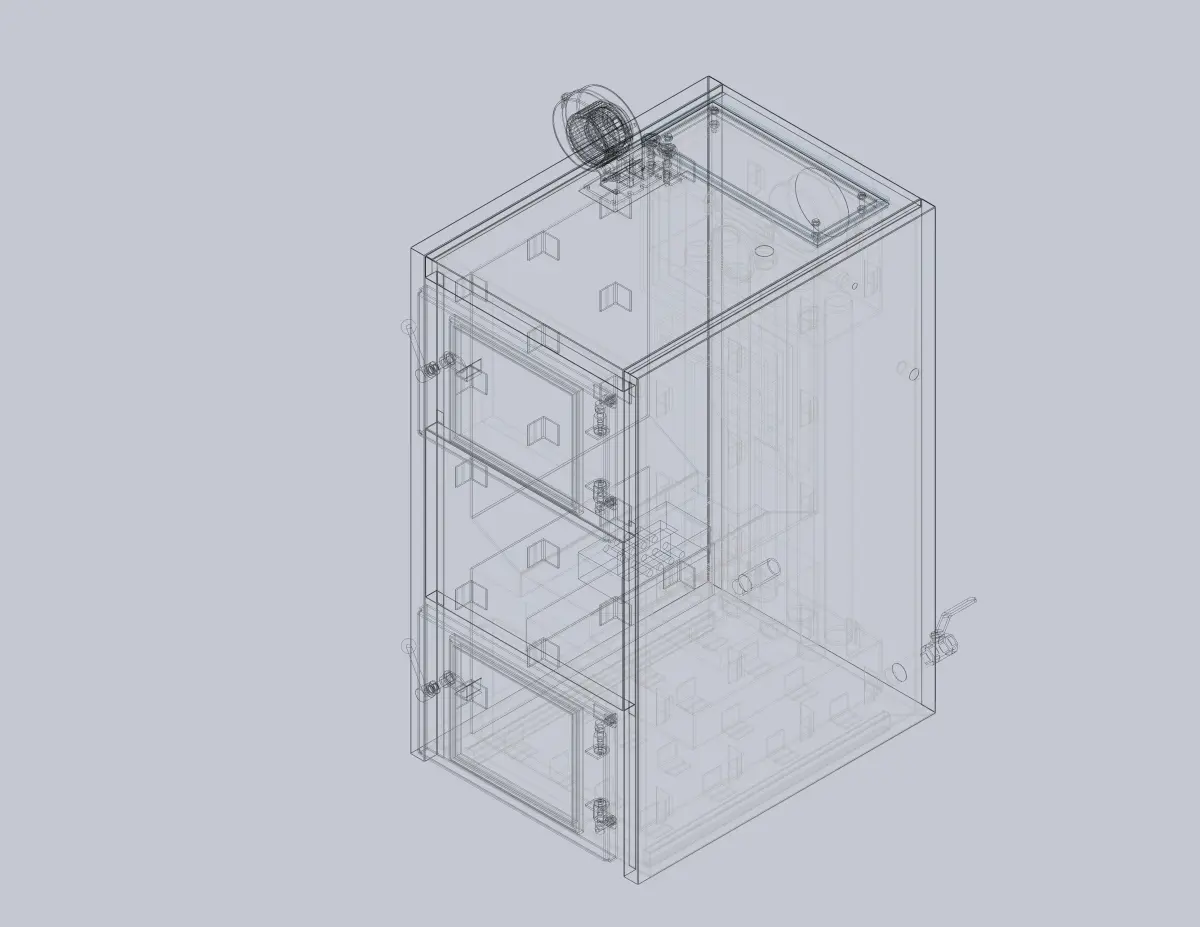

Solid fuel pyrolysis boiler SOLIDWORKS Flow Simulation 3D model

Publication date: 2024-02-23

Solid fuel pyrolysis boiler SOLIDWORKS Flow Simulation 3D model

$120

License: Royalty Free License

author:

dmitrichkonst

Description

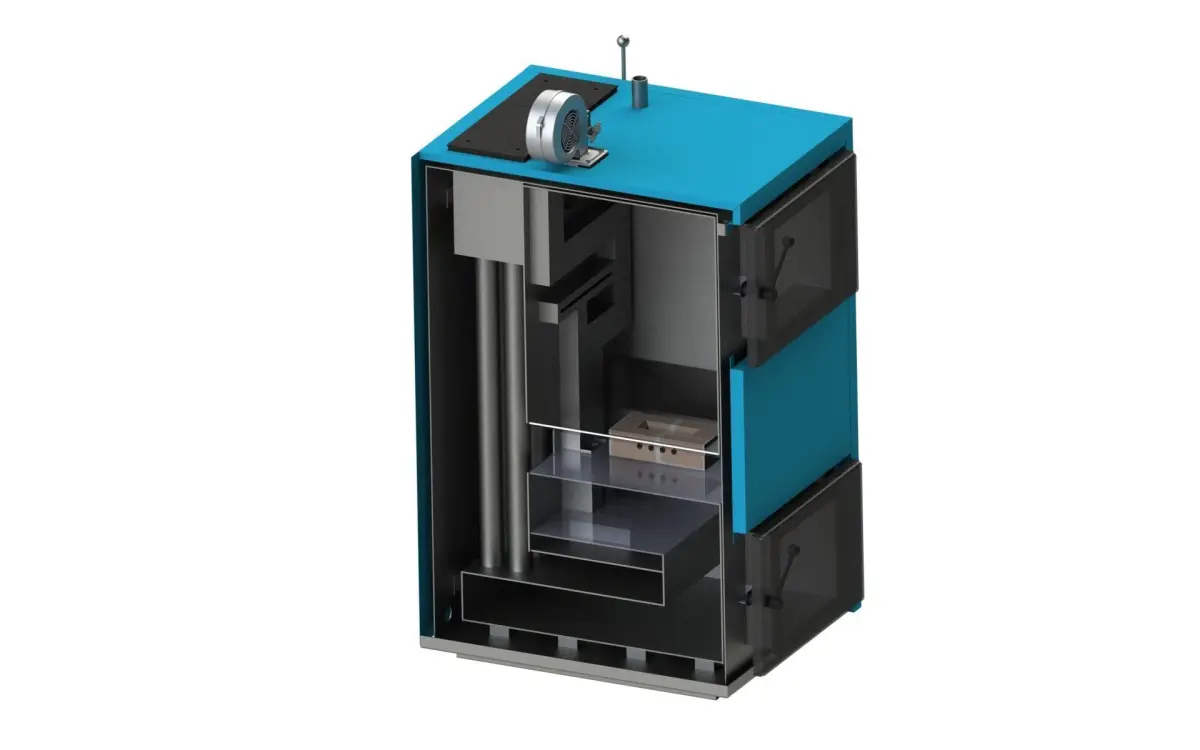

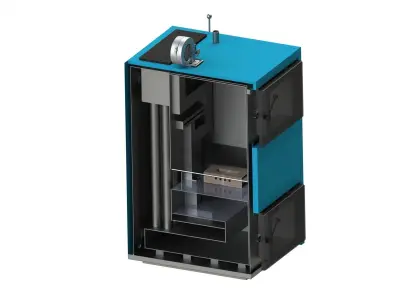

The pyrolysis boiler consists of two chambers: the first is a combustion chamber (firewood, coal, wood chips) in conditions of high temperature and lack of oxygen, carbon monoxide CO is released. Next, carbon monoxide enters the second chamber (nozzle) and is oxidized, thereby forming a jet of flame. Combustion products pass through the heat exchanger, heating the water.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: -
Polygons: 0
Vertices: 0

Tags

Solid Fuel Boiler Industrial Convection Technology Tool Solidworks Flow Simulation

All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «dmitrichkonst». CGhub does not claim copyright ownership over the content used.
