Buy Speed Reduction System 3D model

Name: Speed Reduction System 3D model
Brand: meca-v
SKU: 206337
Price: 20.00 USD
Availability: InStock

$20

License: Royalty Free

author:

meca-v

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «meca-v». CGhub does not claim copyright ownership over the content used.

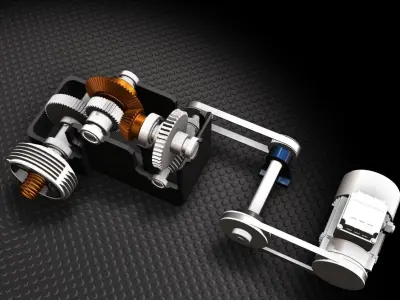

I designed this system as part of the exercise I use to teach the Machine Element Design Tools (Design Accelerator Module) in my Inventor courses. The gearbox design is a little bit overkill, but the idea was to have all the types of gears in one place to explain them all together. You can check the calculations on every component and observe that they comply. The gearbox case is simplified as its design wasn’t an important part of the course. To animate the gears, go to the browser and expand “Shaft 13” and drive the constraint called: “ROTATION DRIVER”. I hope someone find this usefull.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Geometry: Polygon mesh

Tags

Engineering Spring Gears Worm Spur Transmission Bevel Gearbox Spline Clutch Simulation Course Bolts Calculation Belts Industrial Machine Industrial machine Spur gear Spring cad Bevel gear cad Spur gear cad Gearbox cad Worm gear cad Worm gearbox cad
