High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

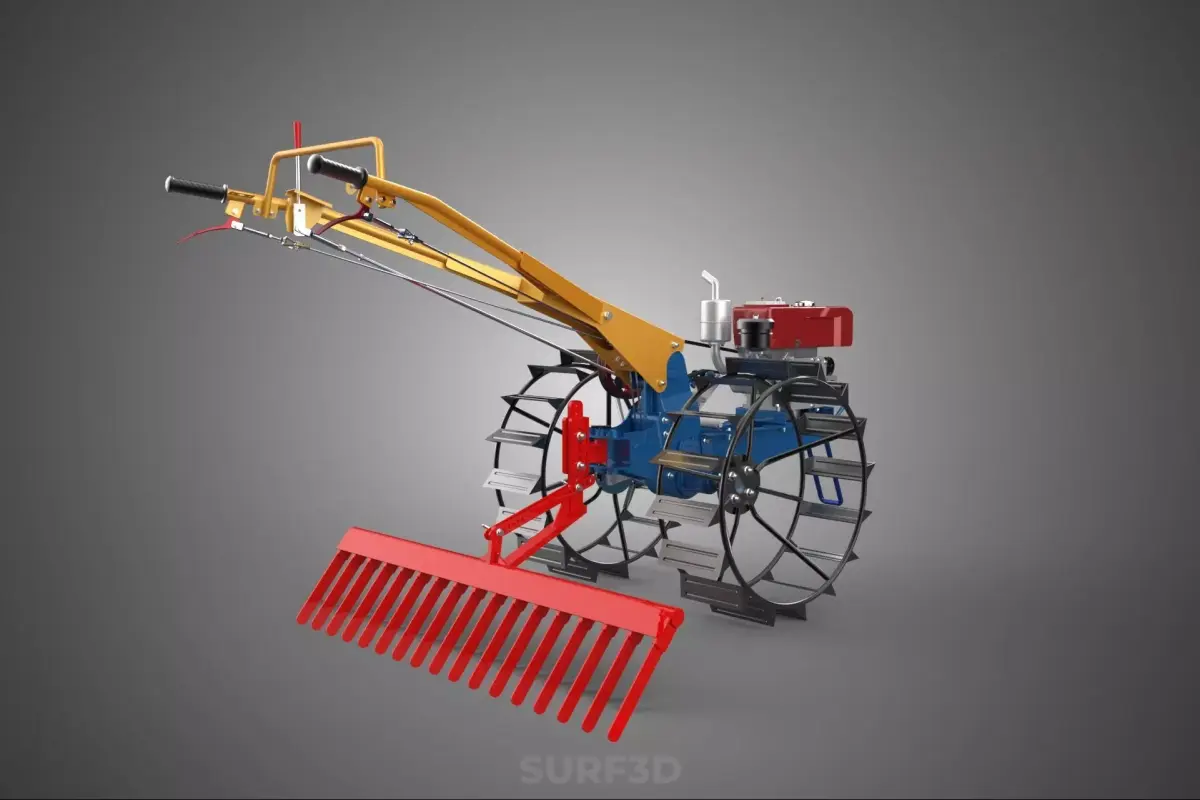

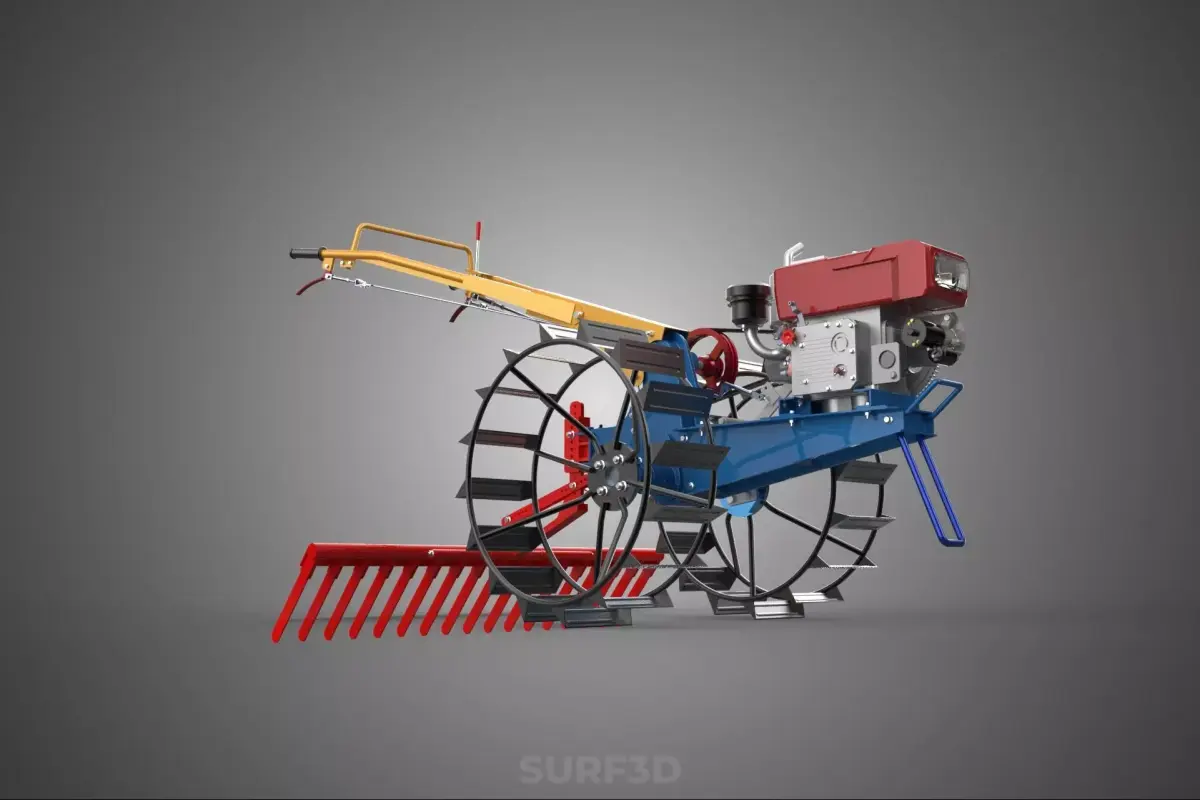

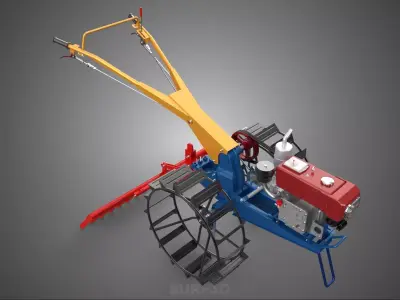

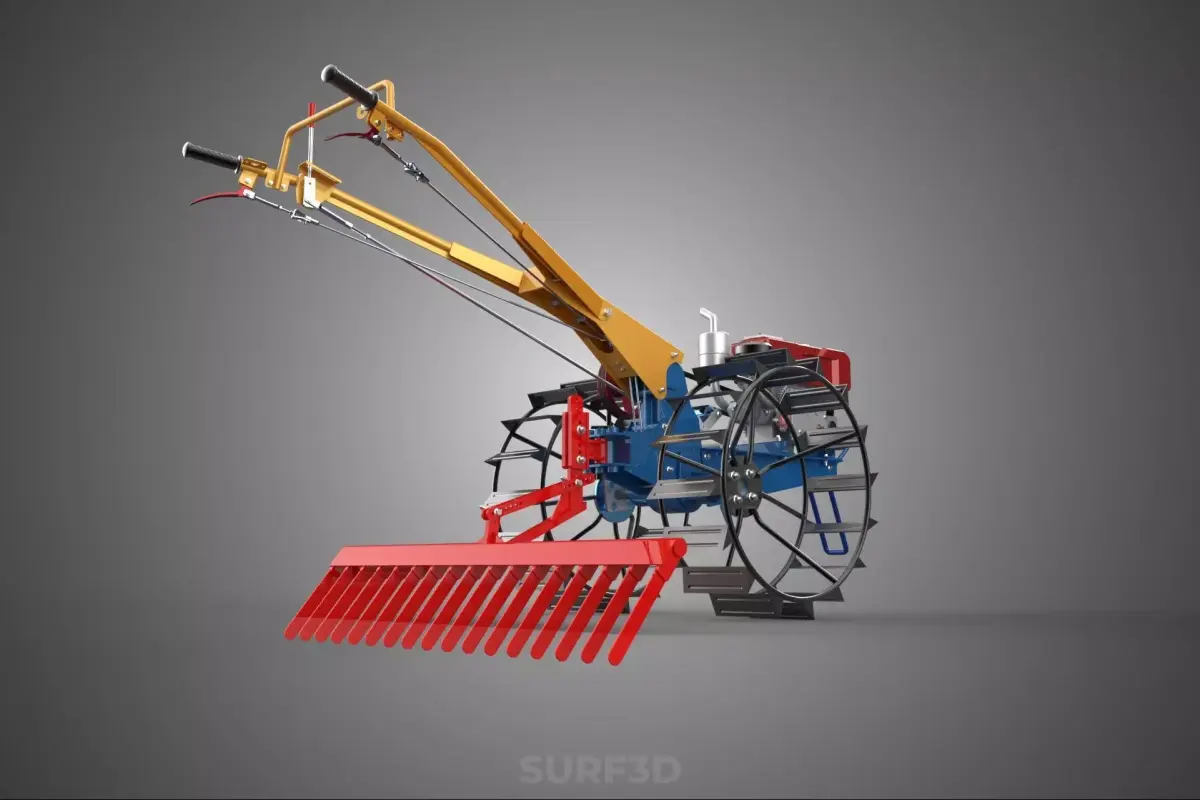

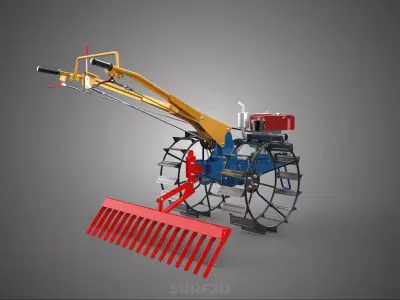

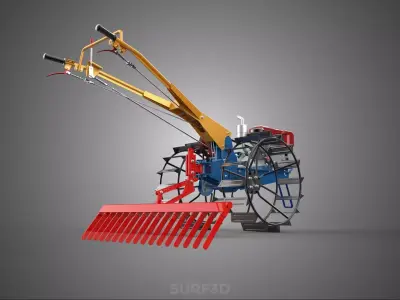

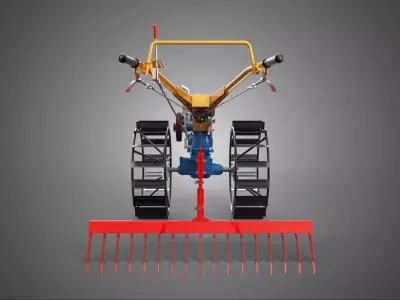

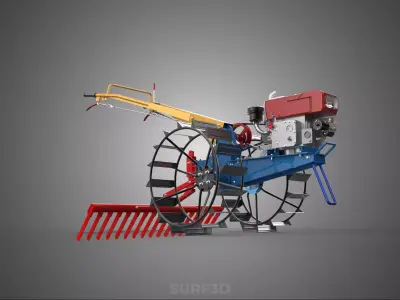

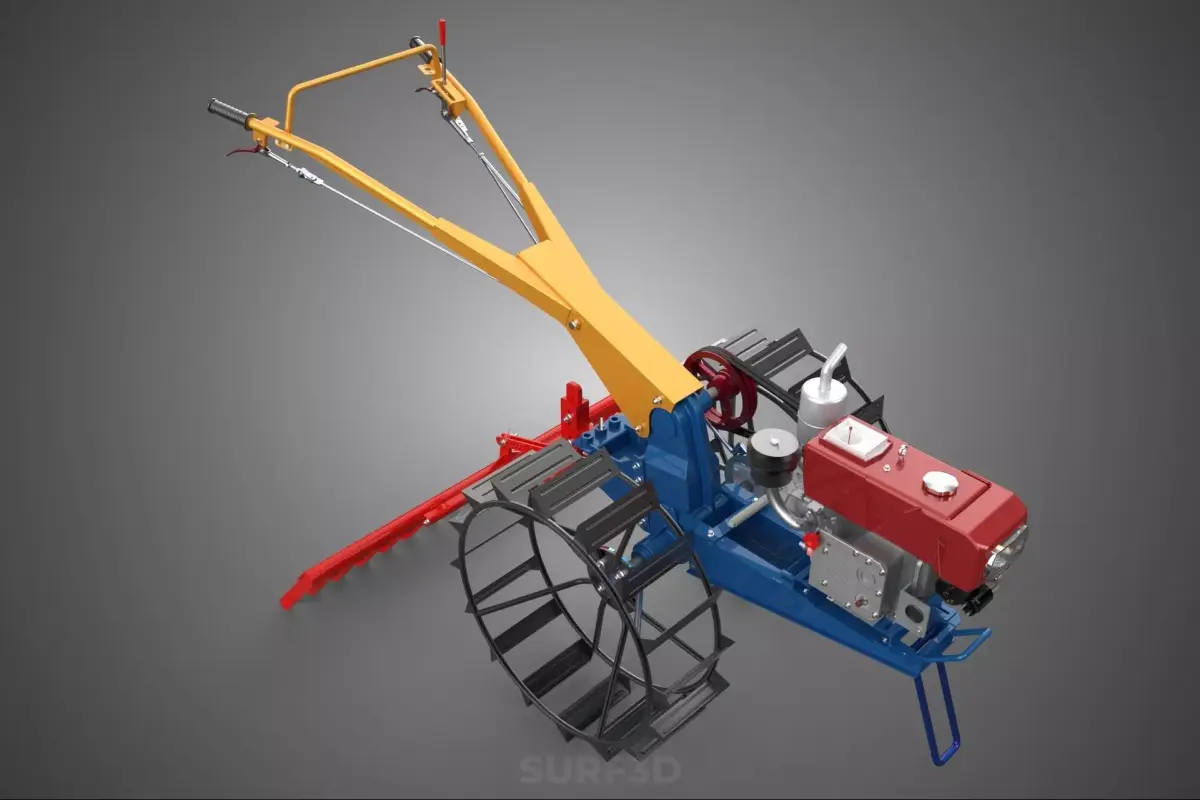

The Spike Tooth Harrow Mount designed for use with a Hand Walking Tractor, often referred to as a walk-behind garden tractor, is a specialized non-powered (passive) agricultural implement used primarily for secondary tillage and seedbed preparation in small-scale farming and intensive gardening environments.
Definition and Classification
This implement is classified as a drag harrow attachment. It is engineered specifically to interface with the implement hitch system of a single-axle, pedestrian-operated agricultural prime mover. Unlike rotary tillers, which utilize rotating blades for aggressive soil churning (primary tillage), the spike tooth harrow performs surface-level refinement, soil leveling, and crust breaking.
Design and Mechanical Structure
The core mechanism consists of a rigid, rectangular frame, typically fabricated from welded steel angle or tubular sections, designed for optimized tensile strength against drag forces. Attached perpendicularly to the underside of this frame are multiple rows of fixed tines, known as spike teeth.
Spike Teeth: These tines are usually short, rigid, straight metal points, commonly featuring a square, diamond, or round cross-section. Their design ensures effective penetration and fracturing of soil clods without excessive inversion or deep mixing of the soil profile. The spacing and density of the teeth influence the fineness of the resulting tilth and the implement's efficacy in weed control.
Mounting Mechanism: The harrow frame integrates a robust mounting bracket compatible with the proprietary Quick-Attach or Pin-Hitch systems common to specific brands of walk-behind tractors (e.g., BCS, Grillo, or specialized regional variants). This connection ensures that the downward force of the implement and the tractive effort of the powered axle are efficiently translated into horizontal dragging action across the soil surface.
Depth Control: Penetration depth is managed passively. On some advanced models, adjustable skid shoes or gauge wheels are integrated to maintain a consistent operating depth relative to the ground surface. More rudimentary designs rely on the adjustable hitch height of the tractor or the operator's manual manipulation of the tractor handles to optimize the angle of attack and penetration depth.
Operational Principles and Function
The primary function of the spike tooth harrow in this context is post-plowing refinement.
- Clod Reduction: As the harrow is pulled forward, the spike teeth fracture and shatter large soil aggregates (clods) left after primary tillage (plowing or initial rotary tilling), transforming the rough surface into a manageable seedbed.
- Leveling: The dragging action redistributes soil, filling in depressions and knocking down ridges, creating a level, uniform surface crucial for precise planting, especially with mechanical seeders.
- Crust Breaking: The implement effectively breaks up hard surface crusts that can form after heavy rain or irrigation, thereby improving aeration and facilitating the emergence of delicate seedlings.
- Weed Management: It provides light, pre-emergent, or shallow post-emergent weed control by uprooting young, filamentous weeds and leaving them exposed to desiccation on the soil surface.
Due to the limited horsepower and tractive footprint of walk-behind tractors, this implement is highly suitable for operations requiring precise maneuvering, such as preparing individual raised beds, working within narrow row spacing, or performing secondary tillage in high-value market gardens where minimal compaction is desired.
KEYWORDS: Spike Tooth Harrow, Walk Behind Tractor, Secondary Tillage, Garden Implement, Soil Refinement, Seedbed Preparation, Agricultural Attachment, Walk-Behind Garden, Tillage Tool, Non-Powered Implement, Passive Tillage, Hand Tractor, Market Garden, Soil Leveling, Clod Reduction, Weed Control, Single Axle Tractor, Farm Equipment, Rigid Tines, Hitch Mount, Pedestrian Operated, Small Acreage, Tillage Depth, Cultivation, Soil Aeration, Quick-Attach System, Intensive Farming, Draft Implement, Ground Preparation, Agricultural Machinery
STL (Stereolithography, filesize: 40.4 MB), OBJ (OBJ, filesize: 81.4 MB), FBX (Autodesk FBX, filesize: 25.3 MB), DWG (AutoCAD, filesize: 19.4 MB), 3DM (Rhinoceros 3D, filesize: 140 MB), SAT (3D ACIS, filesize: 70.8 MB), STP (STEP, filesize: 71.5 MB), BLEND (Blender, filesize: 74.9 MB), 3DS (3D Studio, filesize: 25 MB), DAE (Collada, filesize: 137 MB), SKP (Sketchup, filesize: 67.3 MB), MAX (Autodesk 3ds Max, filesize: 170 MB), GLTF (glTF, filesize: 27 MB), IGE (IGES, filesize: 118 MB)
