Publication date: 2020-06-28

Spiral Bevel Gear - RATIO 4 TEETH 12 48 3D print model

$4

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

mechanism

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «mechanism». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $4 Add to Wishlist
  • Description

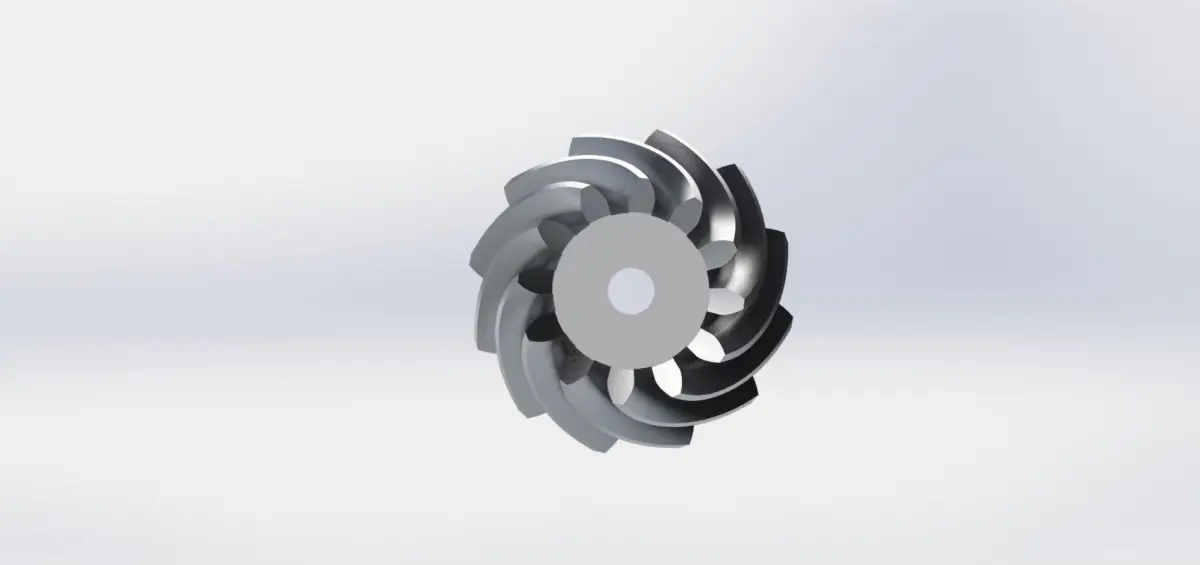

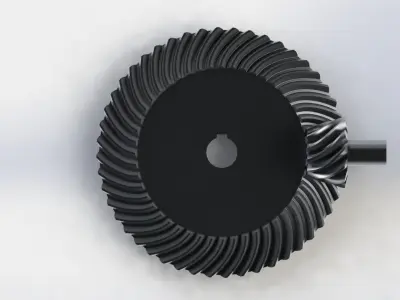

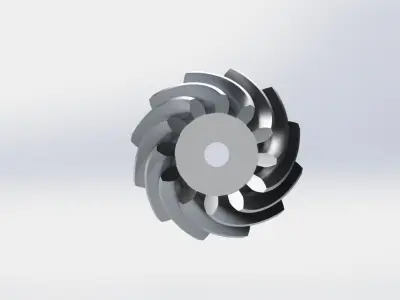

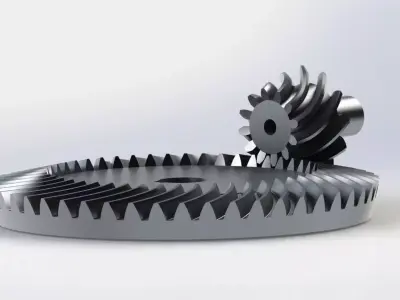

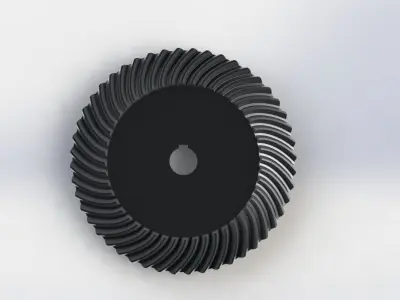

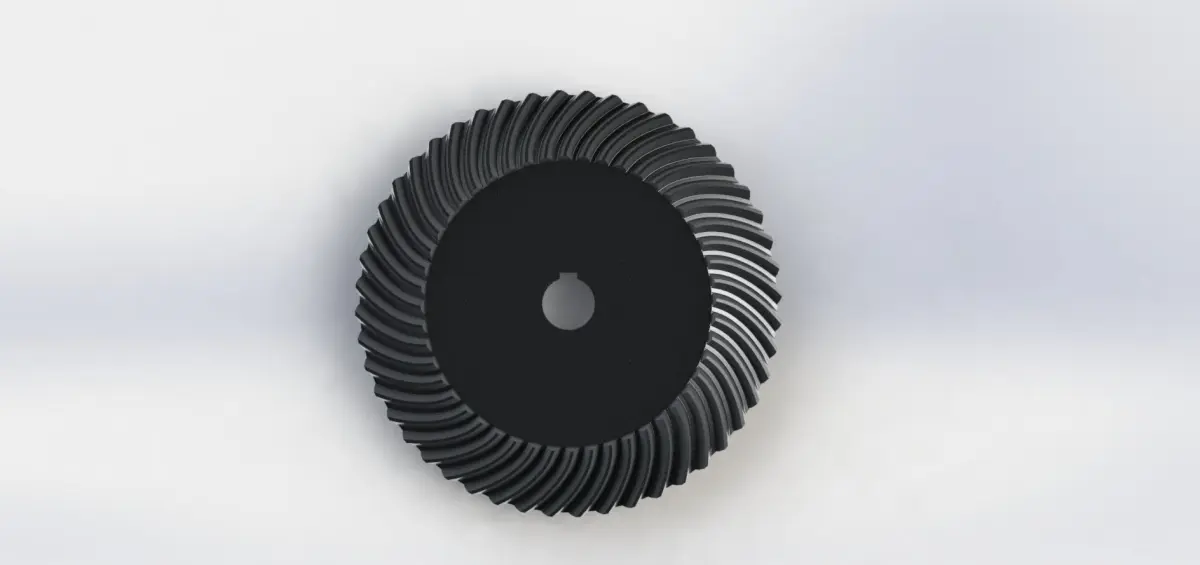

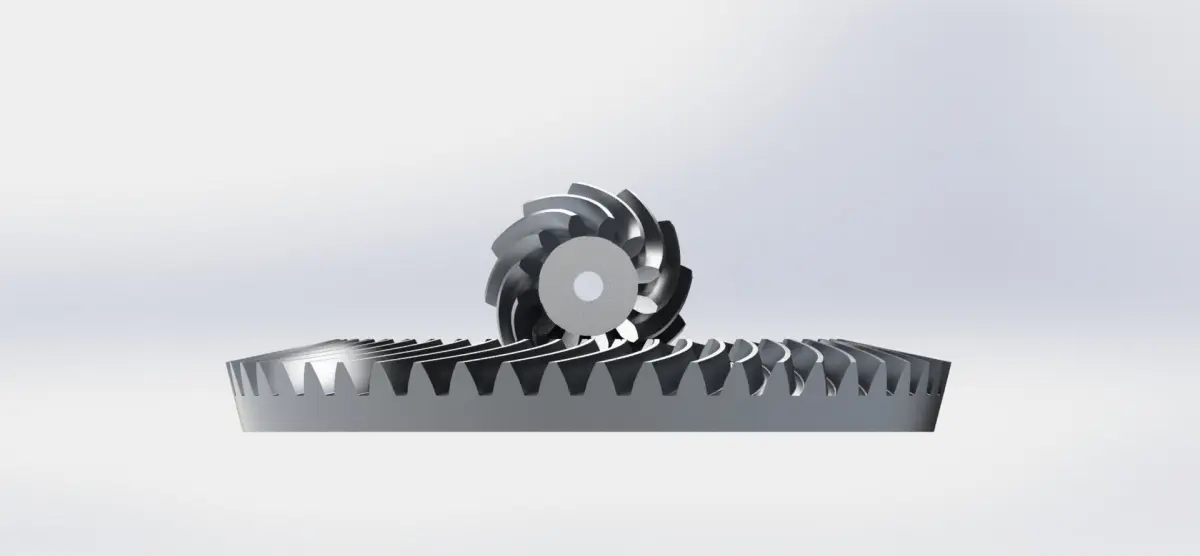

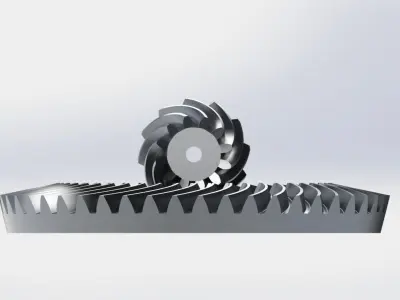

Spiral bevel gear

Gear Tooth Profile: involuteCurve function: involuteGear Ratio:3Gear teeth:48Pinion teeth:12Module: 2mmTrue involute curvesReady to printReady to any manufacturing processThanks to spiral profile;*Reliable transmission ideal for high-speed, high-torque applications*Prevents the gears from slipping*Minimizes backlash.Contact me for revision or similar designs request.

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Machinery Gears Precision Wheel Technology Industrial Tool Steel Science Engineering Robotics Torque Mechanical Transmission
