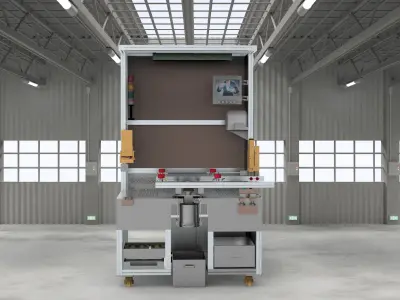

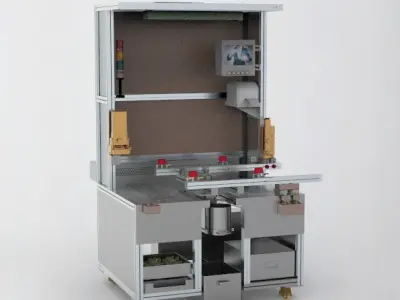

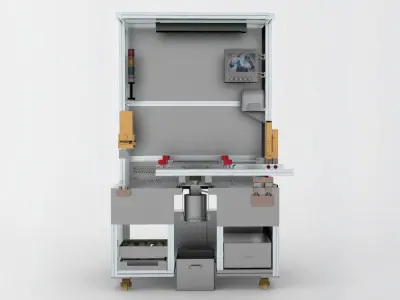

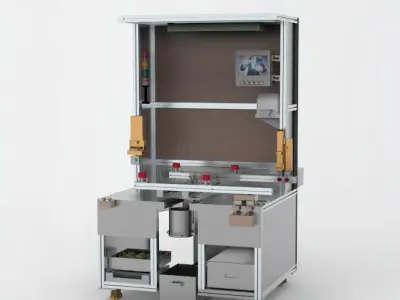

Spraying-manual-table electronic machine with computer 3D model

$60

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

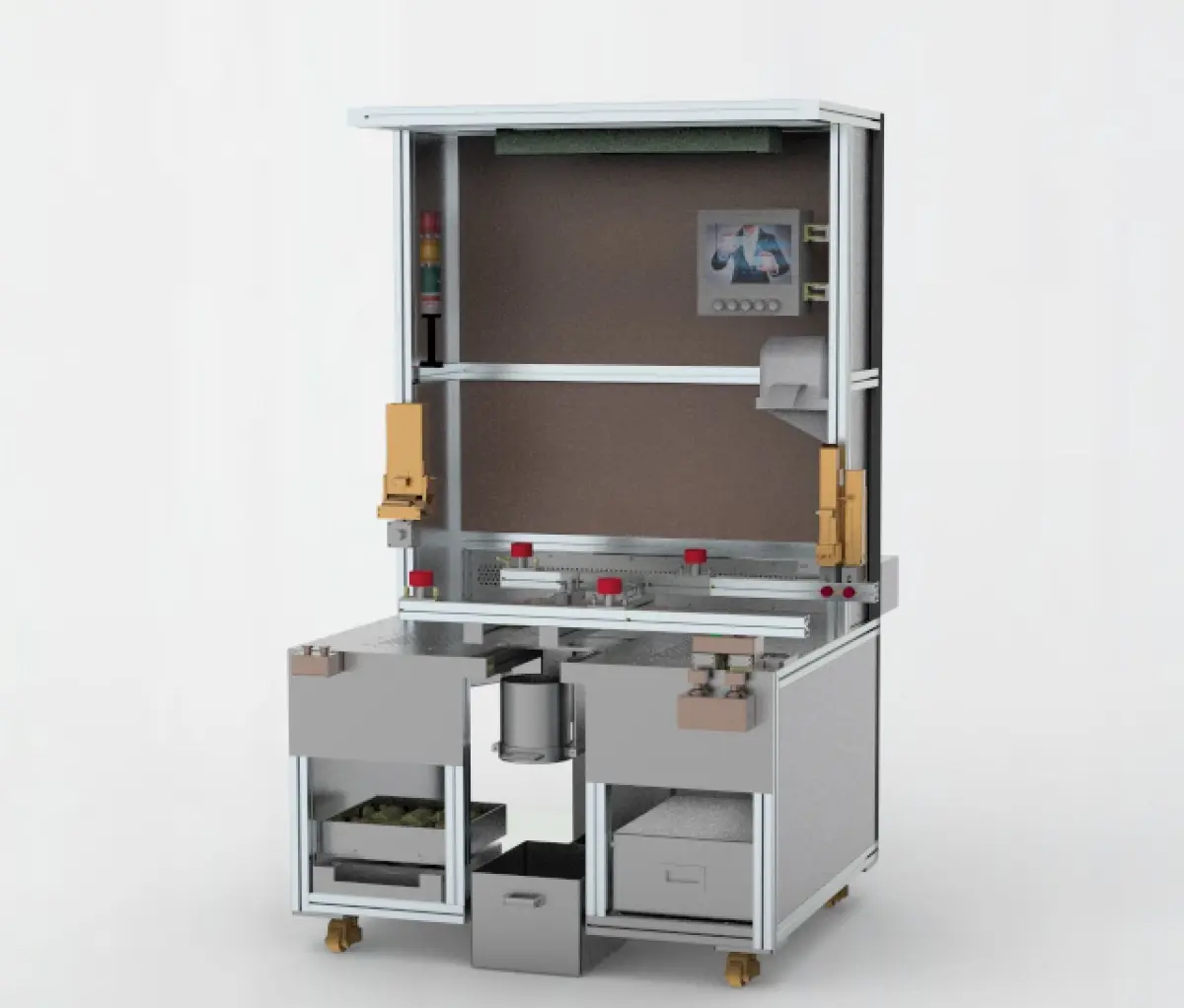

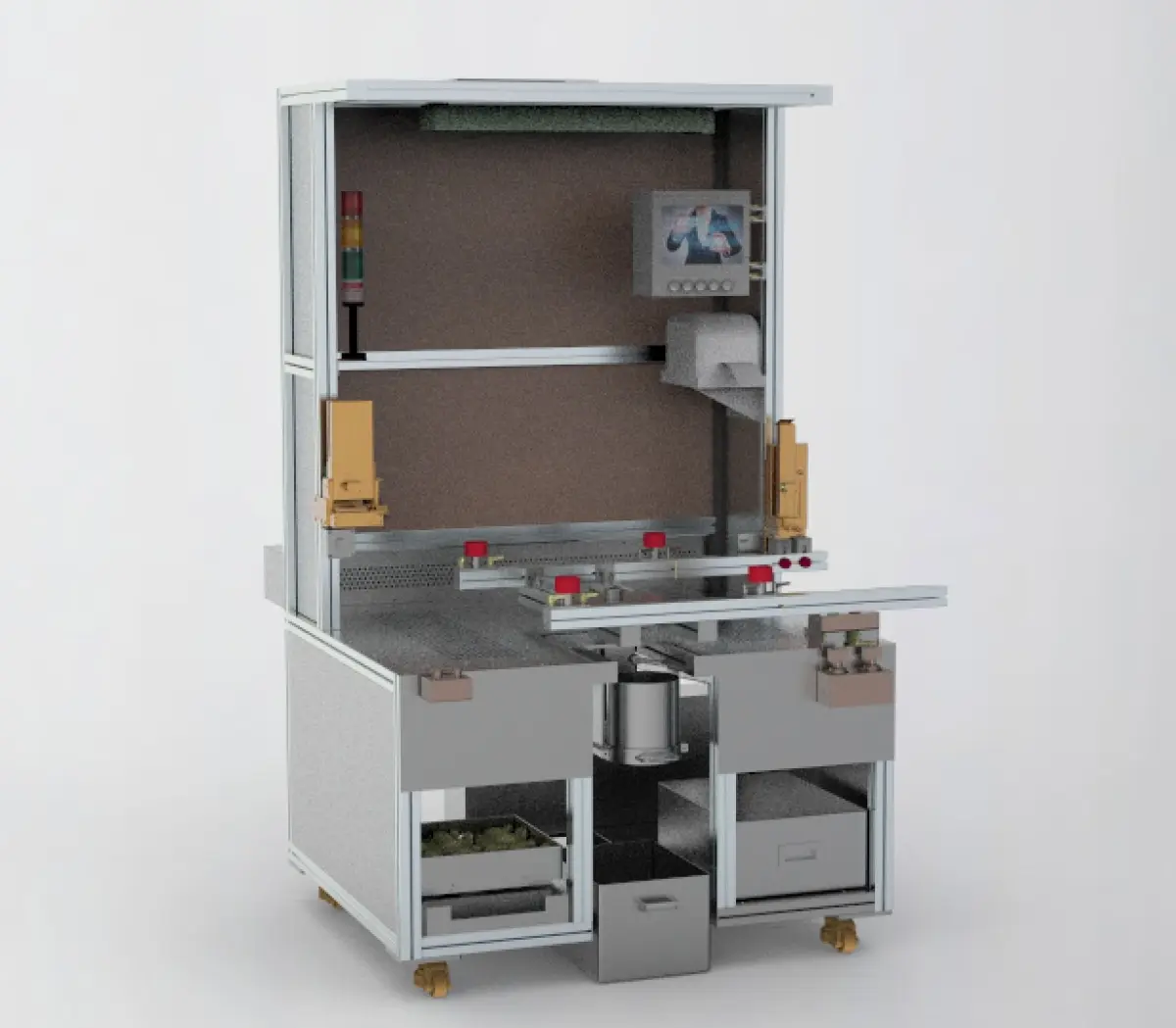

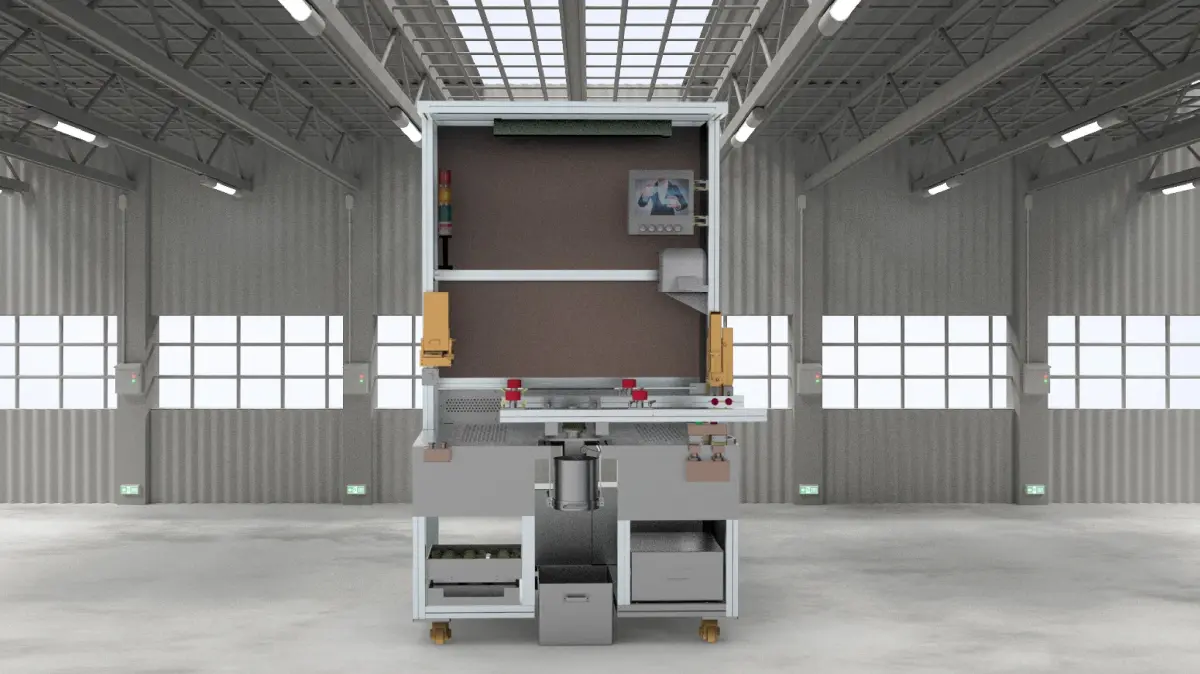

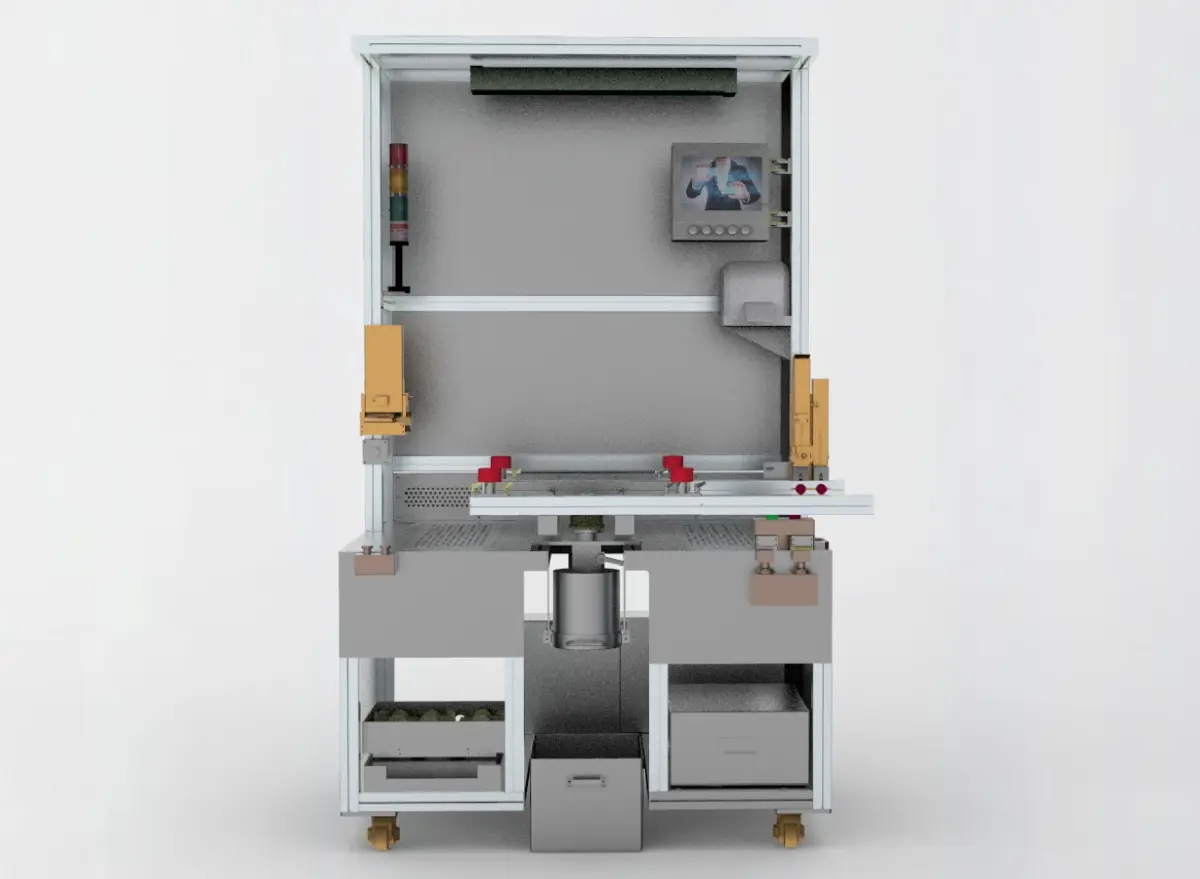

Manual spraying platform

The platform is used for manual spraying of products. Machine setting and process configuration, spray paint tank installation station, self-shaking device, no process operation according to requirements, set switch lock.For example: When no. 1 spray paint can is needed, the switch lock will be opened only after pressing the button, and the operator can take out the can for spray paint operation.At the same time, there are many tooling positions, such as automatic discharge tank device, can automatically take out the tooling tank, automatically use the mechanism of the spring principle of automatic feeding.Although the equipment is manual workbench, but a lot of tooling and Settings are very simple, very reference value, is a good reference template for the design of different types of equipment mechanism.

polygons: 7307381

Vertice: 14612550

Files format contains-solidworks 2017-step-iges-dxf-3ds-Fbx-3dmax

and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: unknown
Geometry: Polygon mesh
Polygons: 7307381
Vertices: 14612550
Plugins used

Tags

Machine Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Robot Spray Platform Loading Grounding Workplace Pneumatic Vacuum Industrial Industrial machine Industrial part Industrial factory Industrial robot
