Buy Spring and Anti-Rust Oil Assembly Machine 3D model

Name: Spring and Anti-Rust Oil Assembly Machine 3D model
Brand: Lovano
SKU: 38947
Price: 44.00 USD
Availability: InStock

$44

License: Royalty Free

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

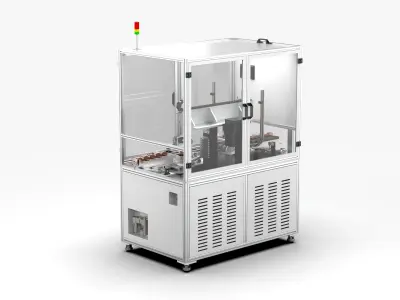

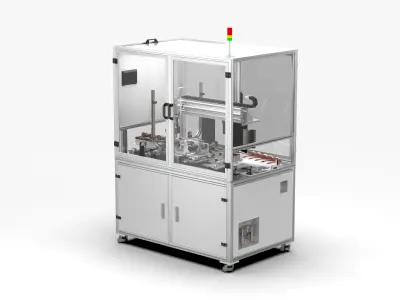

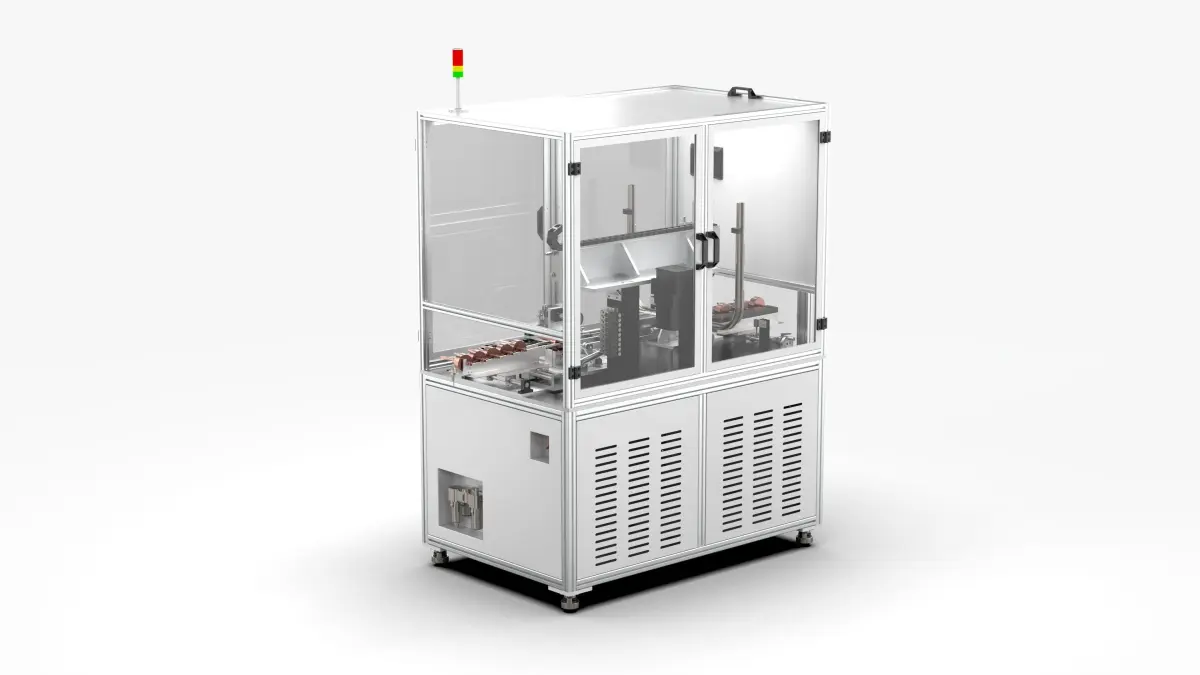

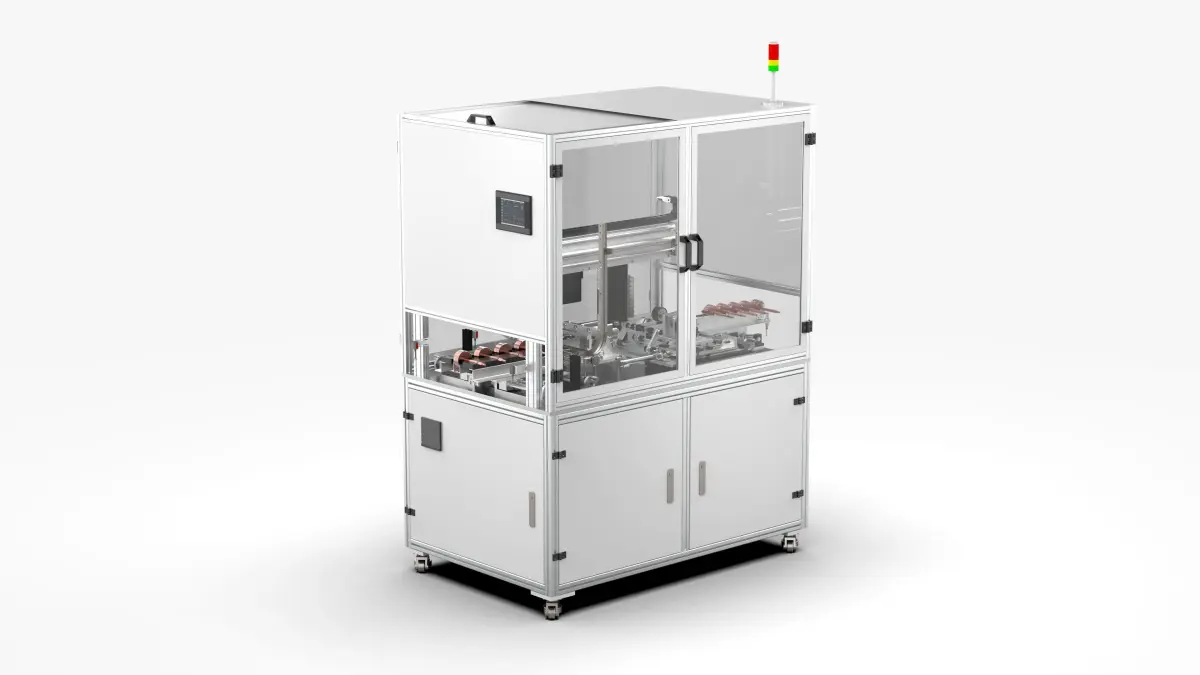

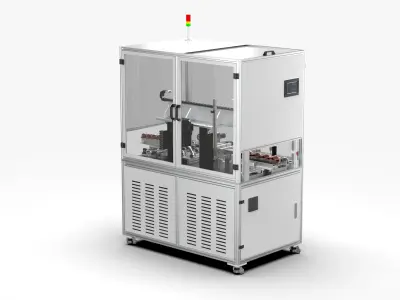

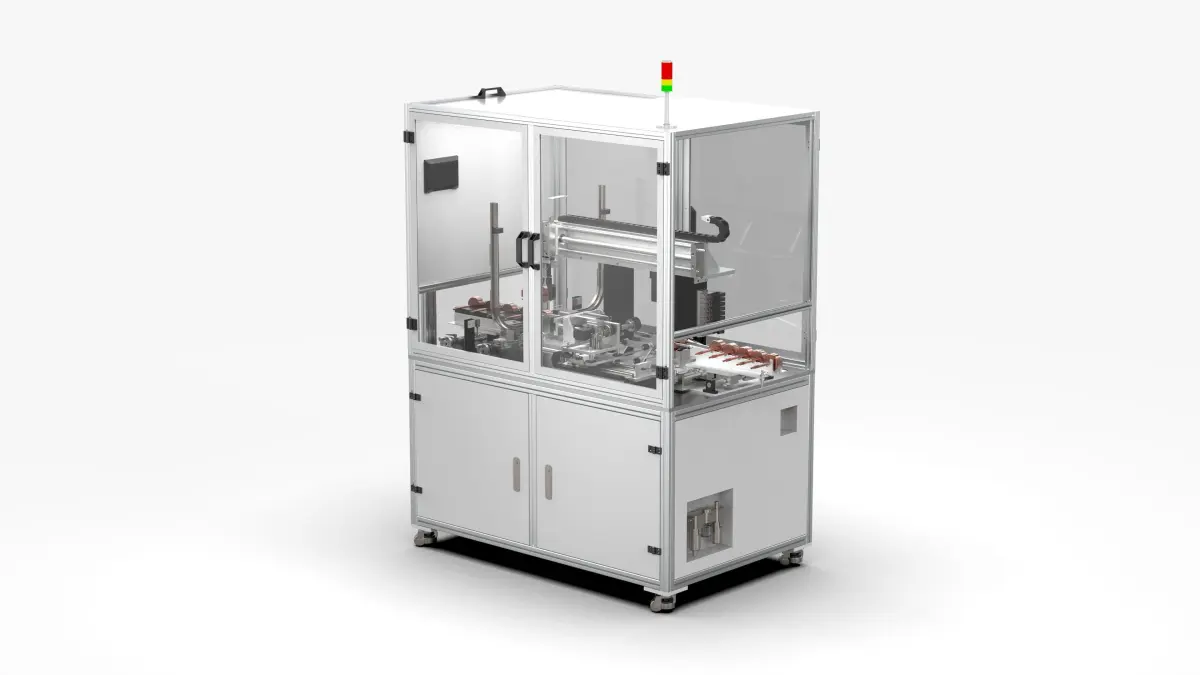

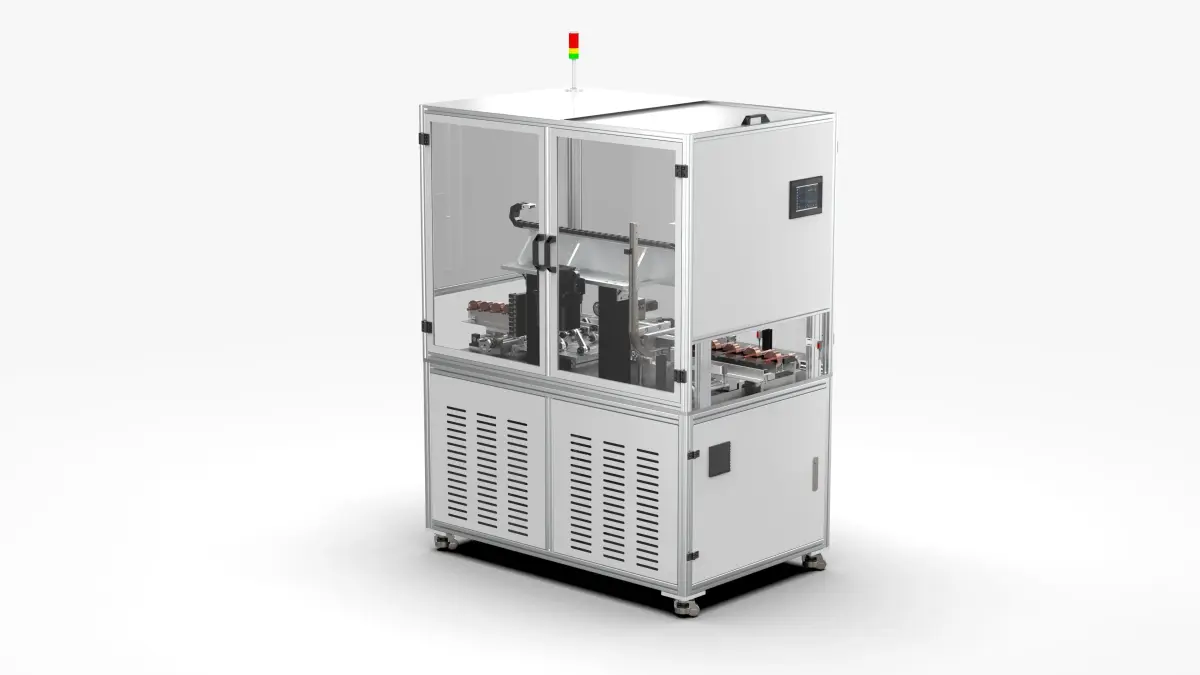

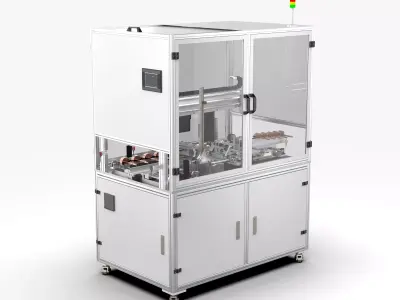

Spring and Anti-Rust Oil Assembly Machine

Introduction

Rotor snap ring oiling integrated machine This equipment is used for rotor processing of squirrel cage rotor manufacturers. The main function is to assemble the rotor bearing with snap ring and to coat the squirrel cage rotor with antirust oil (light gold water). The rotor is sent into the circlip tooling through the feeding mechanism. After the circlip at the rotor bearing position is assembled in place, the rotor is sent to the anti-rust oil coating station through the pneumatic transplanting mechanism. At this time, the oiled roller is moved to the The rotating shaft drives the rotor to rotate and apply oil. After the completion, the connecting rod transplanting mechanism sends the rotor to the unloading chute.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 2,655,804
Vertice: 7,967,412

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 2655804
Vertices: 7967412
Plugins used
Geometry: Polygon mesh

Tags

Spring And Anti rust Oil Assembly Machine Solidwork Design Part Machinery Industrial Production Equipment Modeling Line Mechanism Industrial machine Solidworks spring
