Square Tube Bar Feed Cutting Drilling and Tapping Machine 3D model
Home Catalog Aircraft part Square Tube Bar Feed Cutting Drilling and Tapping Machine 3D model
Square Tube Bar Feed Cutting Drilling and Tapping Machine 3D model
Square Tube Bar Feed Cutting Drilling and Tapping Machine 3D model
Square Tube Bar Feed Cutting Drilling and Tapping Machine 3D model
Square Tube Bar Feed Cutting Drilling and Tapping Machine 3D model
Square Tube Bar Feed Cutting Drilling and Tapping Machine 3D model

Publication date: 2023-04-24

Square Tube Bar Feed Cutting Drilling and Tapping Machine 3D model

$129

License: Royalty Free License

author:

Lovano

Buy at www.cgtrader.com - $129 Add to Wishlist
  • Description
  • Formats
Description

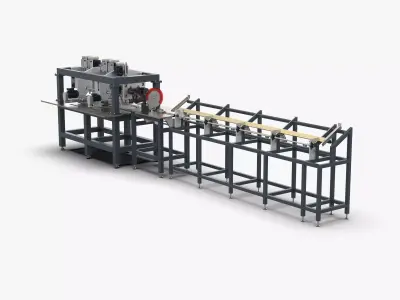

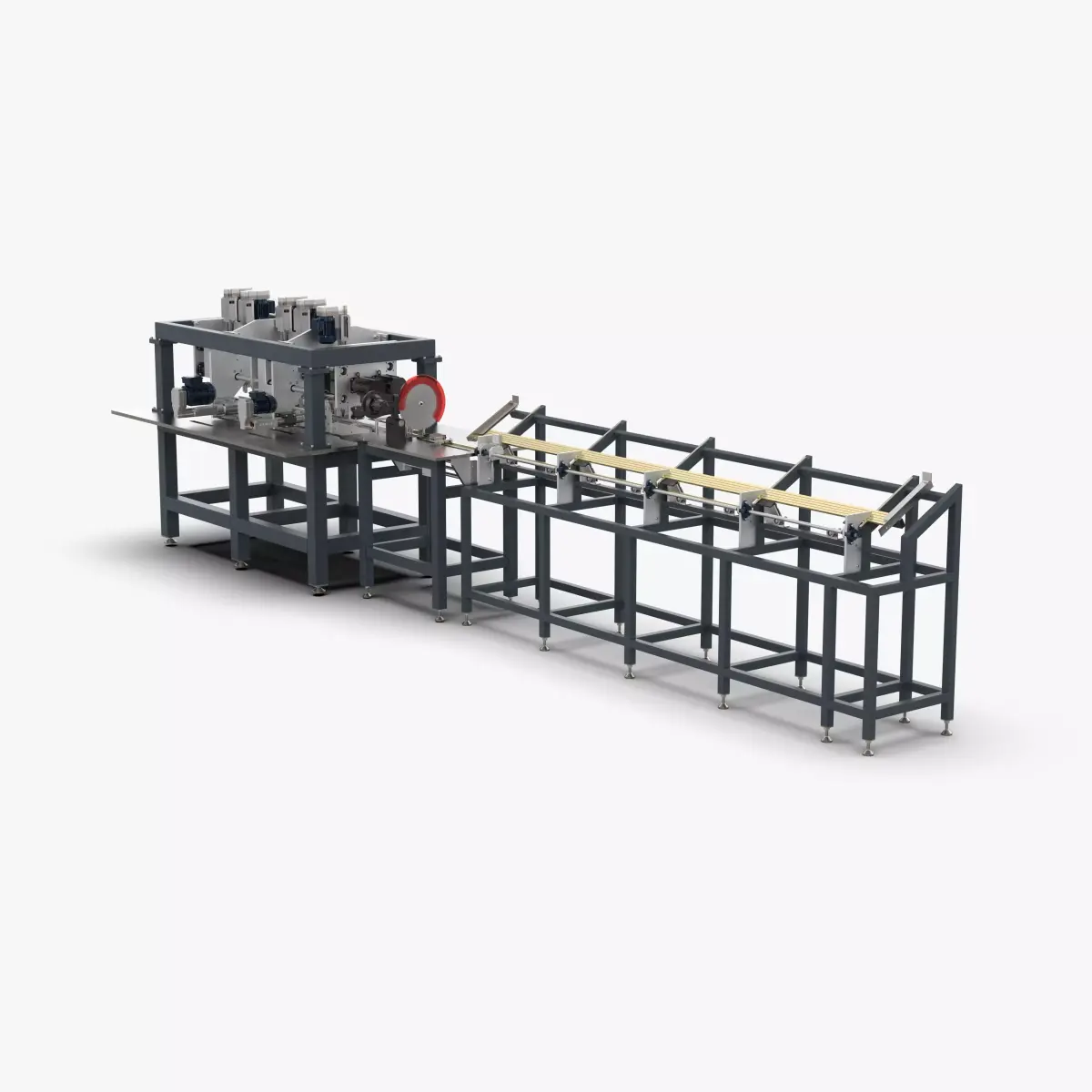

Square Tube Bar Feed Cutting Drilling and Tapping Machine

Introduction

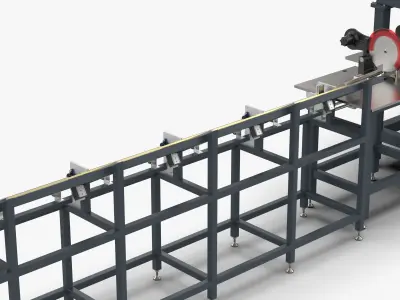

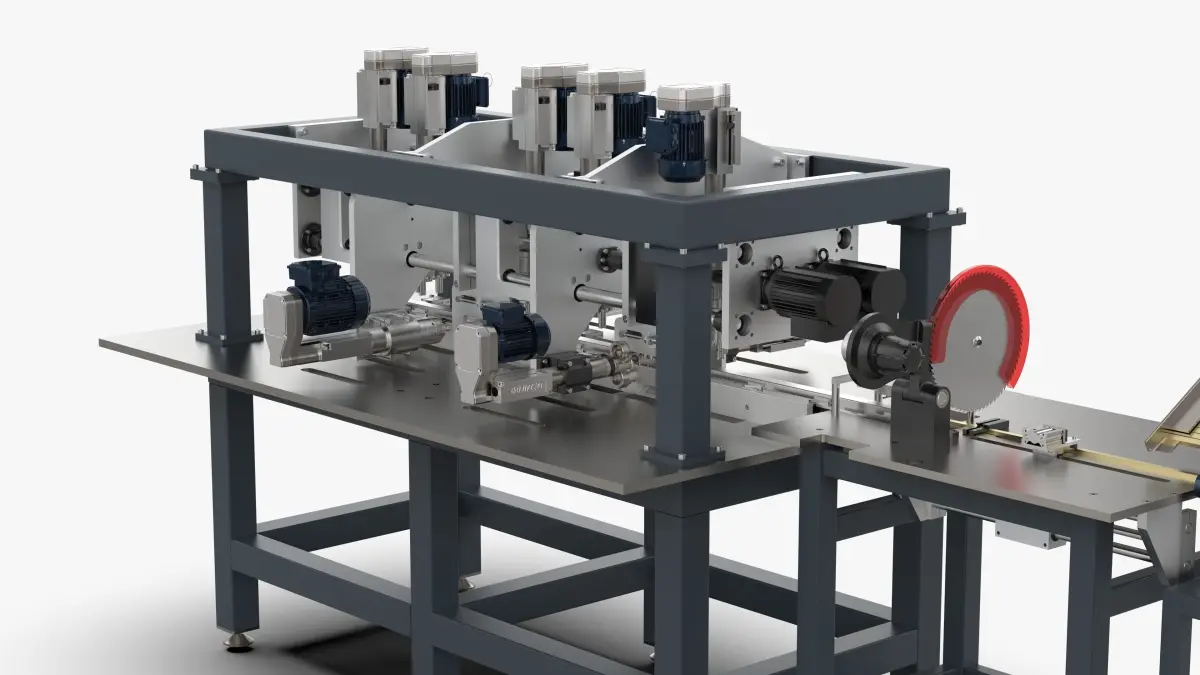

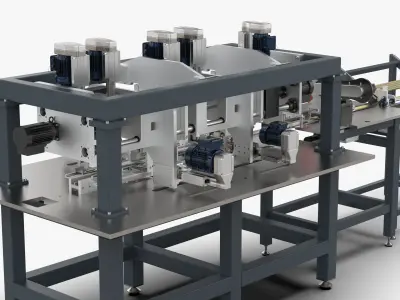

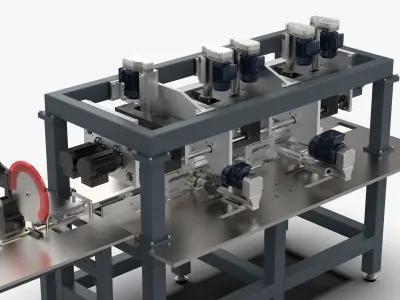

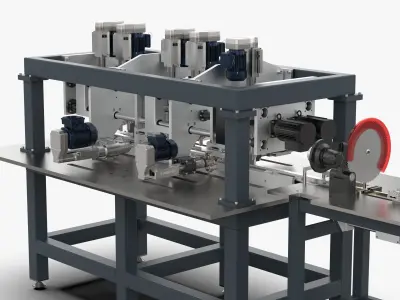

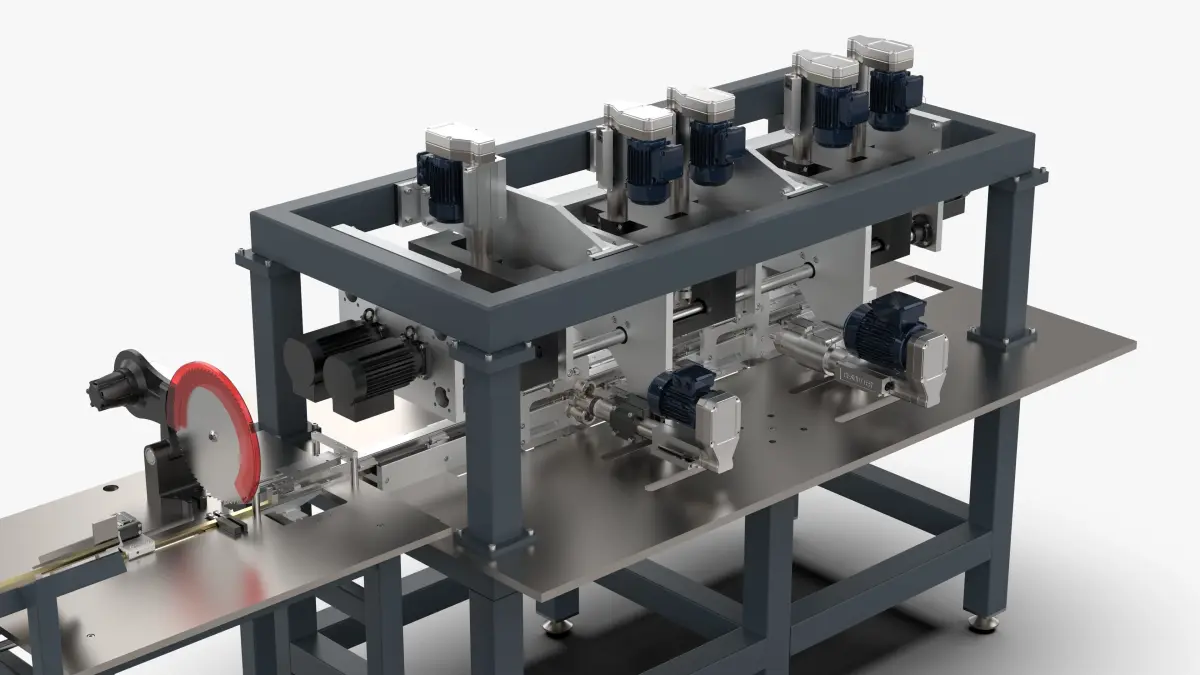

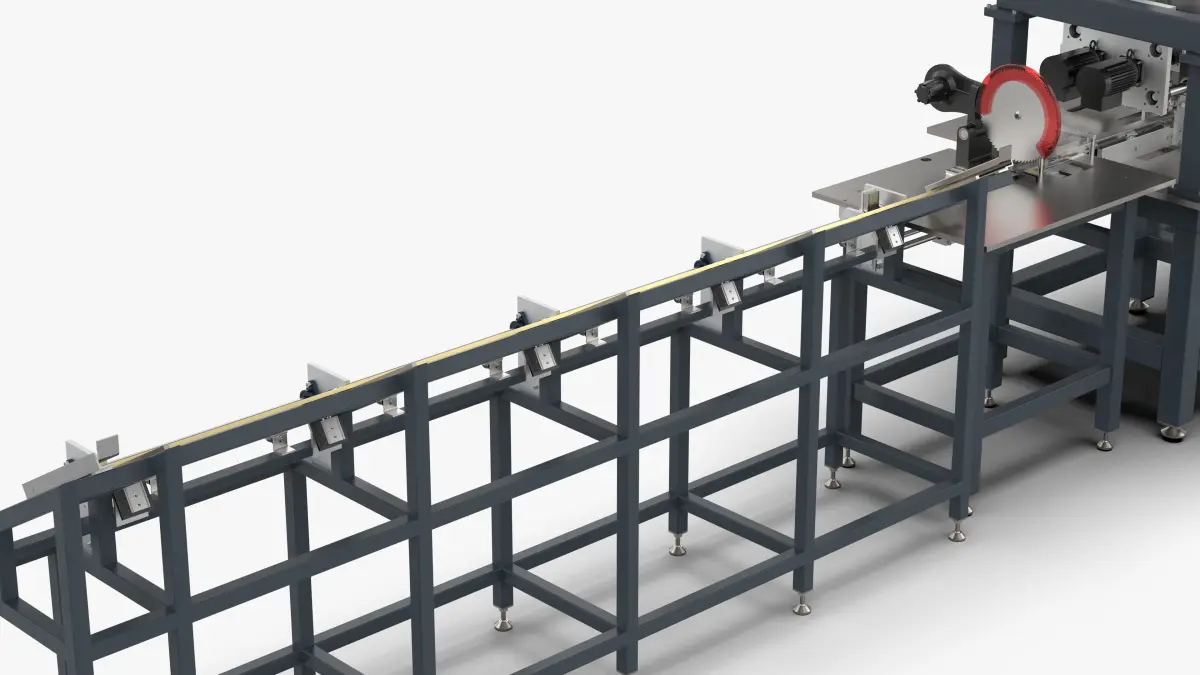

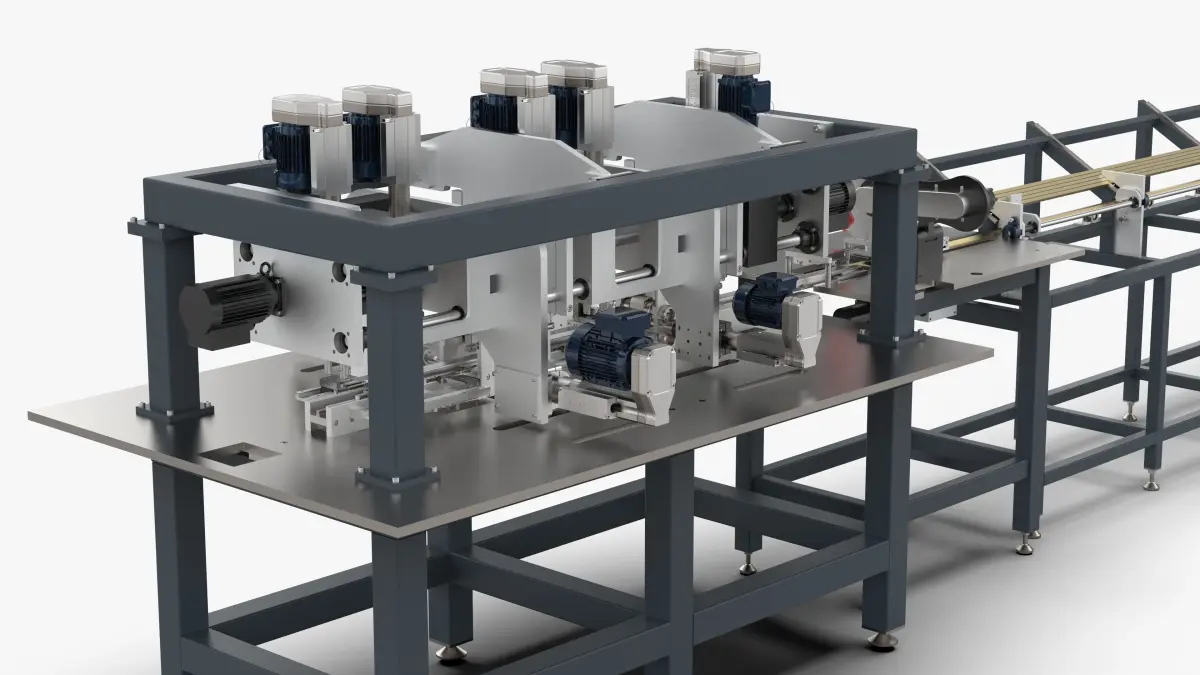

Automated bar feeding, cutting the bar into the various lengths required and transferring it to the drilling and tapping area. This machine is a complete set of novel design-specific machine models. For the mass production of bars with revolving holes, the time is reduced and the efficiency is improved. It is a good set of learning materials!

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 10,657,594
  • Vertice: 31,972,782

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 10,657,594
  • Vertices: 31,972,782
  • Plugins used

Tags

Square Tube Bar Feed Cutting Drilling Machine Industrial Solidwork Design Assembly Modeling Automatic Automation Machinery Part Mechanism Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
  • Stereolithography ()508 MB
  • IGES ()236 MB
  • STEP ()59.5 MB
  • OBJ ()893 MB
  • KeyShot ()421 MB
