High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

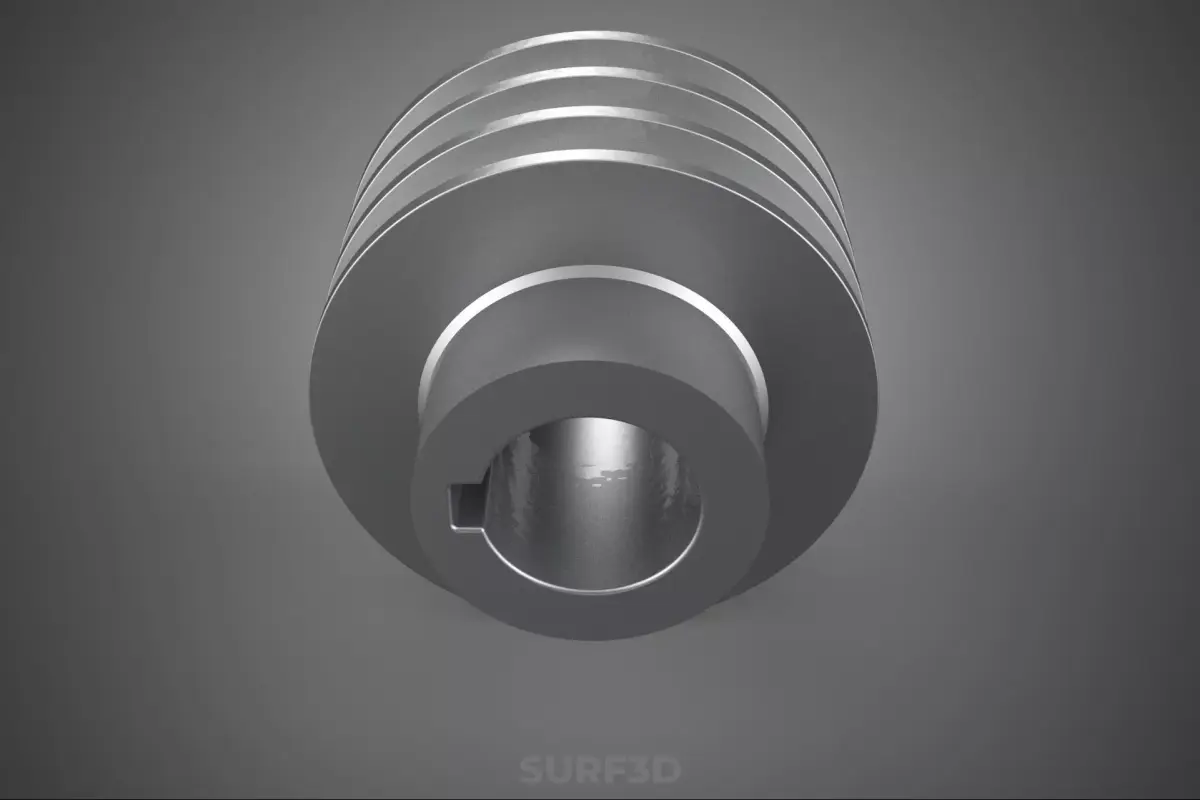

The Standard Three-Groove Track Pulley Sheave Wheel is a specialized mechanical component utilized extensively in power transmission, lifting, and guidance systems. Defined by its adherence to established dimensional and material specifications (STANDARD) and its capacity to engage three separate lines or belts simultaneously (3/THREE/TRIPLE GROSS), this assembly facilitates efficient distribution and management of mechanical energy.
Nomenclature and Function
This component is defined by a high degree of synonymy in its terminology:
- Pulley: The general term referring to the wheel mechanism used to transmit power via belts or change the direction of force via ropes/cables.
- Sheave: Typically refers to a grooved wheel used within a block and tackle system (rigging) or crane mechanism to guide wire rope, emphasizing force redirection rather than torque transfer.
- Wheel: A generic descriptor for the rotating element.
The descriptor TRIPLE GROOVE TRACK is the critical specification, indicating three parallel circumferential channels machined into the component's exterior diameter. This geometry enables the application of high-capacity multi-V-belt drives (common sections include A, B, C, or 3V, 5V), significantly enhancing the total transferable torque compared to single or double-groove designs. In lifting or guidance applications, the tracks ensure separation and proper alignment of three independent ropes or cables.
The term GEAR, although often associated with meshing toothed components, is used in this title loosely to denote any rotational element involved in power transfer or the creation of mechanical advantage.
### Design, Geometry, and Standardization
A standard triple-groove sheave is characterized by precise geometry dictated by the intended belt or rope type:
- V-Grooves: For power transmission, the grooves feature angled sidewalls (the included angle, standardized typically between 30° and 38°) that utilize the wedging action of V-belts to maximize friction drive and efficiency.
- Track Profile: For wire rope or cable guidance, the grooves are typically radiused to match the rope diameter, minimizing wear and kinking.
- Dimensions: Critical standardized dimensions include the pitch diameter (the effective working diameter of the belt line), the overall outside diameter, the width between the grooves, and the internal bore/hub specifications (shaft size, keyway dimensions, and set screw placement).
STANDARD designation requires adherence to recognized organizational specifications, such as those published by the International Organization for Standardization (ISO 4183 and related documents), the American National Standards Institute (ANSI), or the German Institute for Standardization (DIN). Compliance ensures interchangeability, predictable load ratings, and dynamic balancing necessary for high-speed operation.
### Material Specification (FE)
The designation FE denotes Ferrous material, confirming the sheave is manufactured primarily from iron-based alloys. Common materials include:
- Gray Cast Iron (GCI): Highly common due to its exceptional vibration damping capacity, good machinability, and reasonable wear resistance. Typically, grades conforming to ASTM A48 Class 30 or higher are used for durability.
- Ductile Iron (DI): Offers higher tensile strength and ductility than GCI, preferred in applications subject to moderate shock loading.
- Steel: Used when maximum strength and fatigue resistance are required, often requiring subsequent hardening processes (e.g., induction hardening of the groove surfaces) to resist frictional wear.
The selection of ferrous materials provides the necessary rigidity and durability to withstand the high tension and radial loads imposed by triple-belt systems in demanding industrial environments.
### Applications
Triple-groove pulleys are deployed in applications requiring high power output, parallel drive functionality, or redundancy:
- Heavy Industrial Machinery: Pumps, compressors, fans, and large machine tools where single-belt transmission is inadequate for the torque requirement.
- Manufacturing and Conveying Systems: Used to distribute power across multiple segments of a production line.
- HVAC Systems: High-capacity blowers and air handlers requiring multiple drive belts for reliable, continuous operation.
KEYWORDS: Pulley, Sheave, Triple Groove, Power Transmission, V-Belt Drive, Ferrous, Cast Iron, Mechanical Component, Rotating Machinery, Multi-Track, Standardized, Drive Wheel, Rope Guidance, Industrial Machinery, Torque Transfer, High Load Capacity, Grooved Wheel, Pitch Diameter, Friction Drive, Multi-System Operation, Hub Assembly, Keyway, Ferrous Metal, Sheave Block, V-Groove, Triple-Channel, Rigging Component, Standardized Pulley, Drive System, Three-Channel Sheave
STL (Stereolithography, filesize: 895 KB), OBJ (OBJ, filesize: 1.18 MB), 3DM (Rhinoceros 3D, filesize: 1.39 MB), DAE (Collada, filesize: 2.86 MB), STP (STEP, filesize: 454 KB), MAX (Autodesk 3ds Max, filesize: 2.99 MB), SKP (Sketchup, filesize: 1.33 MB), GLTF (glTF, filesize: 475 KB), IGE (IGES, filesize: 865 KB), DWG (AutoCAD, filesize: 285 KB), 3DS (3D Studio, filesize: 480 KB), FBX (Autodesk FBX, filesize: 501 KB), SAT (3D ACIS, filesize: 528 KB), BLEND (Blender, filesize: 2.02 MB)
