High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

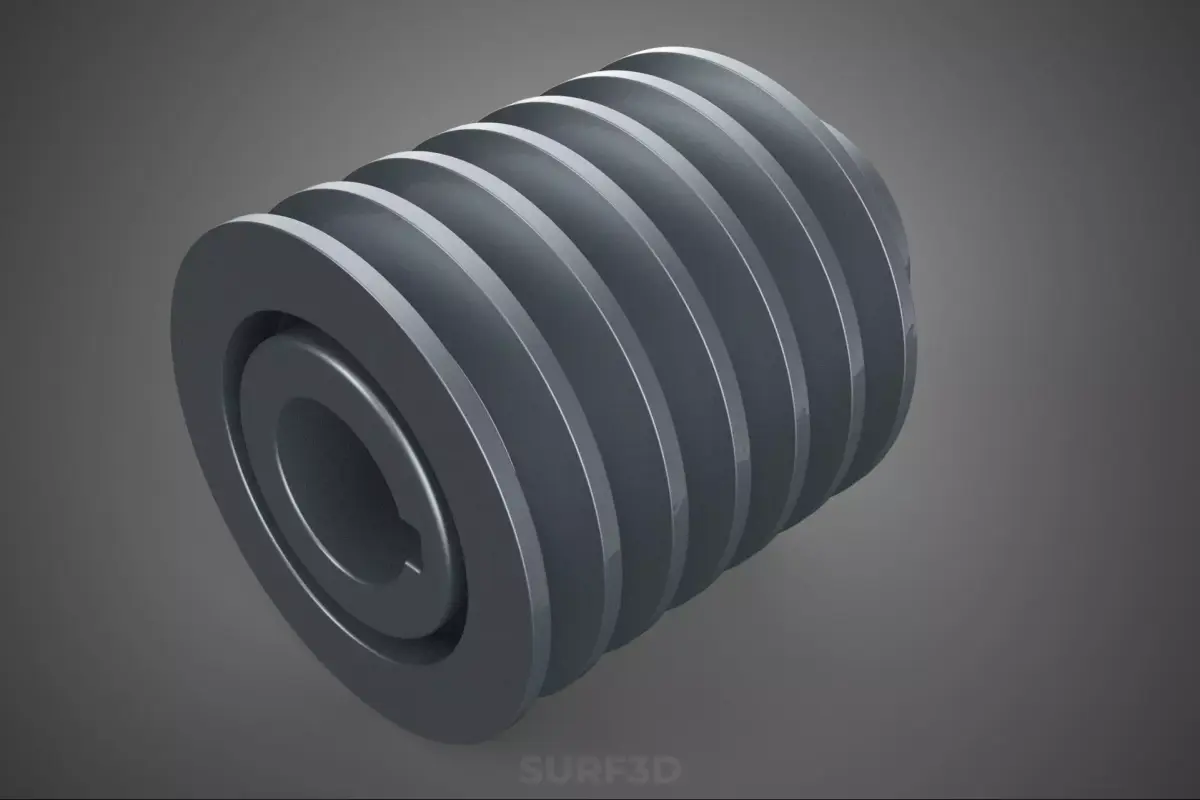

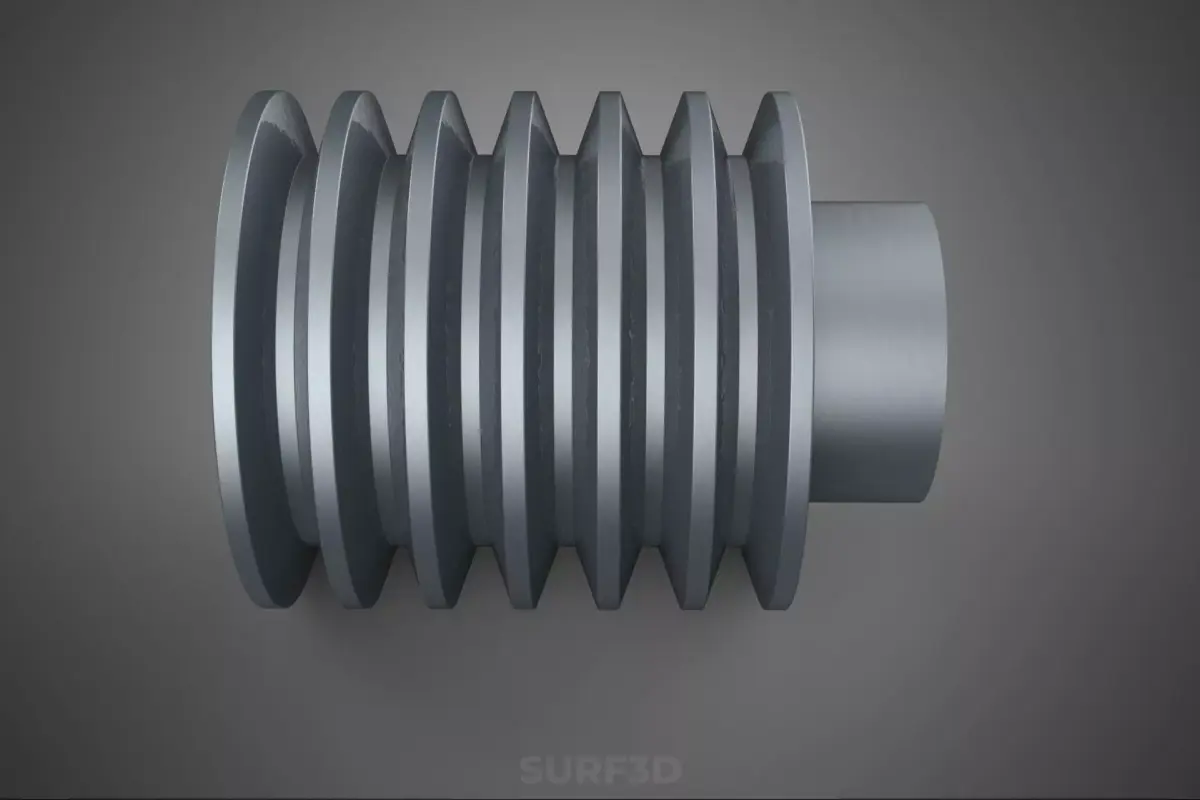

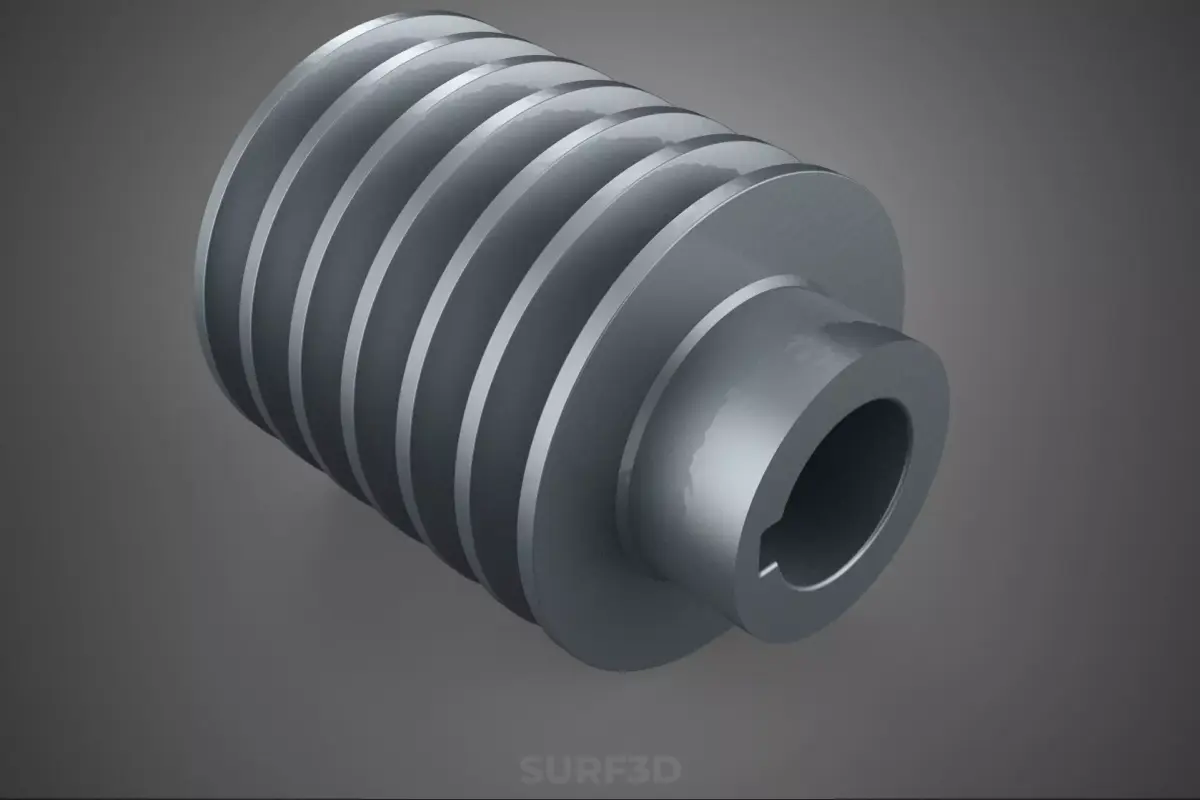

The Standard Six Groove Track Pulley Sheave Wheel for V-Belt Drives, often designated as a Sextuple Groove Pulley, is a specialized mechanical component utilized extensively in industrial power transmission systems. This device is engineered to receive and engage six parallel V-belts simultaneously, ensuring efficient, high-capacity rotational power transfer between driving and driven shafts.
Definition and Configuration
A pulley (or sheave) is defined as a wheel on an axle or shaft designed to support movement and change of direction of a cable or belt, or to transmit power between shafts. The sextuple groove configuration signifies the presence of six precisely machined annular channels (tracks) around the circumference of the wheel. These grooves are characterized by their specific V-shaped cross-section, which is trapezoidal, designed to accommodate and maximize frictional engagement with the corresponding standardized V-belt profiles (e.g., classical A, B, C sections, or narrow 3V, 5V, 8V sections).
The Standard designation emphasizes adherence to international and national manufacturing specifications (such as those established by ISO, ANSI/RMA, or DIN standards). Standardization ensures interchangeability, consistent performance parameters (like groove angle, pitch diameter, and runout tolerance), and predictable operational characteristics across various manufacturers.
Functional Principles and Load Distribution
The primary function of the sextuple groove sheave is to facilitate high-torque power transmission in demanding industrial applications where a single or dual-belt system would be insufficient or prone to excessive slip.
- Increased Capacity: Utilizing six belts dramatically increases the total contact area between the belts and the sheave surface. This multiplication of friction allows the system to handle substantial horsepower and torque loads, often exceeding 100 horsepower, while maintaining optimal tension and minimizing premature wear.
- Load Balancing and Redundancy: The multi-belt system inherently balances the radial load forces across the shaft bearings. Furthermore, the redundancy provided by six independent belts ensures that the drive system can often continue to operate, albeit at reduced capacity, even if one or two belts fail or require replacement.
- Efficiency: V-belt drives achieve high mechanical efficiency (typically 95–98%) due to the wedge action of the belts seating into the tapered grooves, which increases effective tension without increasing shaft load proportionally.
### Material Science and Manufacturing
Due to the high forces and speeds involved in six-groove applications, material selection and manufacturing precision are critical.
- Common Materials: The majority of standard six-groove pulleys are constructed from high-grade grey cast iron (e.g., ASTM A48 Class 30 or higher) or ductile iron (for higher impact resistance). For very high-speed applications where inertia must be minimized, high-tensile strength aluminum alloys or precision-machined steel may be employed.
- Manufacturing Process: Pulleys are typically cast near-net shape, followed by crucial precision machining operations. These include turning the groove profiles to strict tolerances, machining the bore and keyway for shaft mounting, and dynamic balancing. Dynamic balancing is essential for sextuple groove sheaves, especially those operating at high revolutions per minute (RPM), to prevent harmful vibrations that could damage shafts, bearings, and adjacent machinery.
### Applications
Sextuple groove track pulley sheaves are integral to heavy-duty industrial machinery, including: large air compressors, industrial pumps, fans and blowers (especially in large HVAC systems), crushers and grinders, large-scale generators, machine tools, and heavy conveyors. They are particularly favored in installations requiring reliable, continuous operation under sustained high load.
KEYWORDS: Power transmission, Sextuple, V-belt drive, Pulley, Sheave, Six groove, Multi-groove, Power capacity, Cast iron, Machined, Dynamic balancing, Groove profile, Pitch diameter, Load distribution, Industrial component, High torque, Trapezoidal, Standardized, ANSI, RMA, Heavy duty, Mechanical efficiency, Drive system, Shaft mounting, Compressor, Pump, Blower, Classical V-belt, Narrow section, Fixed bore, Taper bushing.
STL (Stereolithography, filesize: 1.42 MB), OBJ (OBJ, filesize: 1.85 MB), 3DS (3D Studio, filesize: 777 KB), BLEND (Blender, filesize: 3 MB), FBX (Autodesk FBX, filesize: 776 KB), 3DM (Rhinoceros 3D, filesize: 2.06 MB), DAE (Collada, filesize: 4.7 MB), DWG (AutoCAD, filesize: 285 KB), SKP (Sketchup, filesize: 2.12 MB), IGE (IGES, filesize: 1.43 MB), GLTF (glTF, filesize: 767 KB), MAX (Autodesk 3ds Max, filesize: 4.48 MB), STP (STEP, filesize: 702 KB), SAT (3D ACIS, filesize: 866 KB)
