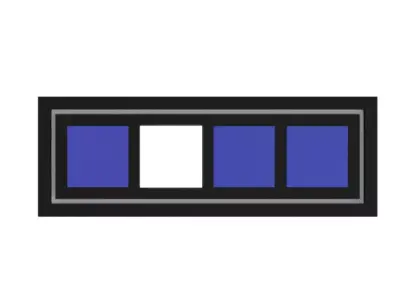

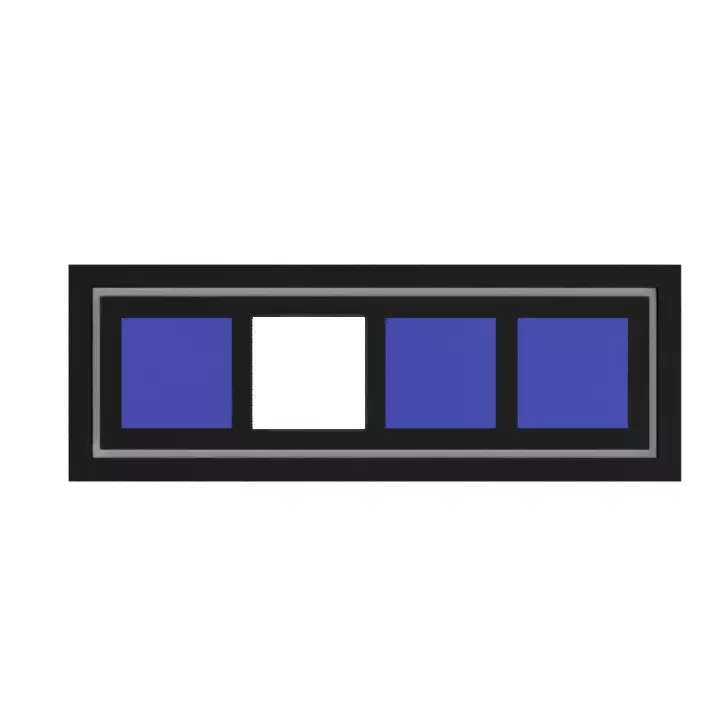

This package is providing files to 3D print your own Star Wars Dashboard Lighting Panels typically used for Cockpits or controller panels. Add them where you like. I have attached a 25.4mm x 25.4mm (1x 1) Tile STL file but if you want a better shinier look Purchase Acrylic Tiles in my Etsy shop.
26-02-07 Added Version 2 for many of the versions, Added hole patterns for the versions with the backing, Split up the versions into its own folder because its getting confusing! :) See the new picture of the different styles.
26-02-05 Added EightSlot-C version 2, and Trim 1mm and Trim 2mm which can be printed and pressed into the top layer
Star Wars Dashboard Panel Lighting 3D STL Print File
This listing includes digital files only; no physical items will be shipped.Ensure you have access to a 3D printer or 3D printing service.Due to the digital nature of the product, refunds or exchanges are not available.
Dimensions (see pics): Assorted Dimensions - See pics!
Items Needed (some are affiliate links):
QTY 1 - Bob Smith Superglue or equivalent:Acrylic Tiles:
Assembly:
- Print out all parts.
- Do a Dry Run / Test Fit before doing anything.
- Assorted files are located within its designated folder.
- Choose which type you want to make,
- I played a lot with different style looking for better prints.
- I could make millions of different ways.

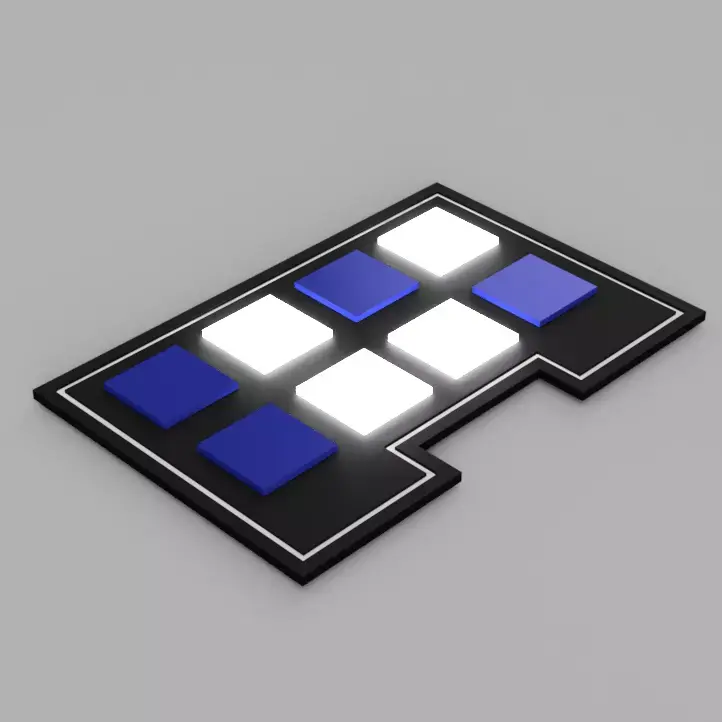

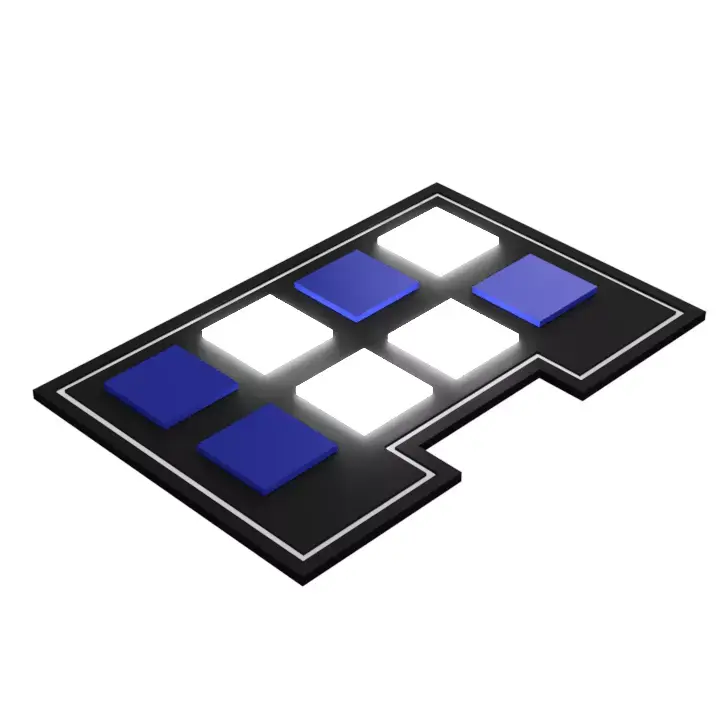

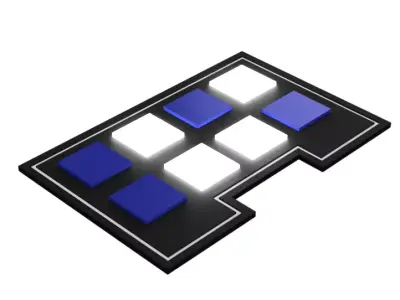

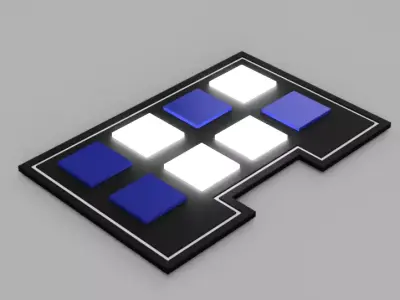

- In some of them I made a backing plate that allows the tiles to be totally flat, some of the backings are marked 1mm which allow the acrylic tiles to sit 1mm above the plate, the 2mm allow the acrylic tiles to sit 2mm above the plate.
- Hopefully its self explanatory but if you have questions please ask!
PROTIP's:
- Paint and let dry before handling.
- Do a Dry Run / Test Fit before doing anything.
Enjoy!
Please let me know of any issues.
Whitey!
Join My Patreon for over 200 Awesome STL-DXF-SVG files and counting:Ask my Patrons and they will tell you that I am very active.$5 Tier and up get a Etsy 20% off Discount CodePatreon = WhiteysWickedWorkshop
STL (Stereolithography, filesize: 2.1 MB), OTHER (Other, filesize: 49.4 MB), PNG (PNG, filesize: 2.1 MB), DXF (DXF, filesize: 2.1 MB), SVG (SVG, filesize: 2.1 MB)
