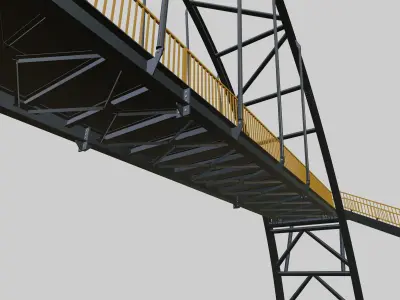

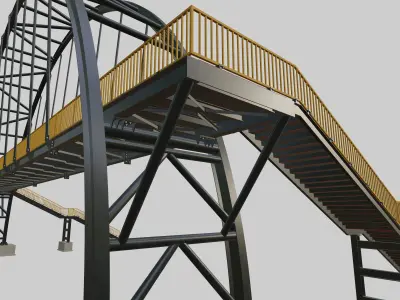

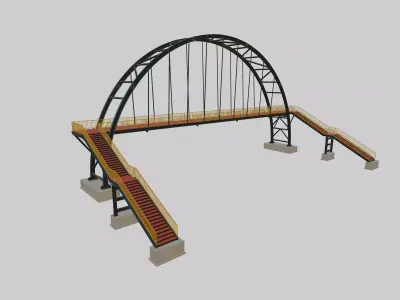

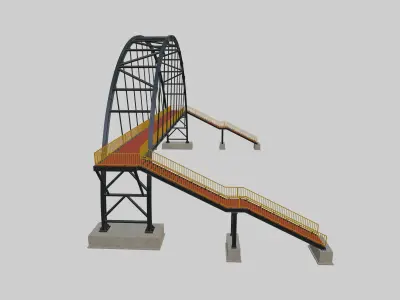

Steel Pedestrian Bridge-Arch Column Type-29 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

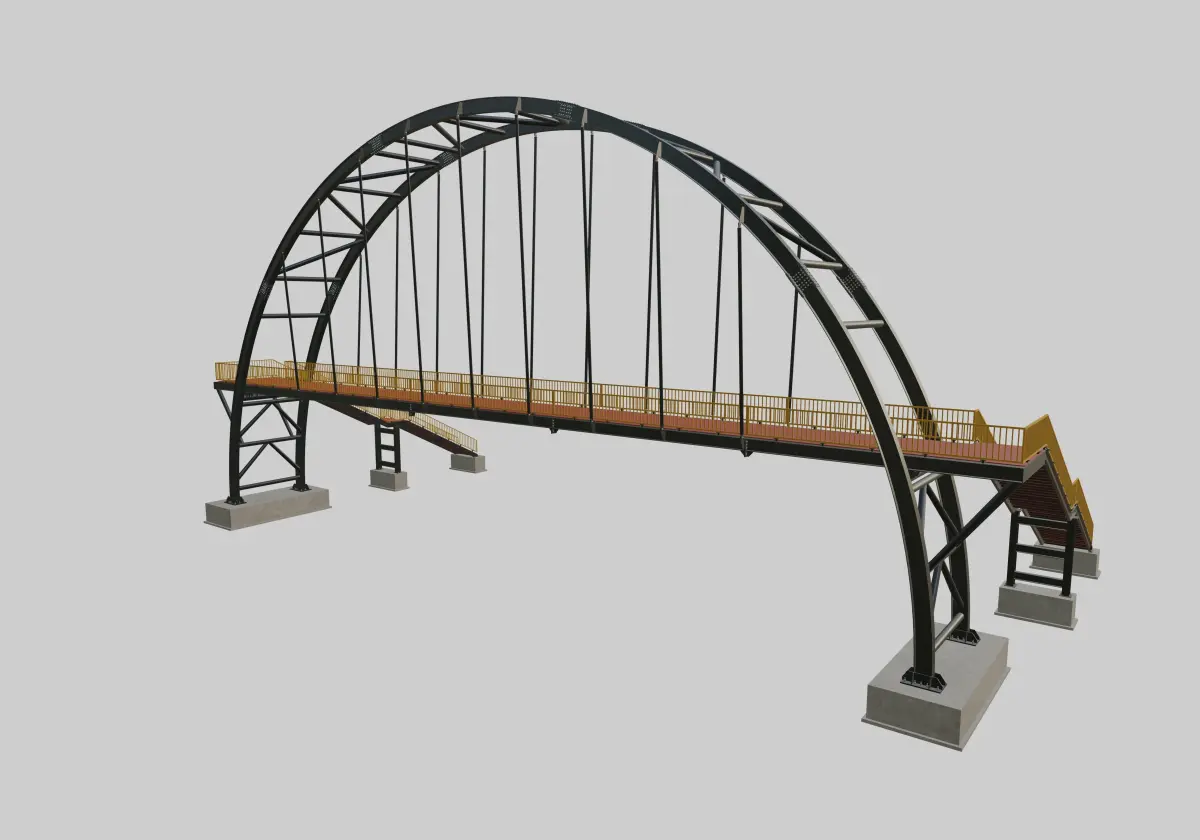

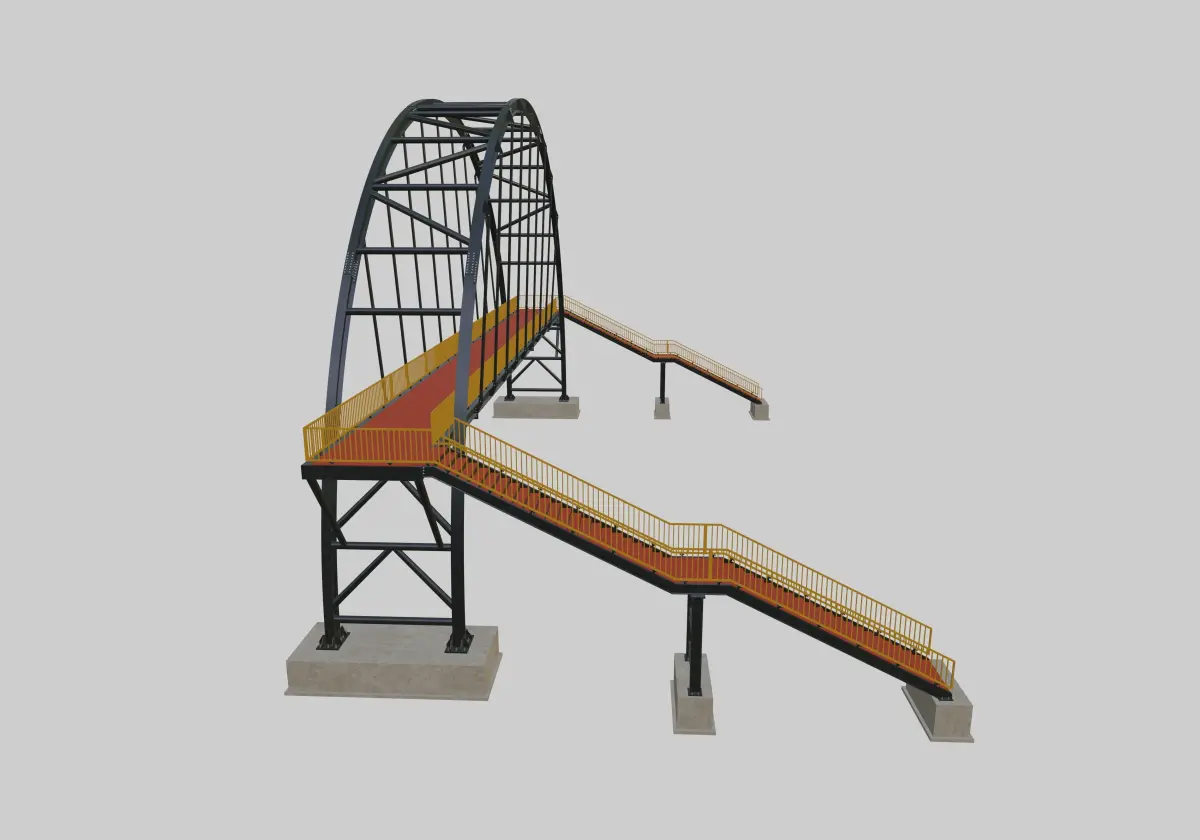

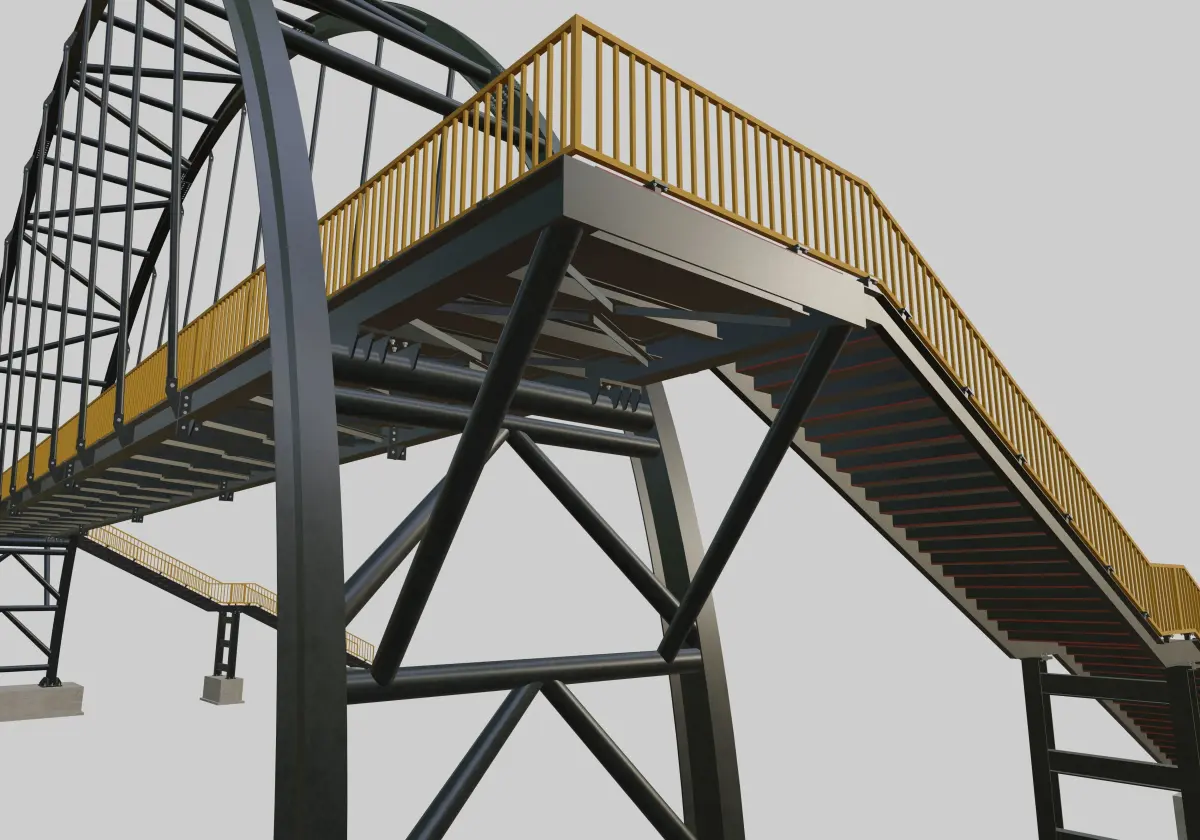

Steel Pedestrian Bridge

Arch Type Column Construction

Open Top Construction

Straigth Beam Type

Named Objects

Largest Column Span : 36 mt.

Distance Between Two Columns : 36 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Arch Column Width : 4 mt.

Arch Column Height : 18,25 mt.

Arch Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Stairs Raft Concrete : width 1 mt * length 2,5 mt. * height 1 mt.

Stairs Straight Type

Stair Step Width : 1,8 mt.

Step Sizes : 300 mm. * 150 mm.

Flat Railing Construction

Railings Box Profile

Platform And Arch Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

Prepared With BLENDER Version 2.93.5

Polygons : 71144

Vertices : 129552

Objects : 2598

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 71144
Vertices: 129552
