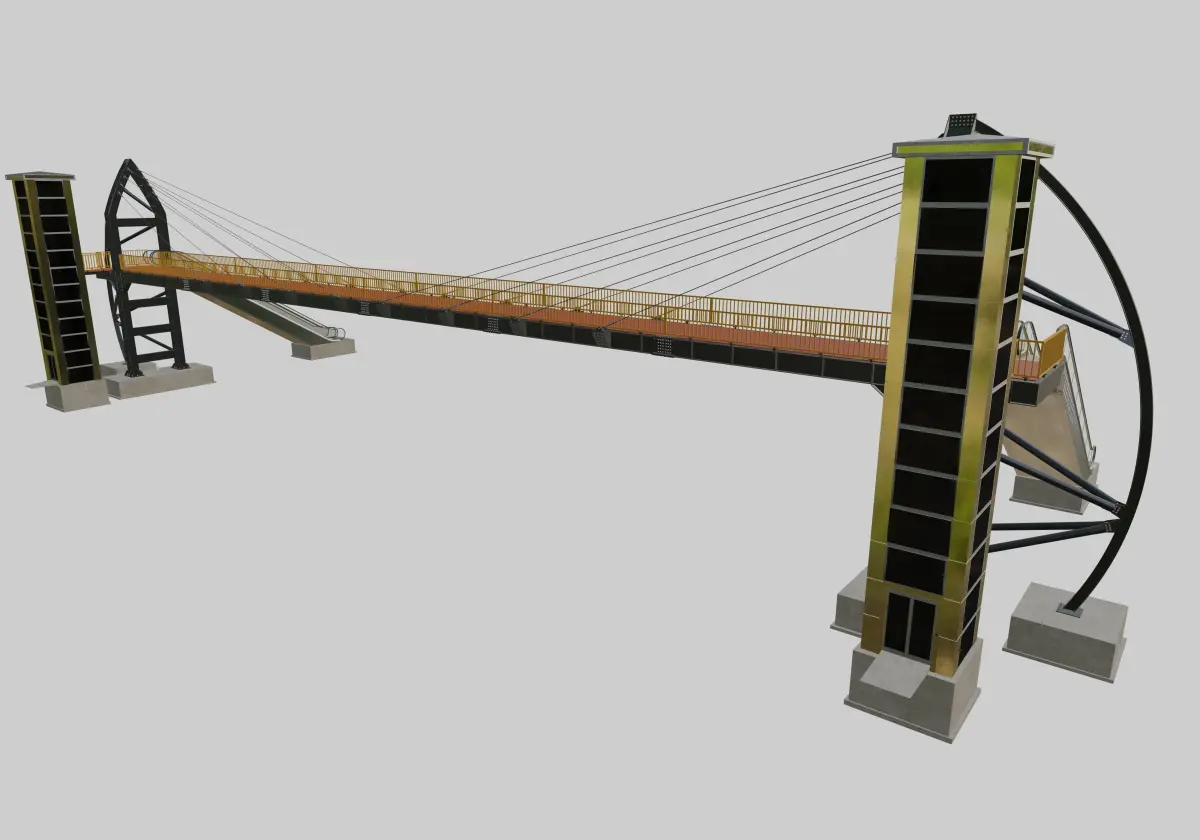

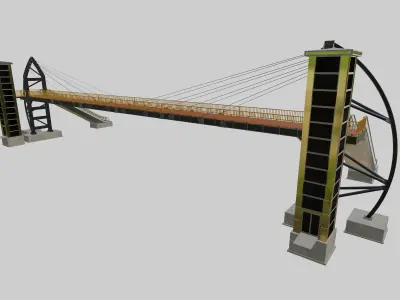

Steel Pedestrian Bridge-Elevator-Escalator-Sailing Type-21 3D model

Publication date: 2022-04-18

Steel Pedestrian Bridge-Elevator-Escalator-Sailing Type-21 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

Steel Pedestrian Bridge

Sailing Column Type Construction

Two Column Consruction

Open Top Construction

Straigth Beam Type

Curved Column Type

Platfrom With Steel Rope Tensioning System

Named Objects

Largest Column Span : 48,74 mt.

Distance Between Two Columns : 48,74 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Elevator Steel Construction And Composite Coating

Elevator : width 2,25 mt * length 2,25 mt. * height 12,5 mt.

Elevator Cabin : not prepared

Escalator Composite Coating

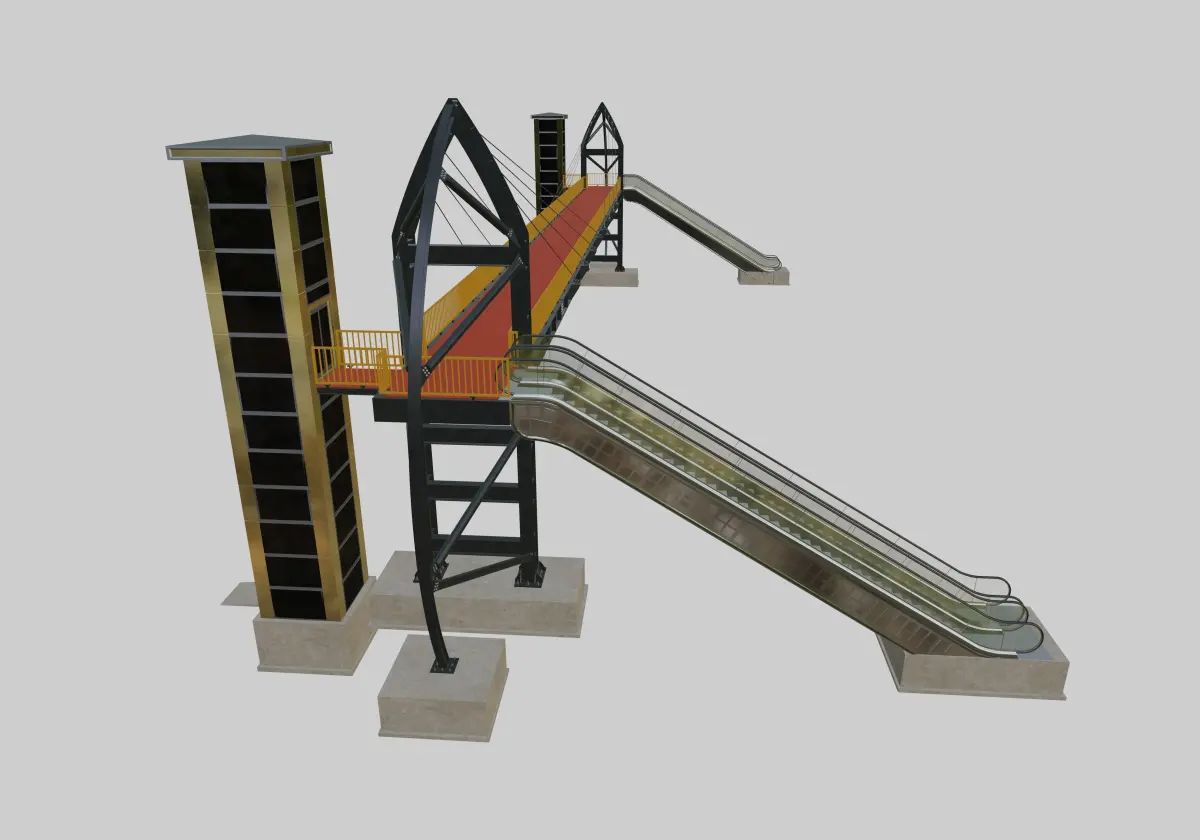

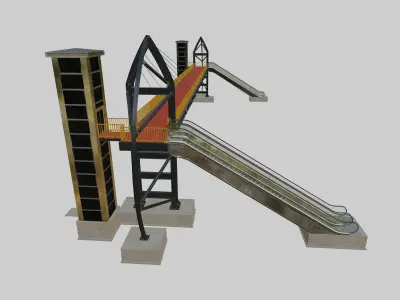

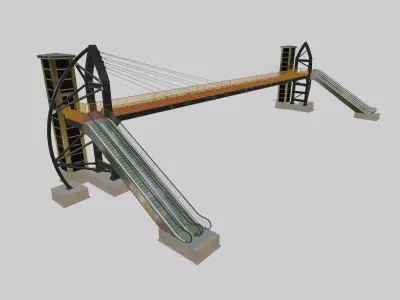

Descending and Ascending Double Escalator

Escalator Steel Construction : not prepared

Escalator Step Size : width 300 mm. * length 800 mm. * height 165 mm.

Steel Rope : 16 piece

Rope Fixed Press : 16 piece

Rope Tensioning Press System : 16 Piece

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Escalator Raft Concrete : width 2,5 mt * length 4 mt. * height 1 mt.

Tension Column Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1 mt.

Elevator Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1,5 mt.

Steel Stair : not prepared

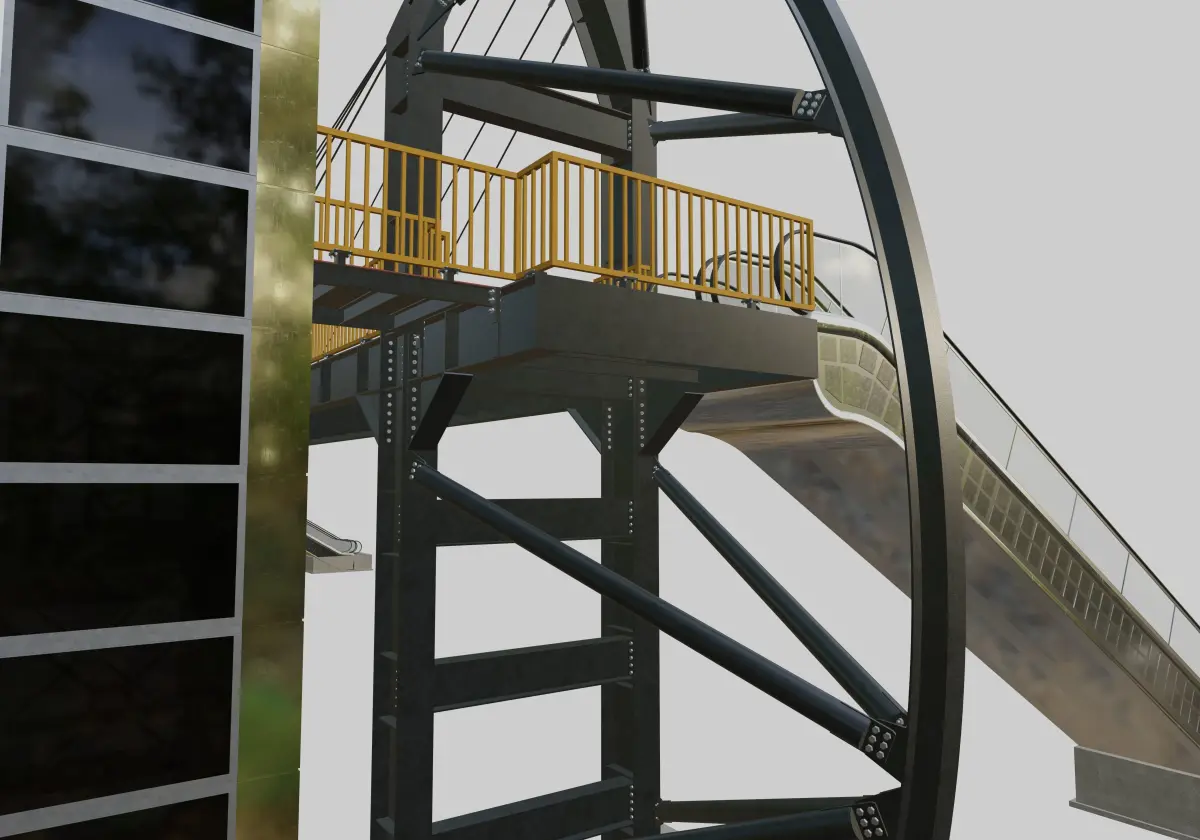

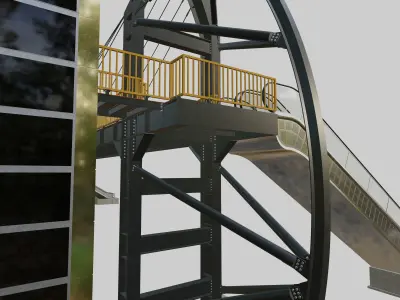

Flat Railing Construction

Railings Box Profile

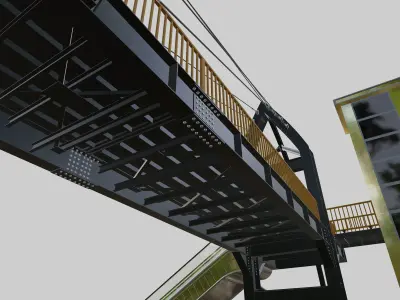

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

Prepared With BLENDER Version 2.93.5

Polygons : 189920

Vertices : 293682

Objects : 4644

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 189920
Vertices: 293682
Geometry: Unknown

Tags

Architecture Ladder Bridge Rail Pedestrian Footbridge Steel Columns Beam Structure Building Overpass Road Outdoor Rubber Handrail Engineering Elevator Escalator Architectural Pedestrian bridge Steel beam Steel structure
