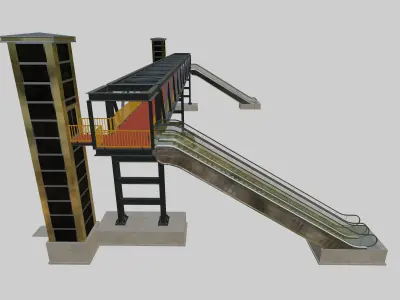

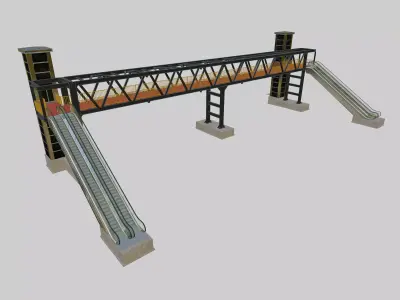

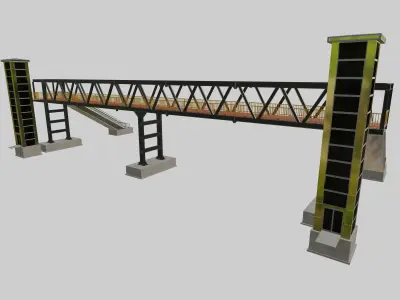

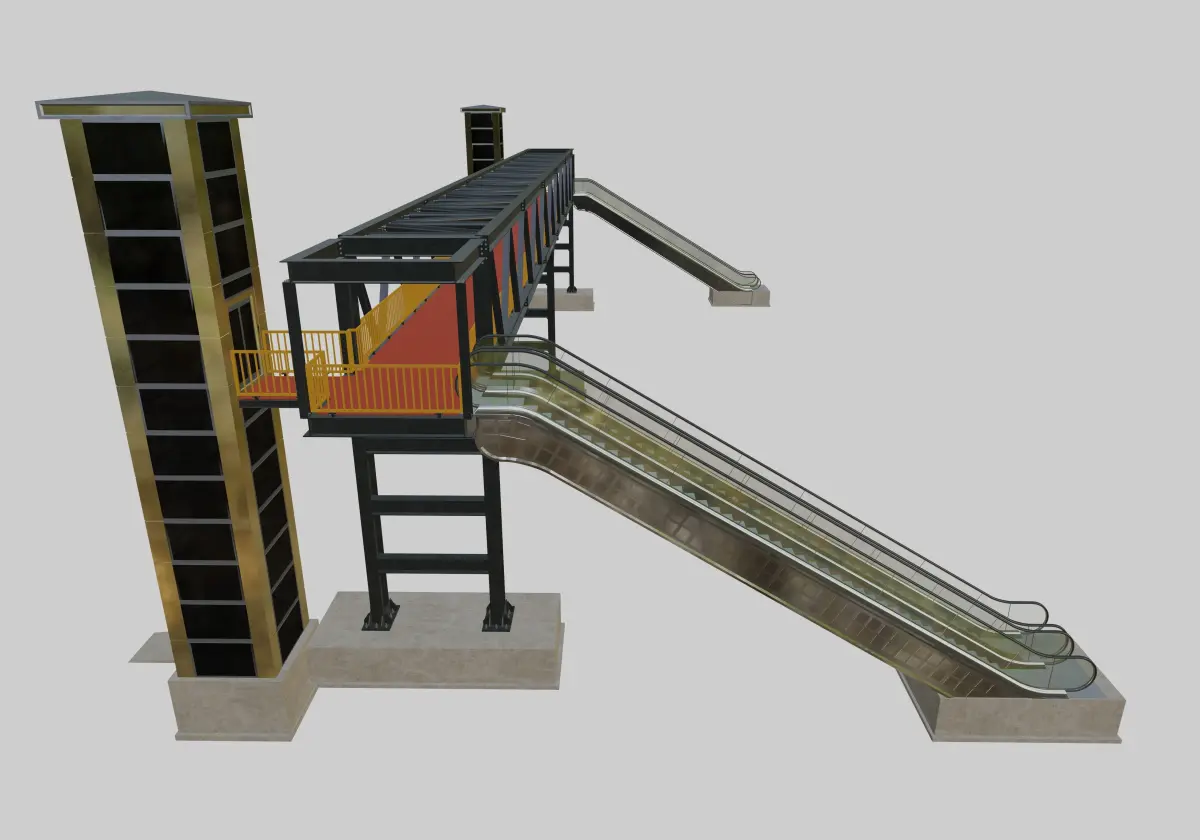

Steel Pedestrian Bridge-Elevator-Escalator-Truss Type-23 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

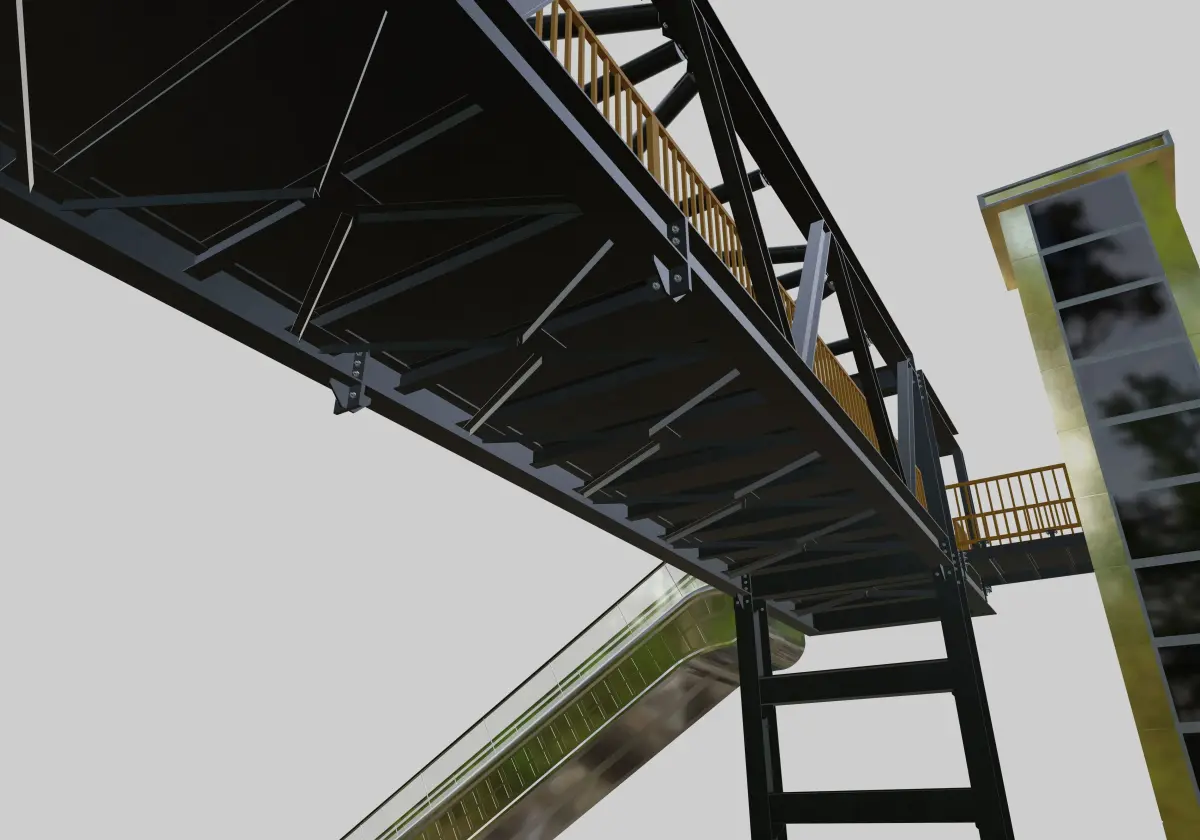

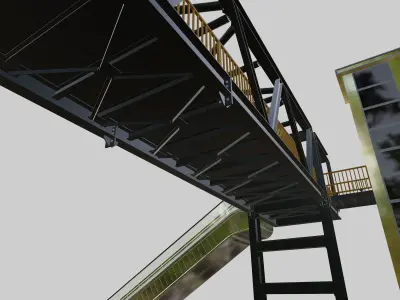

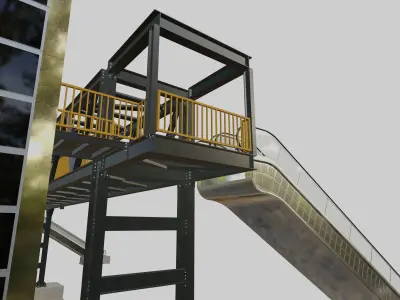

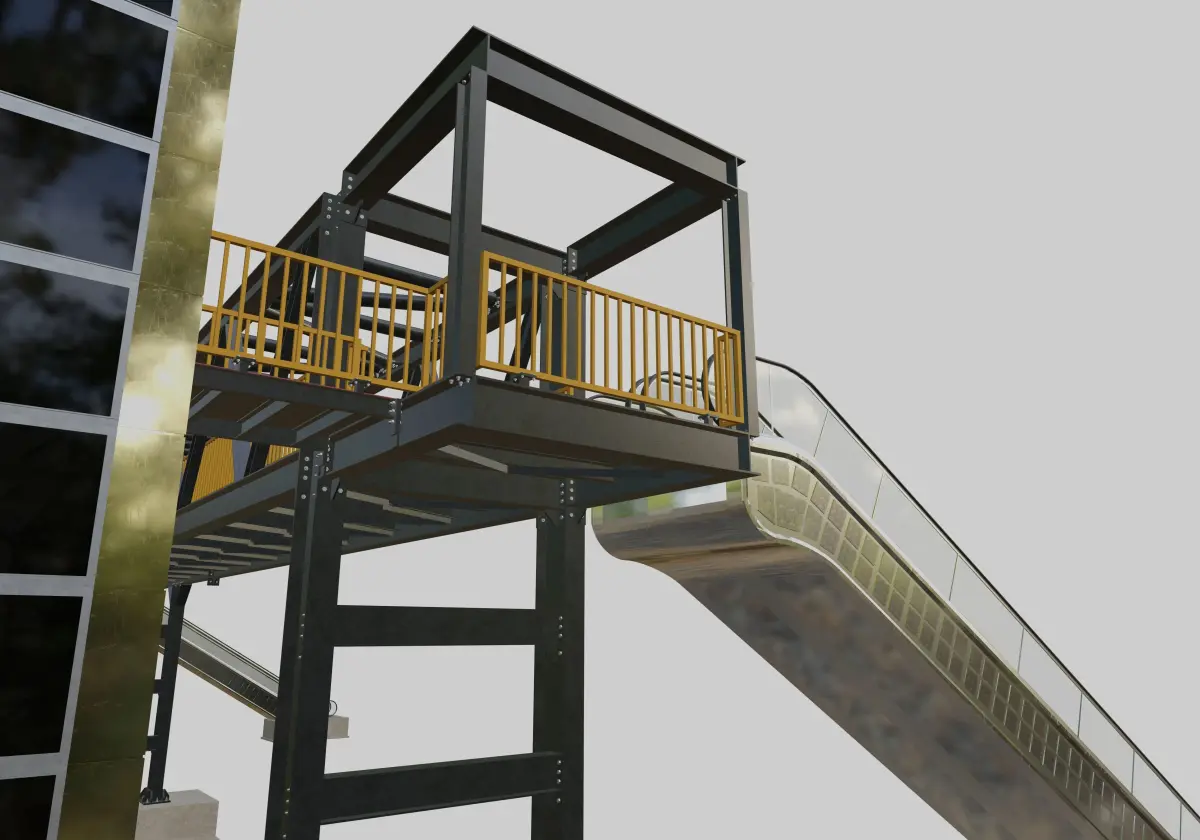

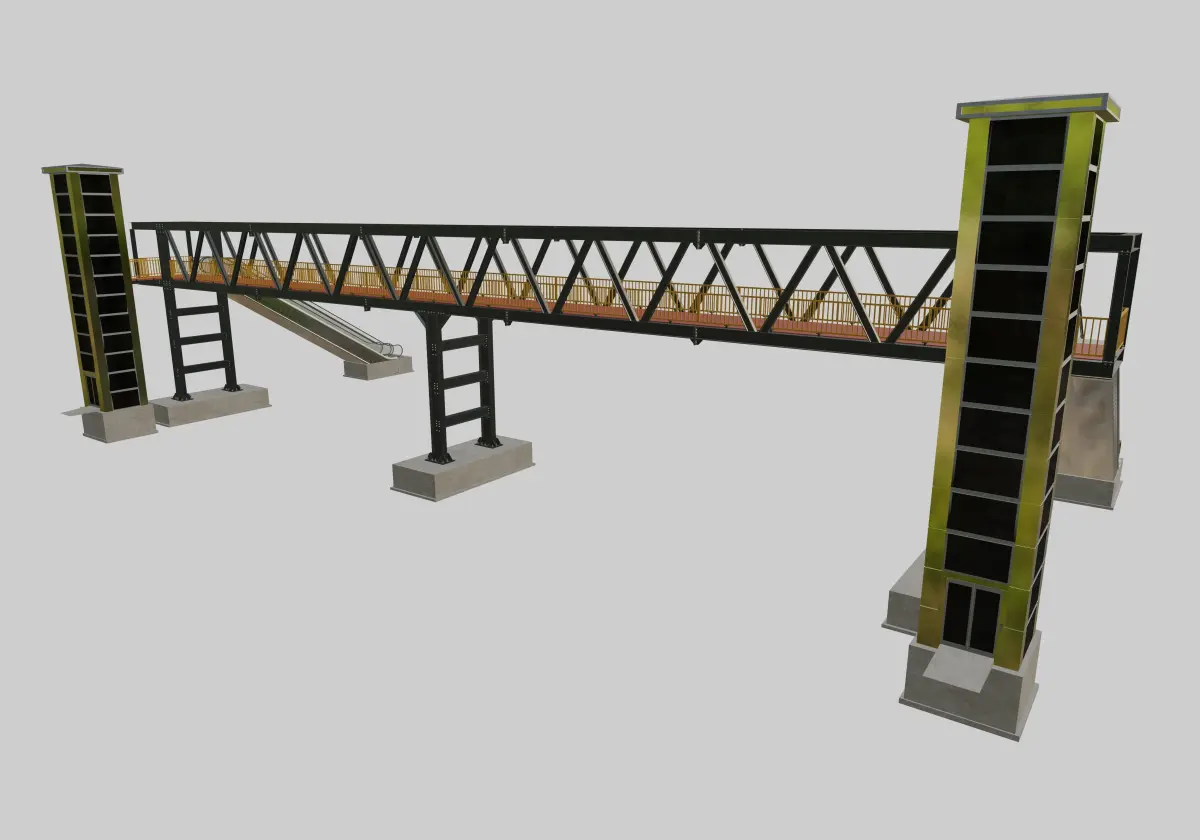

Steel Pedestrian Bridge

Truss Type Platform Construction

Three Column Consruction

Open Top Construction

Straigth Beam Type

Straight Column Type

Named Objects

Largest Column Span : 40,8 mt.

Distance Between Two Columns : 20,4 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Platfrom Truss Heigth : 3 mt.

Elevator Steel Construction And Composite Coating

Elevator : width 2,25 mt * length 2,25 mt. * height 12,5 mt.

Elevator Cabin : not prepared

Escalator Composite Coating

Descending and Ascending Double Escalator

Escalator Steel Construction : not prepared

Escalator Step Size : width 300 mm. * length 800 mm. * height 165 mm.

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Escalator Raft Concrete : width 2,5 mt * length 4 mt. * height 1 mt.

Elevator Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1,5 mt.

Steel Stair : not prepared

Flat Railing Construction

Railings Box Profile

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

Prepared With BLENDER Version 2.93.5

Polygons : 152049

Vertices : 236782

Objects : 5308

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 152049
Vertices: 236782
