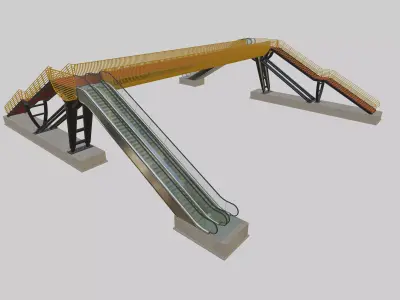

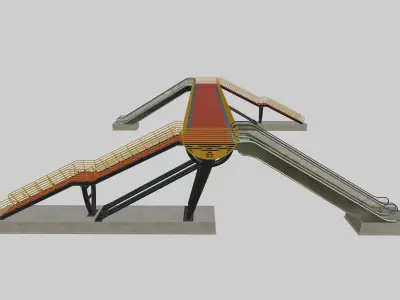

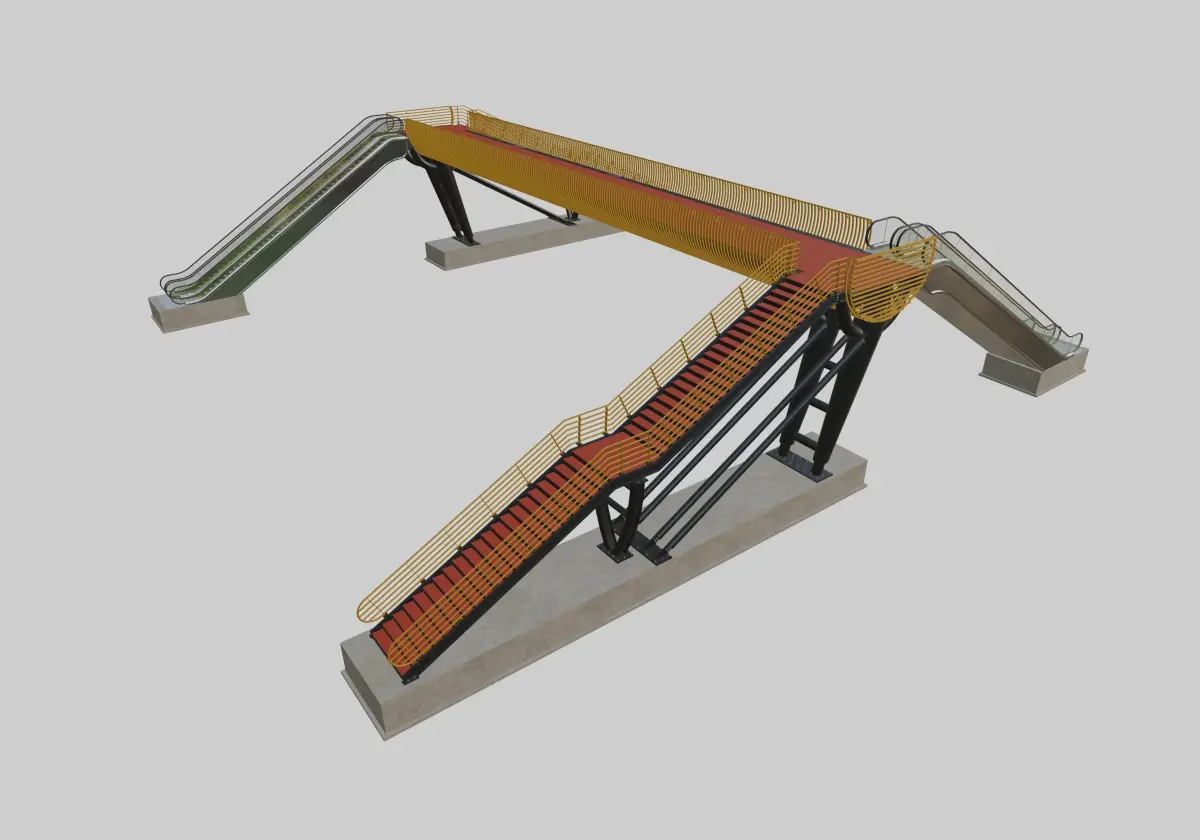

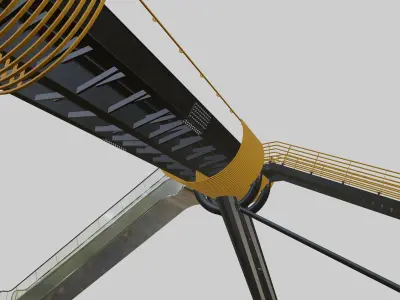

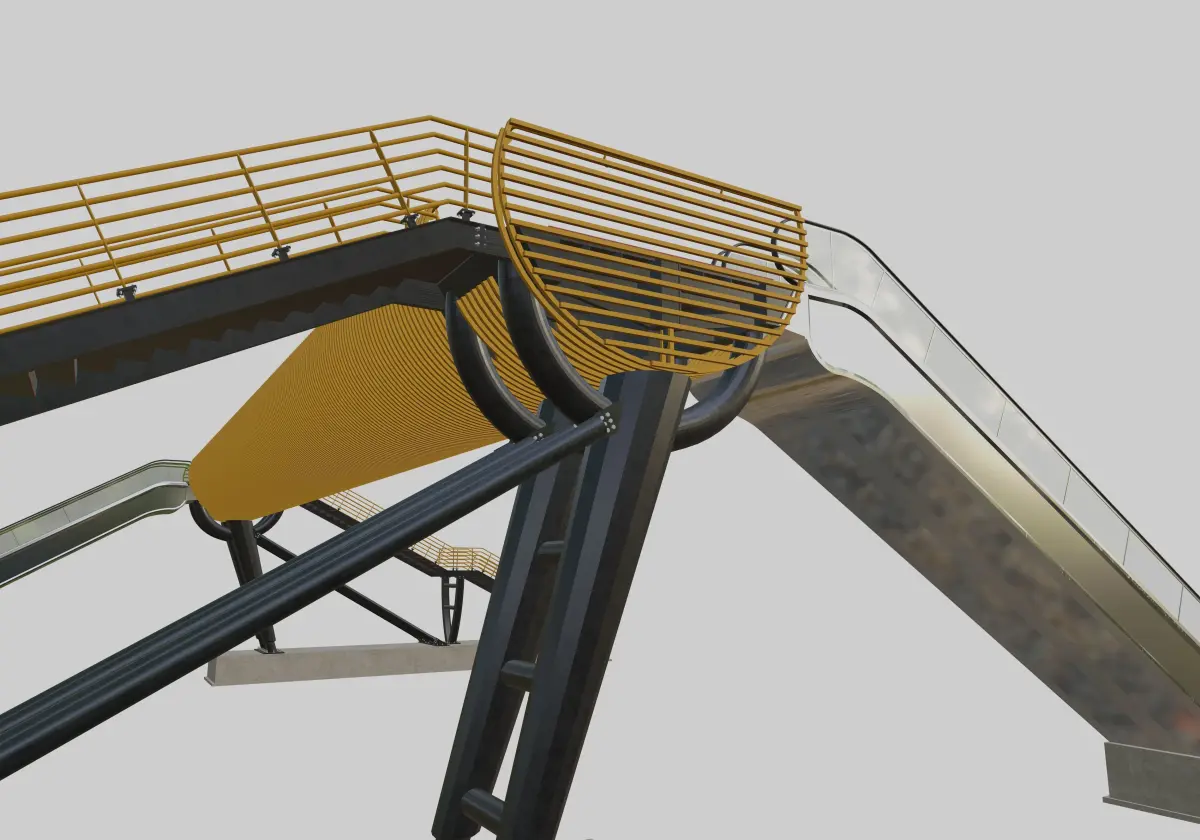

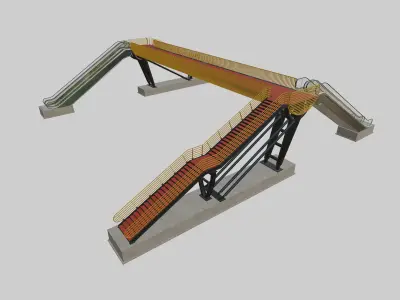

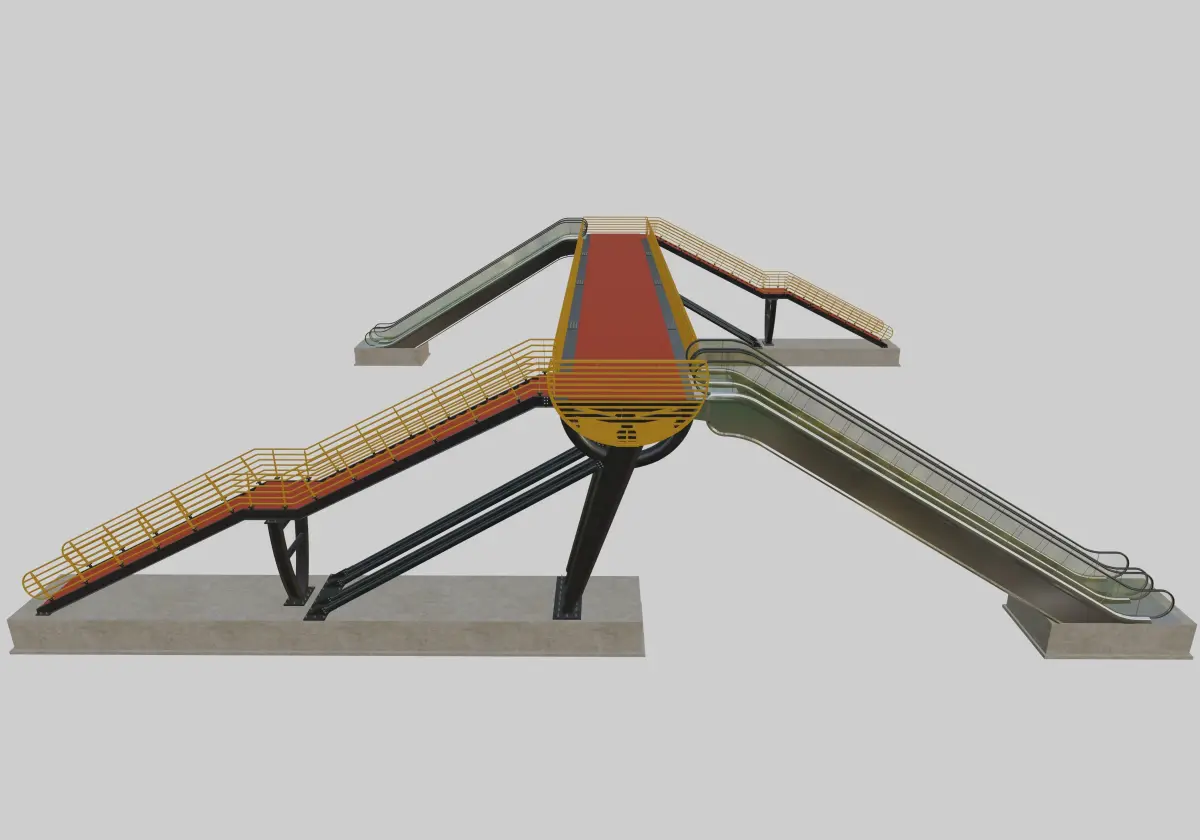

Steel Pedestrian Bridge-Escalator-Oblique Cone Column Type-26 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

Steel Pedestrian Bridge

Two Column Consruction

Open Top Construction

Straigth Beam Type

Oblique Cone Column Type

Three Rows Of Platform Beams

Named Objects

Largest Column Span : 29,5 mt.

Distance Between Two Columns : 29,5 mt.

Platform Asphalt Height : 6 mt.

Handrail Asphalt Height : 5,3 mt.

Platform Width : 3 mt.

Escalator Composite Coating

Descending and Ascending Double Escalator

Escalator Steel Construction : not prepared

Escalator Step Size : width 300 mm. * length 800 mm. * height 165 mm.

Column Raft Concrete : width 2,5 mt * length 18 mt. * height 1 mt.

Escalator Raft Concrete : width 2,5 mt * length 4 mt. * height 1 mt.

Stairs Straight Type

Stair Step Width : 1,8 mt.

Step Sizes : 300 mm. * 150 mm.

Platforms Curved Railing Type And Railings Box Profile

Stairs Pipe Railing Type And Railings Pipe Profile

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

Prepared With BLENDER Version 2.93.5

Polygons : 137548

Vertices : 217880

Objects : 2994

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 137548
Vertices: 217880

Tags

Architecture Ladder Bridge Rail Pedestrian Footbridge Steel Columns Structure Building Overpass Road Roadway Render Outdoor Rubber Handrail Walk Engineering Escalator Architectural Pedestrian bridge Steel structure
