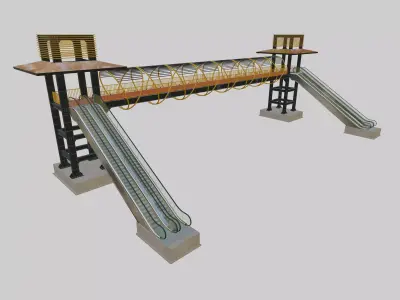

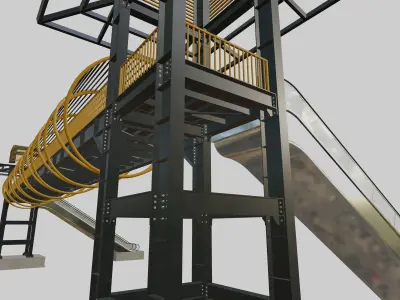

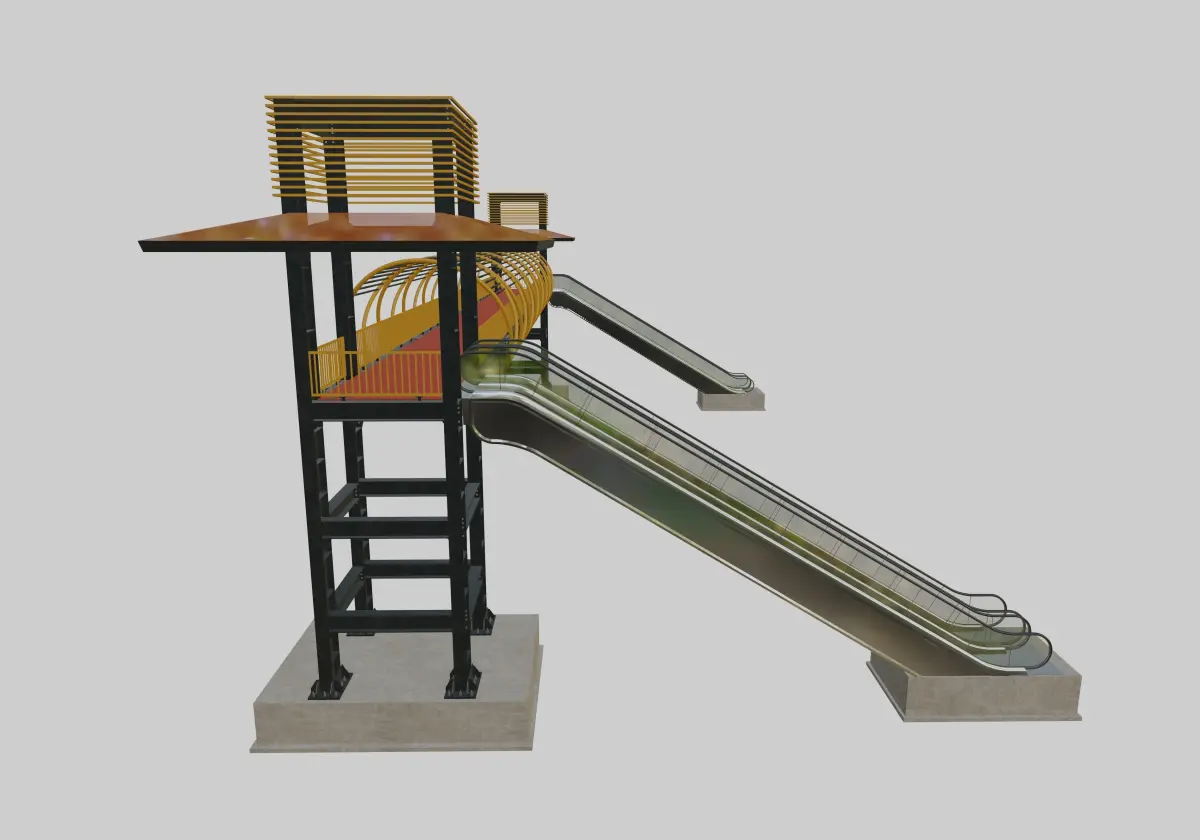

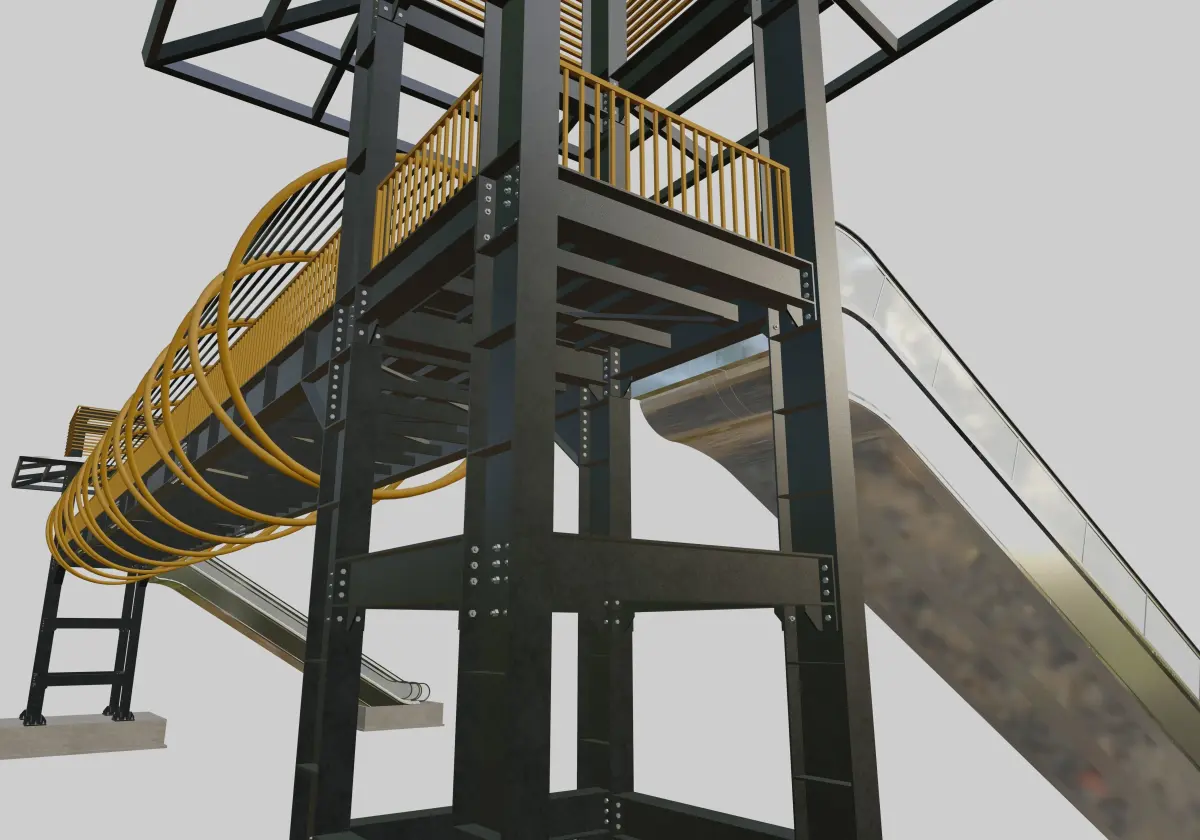

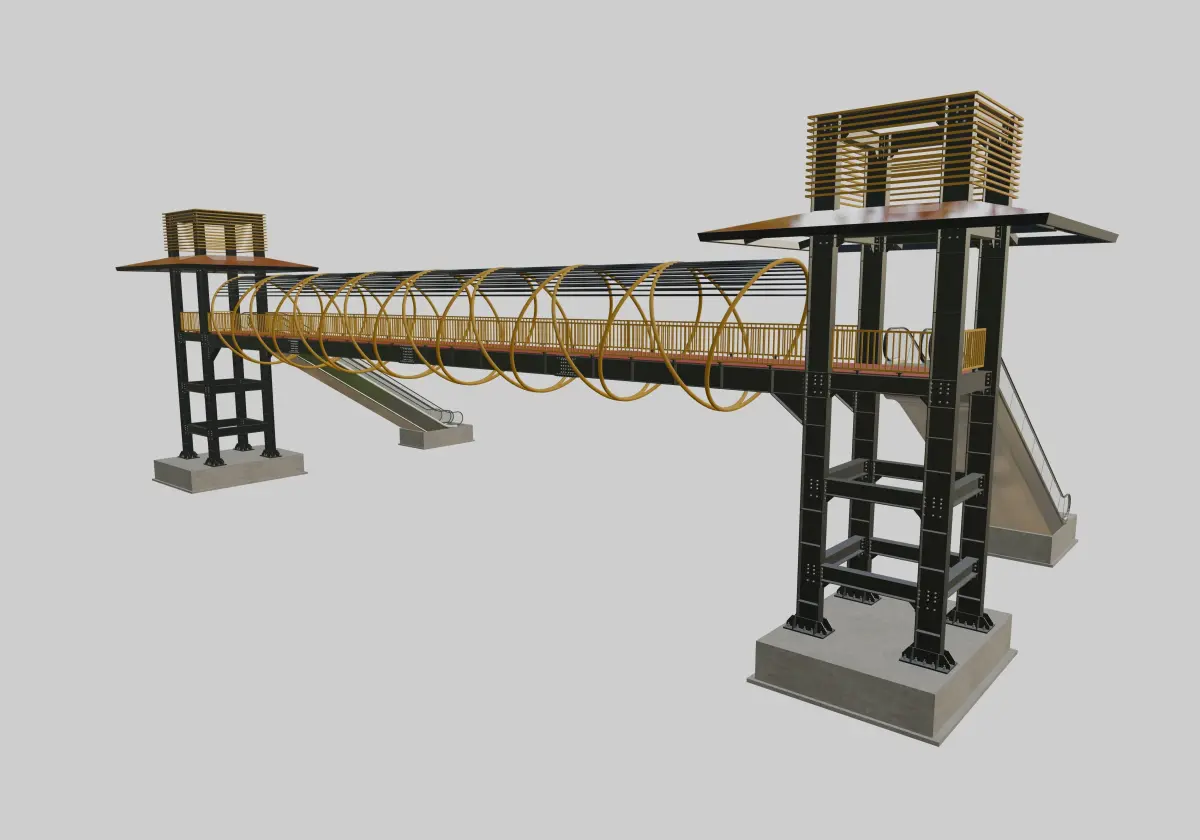

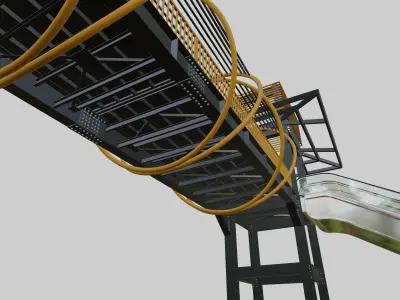

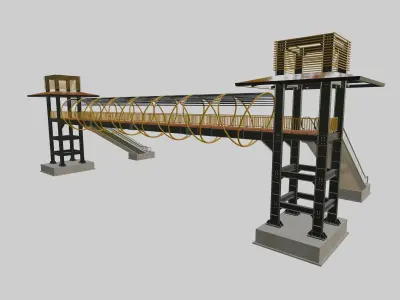

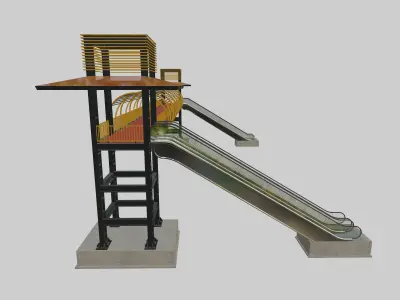

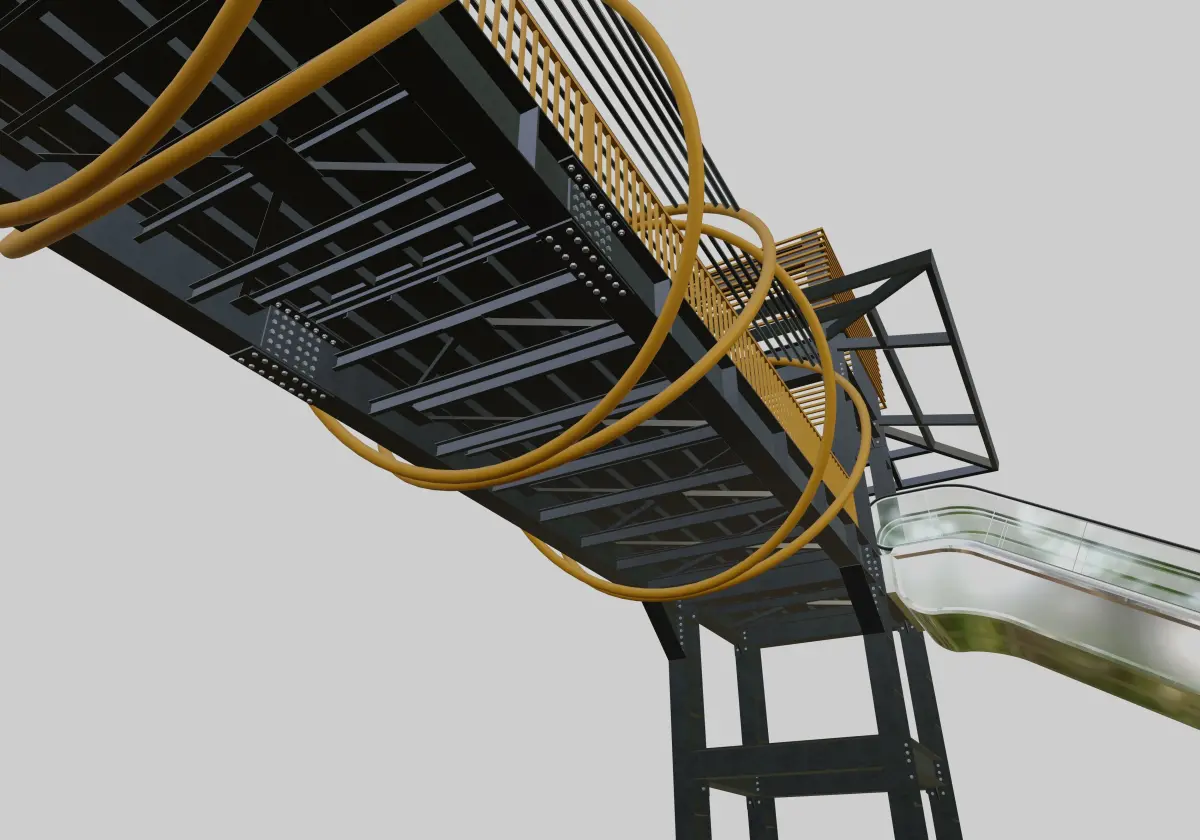

Steel Pedestrian Bridge-Escalator-Tower Column Type-28 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

Steel Pedestrian Bridge

Two Column Consruction

Open Top Construction

Straigth Beam Type

Tower Column Type

Named Objects

Largest Column Span : 35,64 mt.

Distance Between Two Columns : 35,64 mt.

Platform Asphalt Height : 6 mt.

Platform Spiral Coating Asphalt Height : 5,2 mt.

Platform Width : 3 mt.

Escalator Composite Coating

Descending and Ascending Double Escalator

Escalator Steel Construction : not prepared

Escalator Step Size : width 300 mm. * length 800 mm. * height 165 mm.

Column Raft Concrete : width 4,5 mt * length 6 mt. * height 1 mt.

Escalator Raft Concrete : width 2,5 mt * length 4 mt. * height 1 mt.

Flat Railing Construction

Railings Box Profile

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

Prepared With BLENDER Version 2.93.5

Polygons : 144038

Vertices : 222576

Objects : 3782

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 144038
Vertices: 222576

Tags

Architecture Ladder Bridge Rail Pedestrian Footbridge Steel Columns Beam Structure Building Overpass Road Roadway Render Outdoor Rubber Handrail Walk Engineering Architectural Pedestrian bridge Steel beam Steel structure
