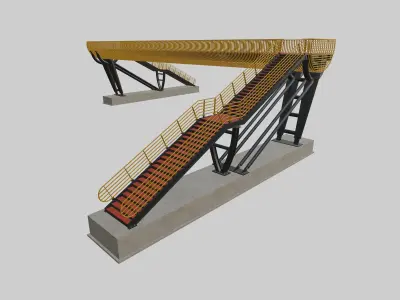

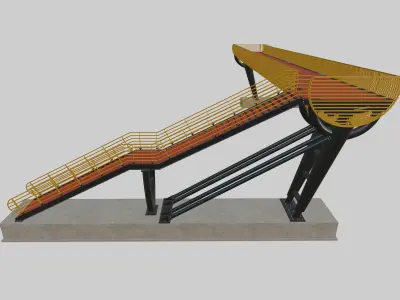

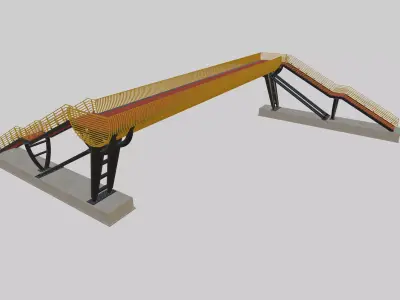

Steel Pedestrian Bridge-Oblique Cone Column Type-24 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

Steel Pedestrian Bridge

Two Column Consruction

Open Top Construction

Straigth Beam Type

Oblique Cone Column Type

Three Rows Of Platform Beams

Named Objects

Largest Column Span : 29,5 mt.

Distance Between Two Columns : 29,5 mt.

Platform Asphalt Height : 6 mt.

Handrail Asphalt Height : 5,3 mt.

Platform Width : 3 mt.

Column Raft Concrete : width 2,5 mt * length 18 mt. * height 1 mt.

Stairs Straight Type

Stair Step Width : 1,8 mt.

Step Sizes : 300 mm. * 150 mm.

Platforms Curved Railing Type And Railings Box Profile

Stairs Pipe Railing Type And Railings Pipe Profile

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

Prepared With BLENDER Version 2.93.5

Polygons : 101310

Vertices : 173280

Objects : 2167

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 101310
Vertices: 173280

Tags

Architecture Ladder Bridge Pedestrian Footbridge Steel Columns Beam Structure Building Overpass Road Roadway Render Outdoor Rubber Handrail Walk Engineering Architectural Pedestrian bridge Steel beam Steel structure
