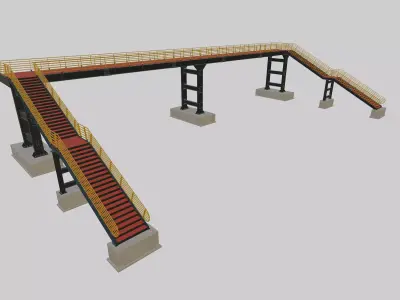

Steel Pedestrian Bridge-Three Columns-Pipe Rail-Straight Type-7 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

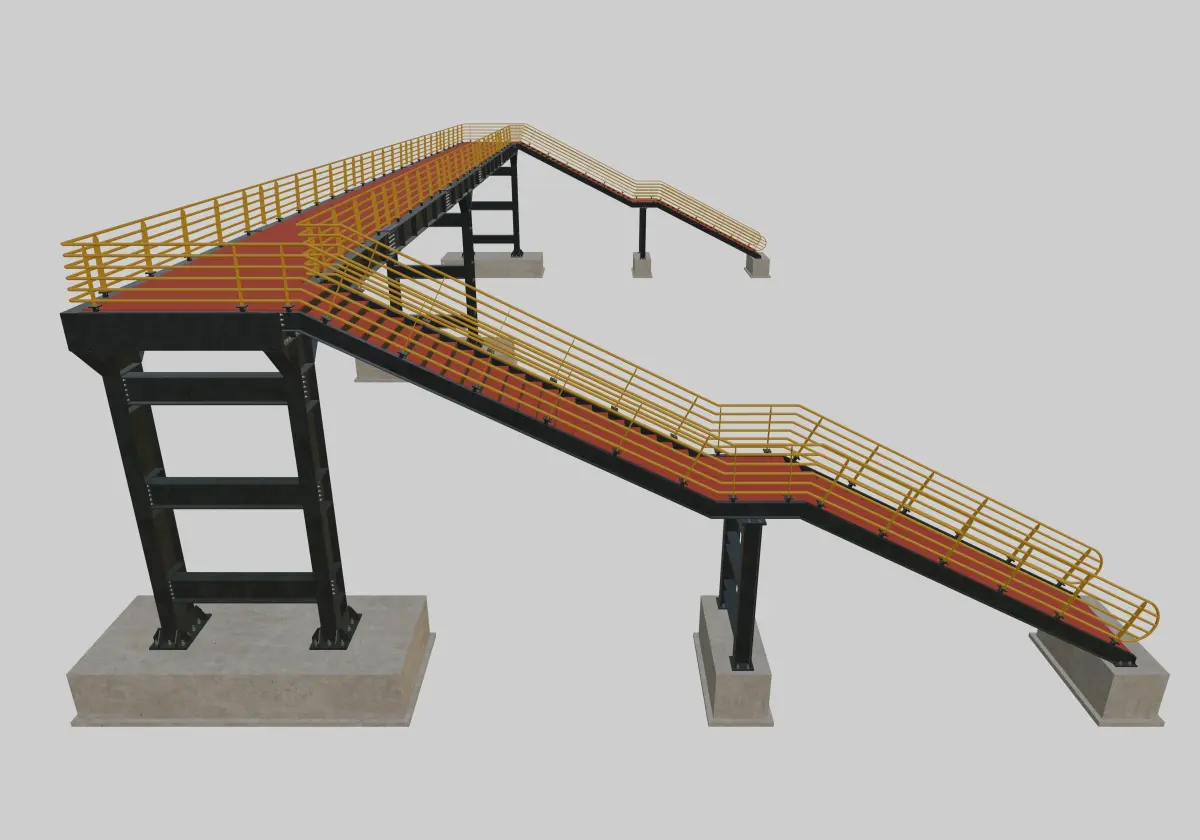

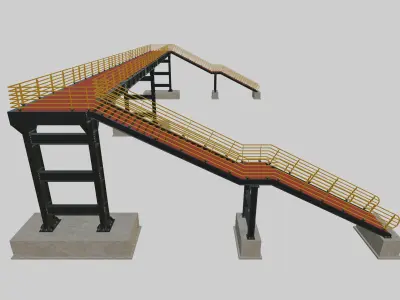

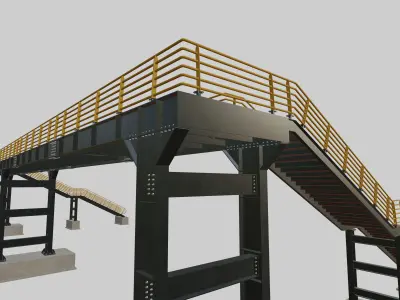

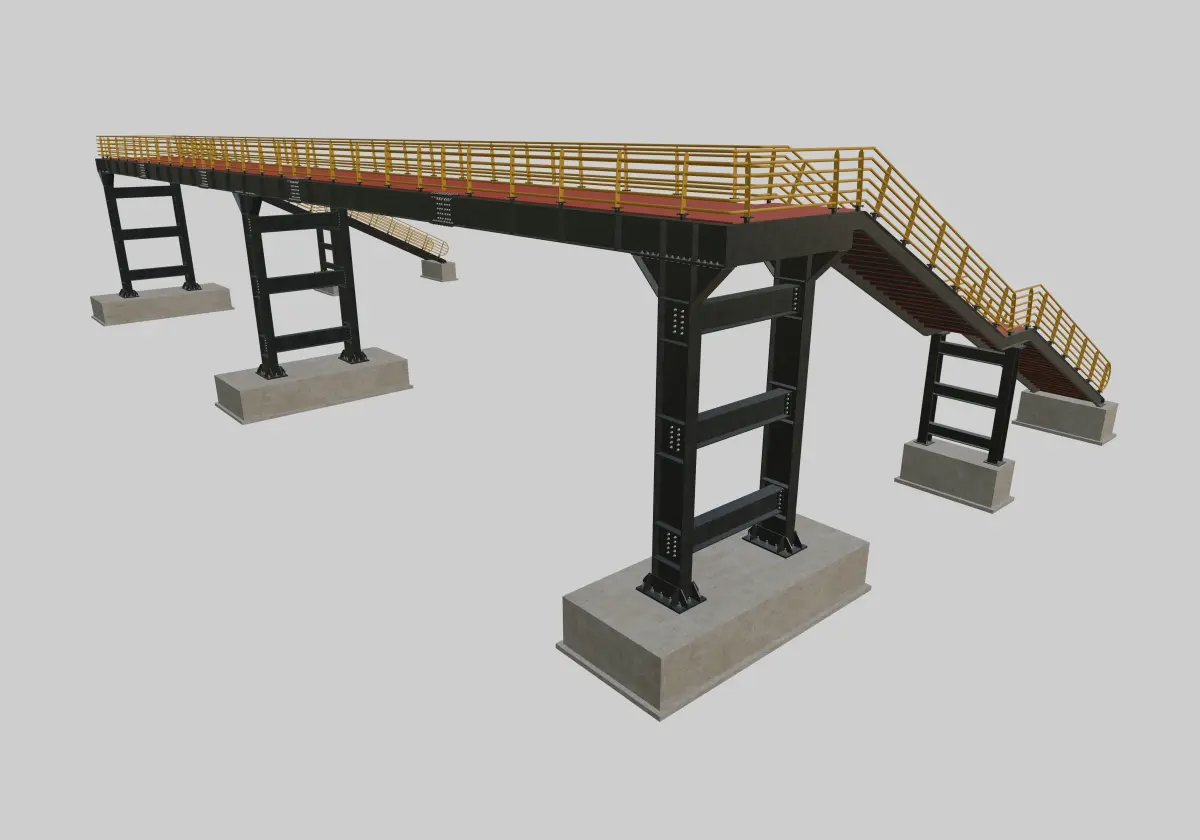

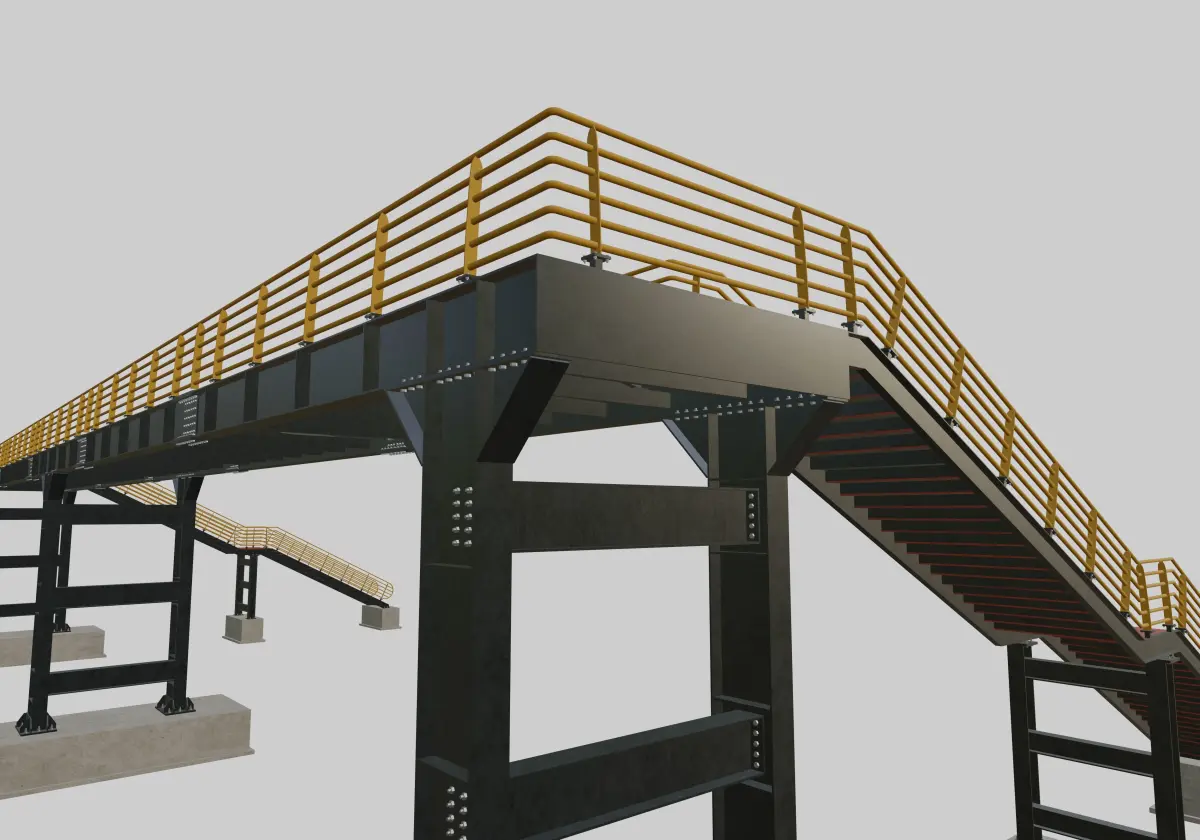

Steel Pedestrian Bridge

Three Column Consruction

Open Top Construction

Straigth Beam Type

Straight Column Type

Named Objects

Largest Column Span : 38 mt.

Distance Between Two Columns : 19 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Stairs Raft Concrete : width 1 mt * length 2,5 mt. * height 1 mt.

Stairs Straight Type

Stair Step Width : 1,8 mt.

Step Sizes : 300 mm. * 150 mm.

Pipe Railing Construction

Railings Pipe Profile

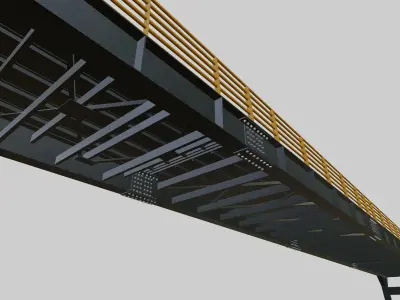

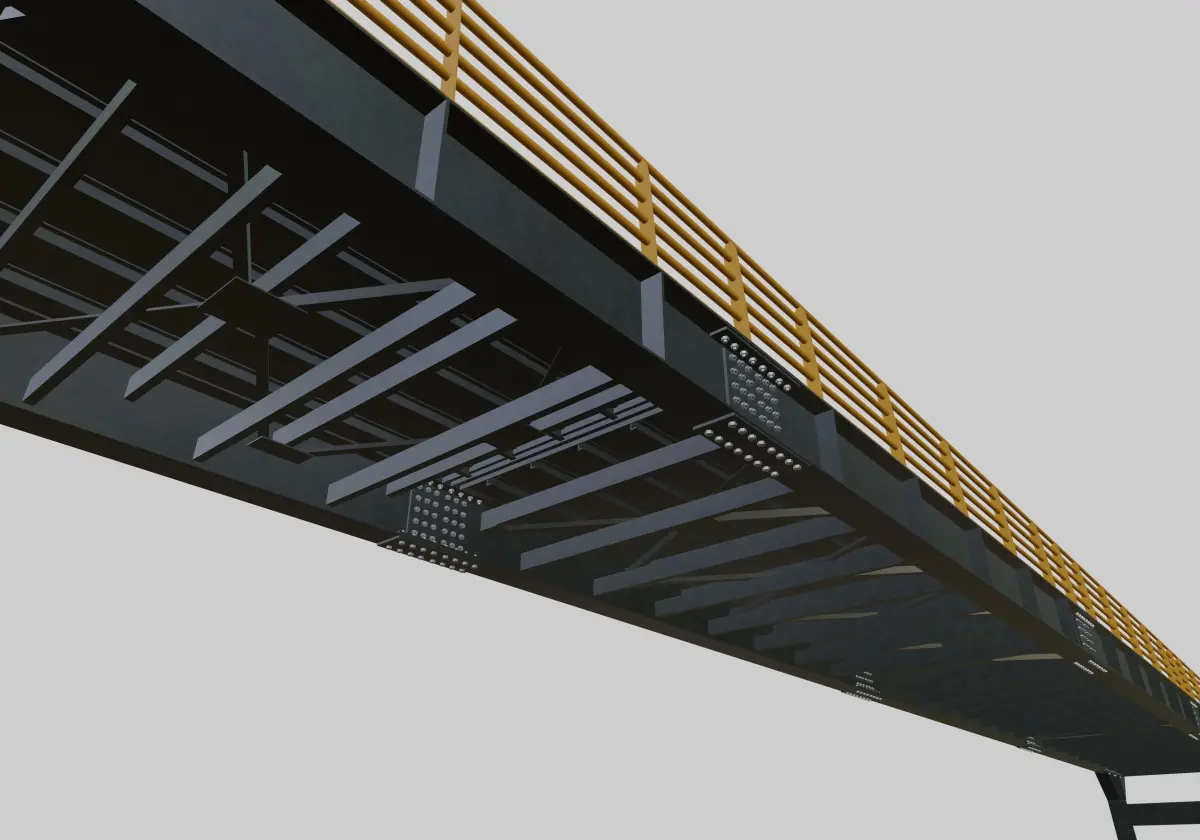

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

Prepared With BLENDER Version 2.93.5

Polygons : 114179

Vertices : 196168

Objects : 2350

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 114179
Vertices: 196168

Tags

Architecture Ladder Bridge Rail Pedestrian Footbridge Steel Columns Beam Structure Building Overpass Road Roadway Outdoor Rubber Handrail Walk Engineering Architectural Pedestrian bridge Steel beam Steel structure
