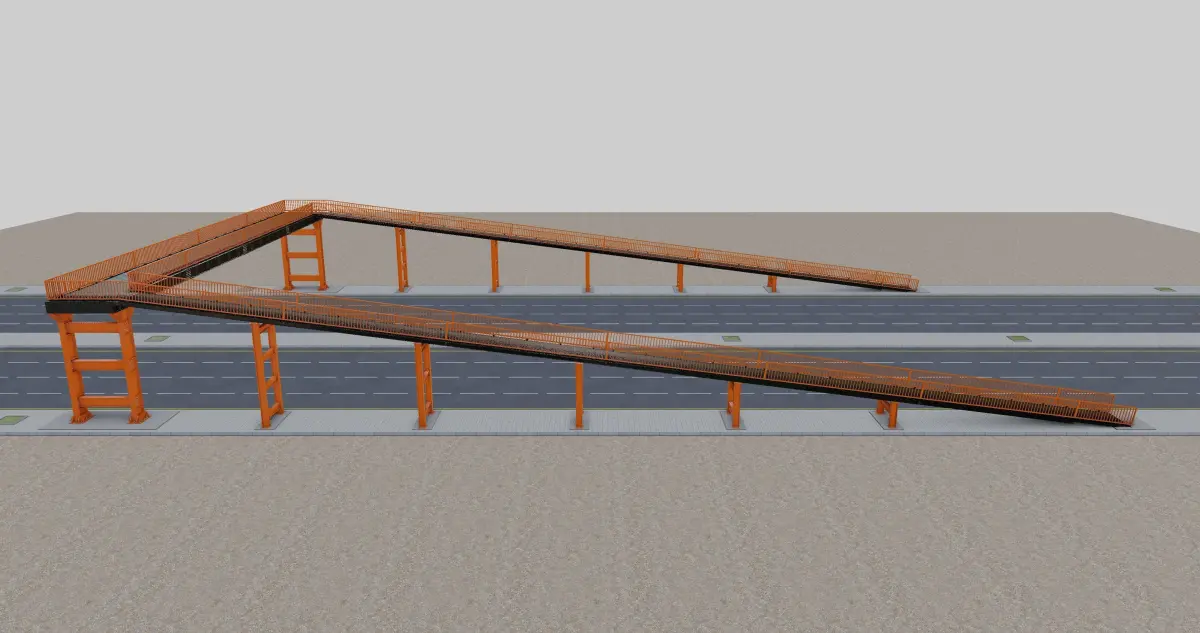

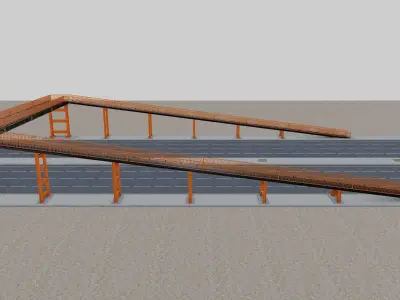

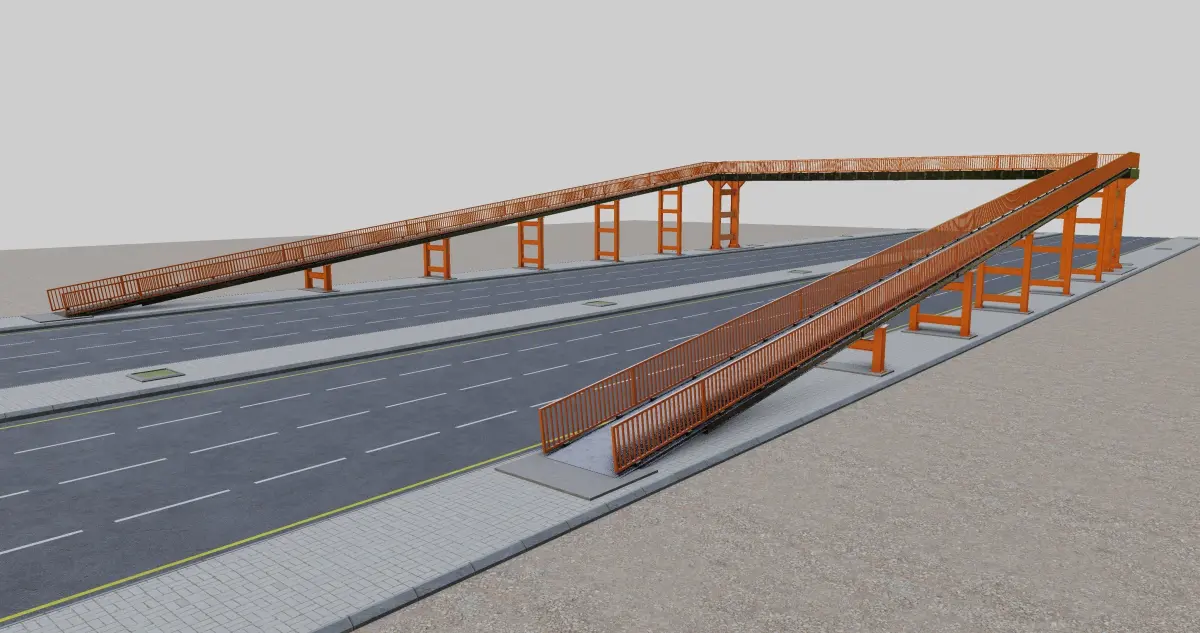

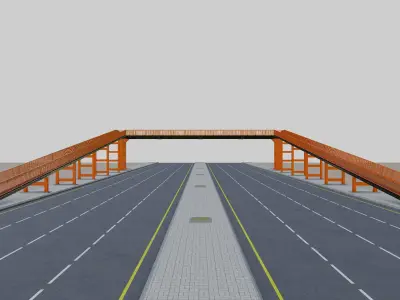

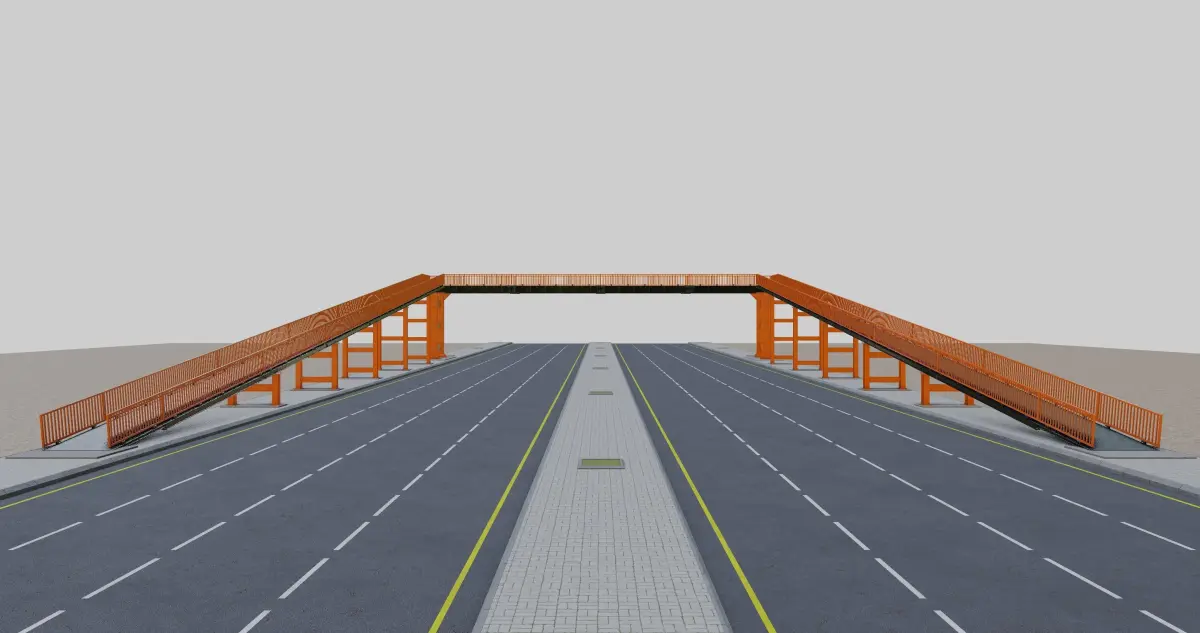

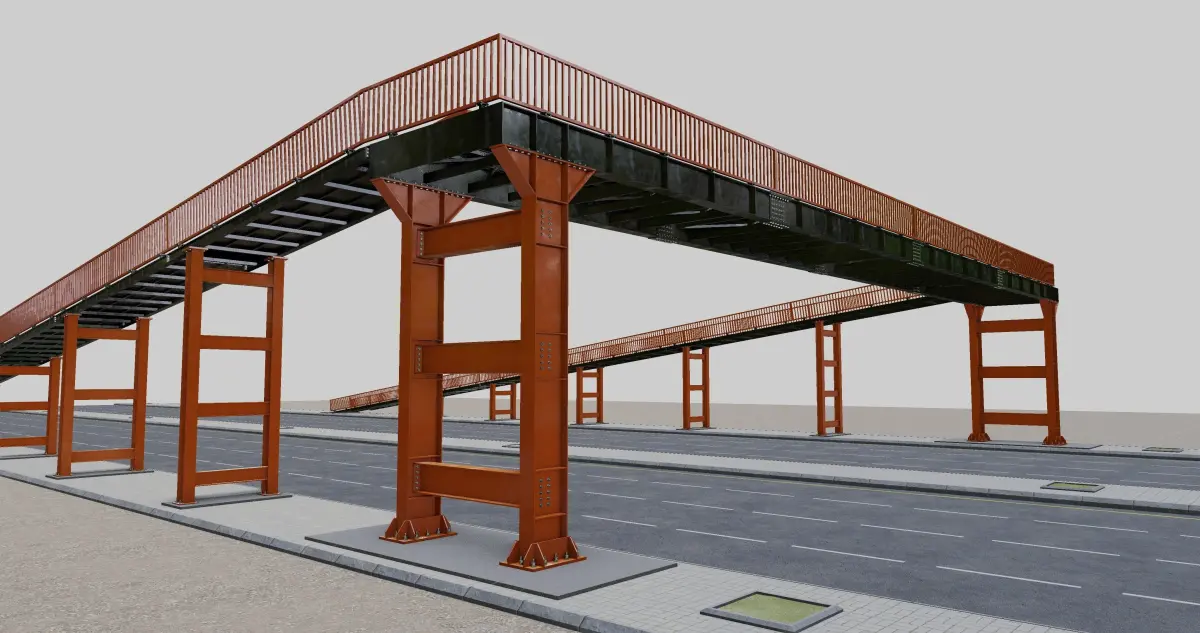

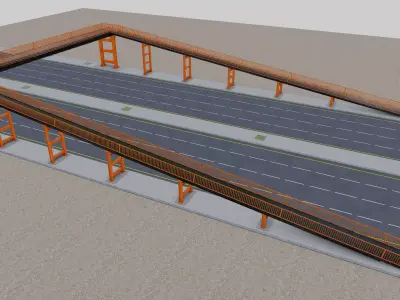

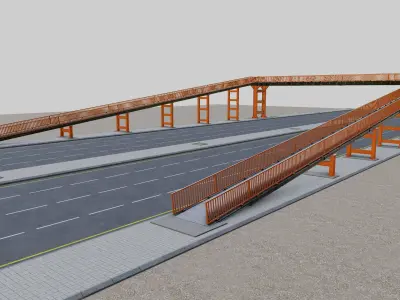

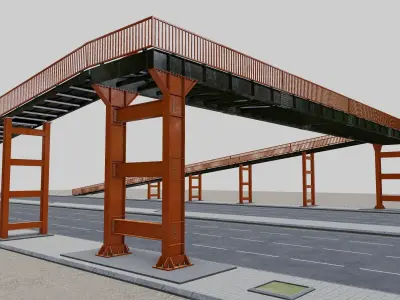

Steel Pedestrian Bridge Type-31 3D model

$28

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

Steel Pedestrian Bridge- Type.31

Pedestrian Overpass With Flat Type Ramp

Two Column Type

Open Top Construction

Named Objects

Largest Column Span : 30 mt.

Distance Between Two Columns : 30 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Straight Type Ramp

Ramp Width : 1,8 mt.

Ramp Lenght : 51 mt.

Column Foundation Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Ramp Foundation Concrete : width 1 mt * length 2,5 mt. * height 1 mt.

Flat Railing Construction

Railings Box Profile

Platform And Columns With Bolted Connection

Walking Surface : 6 mm. Patterned Plate

Prepared With BLENDER Version 2.93.5

All Model

Polygons : 108653

Vertices : 199954

Objects : 4810

Steel Model Only

Polygons : 106560

Vertices : 196216

Objects : 4398

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 108653
Vertices: 199954

Tags

Architecture Ladder Bridge Rail Pedestrian Footbridge Steel Columns Beam Structure Building Overpass Road Roadway Render Outdoor Rubber Handrail Walk Engineering Architectural
