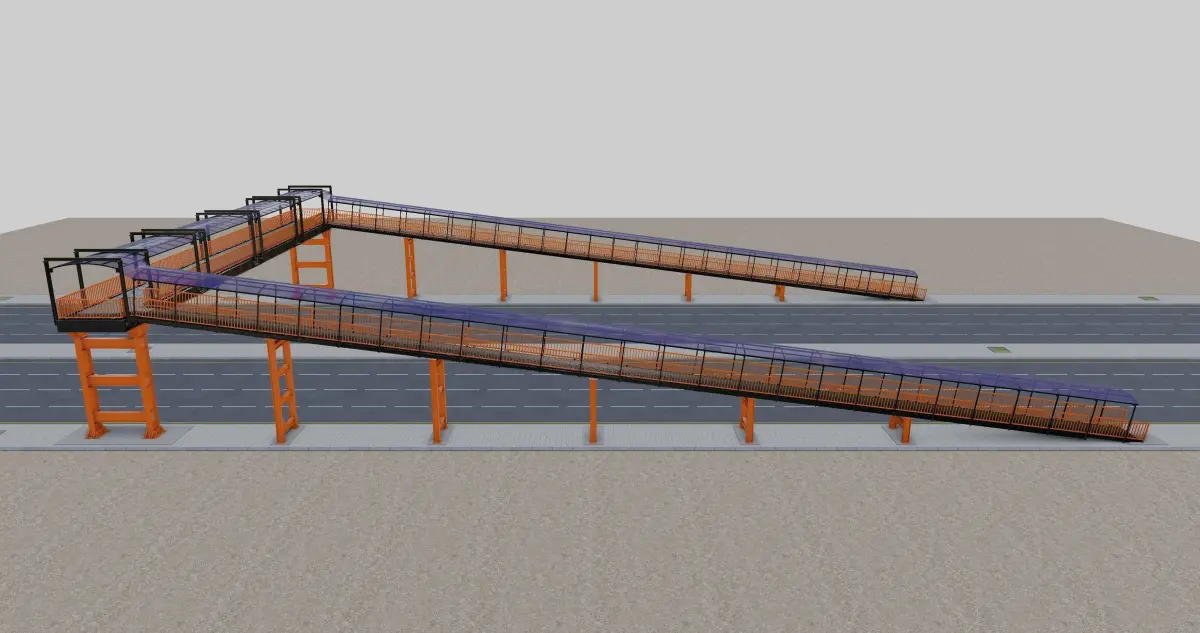

Steel Pedestrian Bridge Type-32 3D model

$28

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

Steel Pedestrian Bridge- Type.32

Pedestrian Overpass With Flat Type Ramp

Closed Top Construction

Two Column Type

Open Top Construction

Named Objects

Largest Column Span : 30 mt.

Distance Between Two Columns : 30 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Straight Type Ramp

Ramp Width : 1,8 mt.

Ramp Lenght : 51 mt.

Column Foundation Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Ramp Foundation Concrete : width 1 mt * length 2,5 mt. * height 1 mt.

Flat Railing Construction

Railings Box Profile

Platform And Columns With Bolted Connection

Walking Surface : 6 mm. Patterned Plate

Prepared With BLENDER Version 2.93.5

All Model

Polygons : 124818

Vertices : 229054

Objects : 5585

Steel Model Only

Polygons : 122725

Vertices : 225316

Objects : 5173

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 124818
Vertices: 229054
Geometry: Unknown

Tags

Architecture Ladder Bridge Rail Pedestrian Footbridge Steel Columns Beam Structure Building Overpass Road Roadway Render Outdoor Rubber Handrail Walk Engineering Architectural
