Steel Pedestrian Bridge Type-34 3D model
Steel Pedestrian Bridge Type-34 3D model
Steel Pedestrian Bridge Type-34 3D model
Steel Pedestrian Bridge Type-34 3D model
Steel Pedestrian Bridge Type-34 3D model

Publication date: 2023-10-26

Steel Pedestrian Bridge Type-34 3D model

$28

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $28 Add to Wishlist
  • Description
  • Formats

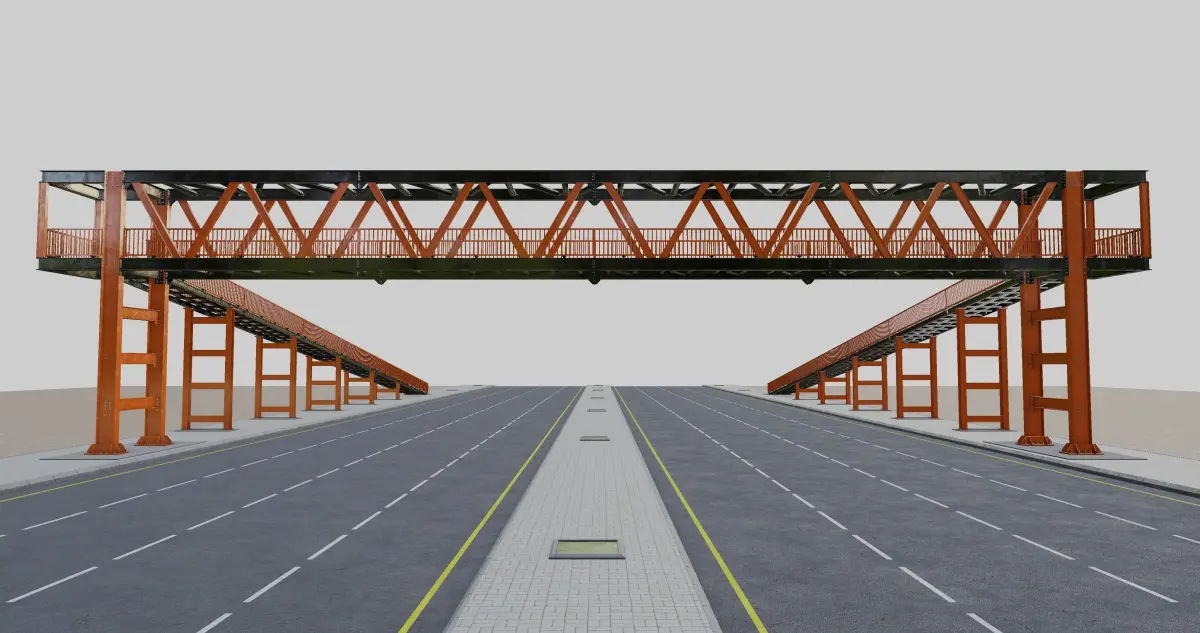

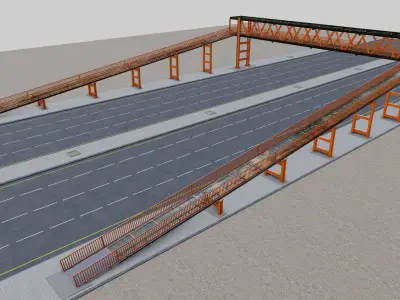

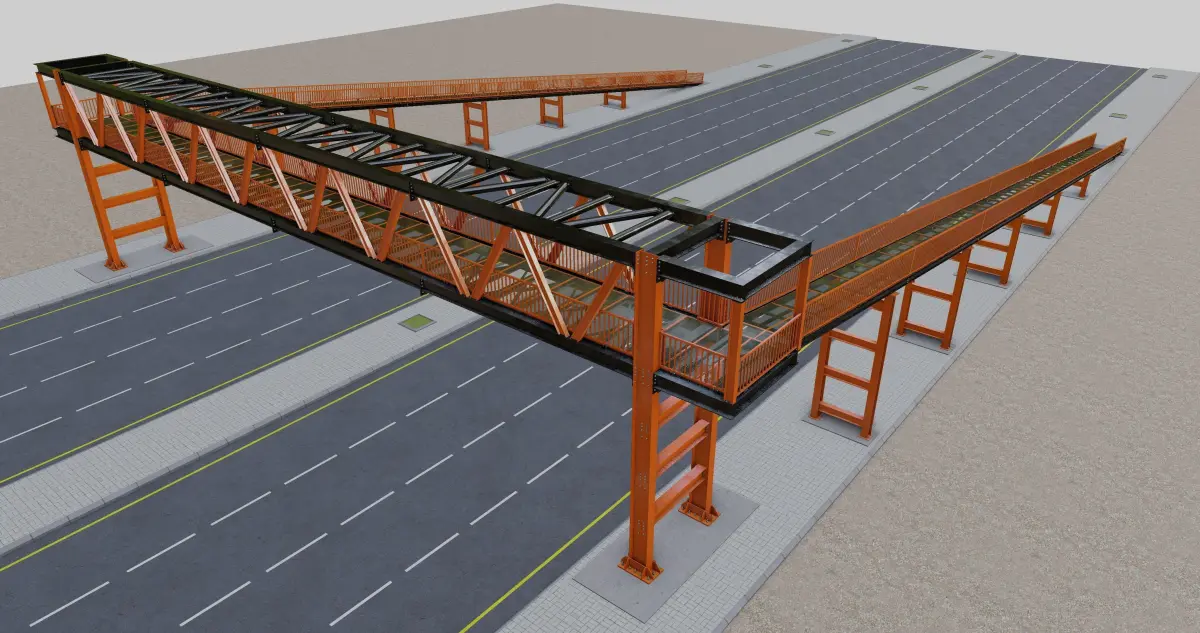

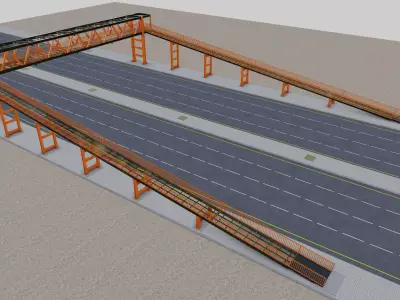

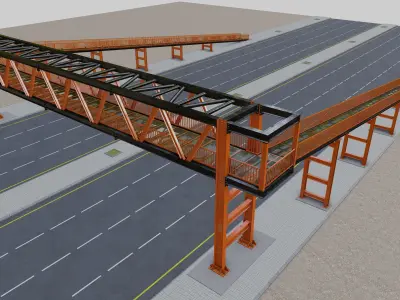

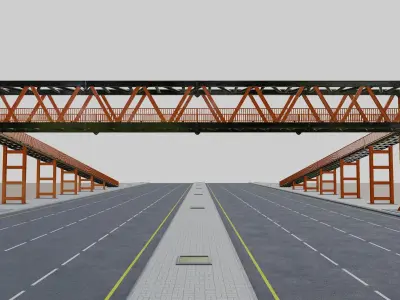

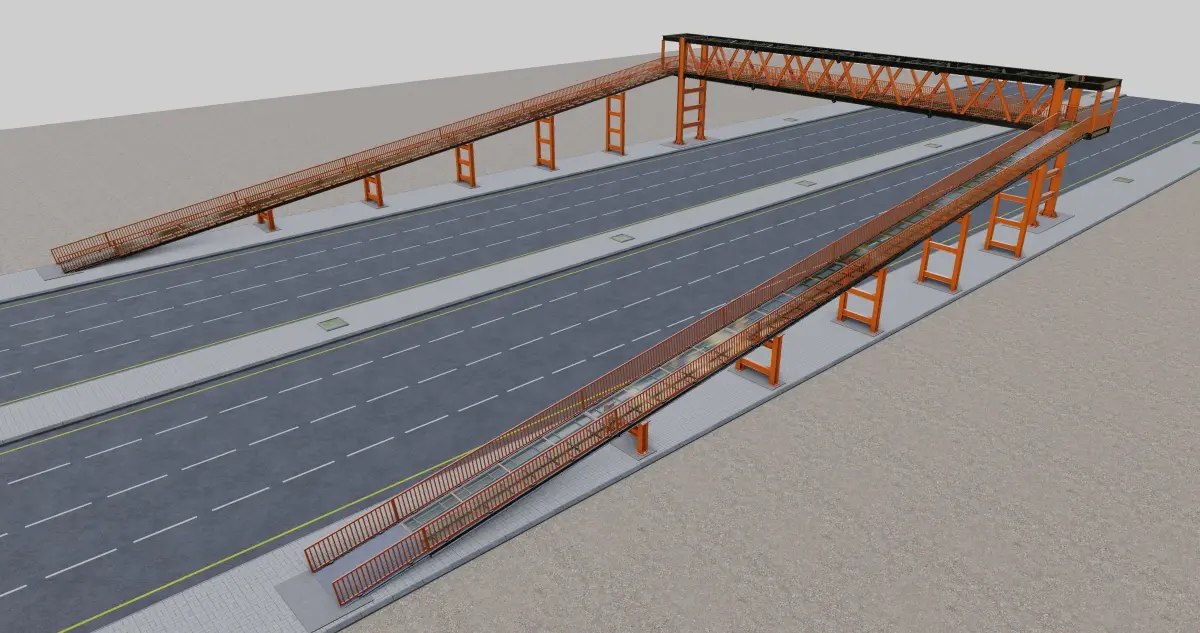

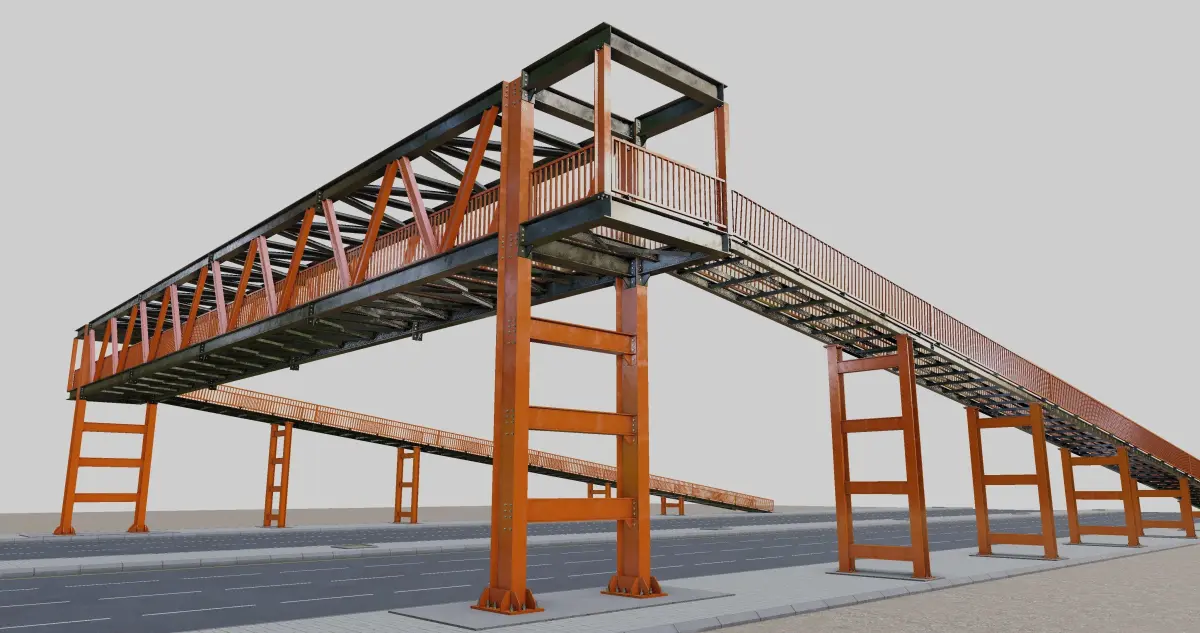

Steel Pedestrian Bridge- Type.34

Truss Type Platform Construction

Pedestrian Overpass With Flat Type Ramp

20mm Glass Deck

Two Column Consruction

Open Top Construction

Straigth Beam Type

Straight Column Type

Named Objects

Largest Column Span : 32,76 mt.

Distance Between Two Columns : 32,76 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Platfrom Truss Heigth : 3 mt.

Straight Type Ramp

Ramp Width : 1,8 mt.

Ramp Lenght : 51 mt.

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Stairs Raft Concrete : width 1 mt * length 2,5 mt. * height 1 mt.

Stairs Straight Type

Stair Step Width : 1,8 mt.

Step Sizes : 300 mm. * 150 mm.

Flat Railing Construction

Railings Box Profile

Platform And Columns With Bolted Connection

Walking Surface : 20 mm. Glass Deck

Prepared With BLENDER Version 2.93.5

All Model

Polygons : 137419

Vertices : 233310

Objects : 5930

Steel Model Only

Polygons : 135326

Vertices : 229572

Objects : 5518

Native Formats: BLEND (Blender, filesize: 99.8 MB) Exchange Formats: BLEND (Blender, filesize: 99.8 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 137419
  • Vertices: 233310
  • Geometry: Unknown

Tags

Architecture Ladder Bridge Rail Pedestrian Footbridge Steel Columns Beam Structure Building Overpass Road Roadway Render Outdoor Rubber Handrail Walk Engineering Architectural
