Steel Stained M10 Bolt Allen Cap with PBR 4K Textures 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

Doranciphu

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Doranciphu». CGhub does not claim copyright ownership over the content used.

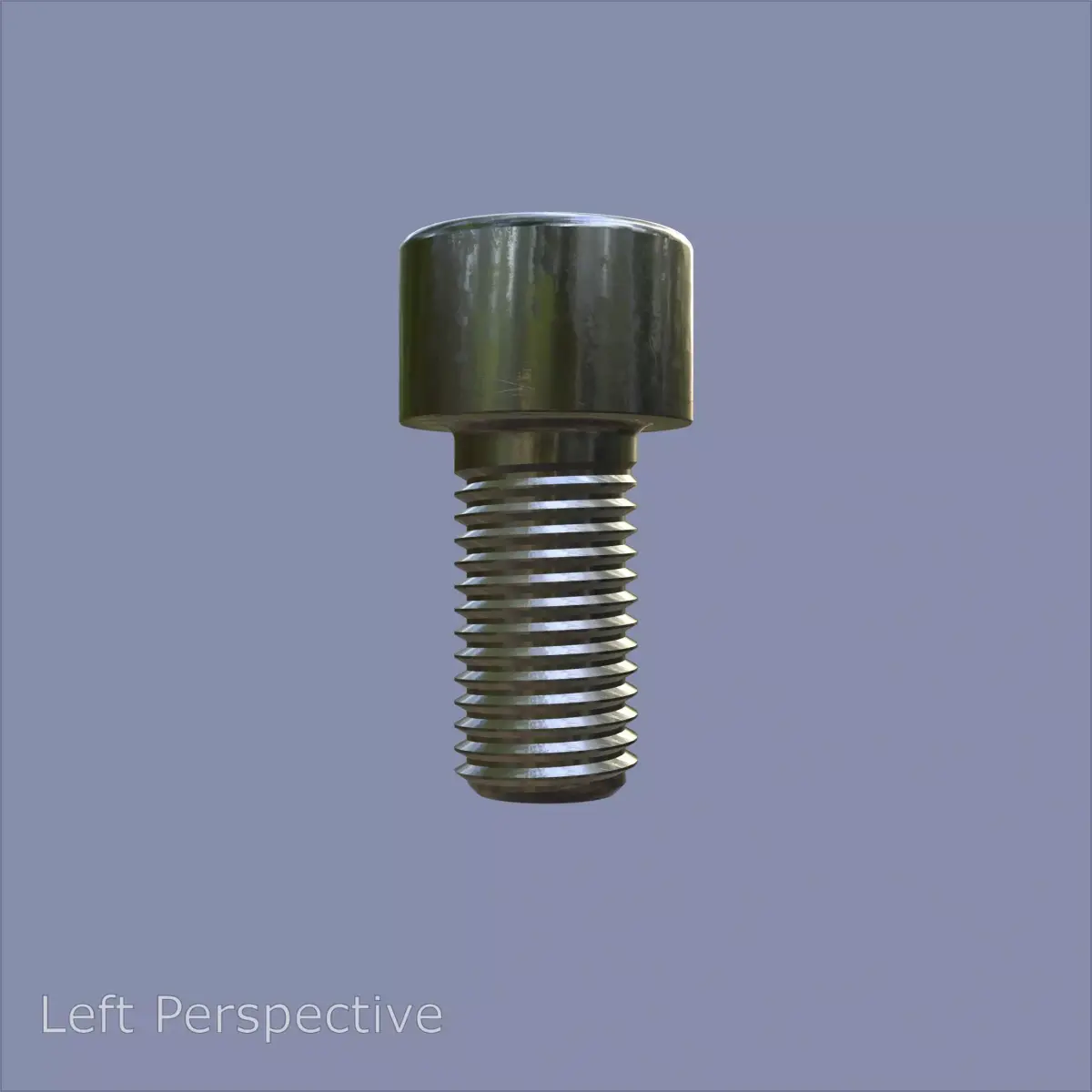

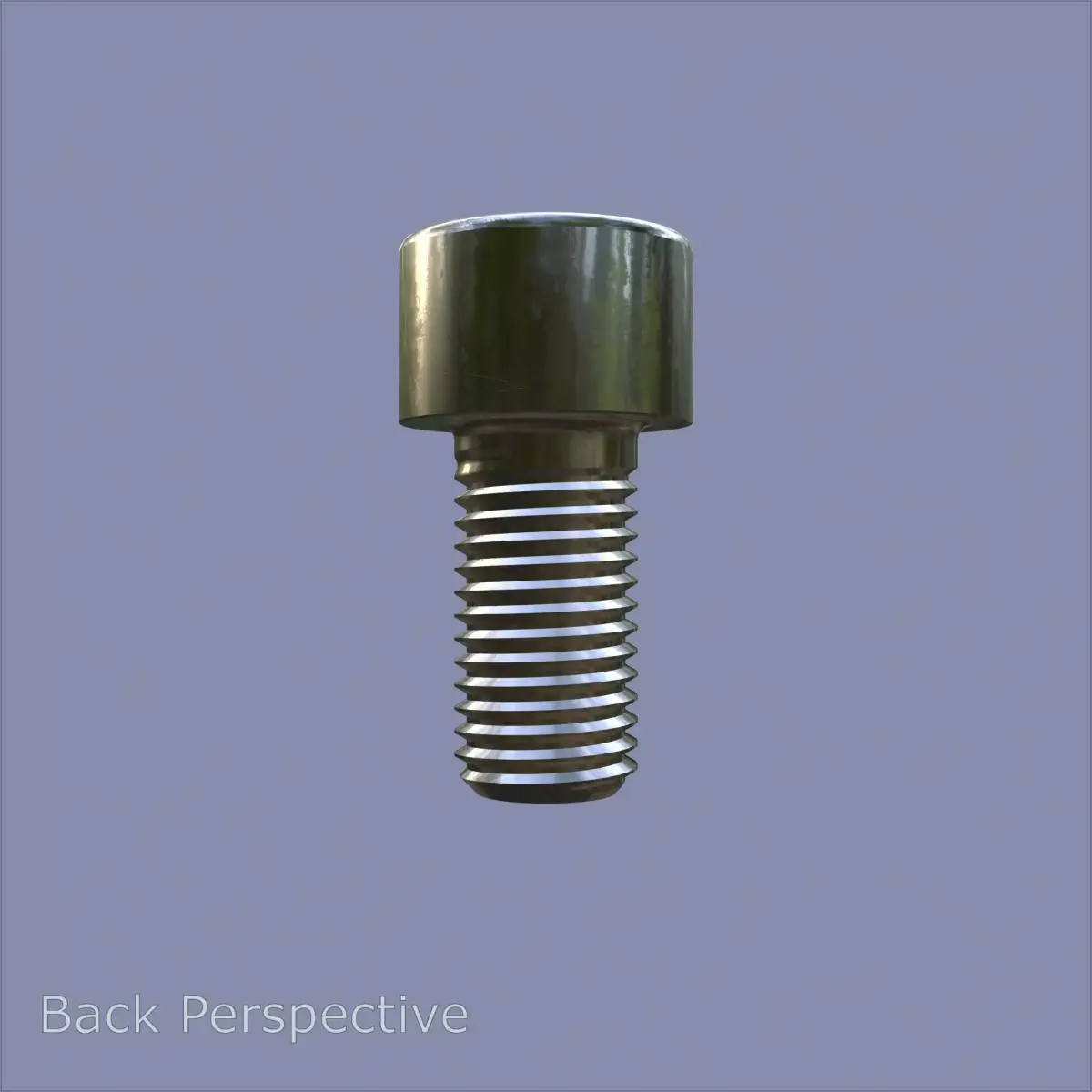

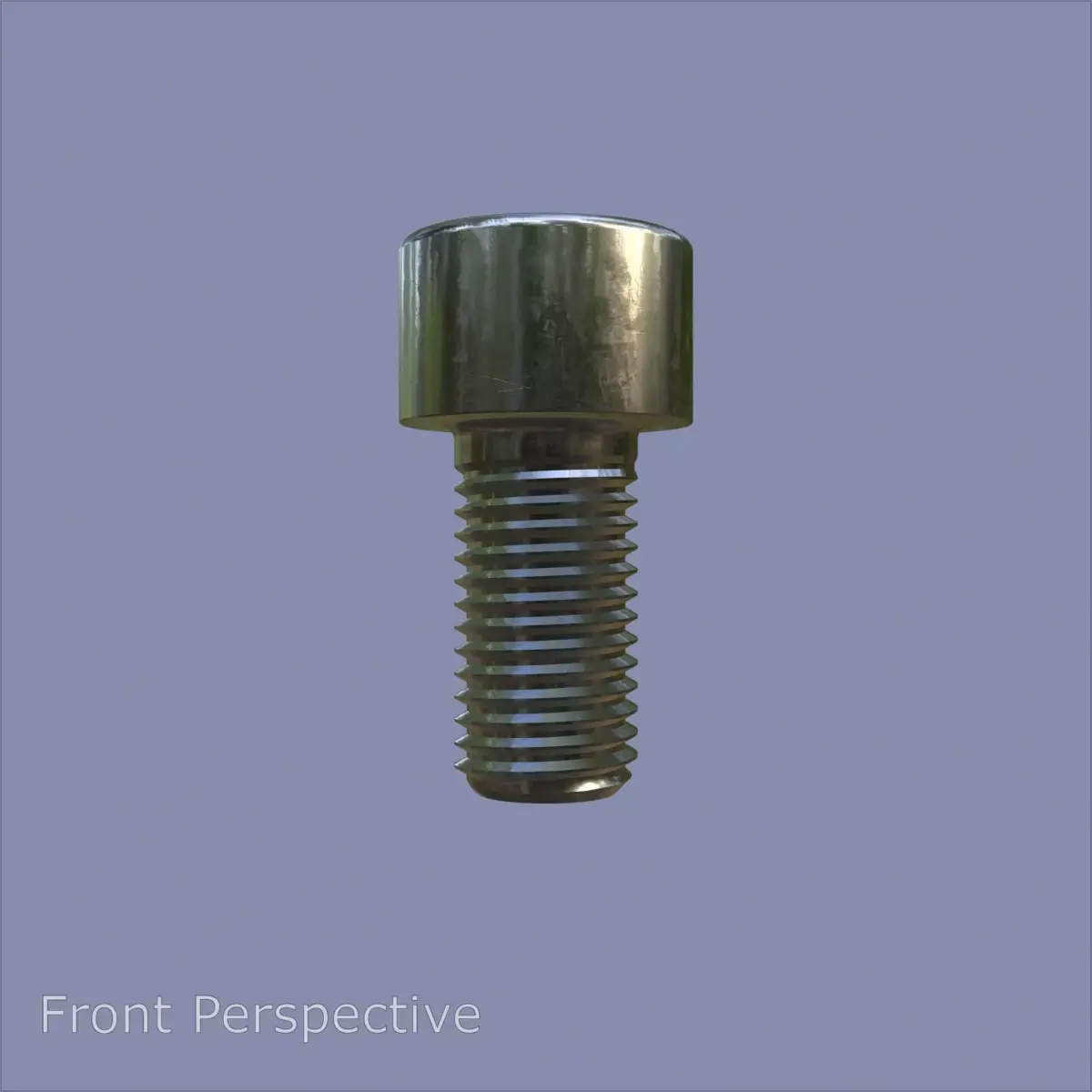

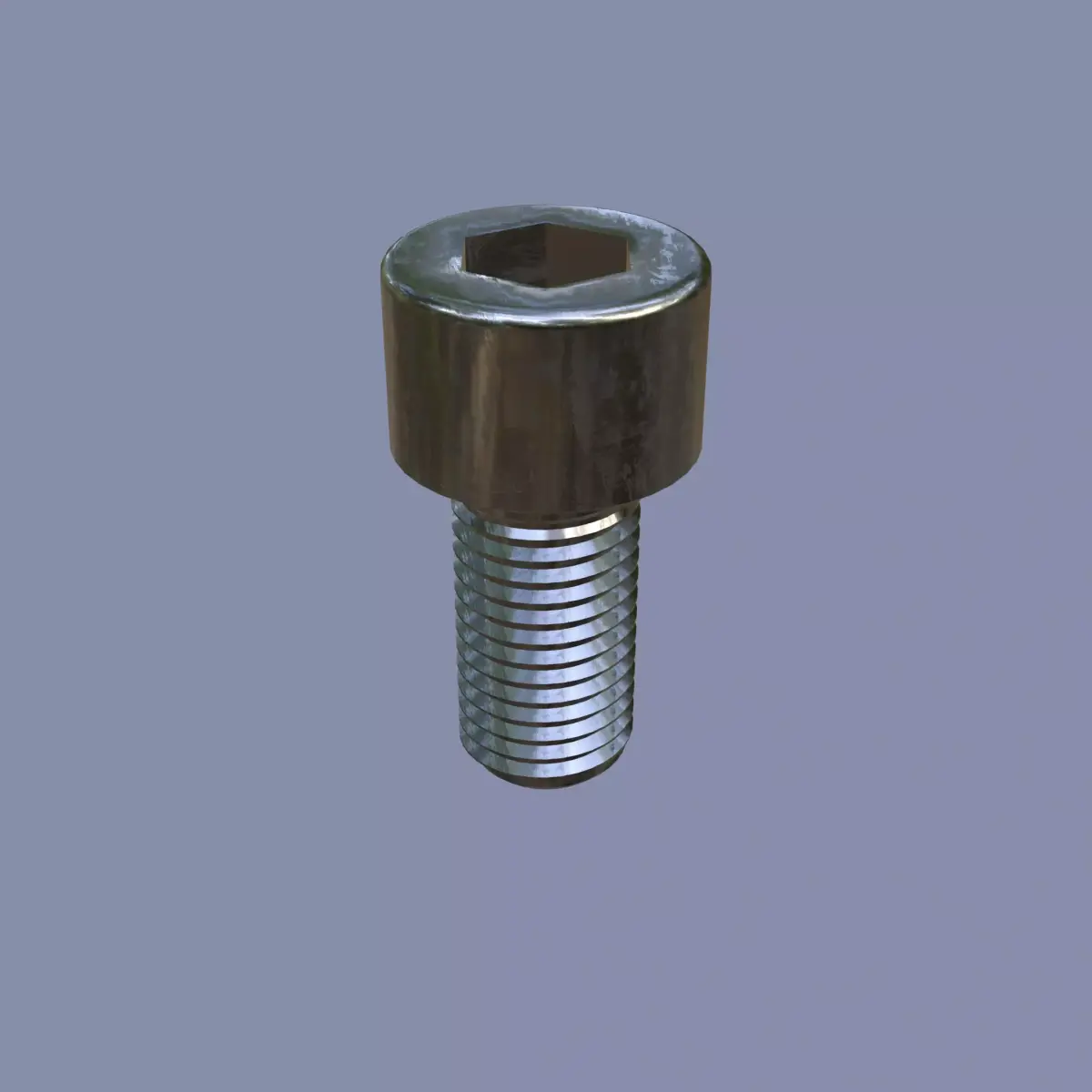

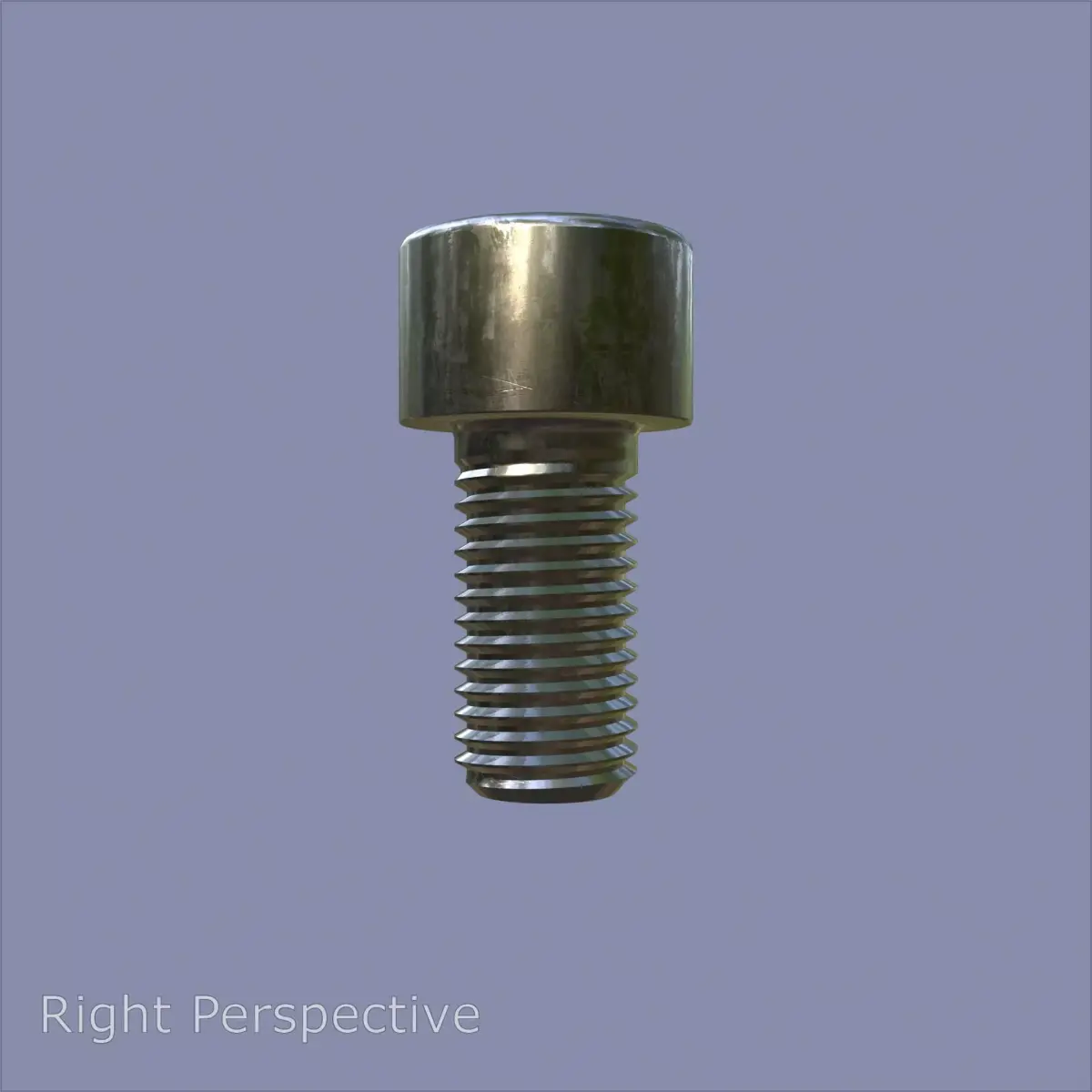

This is a high-quality 3D model of a Steel Stained M10 Bolt with an Allen Cap head, designed with precise measurements for mechanical engineering, product visualization, and realistic rendering projects. The model includes optimized geometry and comes with 4K PBR textures to ensure photorealistic results.

Specifications from reference:

Model Type: Bolt
Bit Type: Allen
Bit Depth: 5.00 mm
Flat Distance: 8.00 mm
Head Type: Cap
Head Height: 10.00 mm
Head Diameter: 16.00 mm
Shank Length: 0.00 mm
Shank Diameter: 10.00 mm
Thread Length: 20.00 mm
Major Diameter: 10.00 mm
Minor Diameter: 8.65 mm
Pitch: 1.25 mm
Crest Percent: 12.50 %
Root Percent: 25.00 %
Division Count: 36

3D Model Details:

Polygon count: 3113
Vertices: 3071
Native format: Blender (.blend)
Textures: Included, PBR 4K quality

Perfect for use in close-up renders, animations, engineering design, and product visualization where both precision and realism are required.

Native Formats: FBX (Autodesk FBX, filesize: 304 KB), BLEND (Blender, filesize: 221 KB), TEXTURES (Textures, filesize: 26.1 MB) Exchange Formats: OBJ (OBJ, filesize: 84.1 KB), GLTF (glTF, filesize: 30.3 MB), PNG (PNG, filesize: 26.1 MB), 3DS (3D Studio, filesize: 32.7 KB), OTHER (Other, filesize: 39.6 MB), DAE (Collada, filesize: 8.91 MB), DXF (DXF, filesize: 123 KB), ABC (Alembic, filesize: 71.7 KB), PLY (Ply, filesize: 27.1 KB), STL (Stereolithography, filesize: 68.6 KB)

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: non_overlapping
Geometry: Polygon mesh
Polygons: 3113
Vertices: 3071
Plugins used

Tags

Bolt Allen Cap Steel Stained M10 Thread Fastener Screw Hex Head Blend Pbr Texture Realistic 4k Engineering Industry Chrome Iron Industrial Part Industrial part
