Stepper Motor with encoder NEMA23 3D model
Stepper Motor with encoder NEMA23 3D model
Stepper Motor with encoder NEMA23 3D model
Stepper Motor with encoder NEMA23 3D model
Stepper Motor with encoder NEMA23 3D model

Publication date: 2023-02-16

Stepper Motor with encoder NEMA23 3D model

$12

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

marko2m

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «marko2m». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $12 Add to Wishlist
  • Description
  • Formats

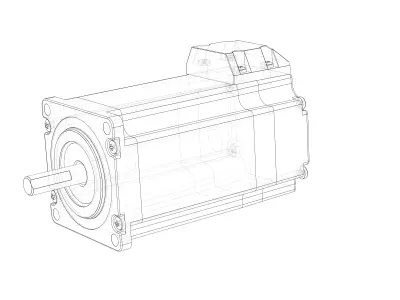

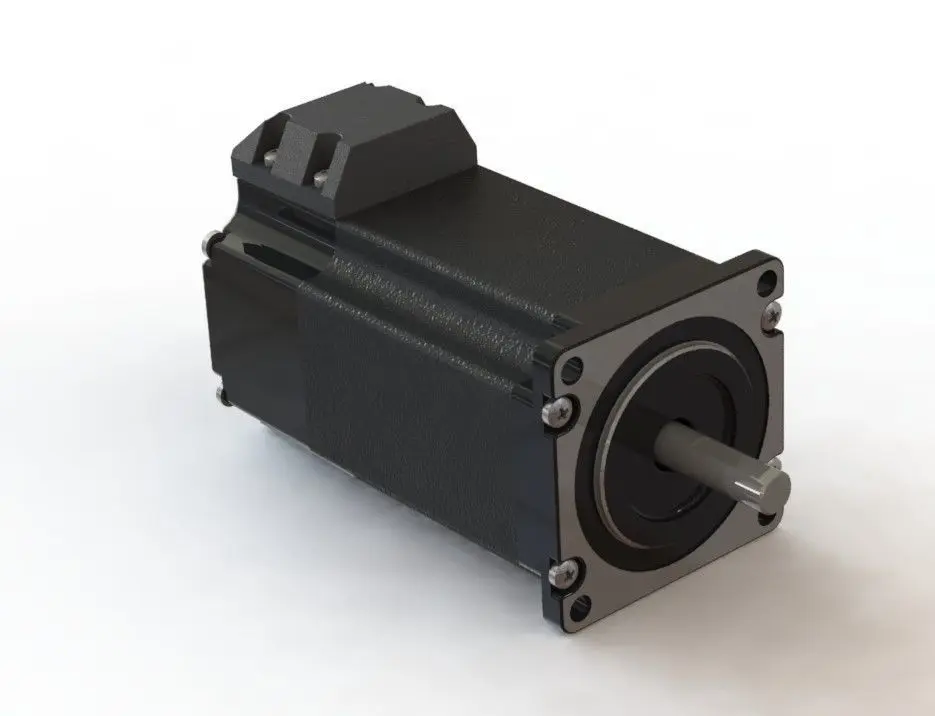

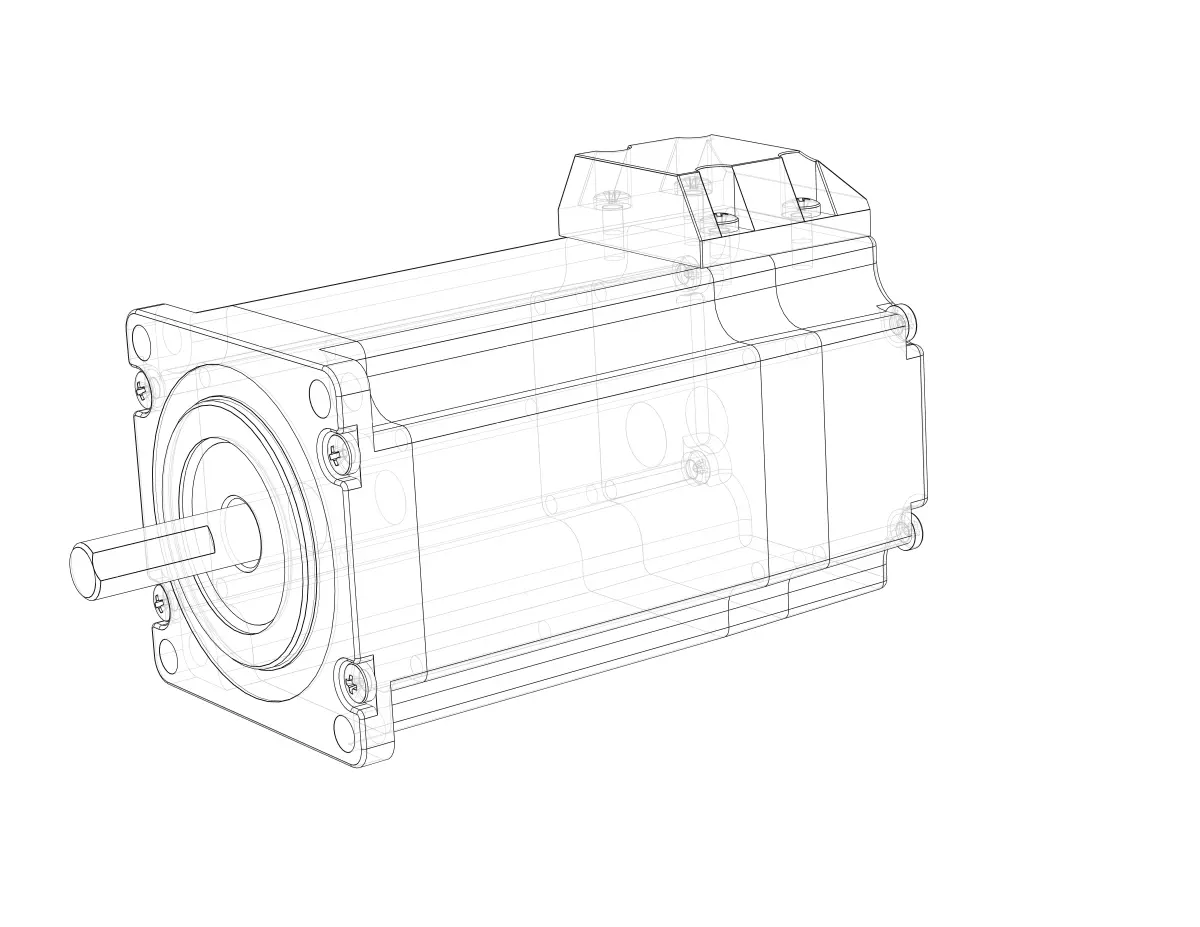

Stepper Motor with encoder used in manufactory (CNC machine, precise moving)

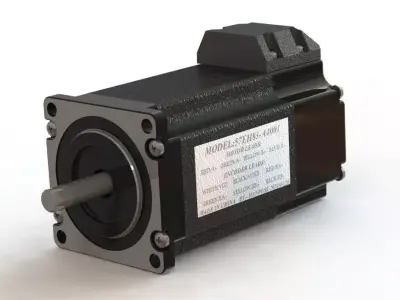

  • Motor type name: 57EH83

  • Tech. spec: NEMA23, 2.6Nm, 4A, closed loop

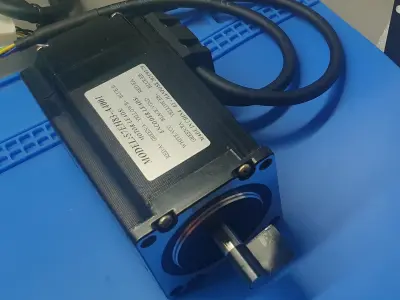

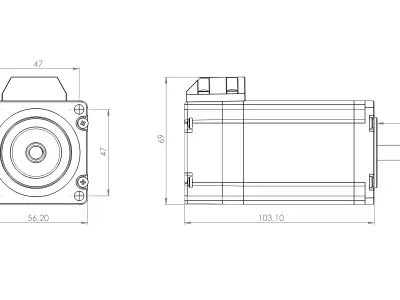

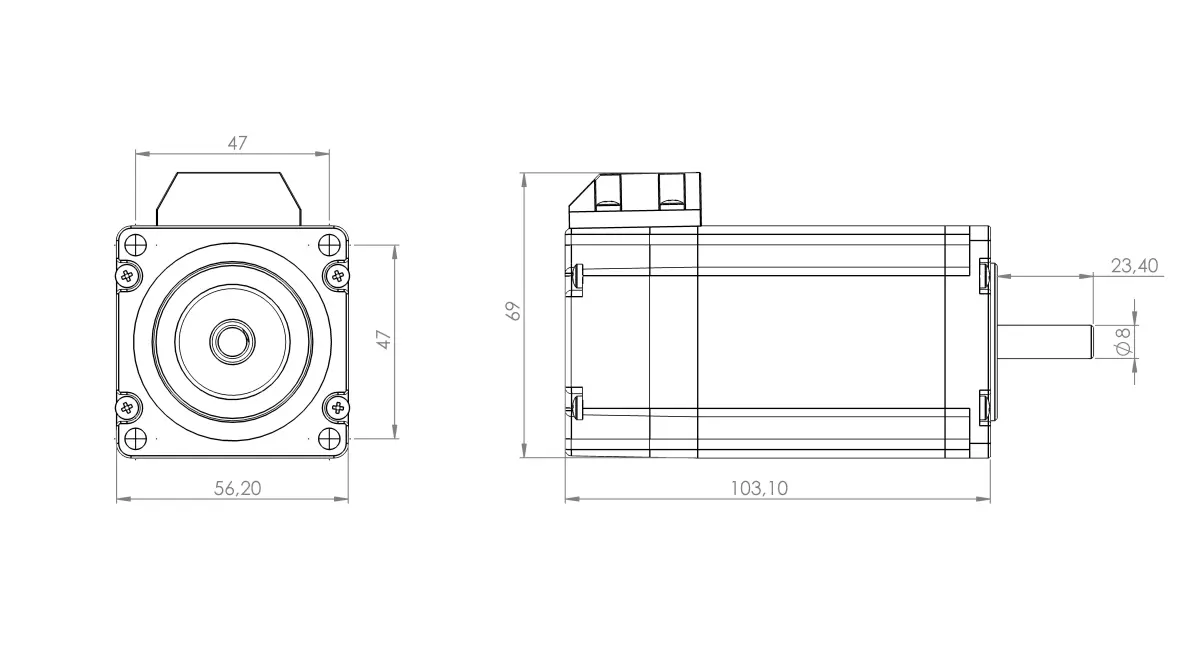

    • Dimensions in mm, from real motor, scale 1:1
    • Dimensions accuracy approx. 0.5 mm
    • Without internal structure modeling
    • CAD and render: SolidWorks2020,
    • Files format - SLDASM, SLDPRT, STEP, STL
    • Fully editable in Solidworks
Native Formats: SLDPRT (SolidWorks, filesize: 11.5 MB) Exchange Formats: OBJ (OBJ, filesize: 11.5 MB), STL (Stereolithography, filesize: 11.5 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Unknown

Tags

Motor Cnc Machinery Router Robot Moving Engrave Manufactory Nema Solidworks Realmodel Enginering Industrial Machine Industrial machine Steppermotor
