Buy Stewart platform 3D model

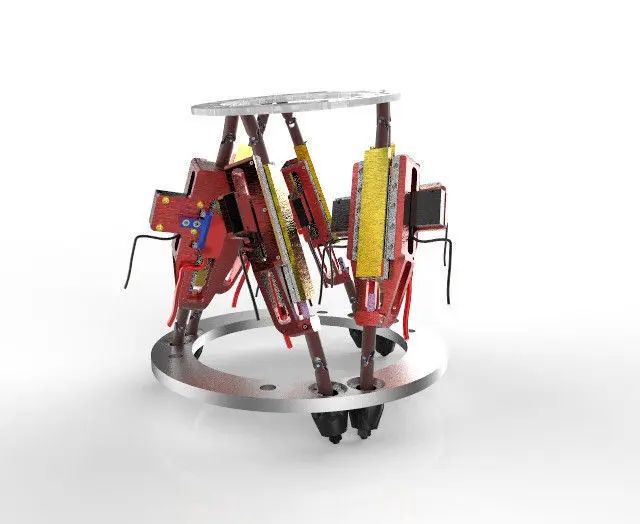

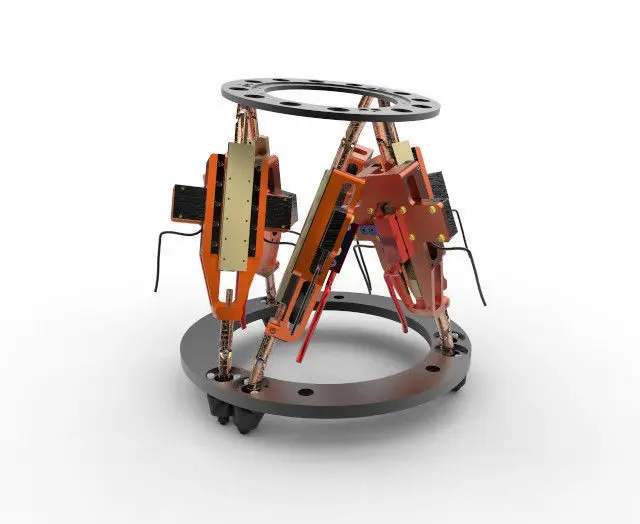

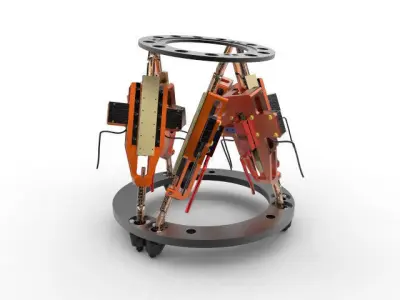

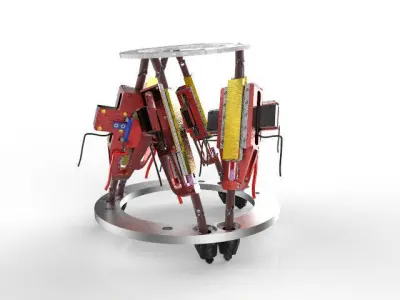

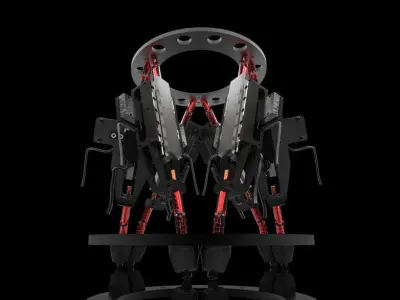

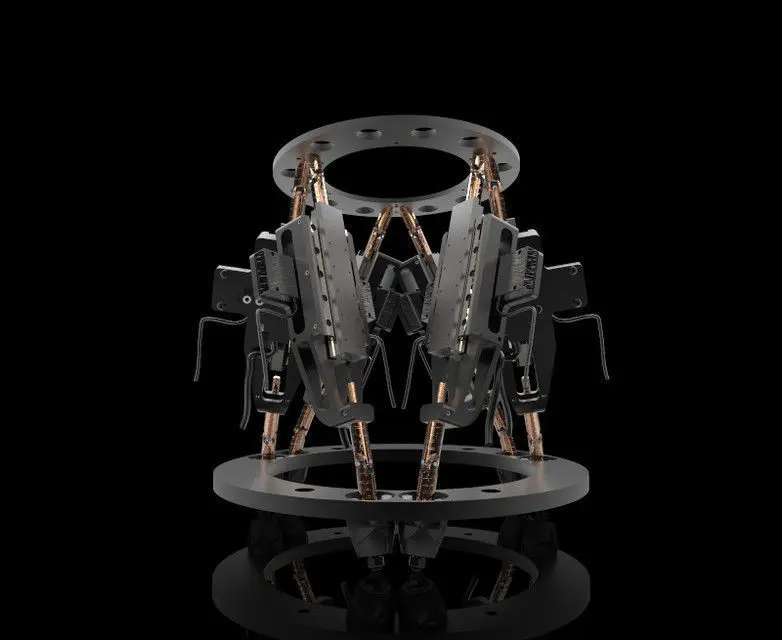

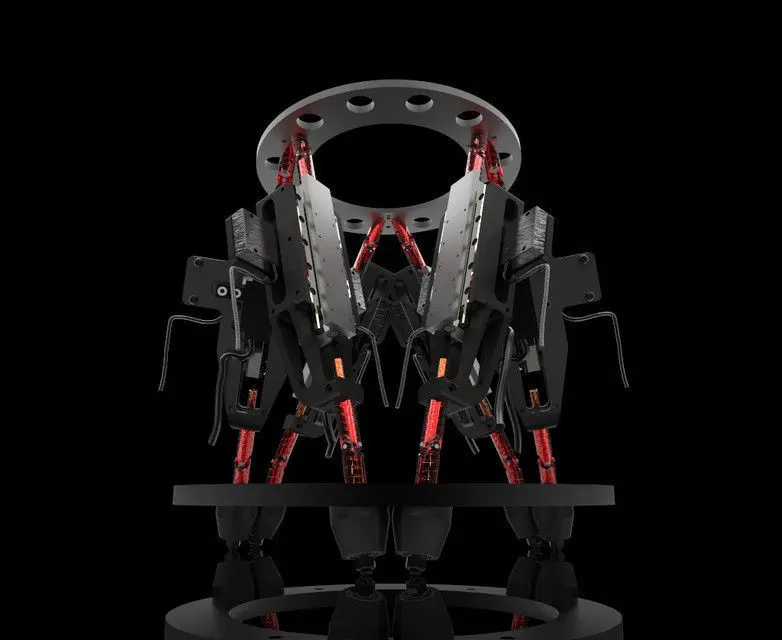

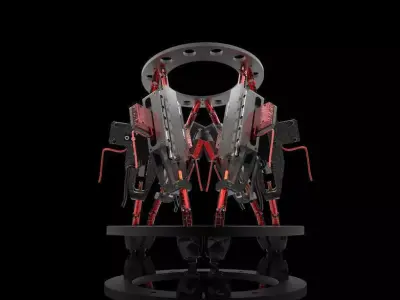

Name: Stewart platform 3D model
Brand: benrabah-takieddine
SKU: 875478
Price: 5.00 USD
Availability: InStock

License: Royalty Free

author:

benrabah-takieddine

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «benrabah-takieddine». CGhub does not claim copyright ownership over the content used.

A Stewart platform is a type of parallel robot that incorporates six prismatic actuators, commonly hydraulic jacks. These actuators are mounted in pairs to the mechanism's base, crossing over to three mounting points on a top plate. Devices placed on the top plate can be moved in the six degrees of freedom in which it is possible for a freely-suspended body to move. These are the three linear movements x, y, z (lateral, longitudinal and vertical), and the three rotations pitch, roll, & yaw. The term "six-axis" platform is also used.
