Stirling engine animated 3D model

$40

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

arti4077

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «arti4077». CGhub does not claim copyright ownership over the content used.

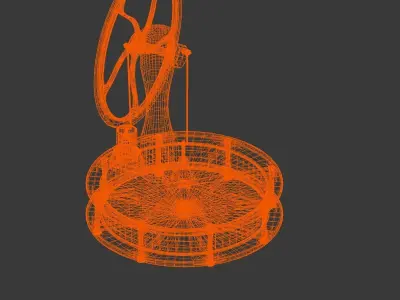

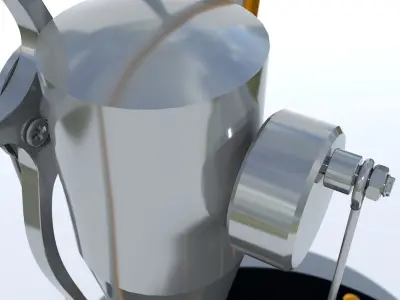

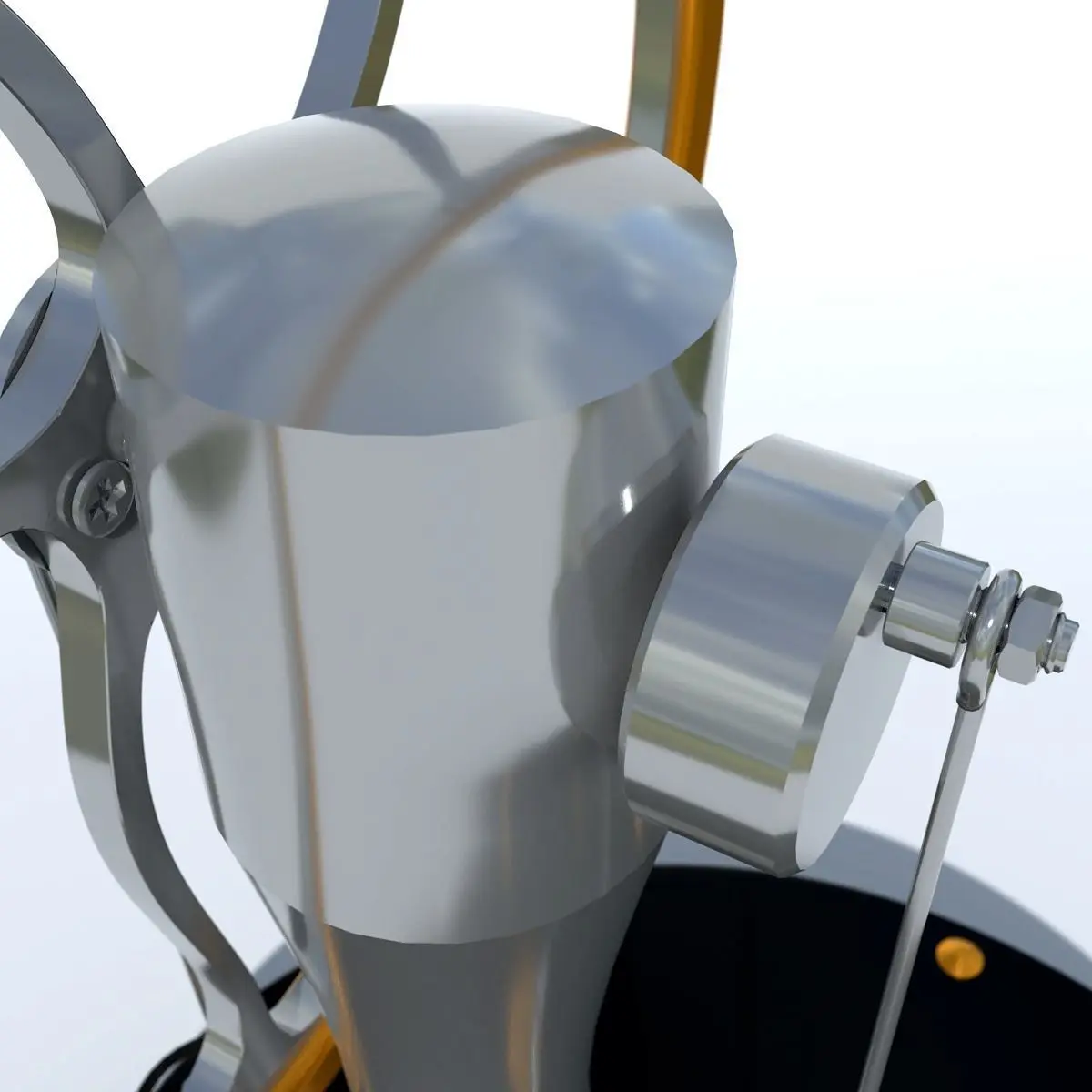

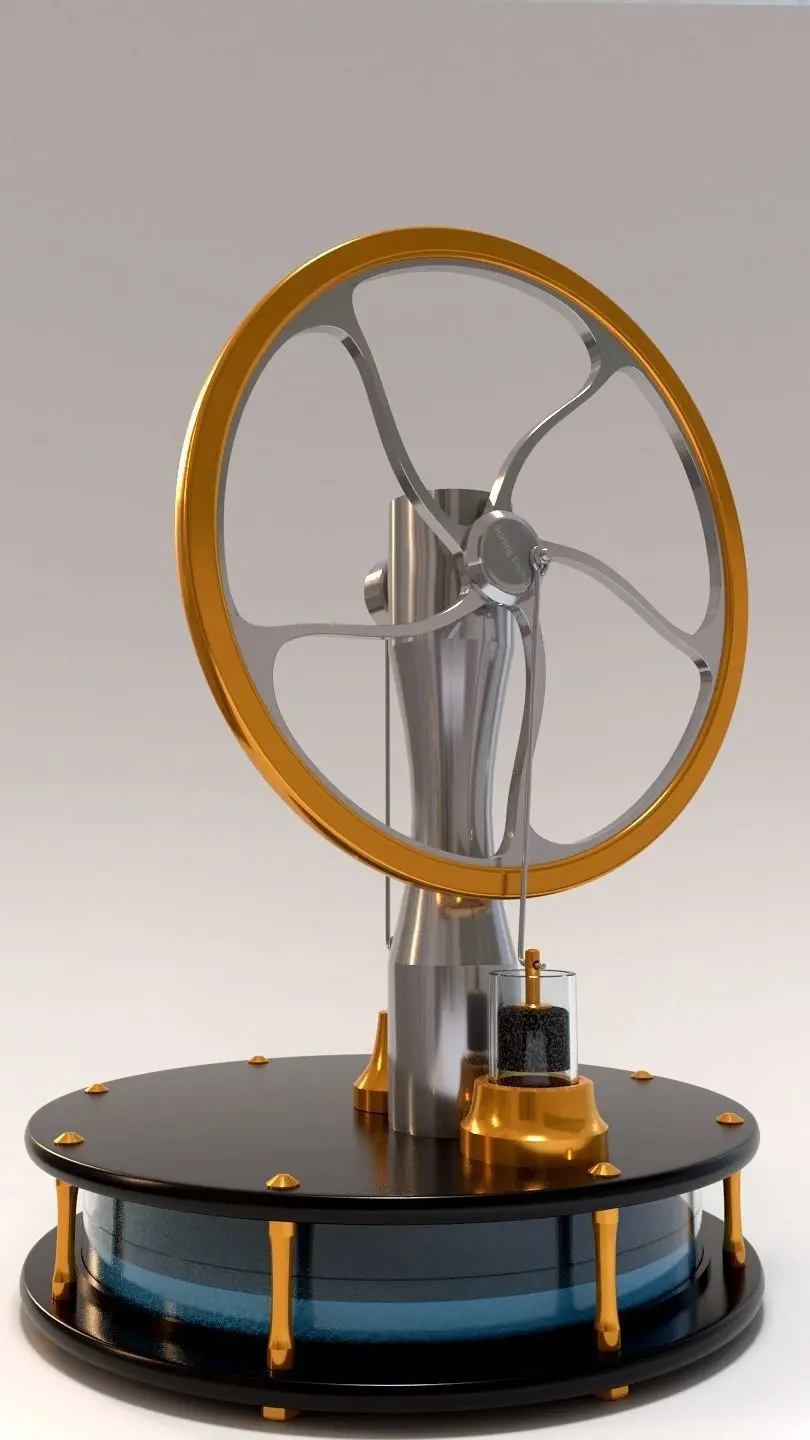

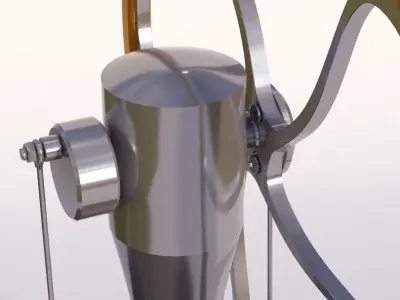

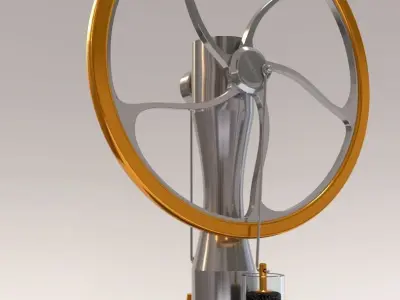

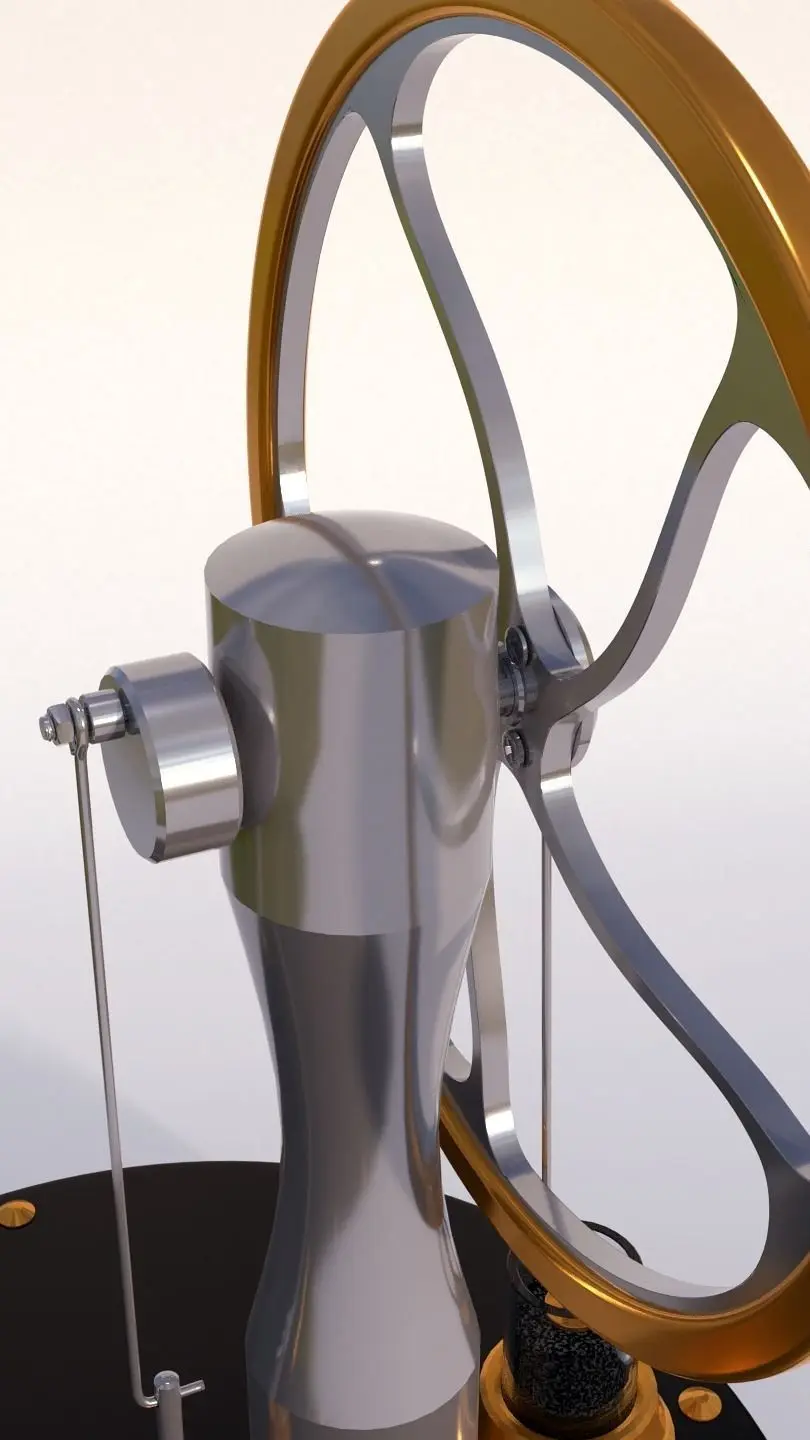

Animated model of a non-temperature Stirling engine. Built of steel and brass elements, it includes movable pistons, cylinders and a flywheel. From wikipedia: A Stirling engine is a heat engine that is operated by a cyclic compression and expansion of air or other gas (the working fluid) at different temperatures, such that there is a net conversion of heat energy to mechanical work. More specifically, the Stirling engine is a closed-cycle regenerative heat engine with a permanently gaseous working fluid. Closed-cycle, in this context, means a thermodynamic system in which the working fluid is permanently contained within the system, and regenerative describes the use of a specific type of internal heat exchanger and thermal store, known as the regenerator. Strictly speaking, the inclusion of the regenerator is what differentiates a Stirling engine from other closed cycle hot air engines.

Originally conceived in 1816 as an industrial prime mover to rival the steam engine, its practical use was largely confined to low-power domestic applications for over a century

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs:
Geometry: Unknown
Polygons: 33000
Vertices: 50000

Tags

Stirling Engine Heat Mechanical Power Machine Model Toy Device Heating Drive Pistons Flywheel Revs Steel Brass Tool Cylinder Shaft Industrial Industrial machine Drive shaft
