Structural Analysis 3D model

$40

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

Askutty

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Askutty». CGhub does not claim copyright ownership over the content used.

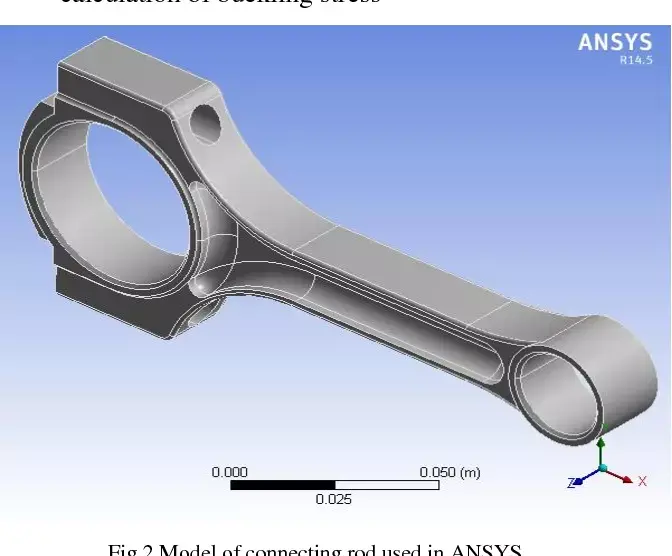

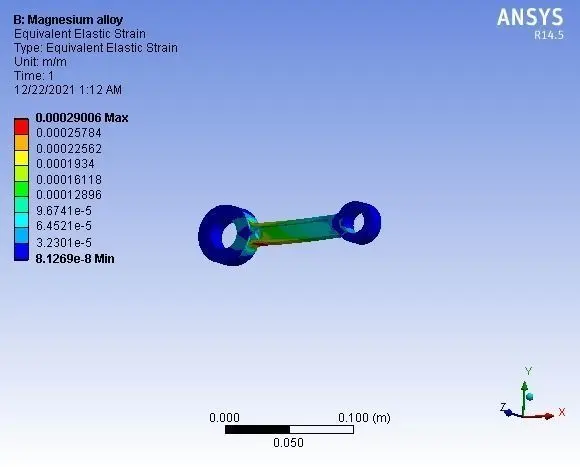

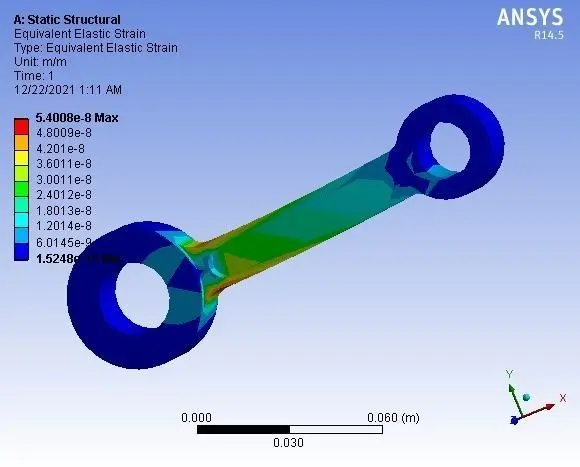

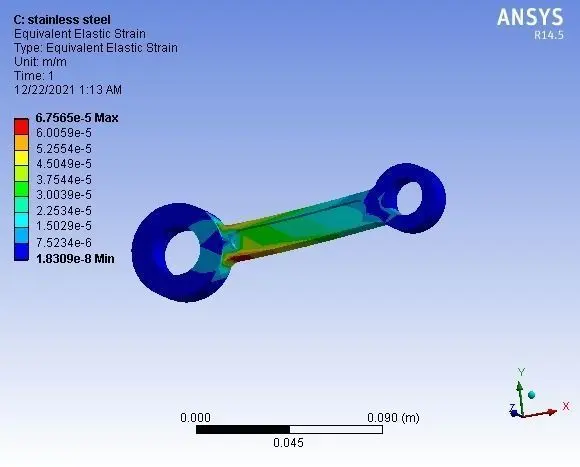

static structural Analysis of connecting rod using ansys workbench.This comparing materials are (stainless steel,structural steel,magnesium alloy).The solution is strain,stress._ File format_

Main file(.wbpj)2.Report (.pdf)3.images(.png)

Ansys is an American company based in Canonsburg, Pennsylvania. It develops and markets CAE/multiphysics engineering simulation software for product design, testing and operation and offers its products and services to customers worldwide.Ansys was founded in 1970 by John Swanson, who sold his interest in the company to venture capitalists in 1993. Ansys went public on NASDAQ in 1996. In the 2000s, the company acquired numerous other engineering design companies, obtaining additional technology for fluid dynamics, electronics design, and physics analysis. Ansys became a component of the NASDAQ-100 index on December 23, 2019.A connecting rod is the part of a piston engine which connects the piston to the crankshaft. Together with the crank, the connecting rod converts the reciprocating motion of the piston into the rotation of the crankshaft.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: no
Geometry: Other
Polygons: 0
Vertices: 0

Tags

Ansys Workbench Rod Connecting Analysing Analysis Engine Part Project Designproject Mechanical Vehicle Other Engineeringproject Design 3dmodel Vehicle part
