Publication date: 2014-12-04

Student 3 axis CNC Free 3D model

free

License: Royalty Free No Ai License

author:

mcluka

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «mcluka». CGhub does not claim copyright ownership over the content used.
Download at www.cgtrader.com Add to Wishlist
  • Description
  • Formats
Description

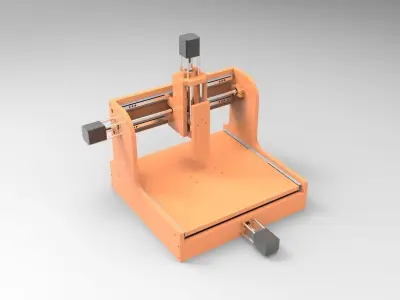

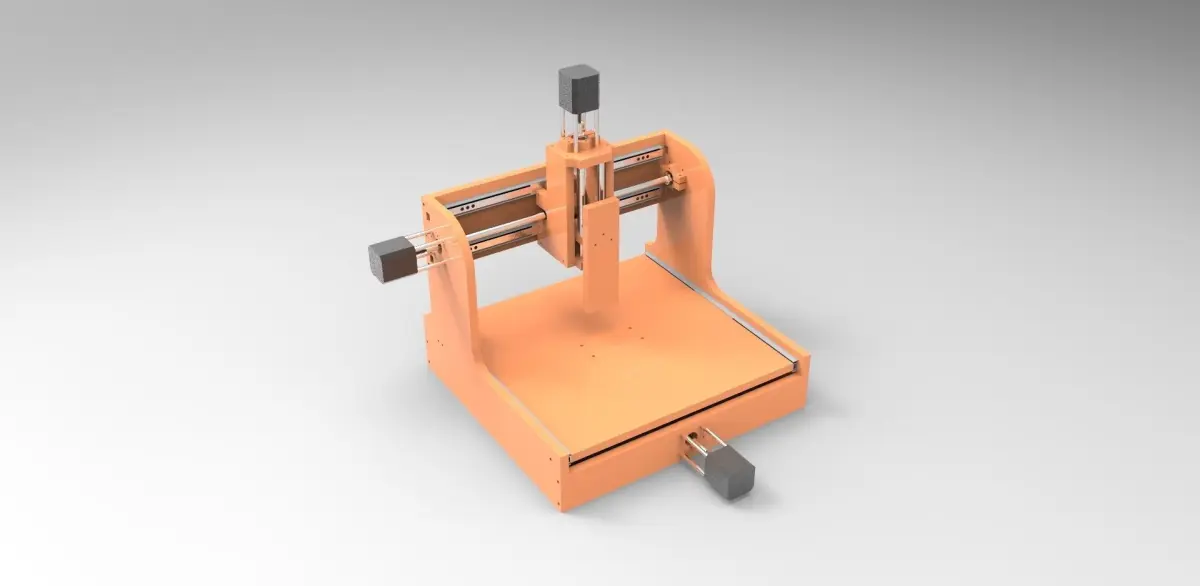

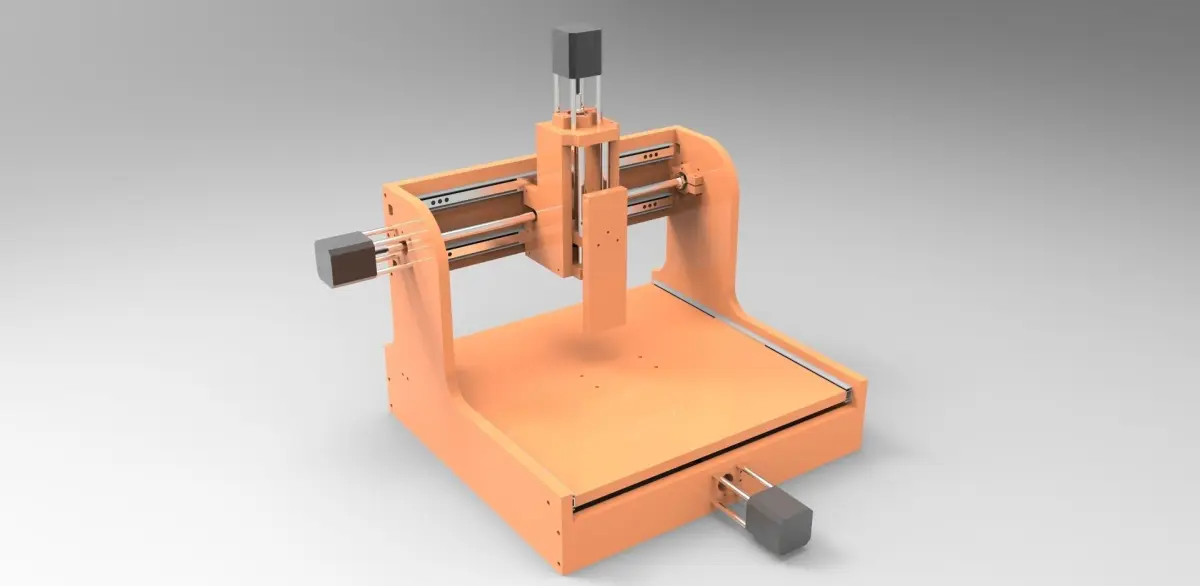

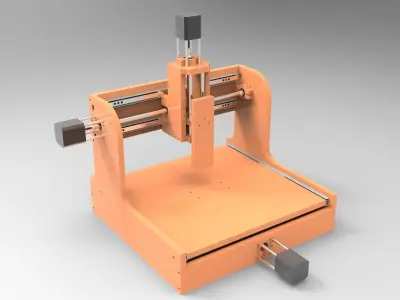

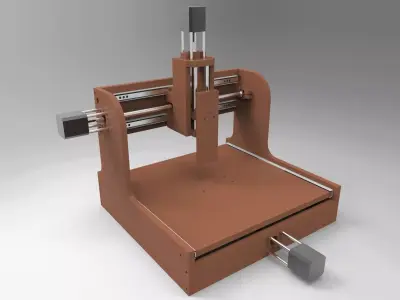

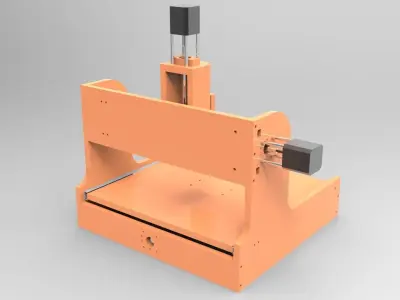

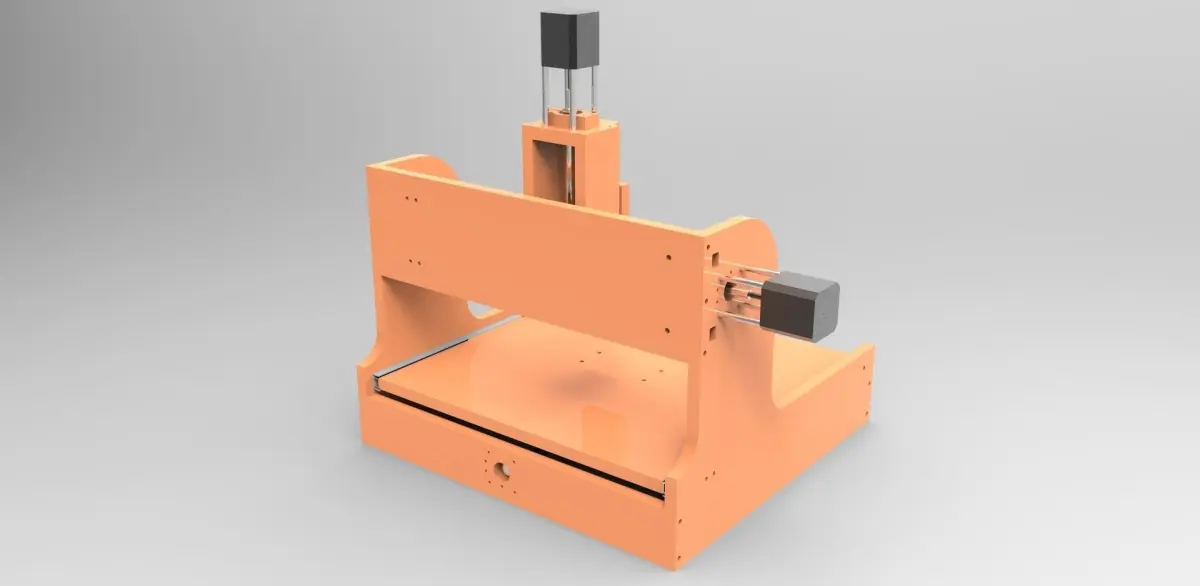

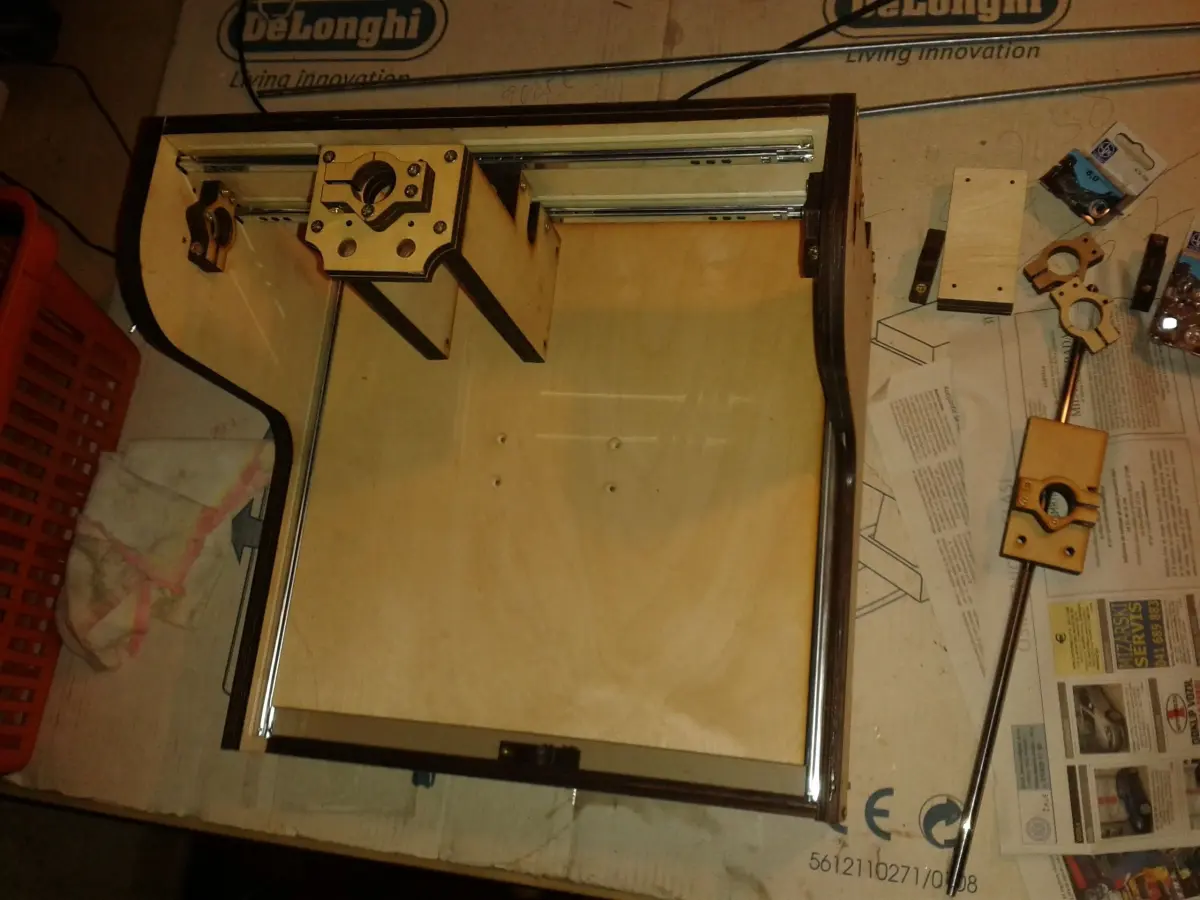

This is my first attempt of designing a cheap to fabricate student CNC. I will be trying to make this by myself. The total cost for parts is less then 50 dollars (without motors and electronics), in total the costs would be around 100-120 Euros (=160+ dollars).In the model I didn't include any screws because it would take too much time, but there are all the needed holes for them.

Feedback is welcome!

Regards,

mcluka

  • SolidWorks ()1.06 MB
  • DXF () (2 files)435 KB
  • IGES () (2 files)10.3 MB
