Buy super toggle clamp 3D model

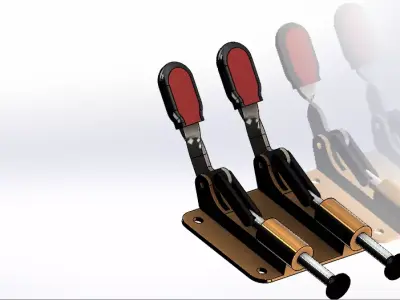

Name: super toggle clamp 3D model
Brand: saadondodado
SKU: 871226
Price: 3.00 USD
Availability: InStock

License: Royalty Free

author:

saadondodado

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «saadondodado». CGhub does not claim copyright ownership over the content used.

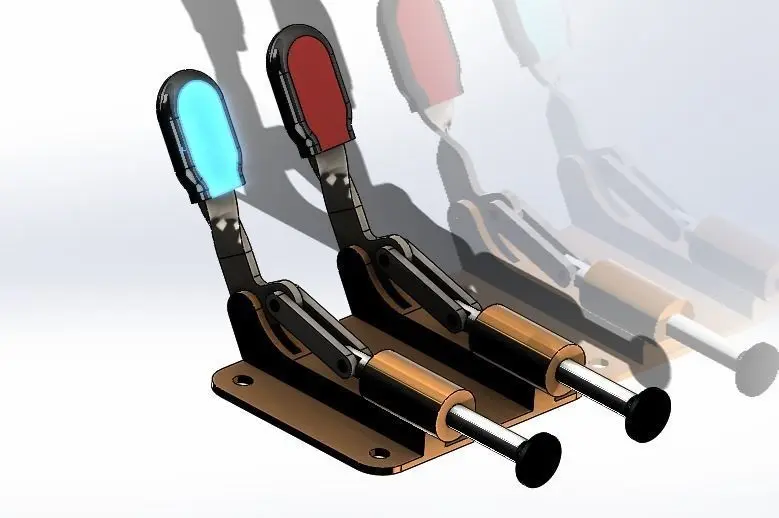

A toggle clamped mechanism is a simple mechanism that is used to hold instantaneously. In a toggle clamp there are two handles that can be used for operation, for reaching the workpiece there is a clamping arm, for multiplication of the force applied linkages are used and for mounting the workpiece a base is used. Handle are operated in such a way that it results in moving of clamping arm for holding the workpiece and then the clamping force are exerted to the workpiece and in this situation, the toggle clamped mechanism is used for holding the workpiece positively as well as firmly.
