Download Surma Cement Plant-Cyclone Preheater Free 3D model

Name: Surma Cement Plant-Cyclone Preheater Free 3D model
Brand: harvey-fonseca
SKU: 866857
Availability: InStock

free

License: Editorial No Ai

author:

harvey-fonseca

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «harvey-fonseca». CGhub does not claim copyright ownership over the content used.

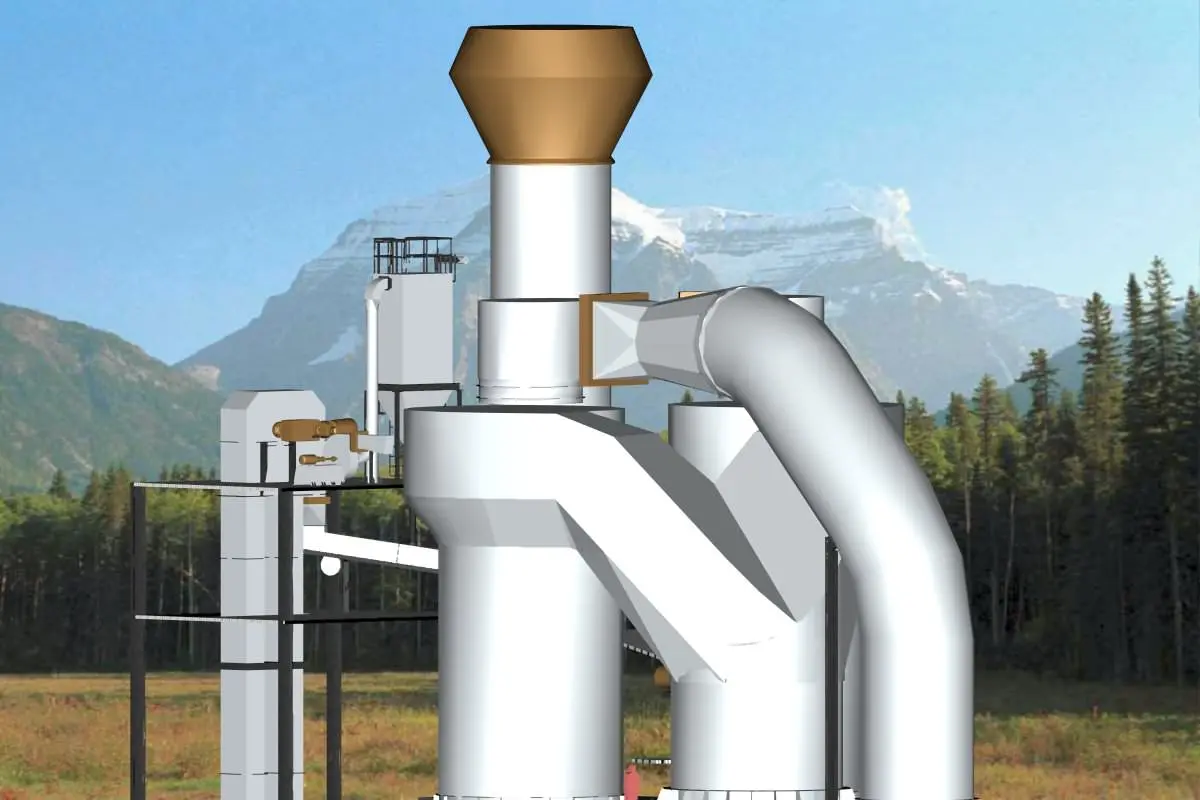

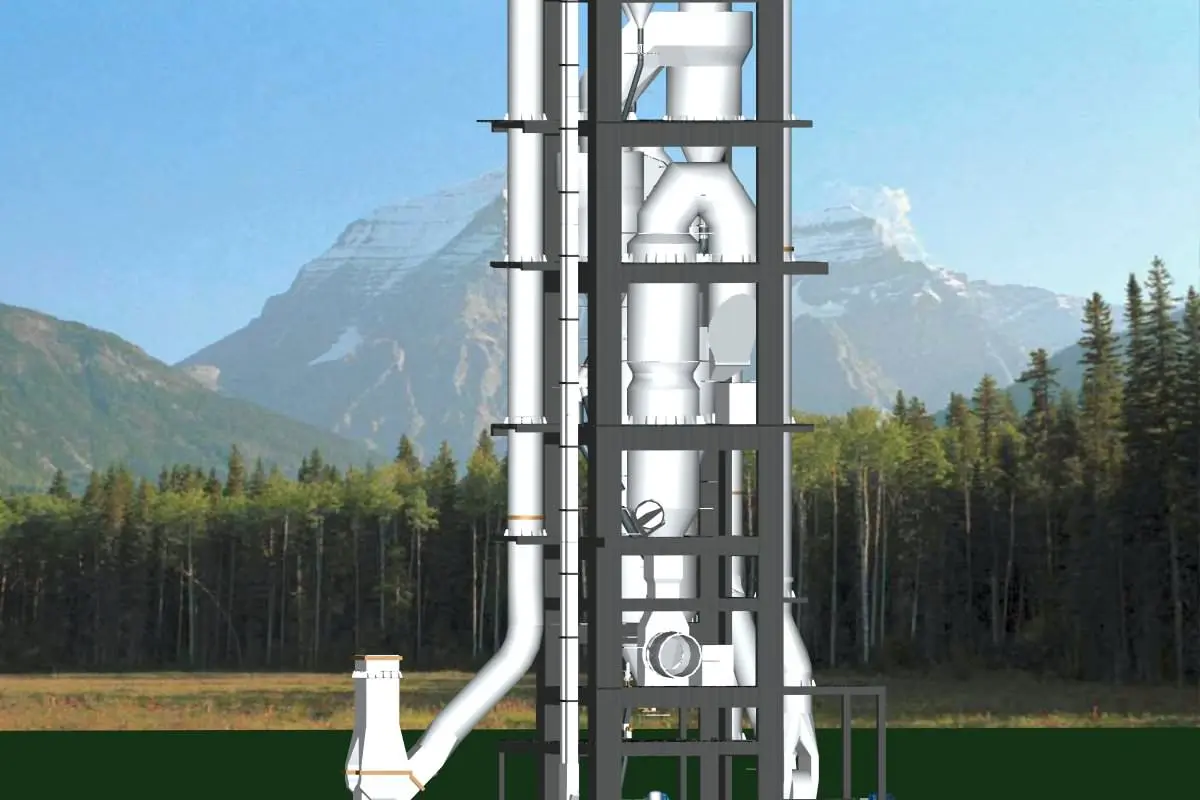

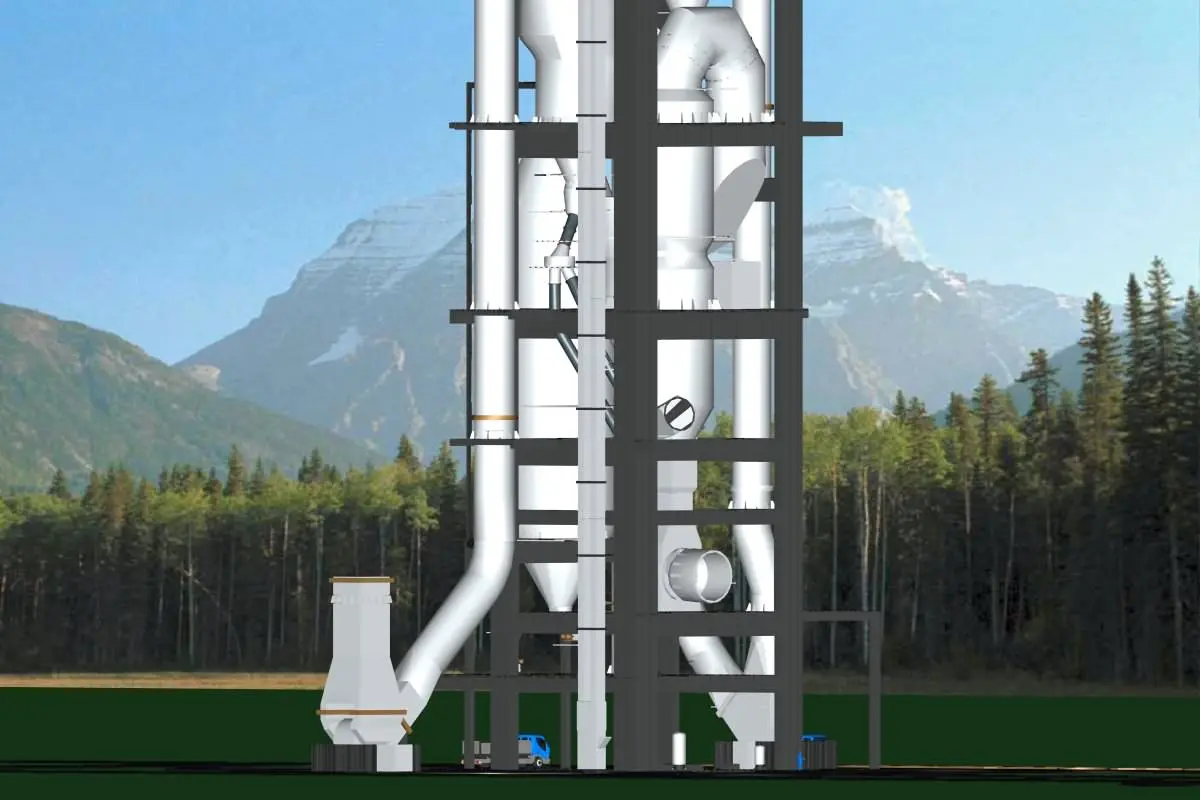

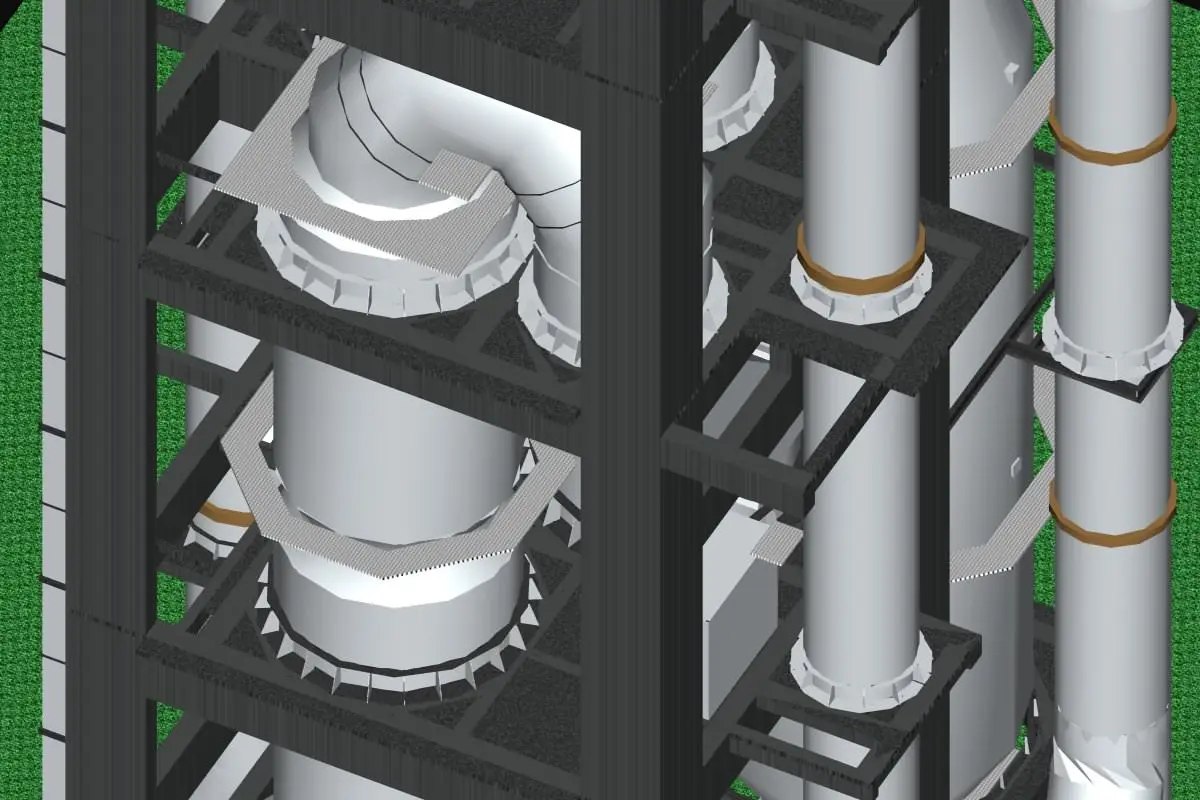

This is a 4 stage In line Calciner system (ILC) complete with Civil RCC structure. The plinth level is 11.5 m. The sizes of main equipment are: 1st stage Cyclone Dia. 5.4 m-2 Nos 2nd. 3rd & 4th Cyclone dia. 7.5 m Calciner dia. 7.2 m. Gas Conditioning Tower - dia. 9.8 x 27.0 m. Smoke Chamber – 2.5 x 2.65 m. Kiln – dia 4.55 m. Chimney – dia. 3.55 m. Enmass Conveyor, Fuel Gas station, Smoke gas fan, Bucket Elevator, Man, and Truck are other facilities given in Autocad 3D. Can be converted into other programs at your end.
