High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

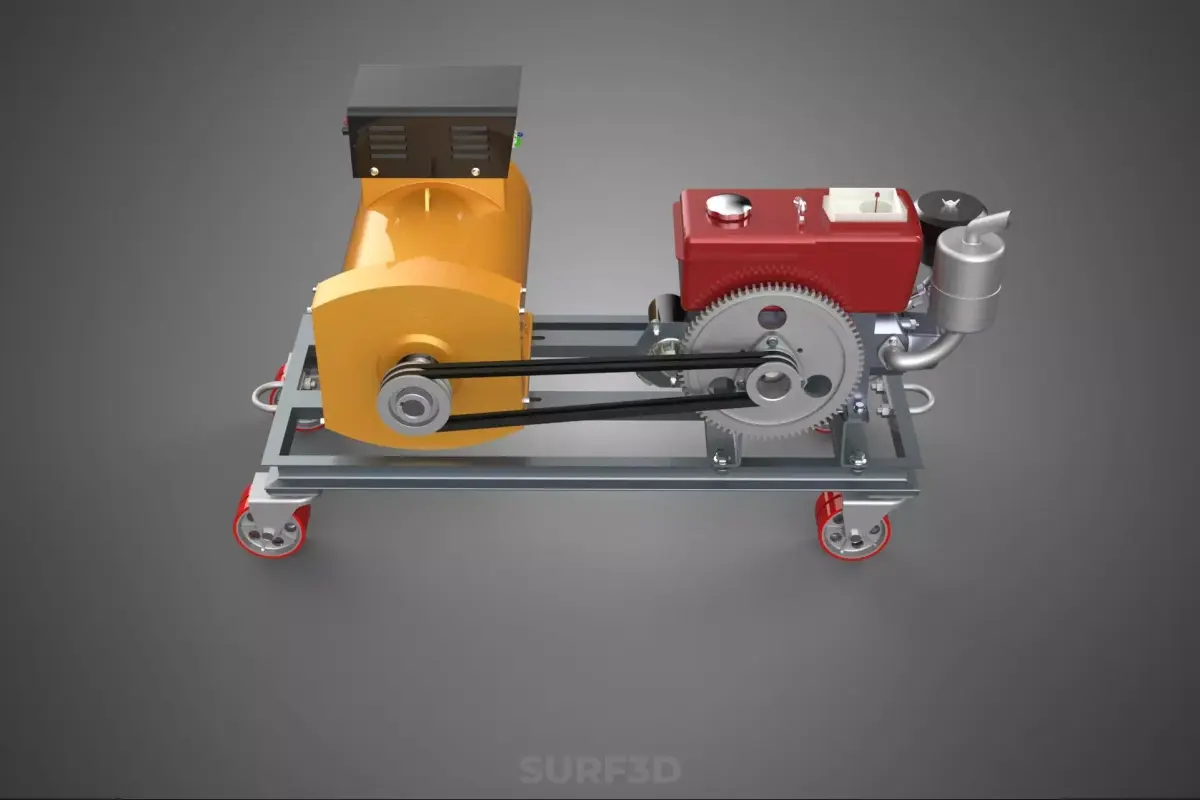

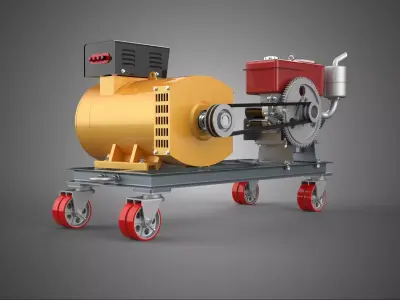

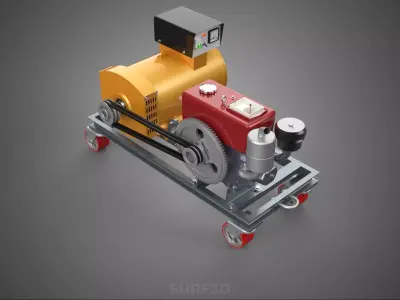

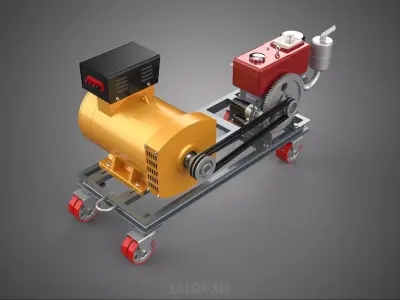

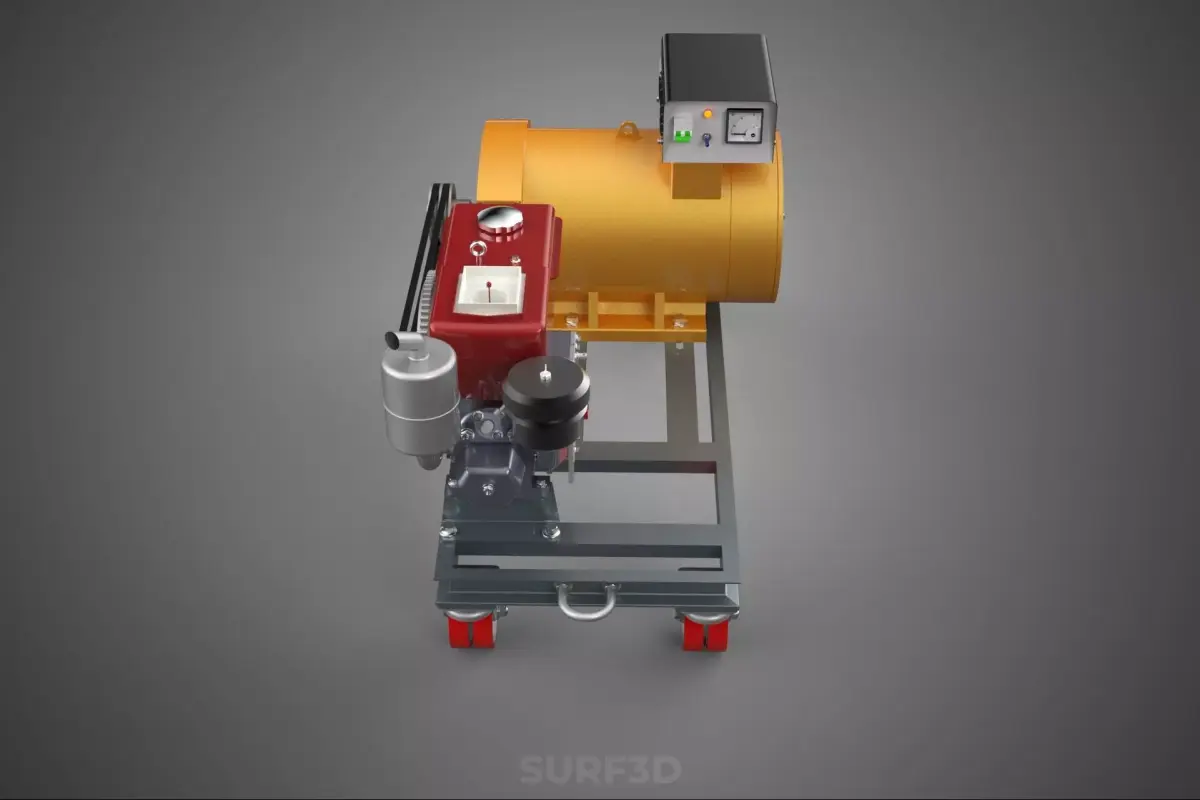

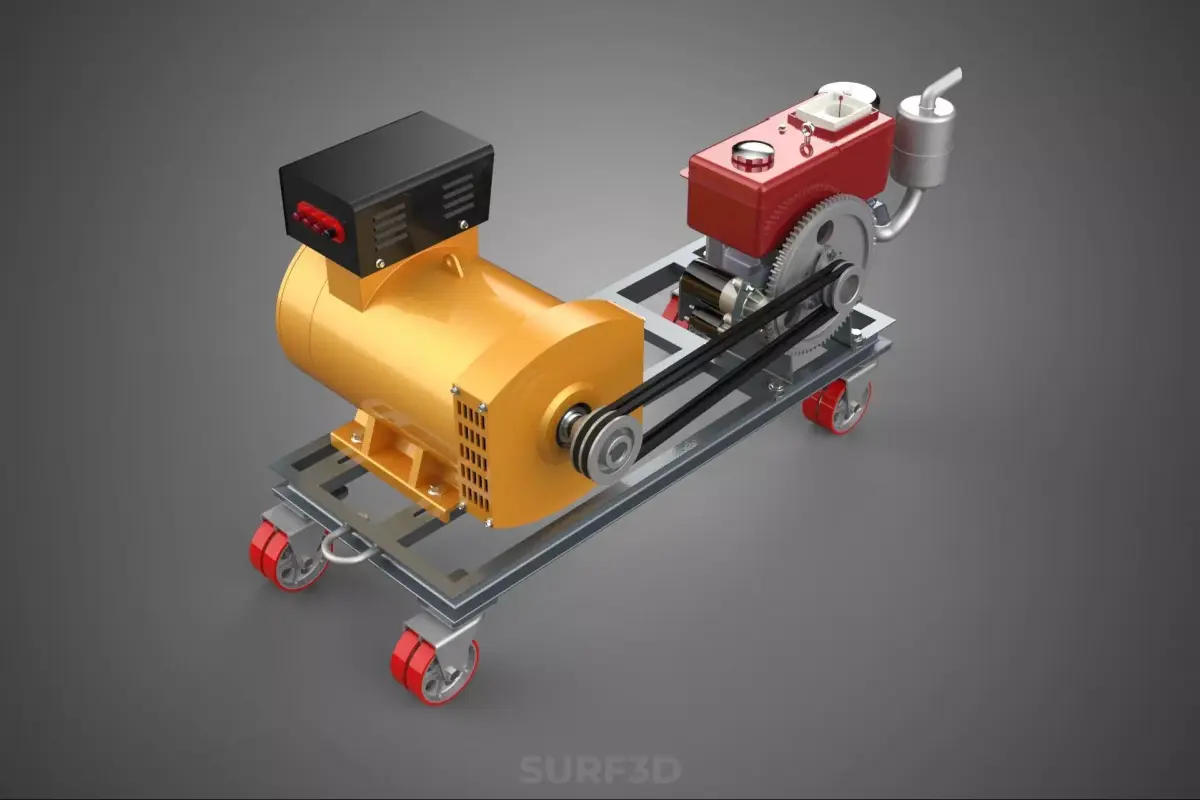

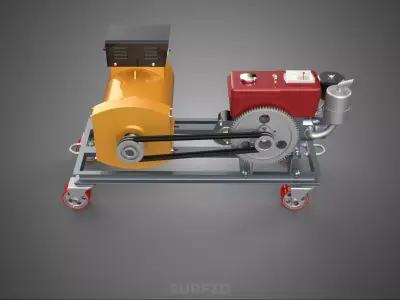

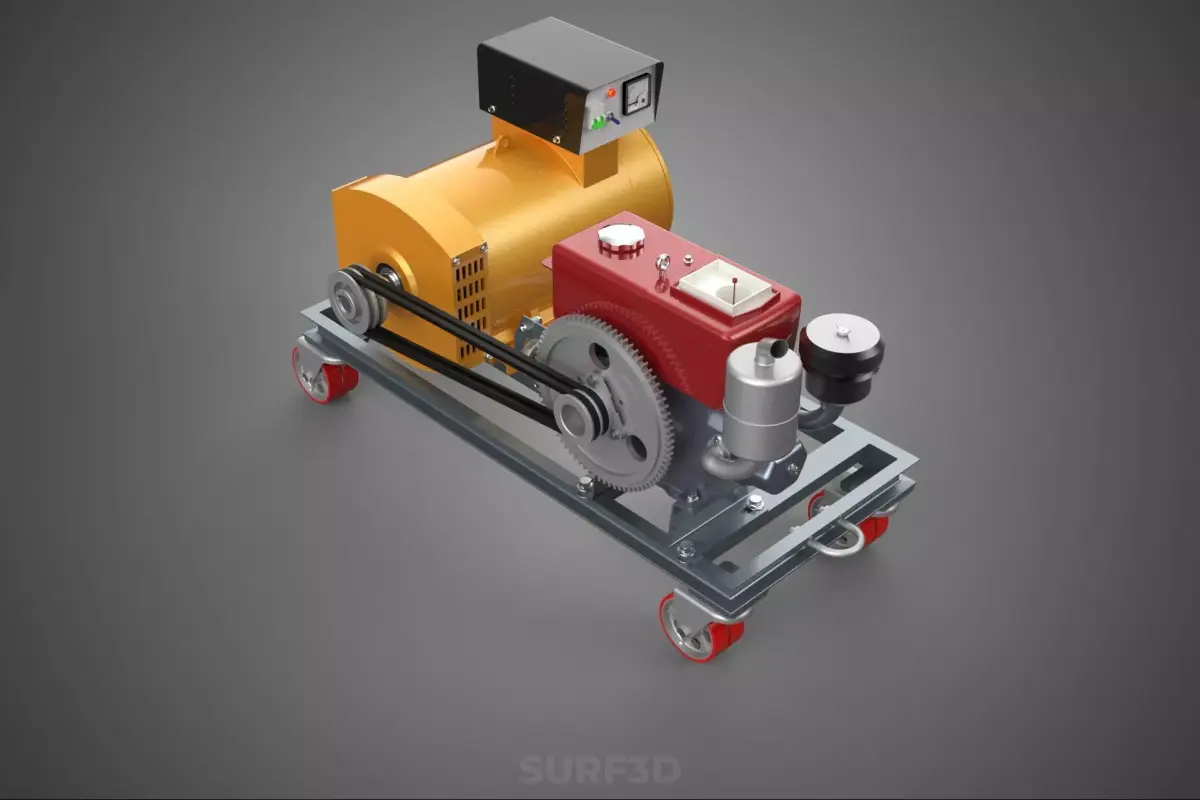

A diesel power generator set (genset) incorporating swivel caster wheels is defined as a mobile, self-contained electromechanical system engineered for the conversion of chemical energy (diesel fuel) into usable alternating current (AC) electrical power. This configuration is specifically designed for enhanced maneuverability and portability in non-vehicular environments, such as construction sites, temporary installations, industrial workshops, and emergency backup applications where rapid deployment and repositioning are necessary.
1. Apparatus Definition and System Integration
The assembly comprises three primary functional subsystems integrated onto a common, structurally rigid base frame (skid): the prime mover, the alternator, and the mobility platform.
1.1 The Prime Mover (Diesel Engine)
The power generation process begins with the prime mover, a compression-ignition internal combustion engine fueled by diesel. Diesel engines are favored in genset applications due to their high thermal efficiency, durability, superior torque characteristics, and favorable fuel consumption rates, particularly under high load conditions. The engine is responsible for converting the chemical energy of the fuel into rotational mechanical energy, which is characterized by rotational speed (RPM) and output torque. Engine governance systems, typically electronic or mechanical governors, maintain precise speed control to ensure the stability of the output frequency (e.g., 50 Hz or 60 Hz), a critical requirement for sensitive electrical loads.
1.2 The Alternator (Synchronous Generator)
The alternator is the electrical component responsible for generating AC power. It is mechanically coupled directly (close-coupled or single-bearing design) or indirectly to the engine crankshaft. Operating on the principle of electromagnetic induction, the alternator converts the mechanical energy supplied by the prime mover into electrical energy.
The typical construction of an alternator involves:
- The Stator: The stationary component containing the main output windings where the current is induced.
- The Rotor: The rotating magnetic field component, which is energized either via slip rings or, more commonly in modern units, through a brushless exciter system for reduced maintenance and increased reliability.
The alternator is sized based on its continuous rated power output (kVA or kW) and must be robustly constructed to withstand the transient electrical demands imposed by load fluctuations, such as motor starting (inrush current).
### 2. Mobility System: Swivel Caster Wheels
The defining feature of this specific configuration is the implementation of swivel caster wheels, often replacing fixed mounting skids or standard rigid wheels.
#### 2.1 Function and Design
Swivel casters are assemblies featuring a wheel mounted on a yoke and a bearing-equipped raceway, allowing the wheel to pivot 360 degrees around a vertical axis. This design grants the genset omnidirectional maneuverability when not operational, enabling precise positioning within confined spaces.
For industrial and heavy-duty gensets, these casters must possess high load-bearing capacity, often utilizing materials such as polyurethanes, specialized nylon polymers, or reinforced steel. They are designed to manage the substantial static load and dynamic forces generated by the weight and vibration of the engine-alternator package. To ensure stability and safety during operation, these caster systems are invariably equipped with total-lock brakes, which simultaneously lock the swivel rotation and the wheel rotation, preventing drift and transmission of excessive movement to connected loads.
### 3. Applications and Configuration
Gensets equipped with swivel casters typically range from small portable units (under 10 kVA) used for tools and lighting, up to medium-sized commercial standby units (50–150 kVA) utilized in laboratories, data centers, or emergency healthcare settings where the generator might need to be shifted slightly for maintenance or access.
The overall configuration typically includes:
- A Control Panel: Housing the engine controller, monitoring instruments (voltage, frequency, amperage, oil pressure, coolant temperature), and circuit protection devices (breakers).
- Fuel Storage: An integrated base fuel tank sized for specified run times (e.g., 8–24 hours).
- Sound Attenuation: Often enclosed within a sound-dampening canopy to mitigate noise pollution, particularly when used indoors or in urban environments.
The use of swivel casters dictates that the operating floor must be level and structurally sound to safely support the unit's weight and absorb operational vibrations.
KEYWORDS: Diesel Generator, Genset, Alternator, Swivel Caster, Mobile Power, Synchronous Machine, Prime Mover, Emergency Power, AC Power Generation, Internal Combustion Engine, Portability, Industrial Equipment, Power System, Engine Governor, Electrical Load, Kilovolt-Ampere, Kilowatt, Base Frame, Skid Mount, Brushless Exciter, Sound Attenuation, Maneuverability, Standby Generator, Load Bearing, Torque, Frequency Stability, Control Panel, Compression Ignition, Electromechanical System, Heavy Duty.
