The model contains the most popular formats:
- 3DS MAX: *.max
- Blender: *.blend
- Rhinoceros: *.3dm
- SketchUp: *.skp
- Wavefront OBJ: *.obj *.mtl (Multi Format)
- FBX: *.fbx (Multi Format)
- STEP: *.step *.stp (NURBS)
- IGES: *.iges *.igs (NURBS)
- ACIS: *.sat (NURBS)
- 3DS MAX all ver.: *.3ds (Multi Format)
- Stereolithography: *.stl
- AutoCAD: *.dwg
- Each file was checked for opening and full content by the model.
- The 3D model was created on real base. It’s created accurately, in real units of measurement, qualitatively and maximally close to the original.
- Renders Are made in Luxion Keyshot
- “WE PROVIDE 3D MODEL CHEAP PRICE BUT WITH GOOD QUALITY”
- If you need any other formats we are more than happy to make them for you. Contact me for any question :)

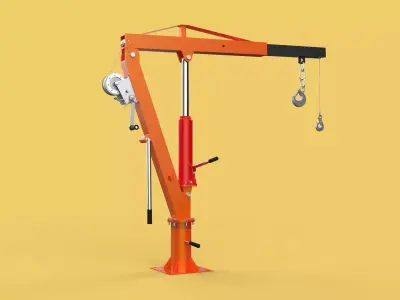

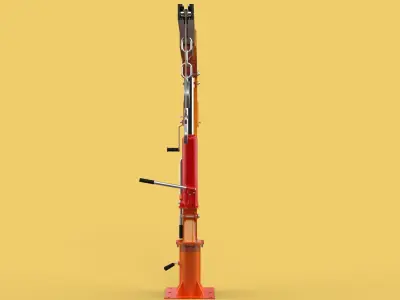

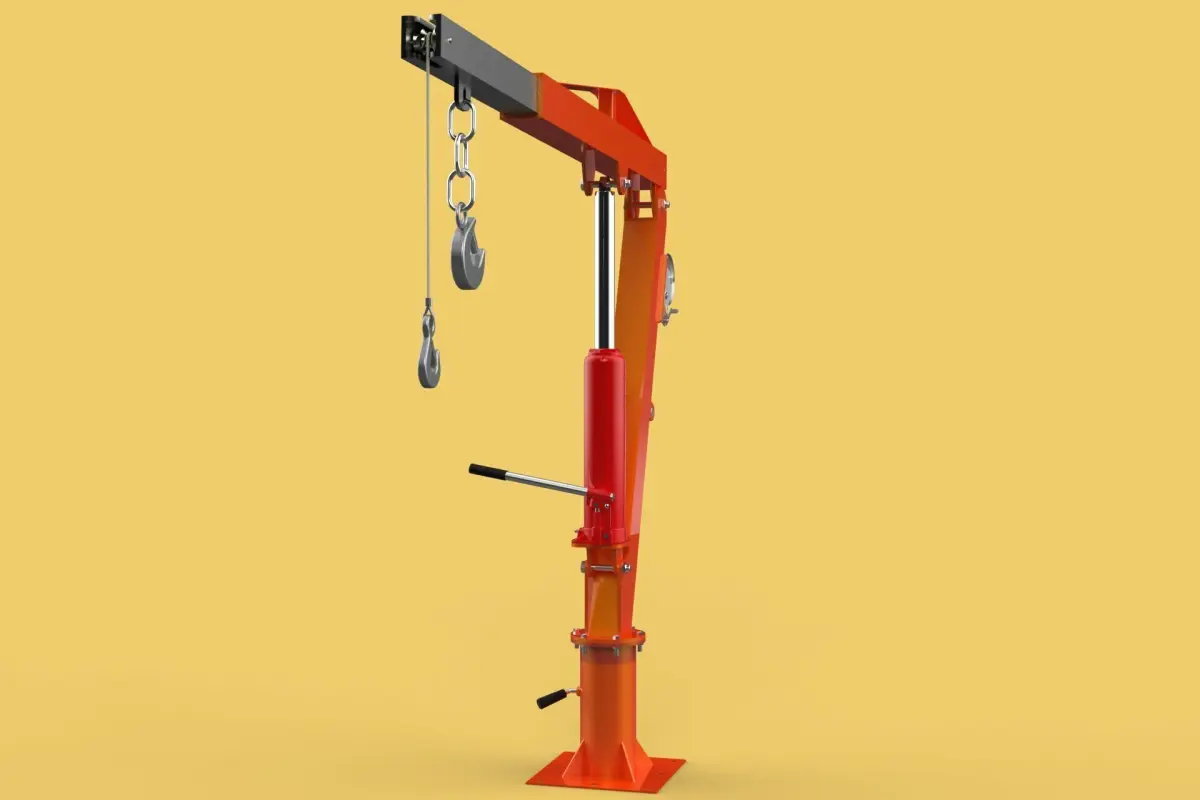

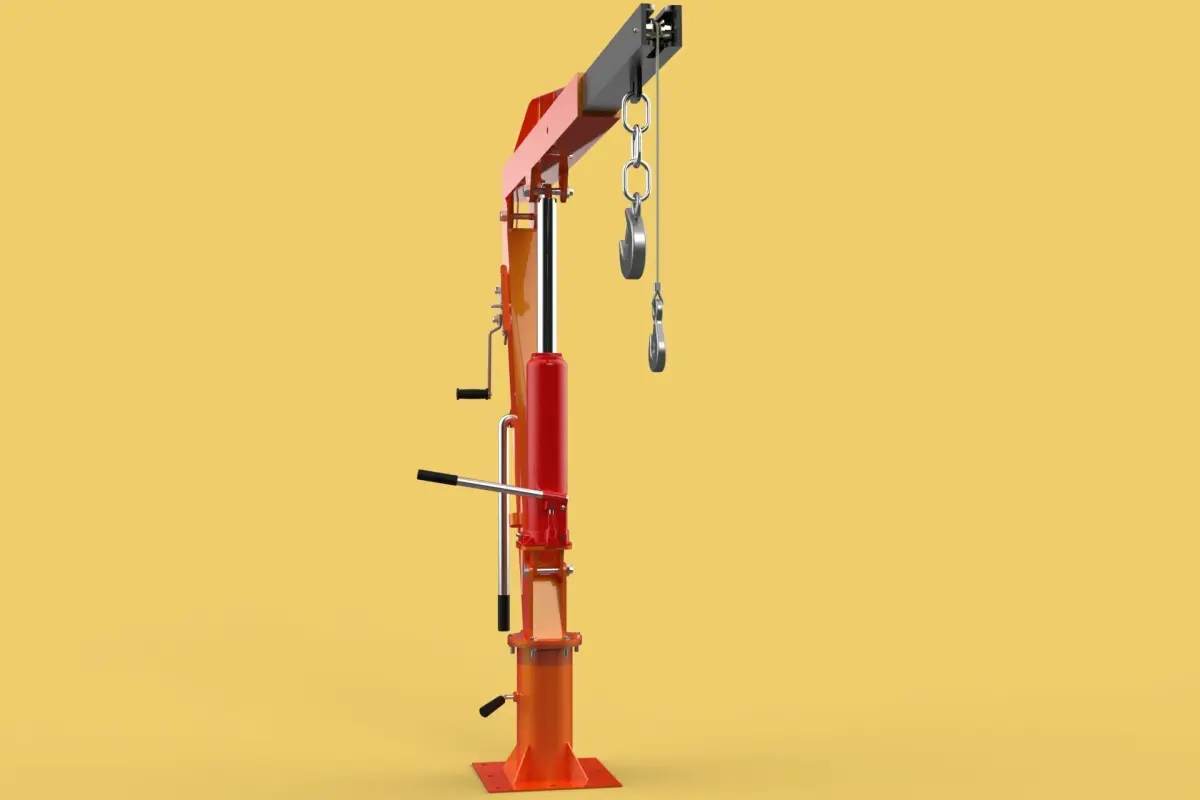

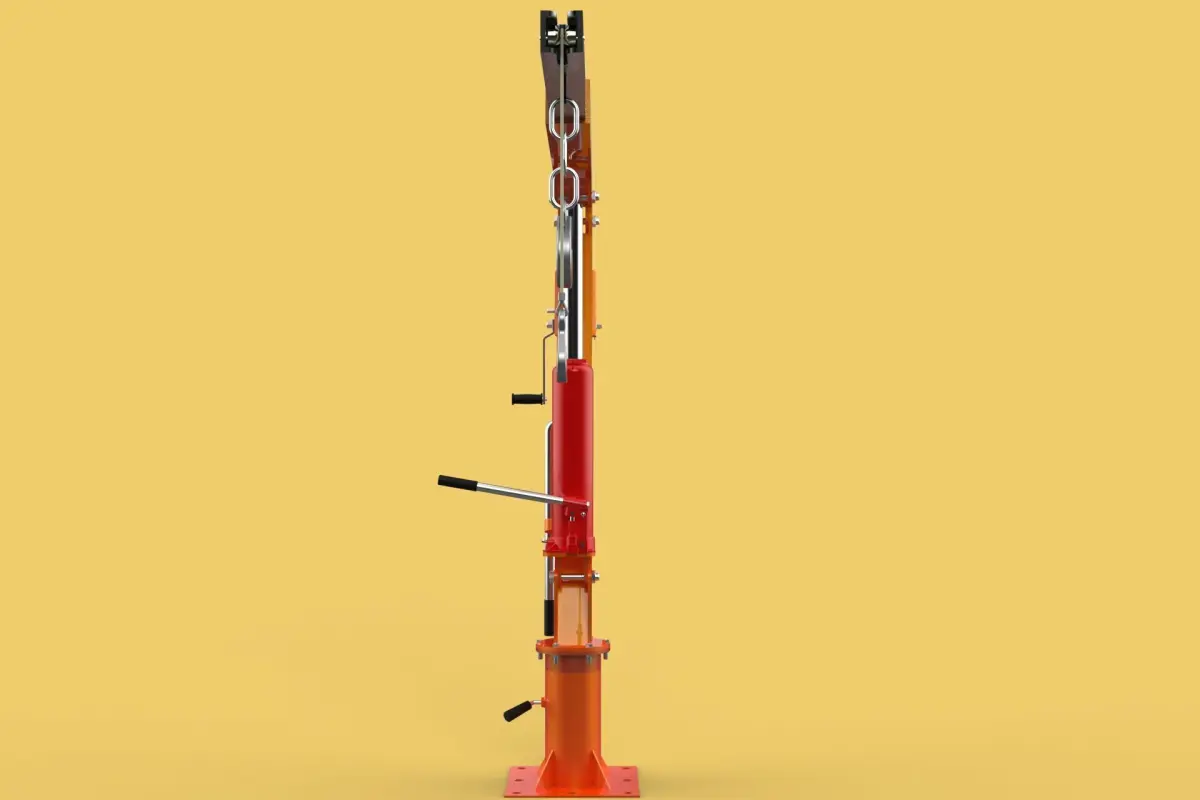

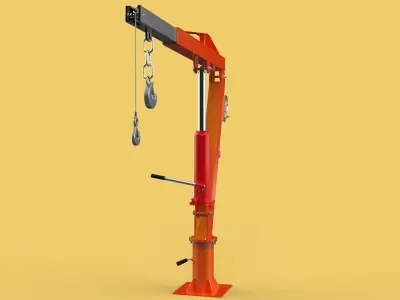

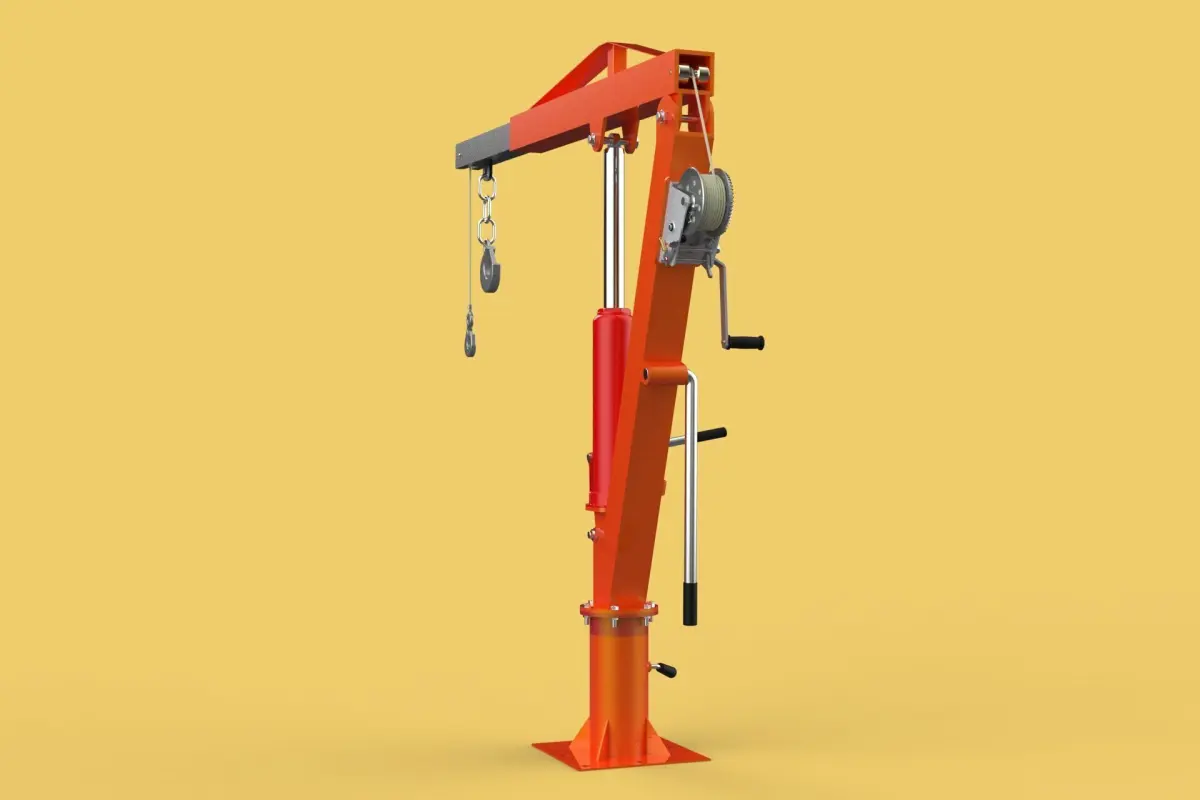

Sincerely Your, SURF3DMORE INFORMATION ABOUT 3D MODELS :HYDRAULIC SWIVEL LIFTING WORKSHOP CRANE WITH MANUAL HAND CRANK WINCH: Controlled Power and Versatile Reach
This describes a robust lifting device designed for workshop environments, combining the controlled power of a hydraulic lifting system with the versatility of a swiveling boom and the manual operation of a hand crank winch for precise load positioning. This type of crane offers a balance of strength, maneuverability, and fine control for various lifting tasks within a workshop setting.
Key Features and Functionality:
Workshop Crane: Designed for stationary use within a workshop or similar enclosed environment. Typically mounted to the floor or a sturdy base for stability.Hydraulic Lifting System: Utilizes hydraulic cylinders and a pump (often hand-operated or foot-operated) to provide powerful and controlled vertical lifting of loads. Hydraulic systems offer significant lifting capacity and smooth operation.
Swivel/Slewing Boom: Features a jib arm that can rotate horizontally (slew) around a central pivot point. This allows the operator to lift and position loads within a wide arc without moving the entire crane base. The swivel mechanism can often be locked in place for stability.Manual Hand Crank Winch: Incorporates a hand-cranked winch mechanism for the precise horizontal movement or fine adjustment of the lifted load along the jib arm. This allows for accurate positioning of items before lowering.Hook Attachment: A sturdy hook at the end of the lifting cable or chain (connected to the hydraulic cylinder) for secure attachment to various loads using slings, chains, or other lifting hardware.Load Capacity: Designed with a specific lifting capacity determined by the hydraulic system's capabilities and the crane's structural strength.Adjustable Boom Length (in some models): Some workshop cranes may feature an extendable jib arm to provide variable reach depending on the task.
Safety Features: Includes safety mechanisms such as overload valves in the hydraulic system, locking pins for the swivel mechanism, and potentially a brake on the winch to prevent uncontrolled lowering.Sturdy Base: Mounted on a stable base to ensure safety and prevent tipping during lifting operations. May include wheels or casters for limited mobility within the workshop.Benefits:
Powerful and Controlled Lifting: The hydraulic system allows for lifting heavy loads with relative ease and precise control.Versatile Reach: The swiveling boom provides a wide working radius, allowing access to different areas within the workshop.Precise Positioning: The manual hand crank winch enables fine-tuning of the load's horizontal position.Safety: Built-in safety features protect the operator and the load.Durability: Constructed from robust materials to withstand the demands of workshop use.Independent Operation (Hydraulic Hand/Foot Pump): Does not always require an external power source (depending on the hydraulic pump type).Potential Applications:
Machine Shops: Lifting and positioning heavy machinery parts, workpieces, and tools.Automotive Repair Shops: Lifting engines, transmissions, and other vehicle components.
Fabrication and Welding Workshops: Moving heavy materials and assemblies.Maintenance and Repair Facilities: Lifting and positioning equipment for maintenance.
Assembly Lines: Assisting in the lifting and placement of components during manufacturing.Educational Institutions: Providing a safe and versatile lifting tool for training purposes.In summary, a hydraulic swivel lifting workshop crane with a manual hand crank winch offers a powerful, versatile, and controlled lifting solution for workshop environments, combining the strength of hydraulics with the precise positioning capabilities of a manual winch and a wide working radius provided by the swiveling boom.
